EnGenius Cloud Managed Wi-Fi 7 4x4x4 Access Point ECW536 supports tri-concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to11, 600 Mbps on 6 GHz, 5, 800 Mbps (5 GHz), and up to 1, 400 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

Unleash the Power of Wi-Fi 7 with 10G Ethernet Ports
The 10G Ethernet ports allow faster and more efficient communication between the Wi-Fi 7 access points and the switches. This provides seamless integration with the existing network infrastructure that supports higher data rates and reduces the bottlenecks of networks.

Experience Ultimate Speed with Wi-Fi 7
The ECW536 Wi-Fi 7 wireless access point provides ultra-fast transmission speeds, especially over 11 Gbps in the 6 GHz band, and a total of up to 19 Gbps, ensuring a seamless and reliable experience in various scenarios.

Easy Networking with EnGenius Cloud To-Go
Remote management of Access Points anytime and anywhere with the feature-rich and intuitive EnGenius Cloud To-Go mobile app.

Specification

Product
Product id	987871
Brand	EnGenius
Partnr	ECW536
EAN/UPC code	4711488350117
Warranty (months)	2 Years
Packaging data
Mounting kit	Y
Quick start guide	Y
Features
2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	11600 Mbit/s
6 GHz	Y
Maximum data transfer rate (2.4 GHz)	1400 Mbit/s
Maximum data transfer rate (5 GHz)	5800 Mbit/s
Maximum data transfer rate (6 GHz)	11600 Mbit/s
Ethernet LAN data rates	10000 Mbit/s
Frequency band	2.4 - 7.125 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r
Number of users	512 gebruiker(s)
MIMO	Y
MIMO type	Multi User MIMO
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Ports & interfaces

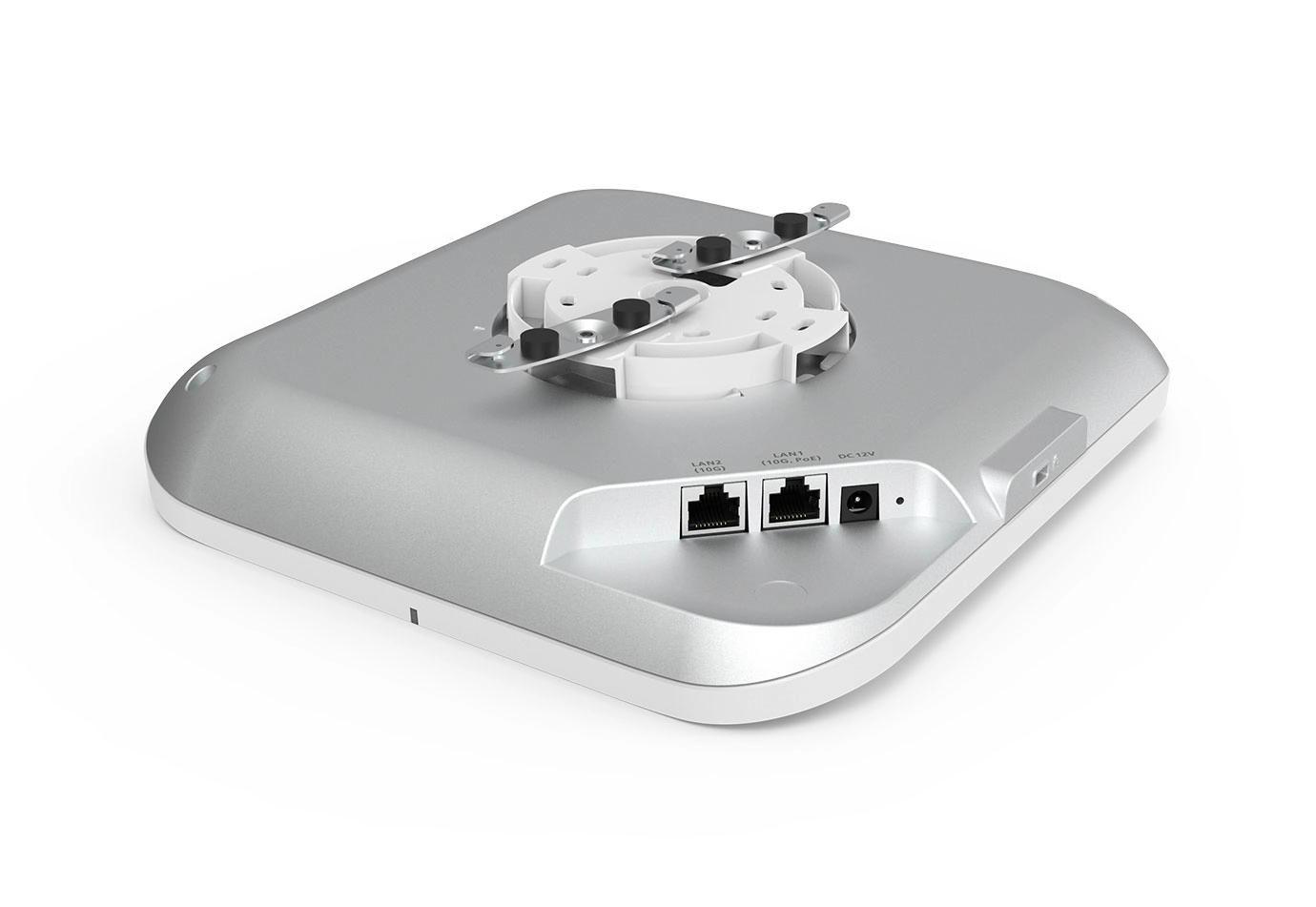

Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Power
Power over Ethernet (PoE)	Y
DC voltage range	12 V
Power consumption (max)	38 W
Design
Placement	Ceiling, Table, Wall
Product colour	White
LED indicators	Y
Antenna
Antenna type	Internal
Operational conditions
Operating relative humidity (H-H)	0 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Storage relative humidity (H-H)	0 - 90 procent
Technical details
Sustainability compliance	Y
Compliance certificates	CE, Federal Communications Commission (FCC)
Packaging content
Quantity per pack	1 stuk(s)
Weight & dimensions
Width	230 mm
Depth	230 mm
Height	39.5 mm
Weight	1270 g
