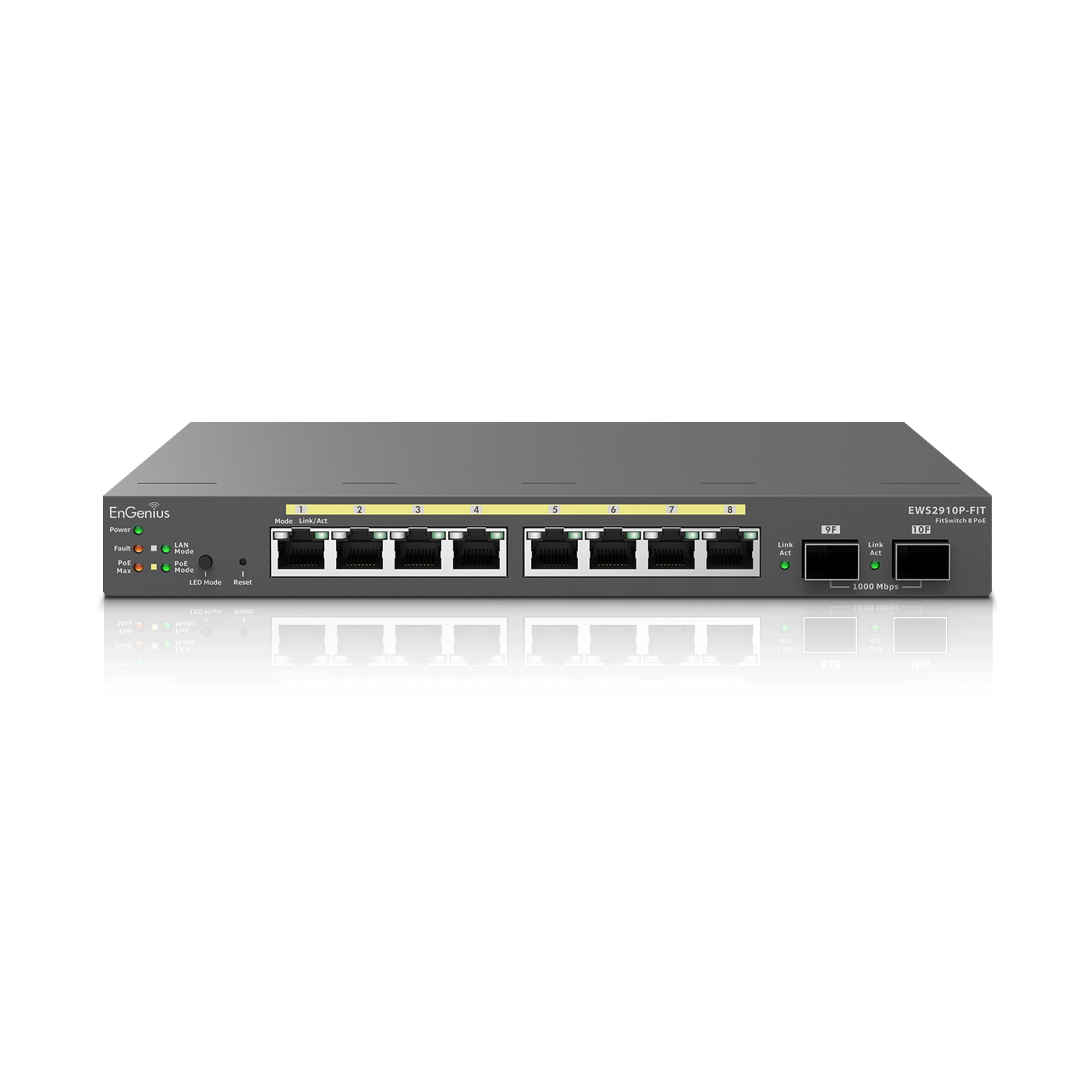

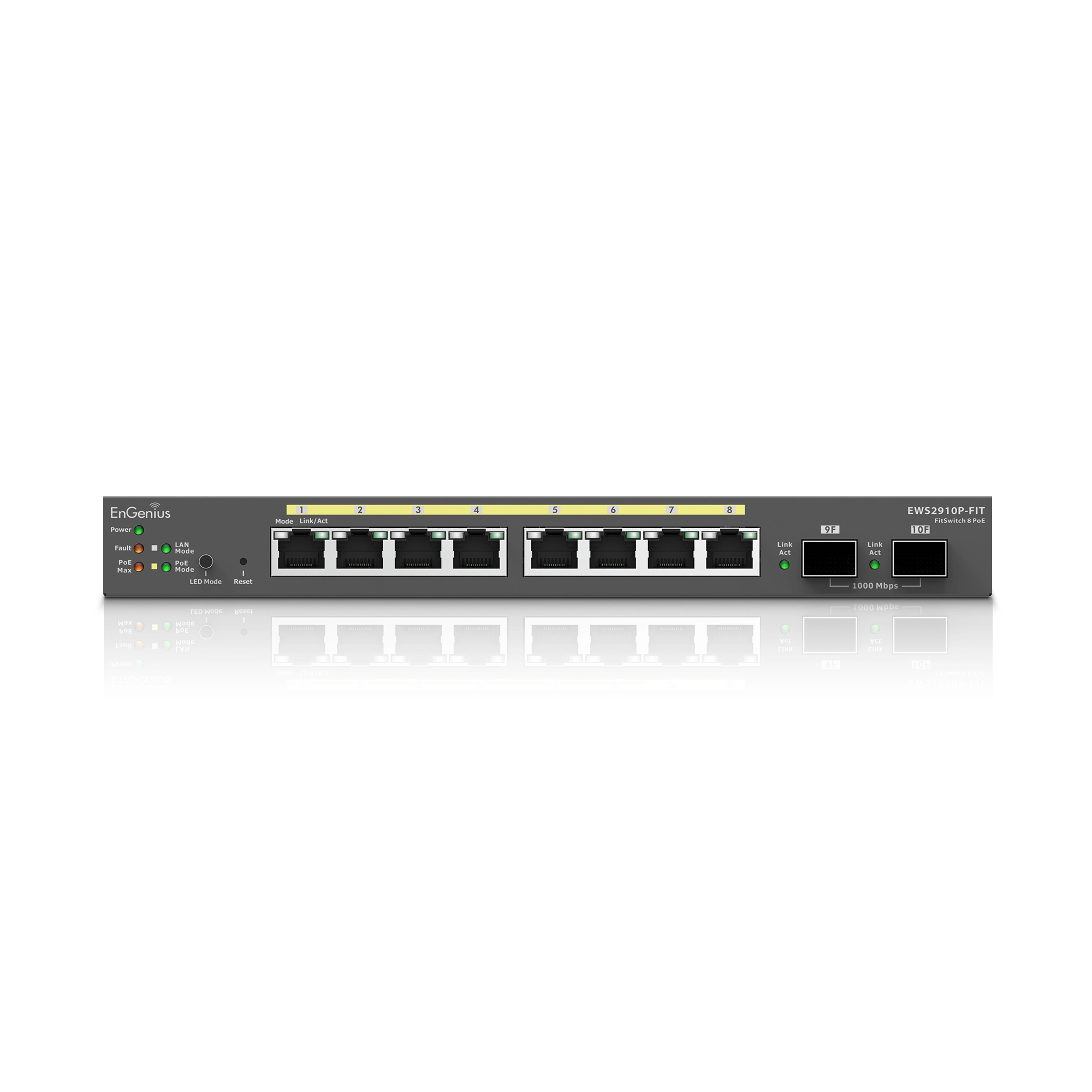

The EnGenius Fit Managed Switch EWS2910P-FIT is an 8-port Gigabit PoE Layer 2 plus switch with a 55W PoE budget and 2 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit Managed Switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.

Specification

Product
Product id	987904
Brand	EnGenius
Partnr	EWS2910P-FIT
EAN/UPC code	4713361936272
Warranty (months)	1 year
Data transmission
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Static route	Y
Number of static routes	192
Jumbo frames support	Y
Jumbo frames	9000
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Y
Full duplex	Y
IPv4 routes	59
Flow control support	Y
Spanning tree protocol	Y
Link aggregation	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s

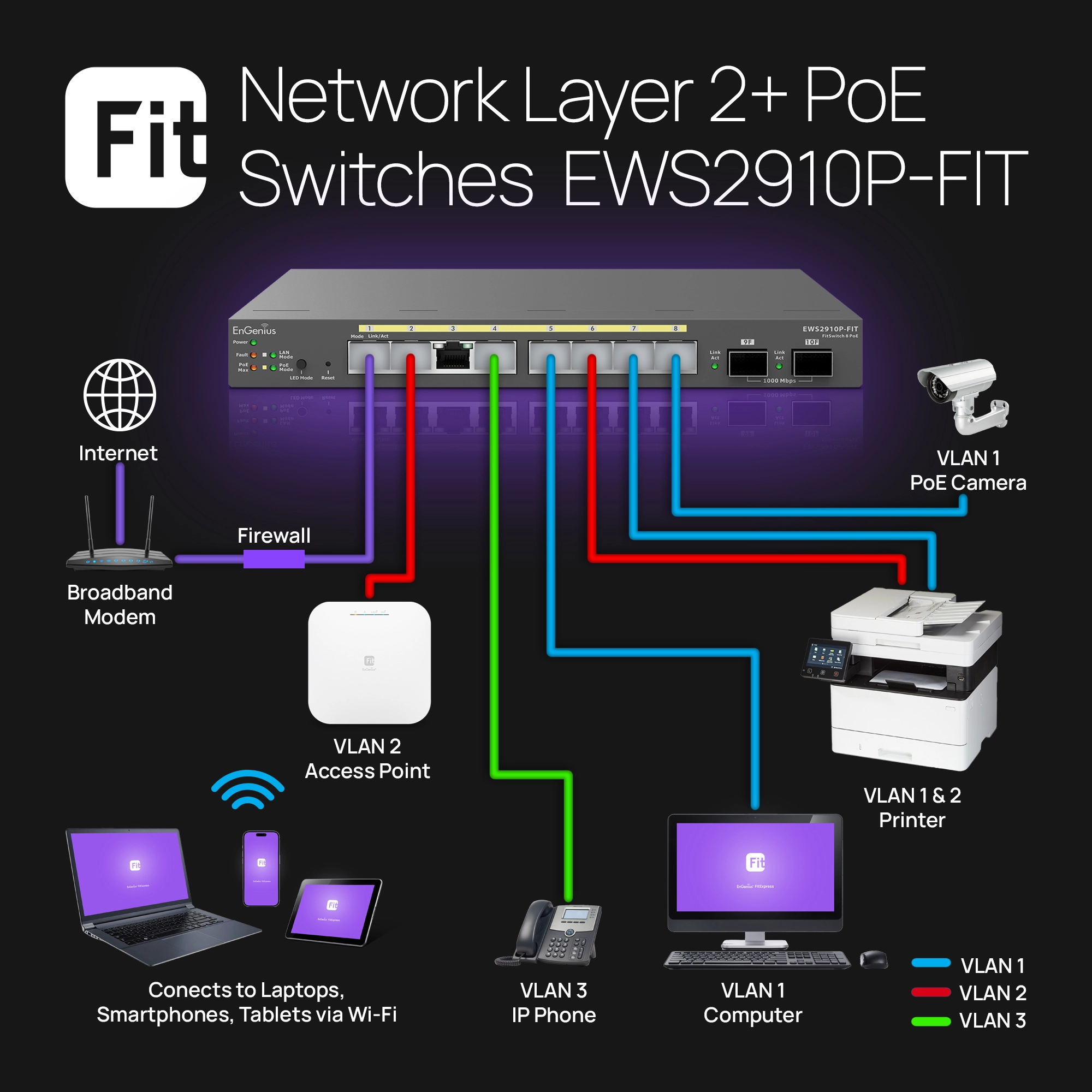

VLAN support	Y
Virtual LAN features	Port-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes	5
Management features
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Protocols
GARP VLAN Registration Protocol (GVRP)	Y
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 ping
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Security
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Authentication type	RADIUS
Security algorithms	SNMP, SNMPv2, SNMPv3
SSH/SSL support	Y
Weight & dimensions
Width	105 mm
Depth	240 mm
Height	27 mm
Weight	620 g
Packaging data
Package weight	1495 g
Manual	Y
Package width	168 mm
Package depth	271 mm
Package height	85 mm
Power
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Multicast features
Multicast support	Y
Multicast MAC address table	256 entries
Design
Rack mounting	Y
Product colour	Black
LED indicators	Fault, LAN, PoE, Power
Certification	CE, FCC, IC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 procent
Performance
Memory type	SDRAM
Internal memory	256 MB
Flash memory	32 MB
Firmware upgradeable	Y

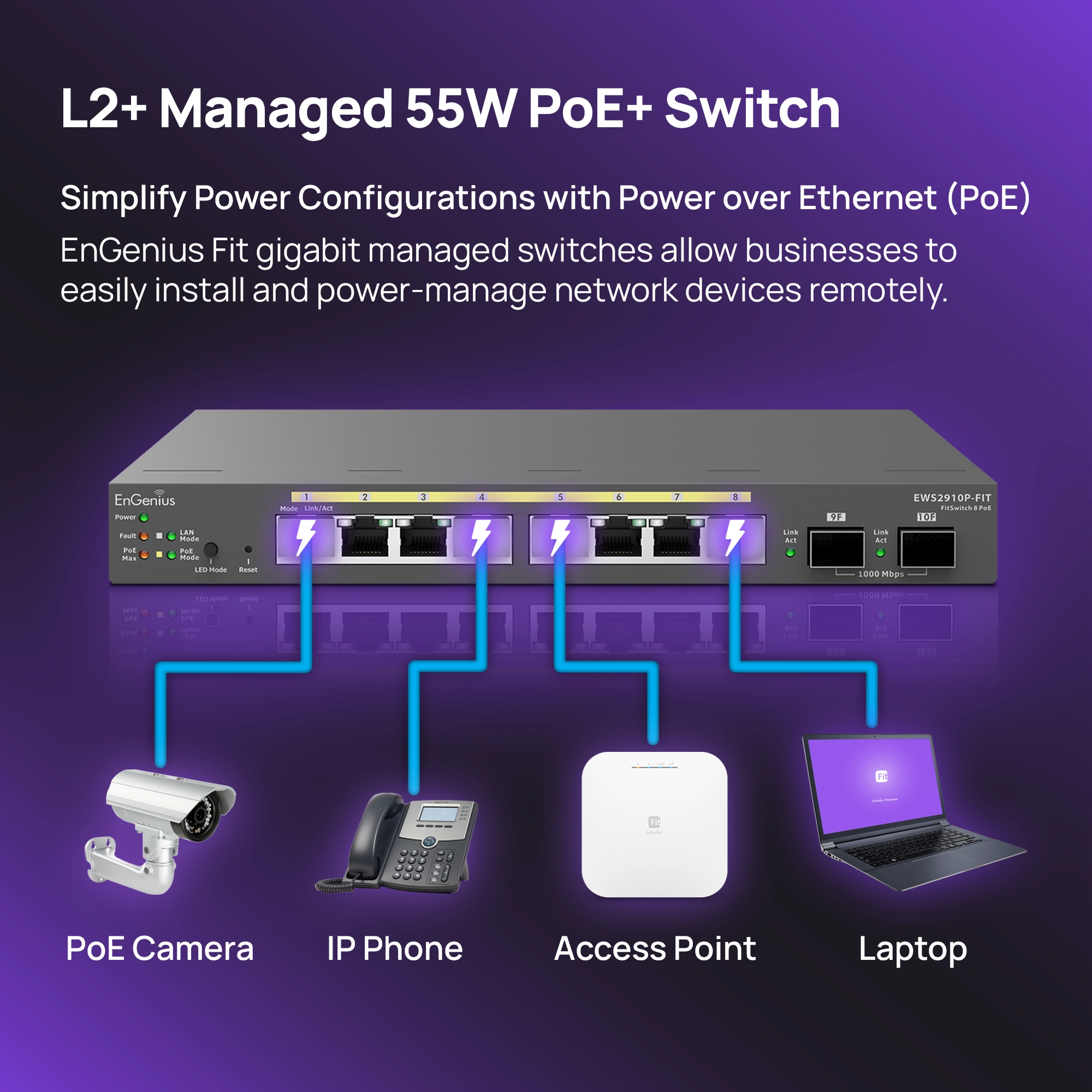

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	55 W
