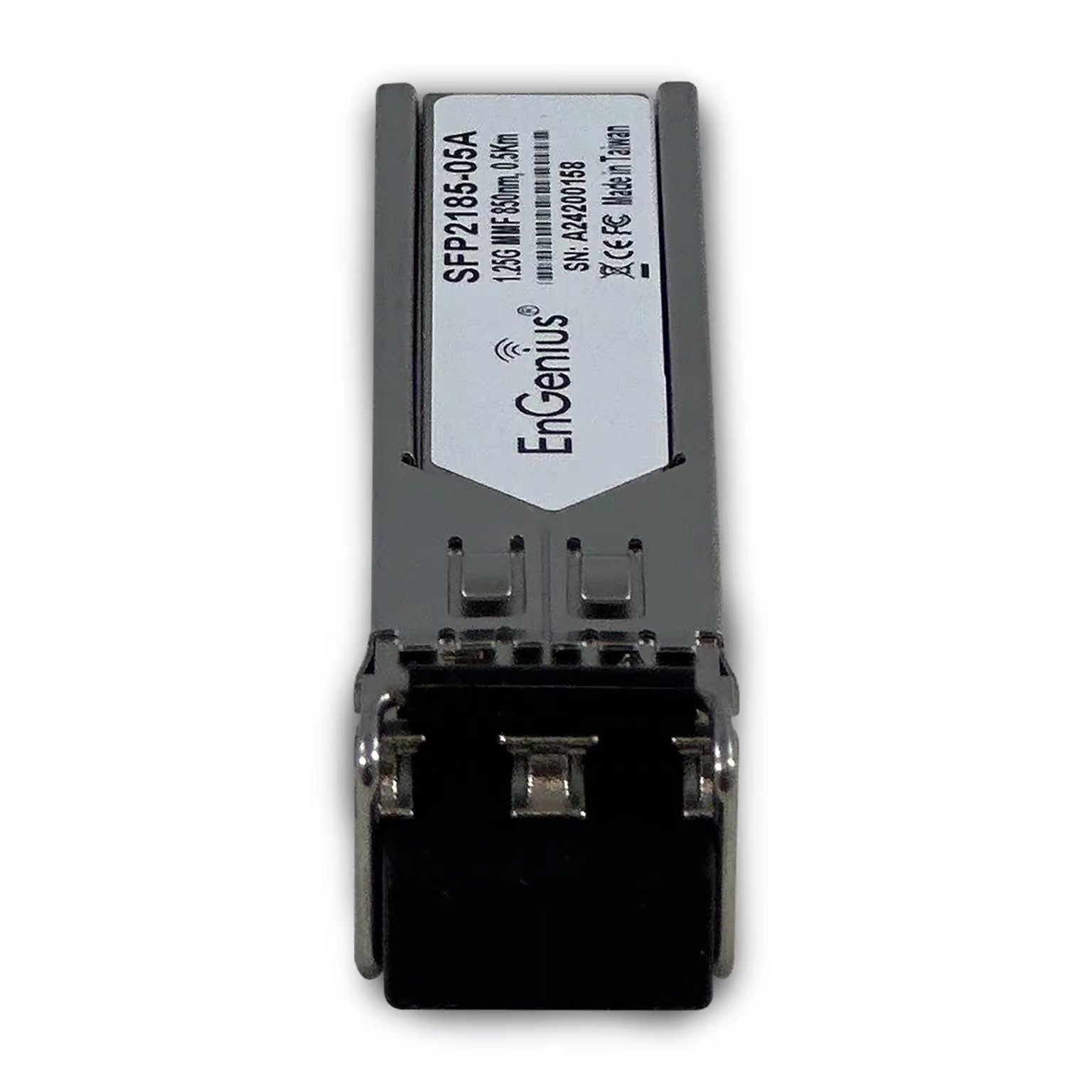

The EnGenius SFP2185-05A is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, provides up to 1.25 Gbps serial optical data transfer rates on single duplex fiber core. It can reach a distance of up to 500 meters if used with 50-micron fiber cables.

Specification

Product
Product id	987915
Brand	EnGenius
Partnr	SFP2185-05A
EAN/UPC code	4713361935787
Network
SFP transceiver type	Fiber optic
Technical details
Compliance certificates	RoHS
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
Maximum transfer distance	20000 m
Wavelength	850 nm
Ethernet LAN	Y
Ethernet interface type	1.25 Gigabit Ethernet
Networking standards	IEEE 802.3az
Features
Product colour	Grey
Hot-swap	Y
Power
Input voltage	3.15 - 3.45 V
Maximum voltage	3.45 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	14.69 mm
Depth	55.9 mm
Height	12.39 mm
Weight	25 g
