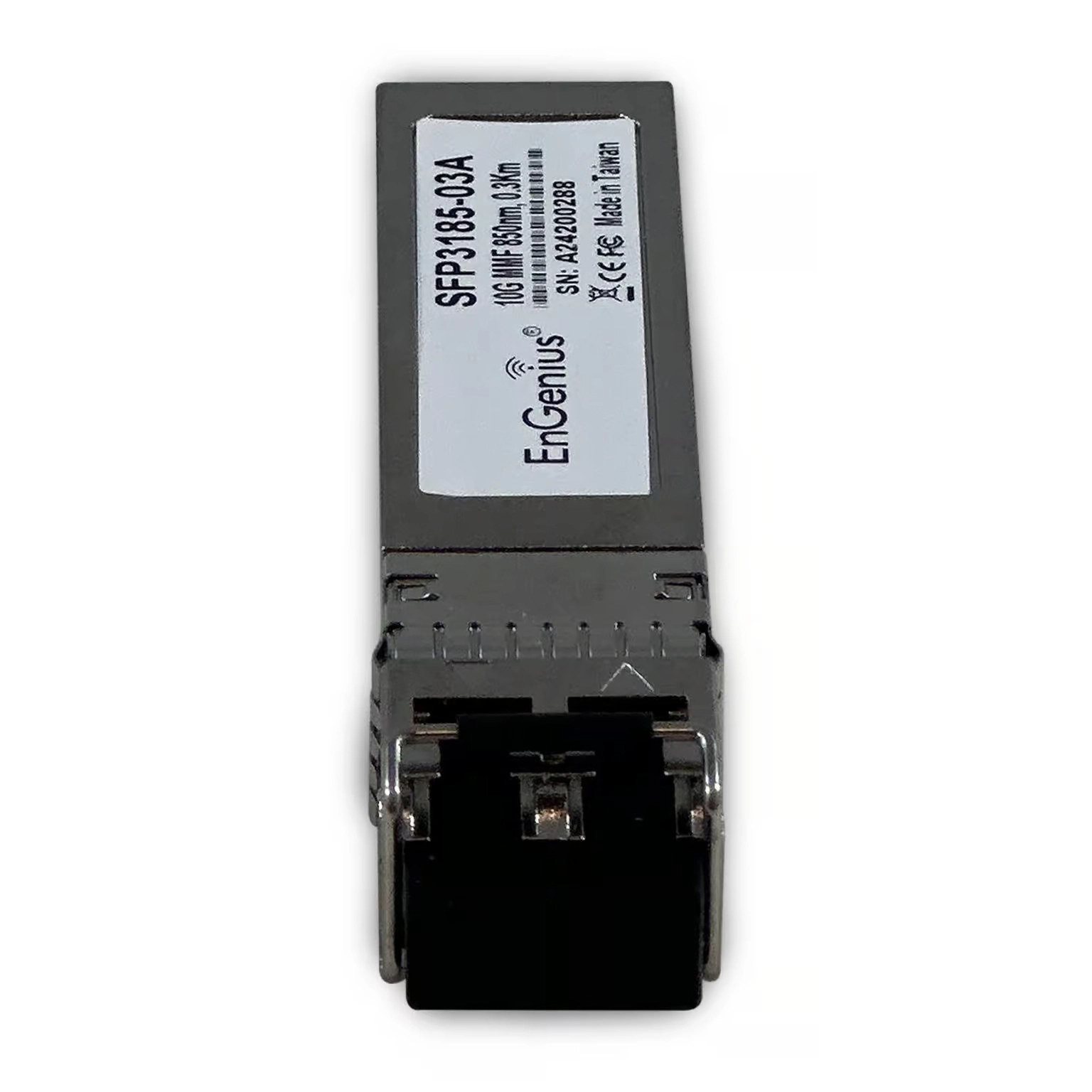

EnGenius SFP3185-03A SFP plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 300m, ideally suited for data centers, enterprise and storage area networks.

Specification

Product
Product id	987920
Brand	EnGenius
Partnr	SFP3185-03A
EAN/UPC code	4713361935824
Network
SFP transceiver type	Fiber optic
Technical details
Compliance certificates	RoHS
Performance
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
Maximum transfer distance	300 m
Wavelength	850 nm
Ethernet LAN	Y
Ethernet interface type	10 Gigabit Ethernet
Networking standards	IEEE 802.3az
Features
Product colour	Grey
Hot-swap	Y
Power
Input voltage	3.13 - 3.46 V
Maximum voltage	3.46 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	13.9 mm
Depth	58.4 mm
Height	12.6 mm
Weight	25 g
