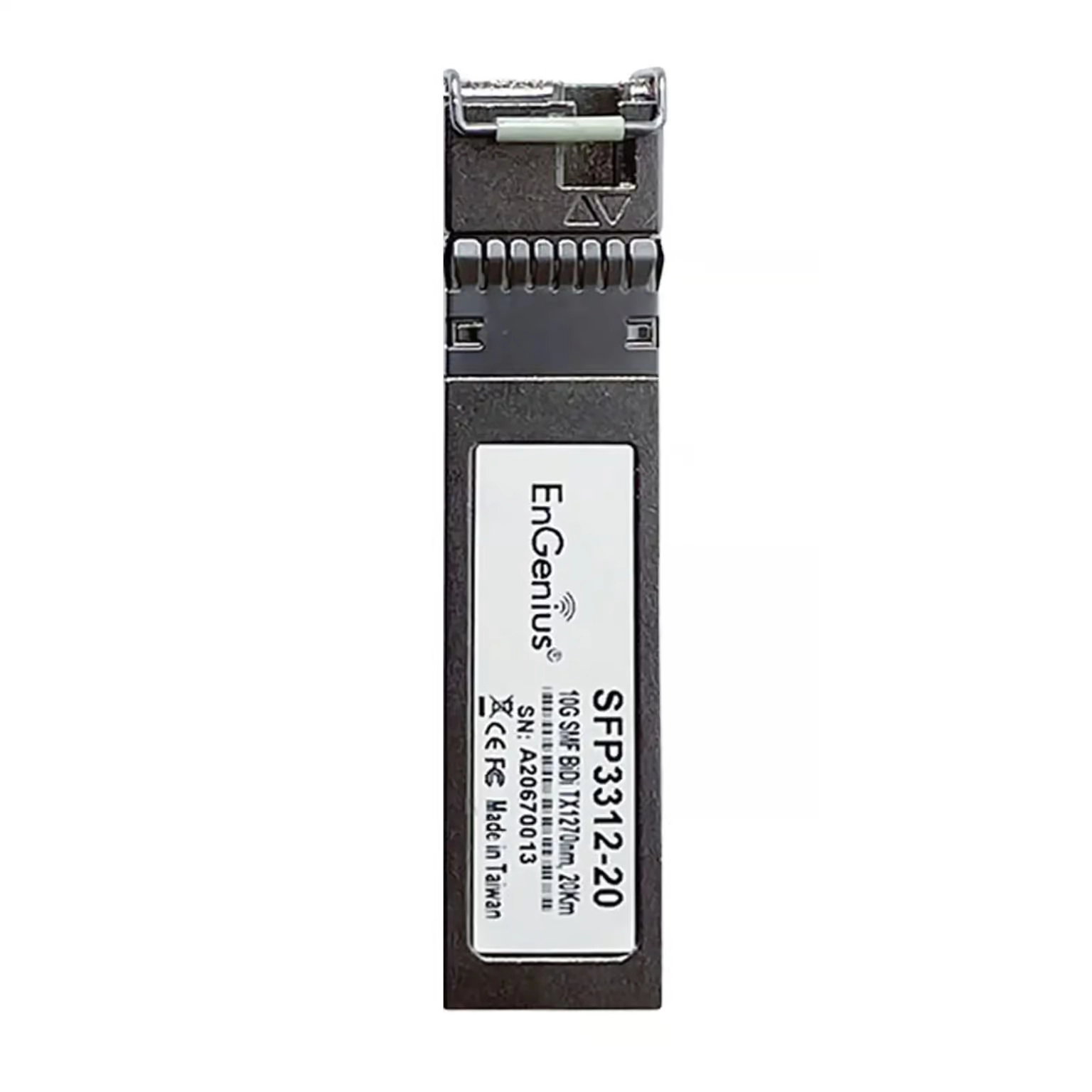

EnGenius SFP3312-20A SFP+ BiDi Transceivers are versatile, hot-swappable optical modules designed for 10 Gigabit Ethernet applications across various switching and routing platforms. They enable 10 Gbps optical data transfer over a single duplex fiber core, reaching up to 20 km—perfect for enterprise networks, metropolitan and regional links.

Specification

Product
Product id	987922
Brand	EnGenius
Partnr	SFP3312-20A
EAN/UPC code	4713361935848
Network
SFP transceiver type	Fiber optic
Technical details
Compliance certificates	RoHS
Performance
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
Maximum transfer distance	20000 m
Tx wavelength (max)	1270 nm
Rx wavelength (max)	1330 nm
Ethernet LAN	Y
Ethernet interface type	10 Gigabit Ethernet
Networking standards	IEEE 802.3az
Features
Product colour	Grey
Hot-swap	Y
Power
Input voltage	3 - 3.6 V
Maximum voltage	3.6 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	14 mm
Depth	57.5 mm
Height	10.8 mm
Weight	25 g
