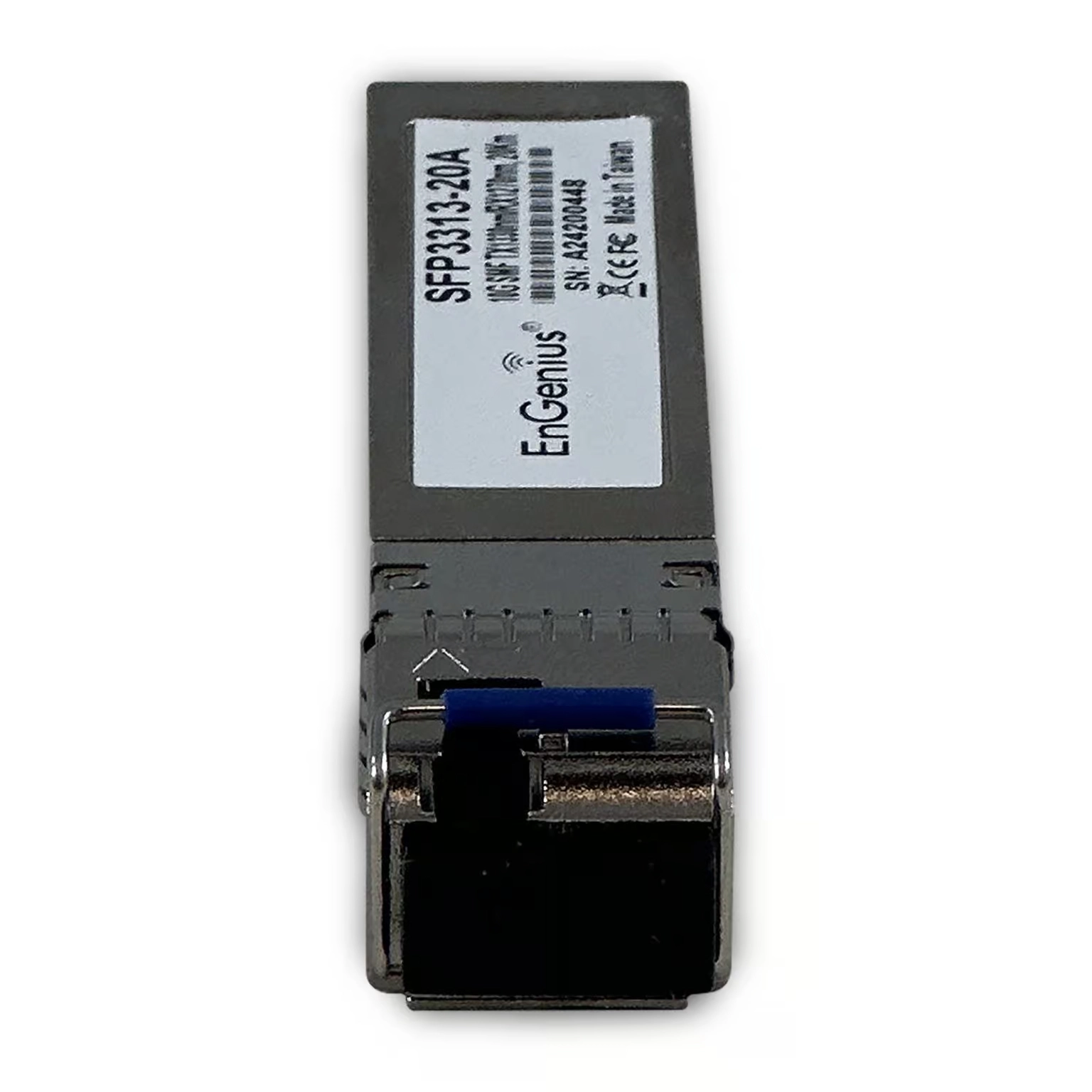

EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20, 000m, ideally suited for data centers, enterprise and storage area networks.

Specification

Product
Product id	987923
Brand	EnGenius
Partnr	SFP3313-20A
EAN/UPC code	4713361935855
Network
SFP transceiver type	Fiber optic
Technical details
Compliance certificates	RoHS
Performance
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Y
Fiber optic connector	LC
Maximum transfer distance	20000 m
Tx wavelength (max)	1330 nm
Rx wavelength (max)	1270 nm
Ethernet LAN	Y
Ethernet interface type	10 Gigabit Ethernet
Networking standards	IEEE 802.3az
Features
Product colour	Grey
Hot-swap	Y
Power
Input voltage	3 - 3.6 V
Maximum voltage	3.6 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	14 mm
Depth	57.5 mm
Height	10.8 mm
Weight	25 g
