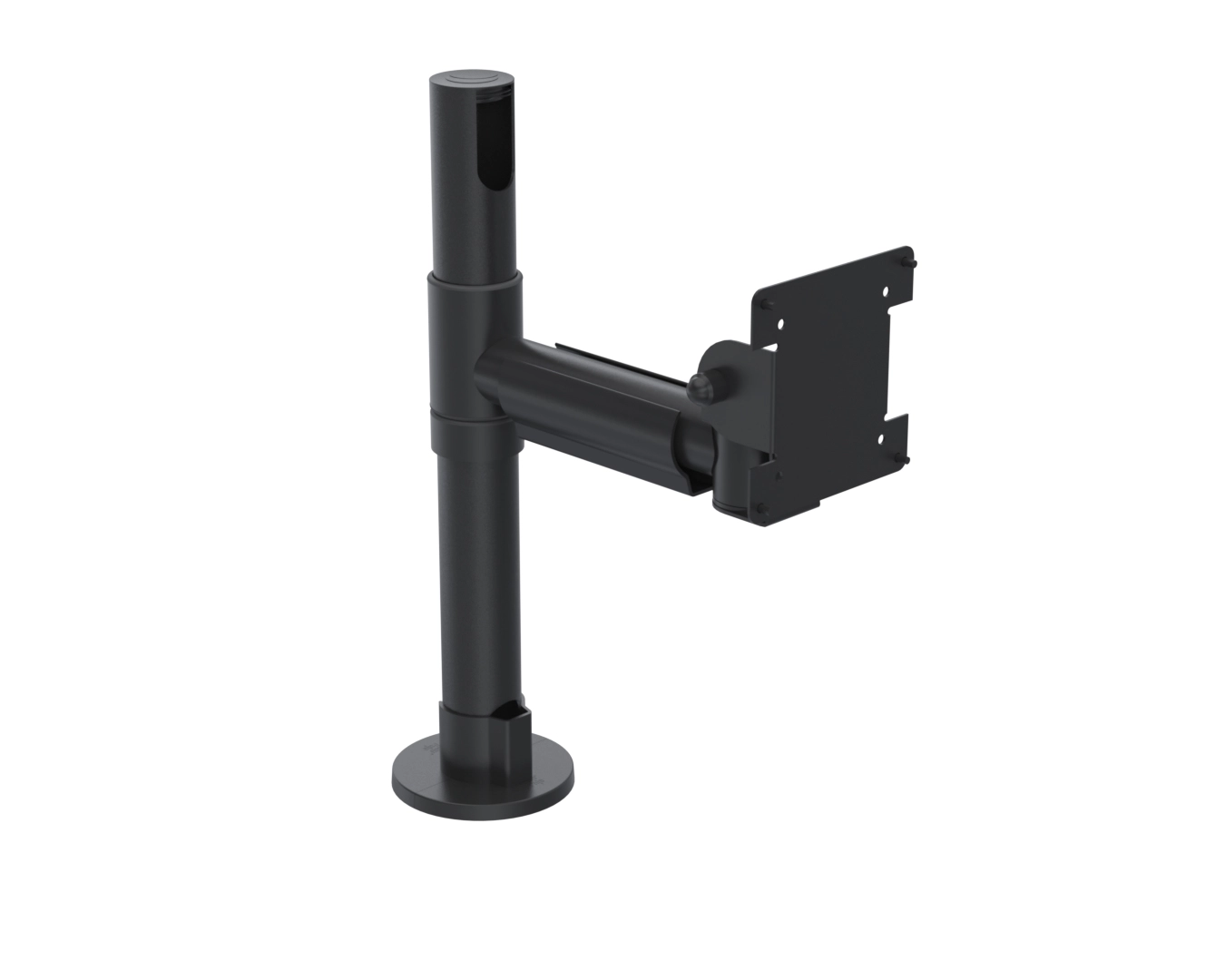

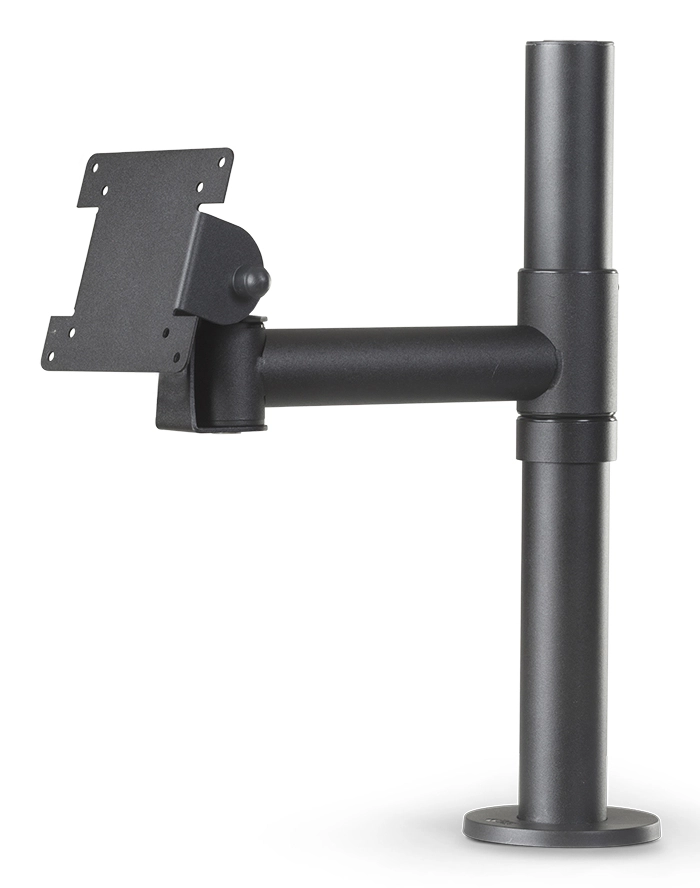

Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. This allows the customer to view the screen for confirmation of an order, or to rotate the payment terminal from the operator to the customer or vice-versa.

Specification

Product
Product id	989520
Brand	Ergonomic Solutions
Partnr	SPV1104-FX-02
EAN/UPC code
Warranty (months)	5 Years
Features
Product colour	Black
Material	Metal
Maximum weight capacity	12 kg
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Number of arms	1
Angle of rotation	310 °
Tilt angle range	-70 - 10 °
Cable management	Y
Minimum screen size compatibility	11 "
Maximum screen size	27
Height adjustment	N
Technical details
Pallet net height	1710 mm
Pallet net depth	1200 mm
Pallet net width	800 mm
Pallet net weight	304720 g
Compliance certificates	REACH, RoHS
Version	1.0
Logistics data
Quantity per pack	1 stuk(s)
Harmonized System (HS) code	8473308000
Weight & dimensions
Width	115 mm
Depth	309.8 mm
Height	402.9 mm
Weight	1850 g
Package width	130 mm
Package depth	600 mm
Package height	130 mm
Package weight	1940 g
