Support PCIe Gen 5.0 graphics card

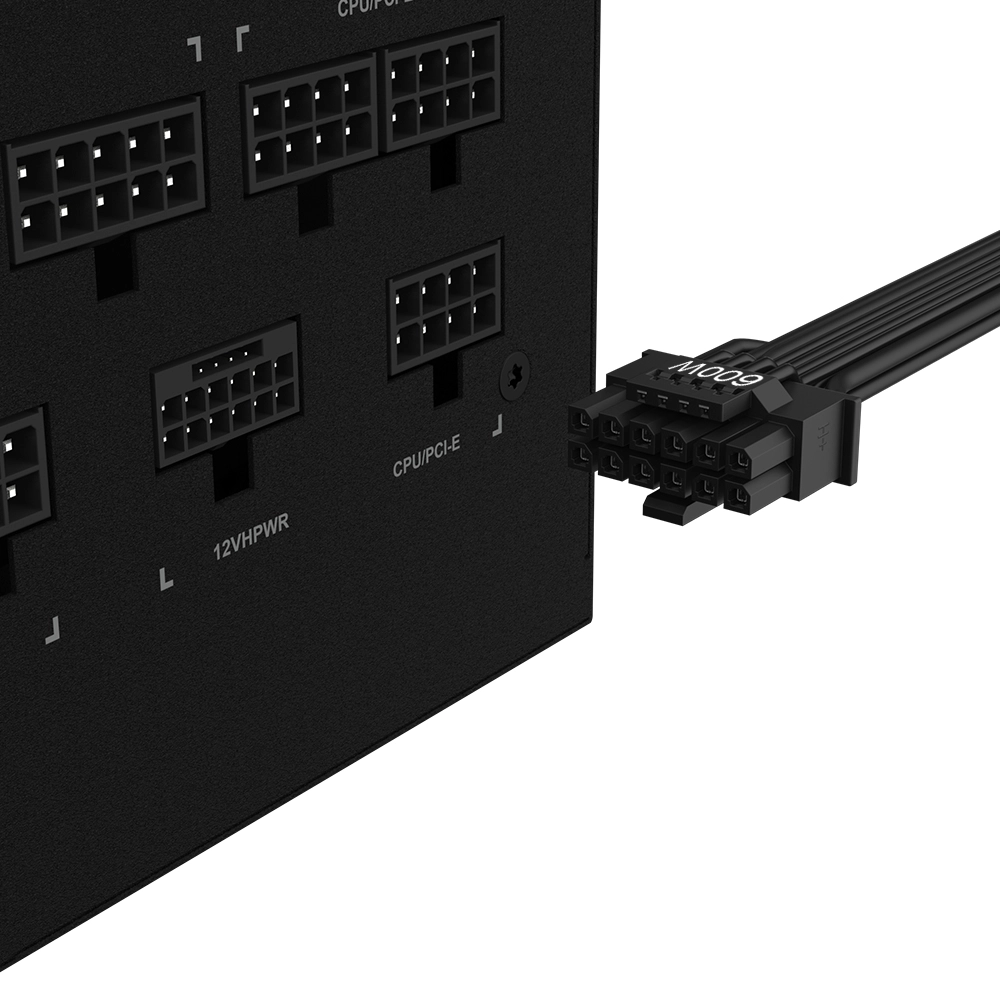

The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

HIGH QUALITY
JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

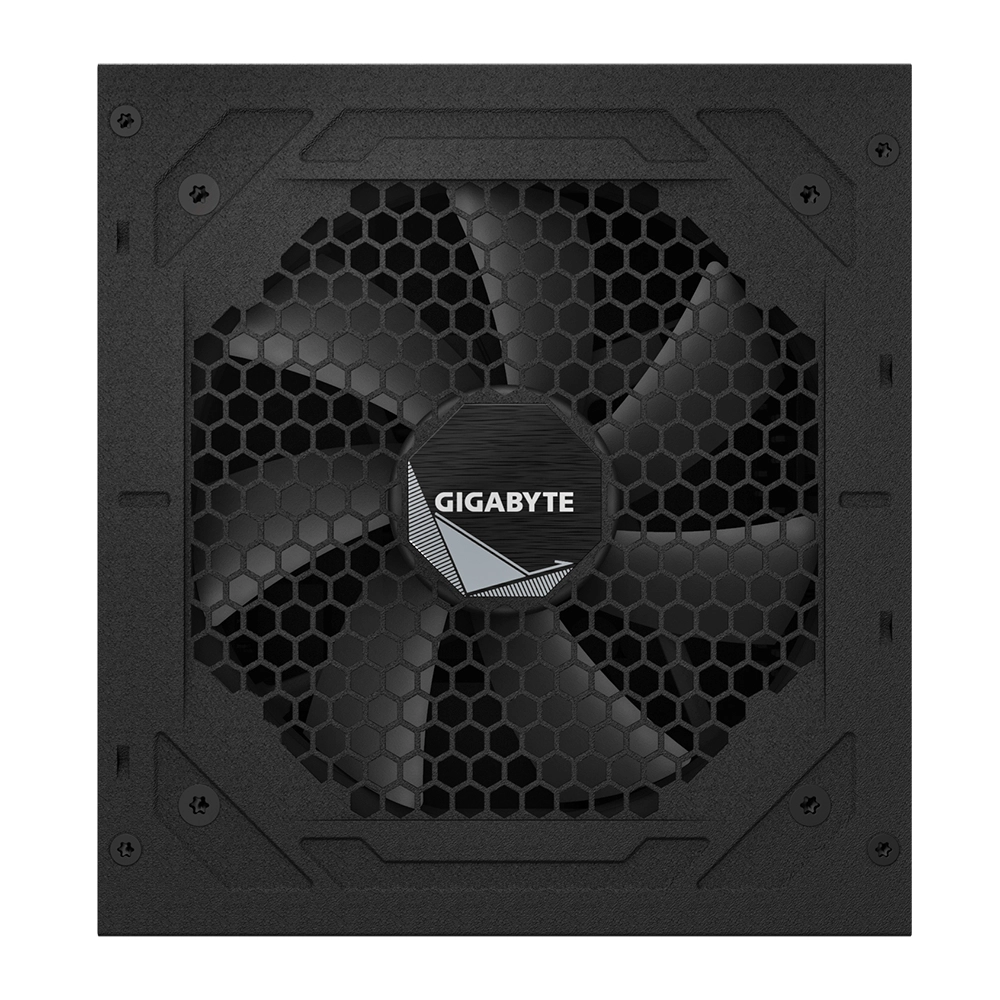

120MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.

OMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.

Specification

Product
Product id	985817
Brand	Gigabyte
Partnr	GP-UD1000GM PG5
EAN/UPC code	4719331553234
Warranty (months)	10 Years
Endurance
Mean time between failures (MTBF)	100000 uur
Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	15 - 6.5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	999.6 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power Good signal delay range	100 - 150 ms
Efficiency	90 procent
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage

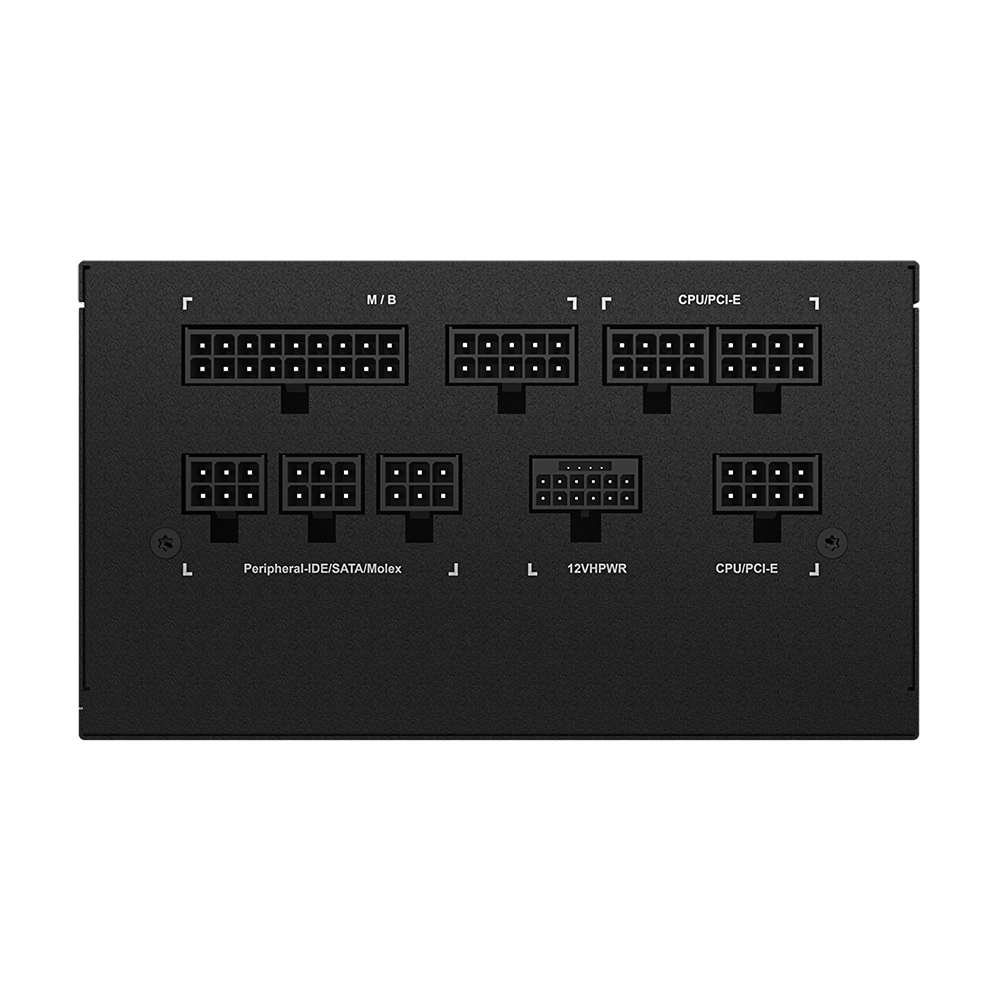

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	8
SATA power cable length	150, 600 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	120, 150, 500 mm
EPS power connector (4+4 pin)	Y
PCI Express power connectors (6+2 pin)	6
PCI Express power connectors (16-pin)	1
PCI Express power cable length	700 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	600 mm
ATX power connector (20+4 pin)	Y
Floppy drive power connector	1
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Bearing technology	HDB
Design
Product colour	Black
Cooling type	Active
Fan diameter	120 mm
Number of fans	1 ventilator(en)
Fan location	Top

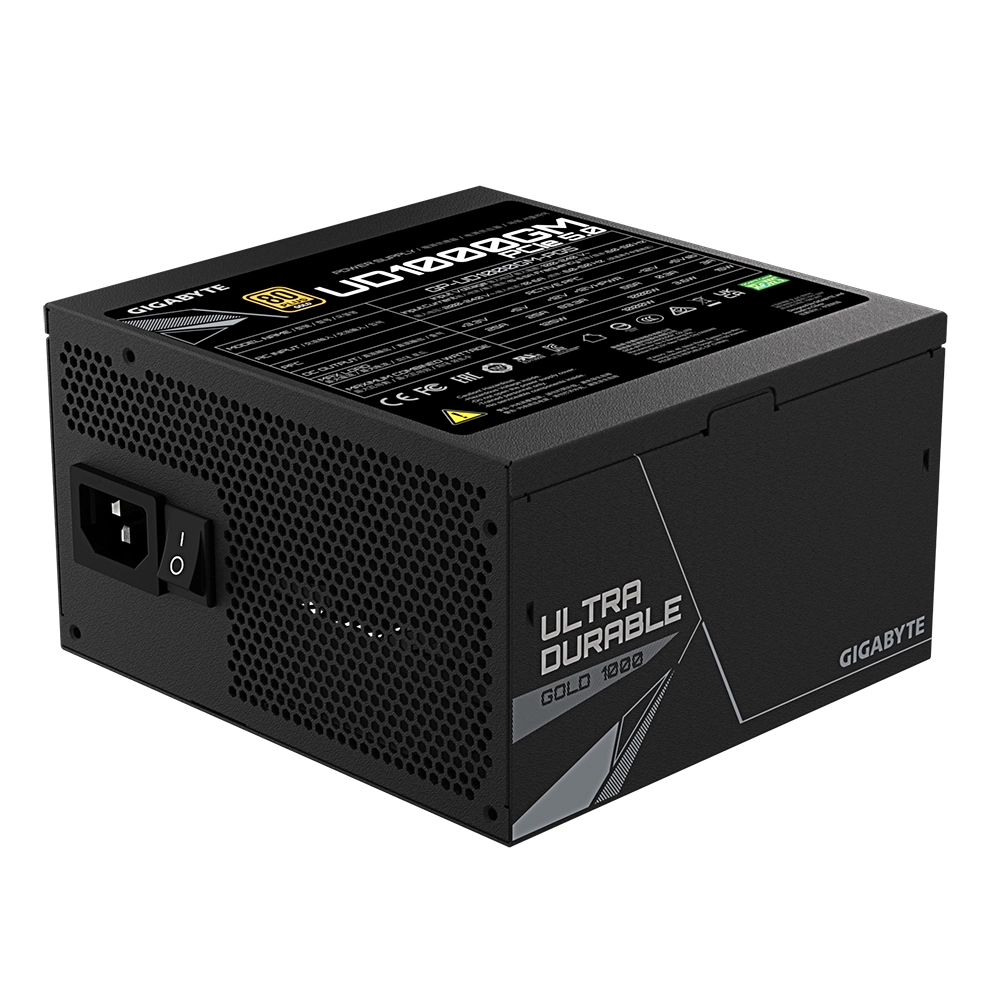

On/off switch	Y
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
Packaging data
Cables included	CPU, PCIe, Peripheral (Molex), SATA

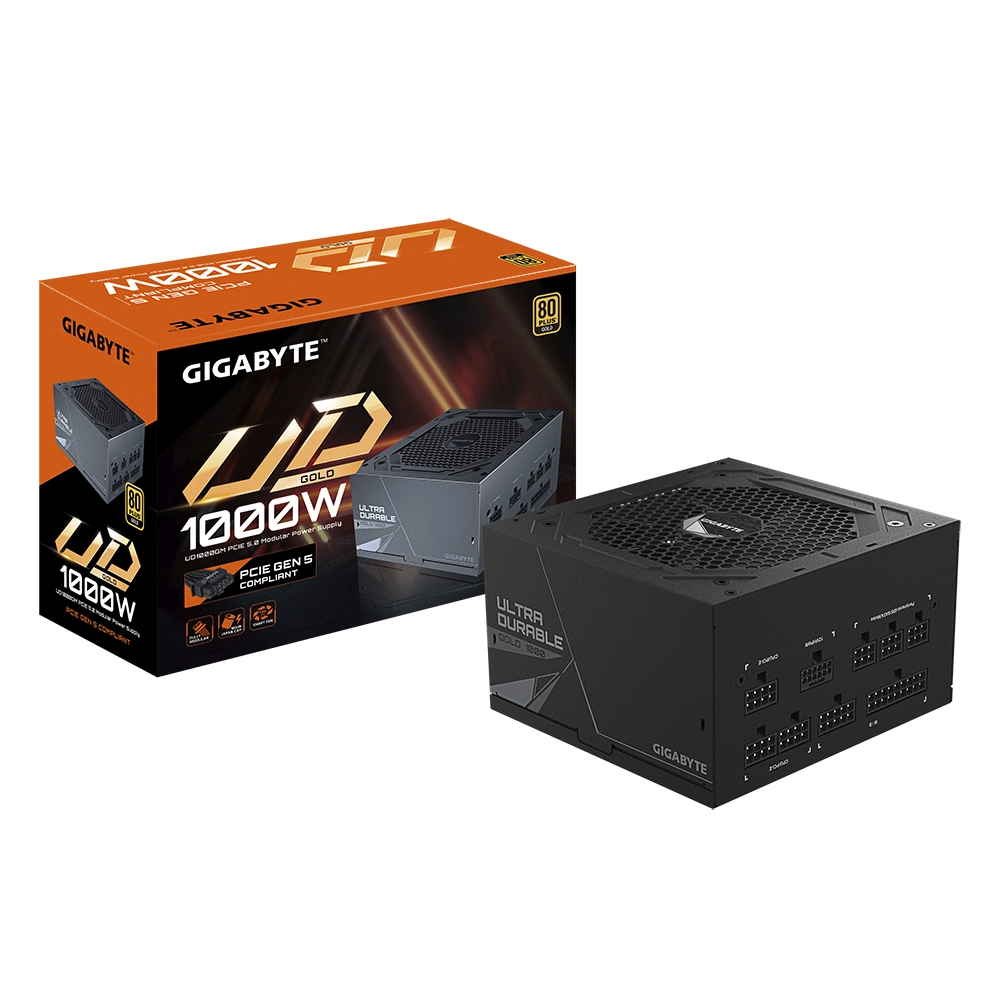

Package type	Box
Other features
Harmonized System (HS) code	84733020
