WATERFORCE COOLING SYSTEM
GIGABYTE provides the all-around cooling solution for all key components of the graphics card. We take care of not only GPU but also VRAM and MOSFET, to ensure a stable overclock operation and longer life. GIGABYTE guarantees that the WATERFORCE water block graphics card has the excellent assembly quality and highest performance.

OPTIMIZED WATER FLOW DESIGN
The optimized water flow rapidly removes the heat from the large metal plate with zero noise, providing a comfortable and high performance gameplay experience.

ALL-AROUND COOLING
With direct contact to the GPU, VRAM and all critical components, the metal plate and heat-pipe efficiently transfer heat to the liquid.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

GAME IN STYLE
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

CYCLING
Smoothly cycles through all colors

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

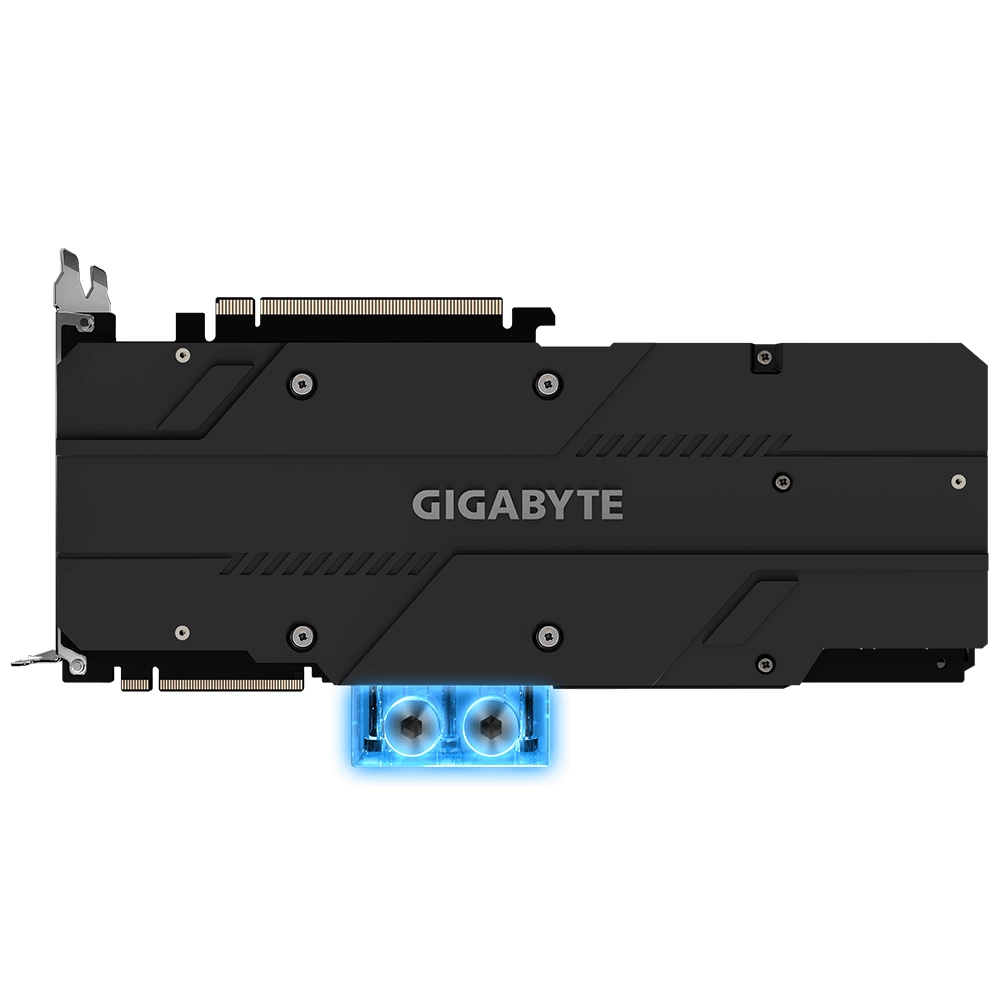

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

NVIDIA NVLINK SUPPORT
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.

IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Specification

Product
Product id	667621
Brand	Gigabyte
Partnr	GV-N208SGAMINGOC WB-8GD
EAN/UPC code	4719331306281
Warranty (months)	4 Years
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 2080 SUPER
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	3072
Processor frequency	1845 MHz
Maximum displays per videocard	4
FireStream	Y
Parallel processing technology support	2-Way NVLink
Memory
Discrete graphics adapter memory	8 GB
Graphics adapter memory type	GDDR6
Memory bus	256 Bit
Memory clock speed	15500 MHz
Memory bandwidth (max)	496 GB/s

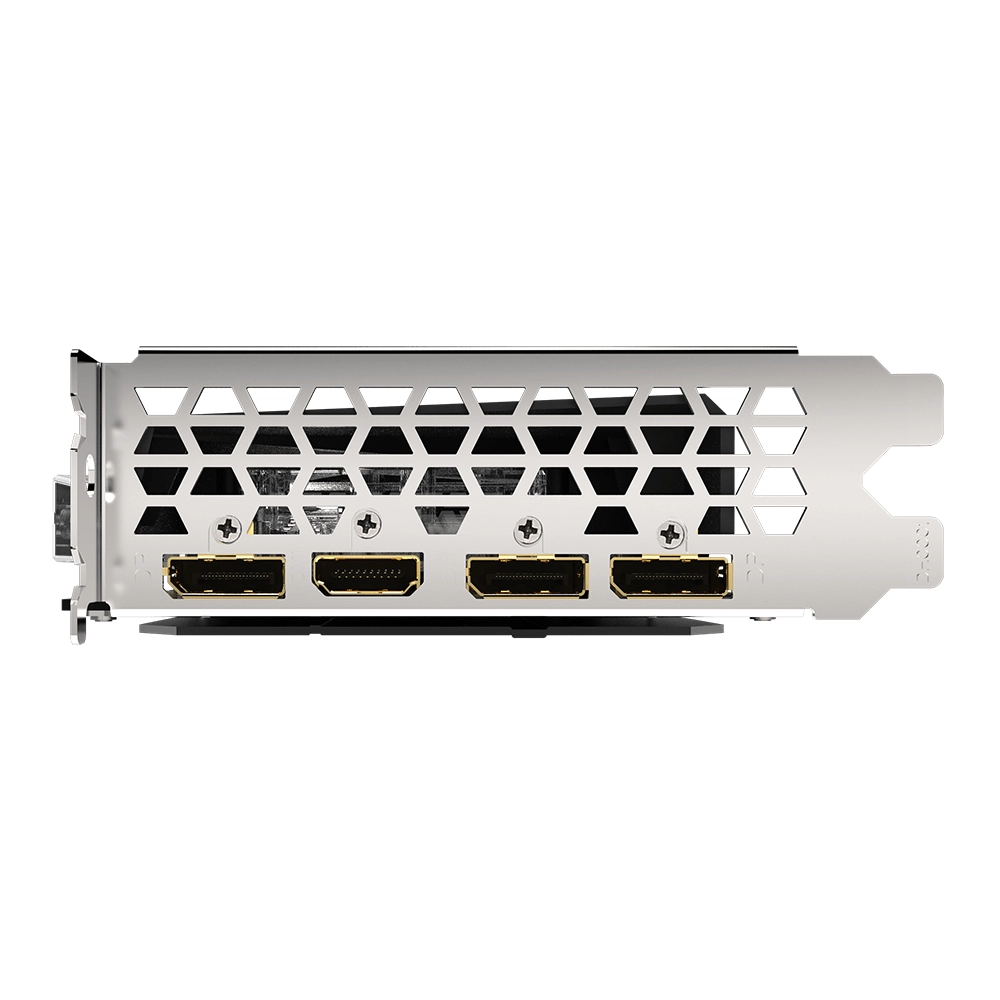

Ports & interfaces
Interface type	PCI Express x16 3.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
Performance
PhysX	Y
TV tuner integrated	N
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	N
NVIDIA GameWorks VR	Y
NVIDIA G-SYNC	Y
Design
Cooling type	Liquid
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Y
Illumination colour	Blue, Green, Red
Product colour	Black
Power
Minimum system power supply	650 W
Supplementary power connectors	1x 6-pin, 1x 8-pin
Weight & dimensions
Depth	37 mm
Length	267 mm
Height	137 mm
