KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 6GB GDDR6 96-bit memory interface
WINDFORCE cooling system

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Product
Product id	1010053
Brand	Gigabyte
Partnr	GV-N3050WF2OCV2-6GD
EAN/UPC code	4719331355081
Warranty (months)	36 months
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3050
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	2304
Processor frequency	1477 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	6 GB
Graphics adapter memory type	GDDR6
Memory bus	96 Bit
Memory clock speed	14000 MHz

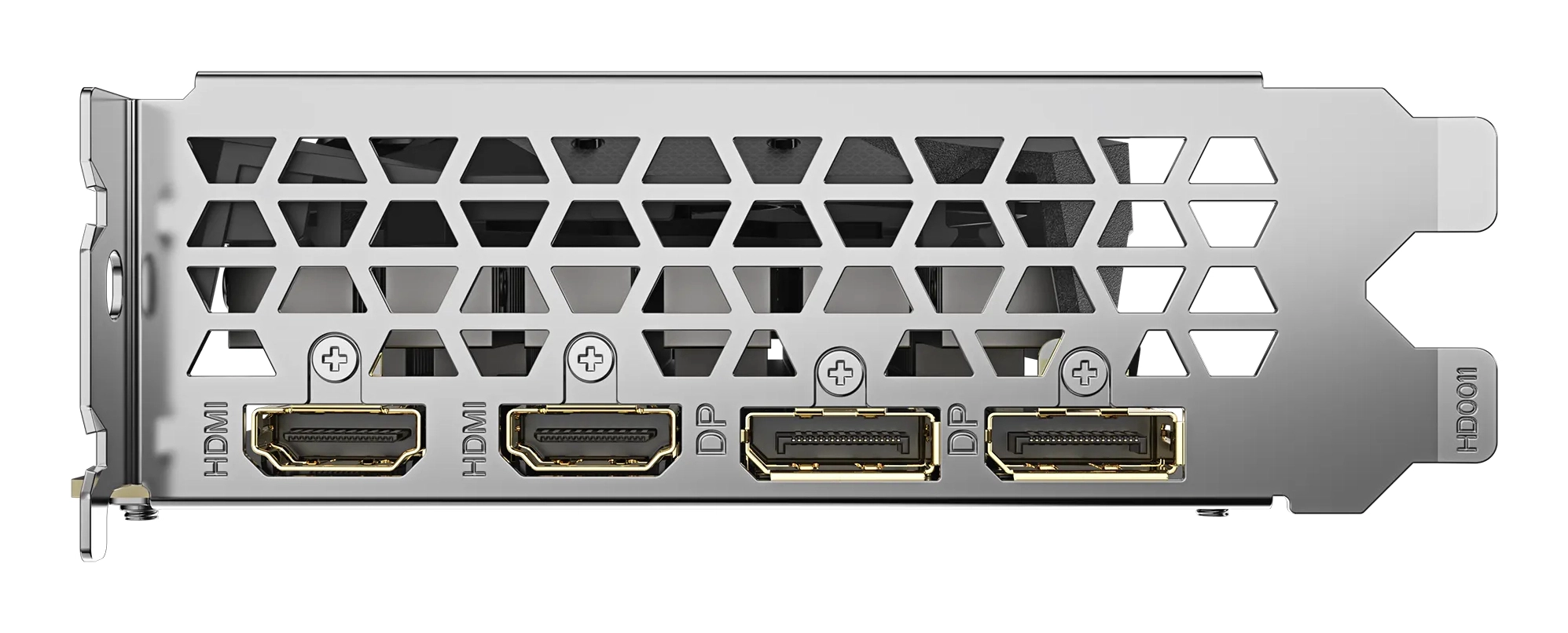

Ports & interfaces
Interface type	PCI Express 4.0
HDMI ports quantity	2
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4
Performance
TV tuner integrated	N
DirectX version	12 Ultimate
OpenGL version	4.6
NVIDIA G-SYNC	Y
Design
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 2X
Number of fans	2 ventilator(en)
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	Black, Silver
Power
Minimum system power supply	300 W
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Depth	111 mm
Length	191 mm
Height	36 mm
Packaging data
User guide	Y
Package type	Box
