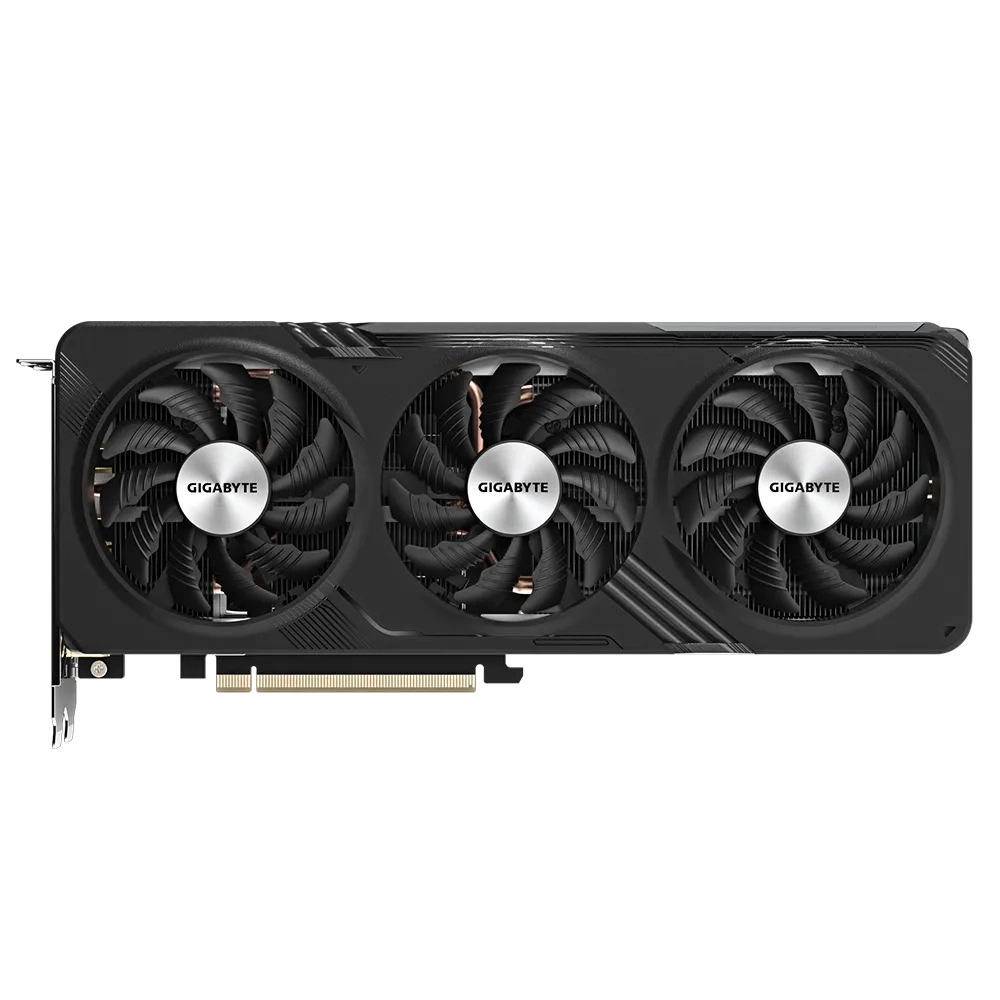

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Product
Product id	1011550
Brand	Gigabyte
Partnr	GV-N406TGAMING-OC-8GD
EAN/UPC code	4719331313456
Processor
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4060 Ti
Maximum resolution	7680 x 4320 Pixels
CUDA	Y
CUDA cores	4352
Processor frequency	2580 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	8 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	18 Gbit/s

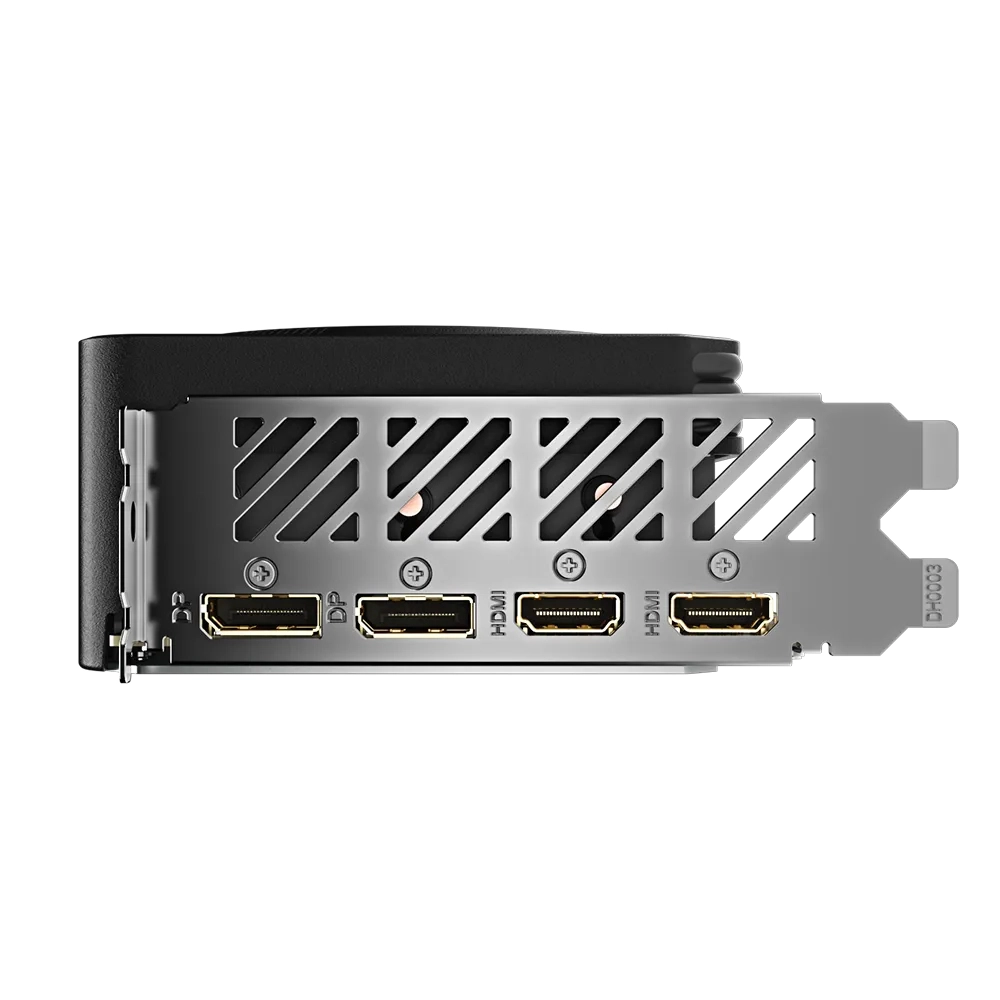

Ports & interfaces
Interface type	PCI Express 4.0
HDMI ports quantity	2
DisplayPorts quantity	2
HDMI version	2.1a
DisplayPort version	1.4a
Performance
TV tuner integrated	N
DirectX version	12 Ultimate
Shader model version	N
OpenGL version	4.6
HDCP	Y
Dual Link DVI	N
NVIDIA G-SYNC	N
AMD FreeSync	N
Design
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Y
Illumination colour	Multi
Product colour	Black
Power
Minimum system power supply	500 W
Supplementary power connectors	1x 8-pin
Packaging content
Quick installation guide	Y
Weight & dimensions
Depth	53 mm
Length	281 mm
Height	117 mm
Packaging data
Manual	Y
Package type	Box
