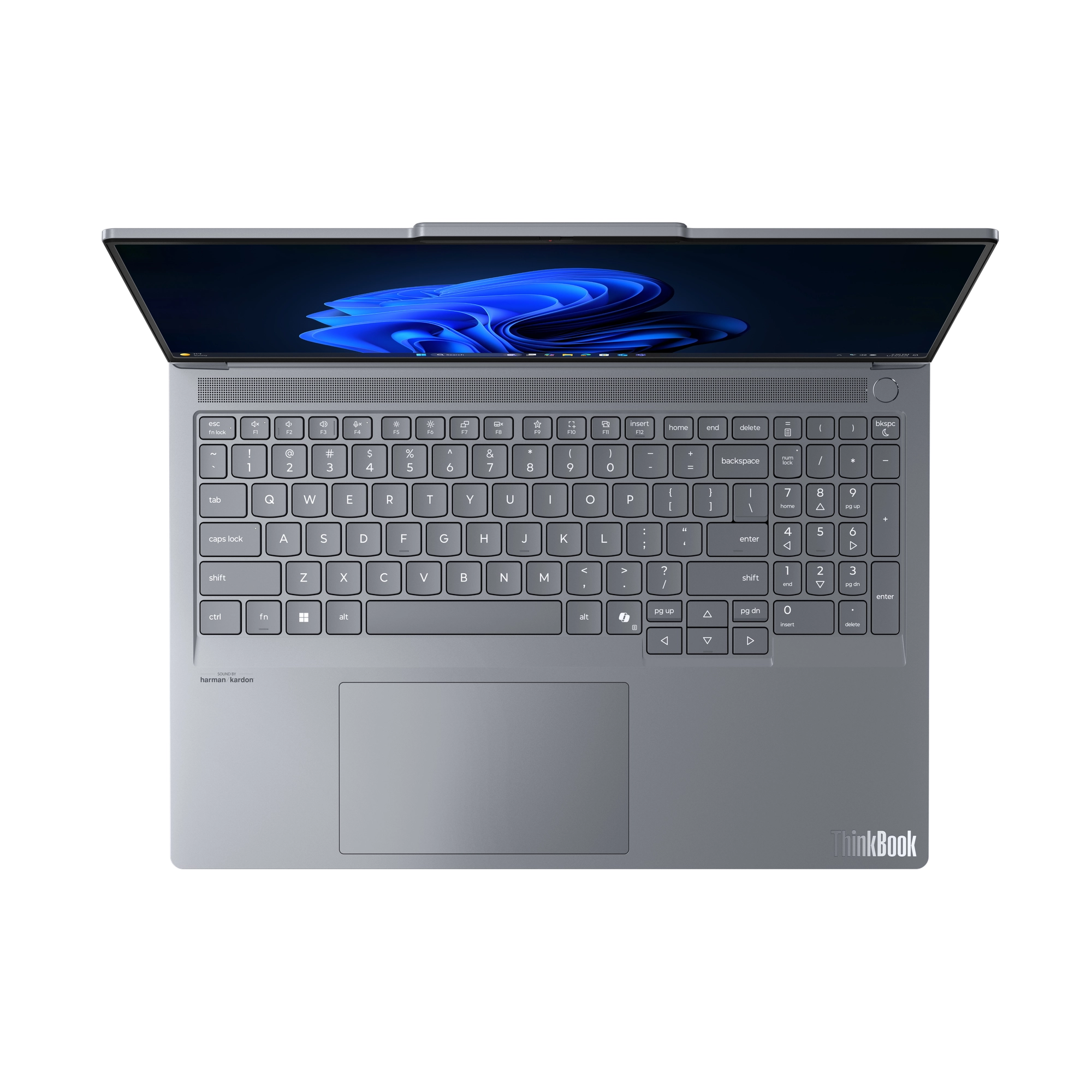

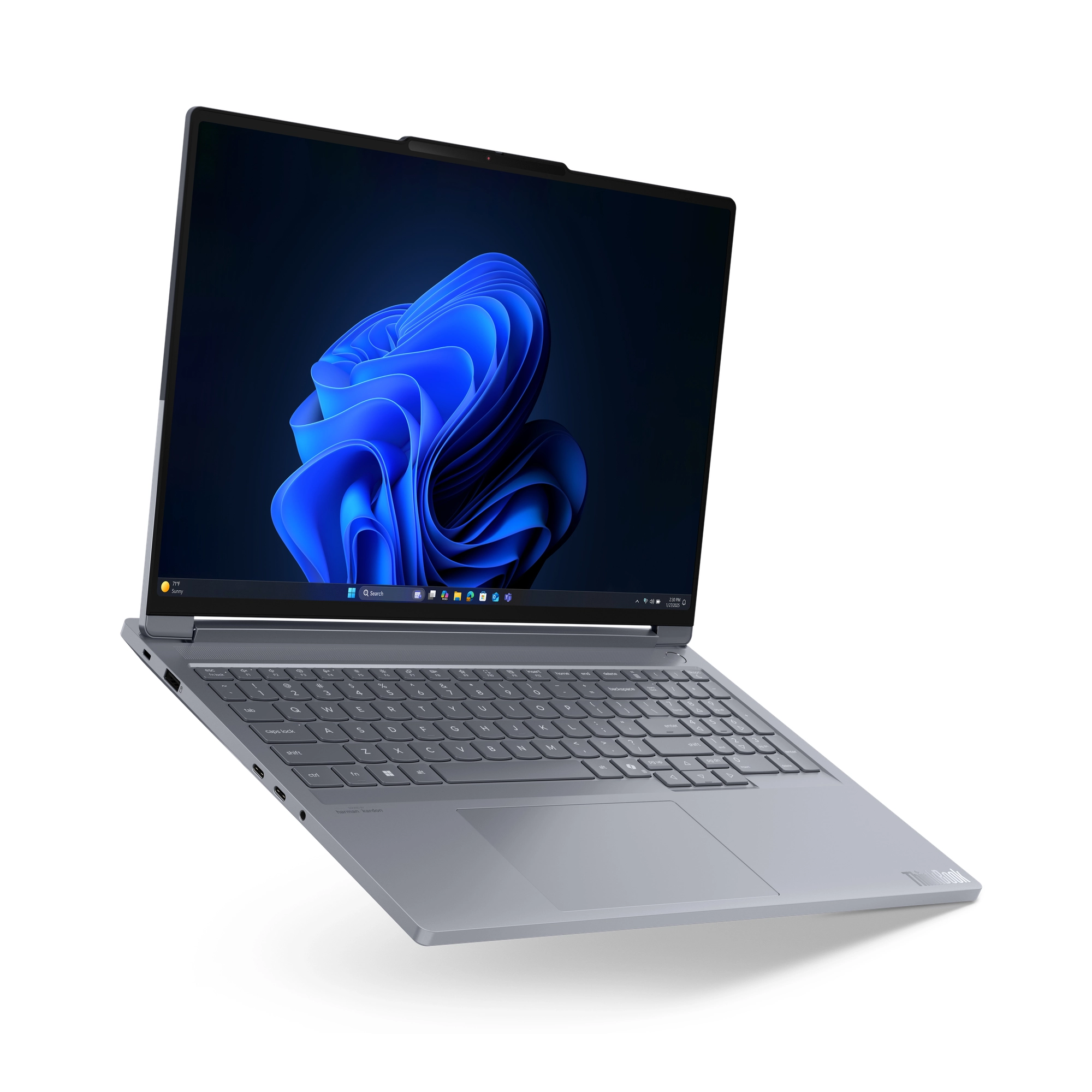

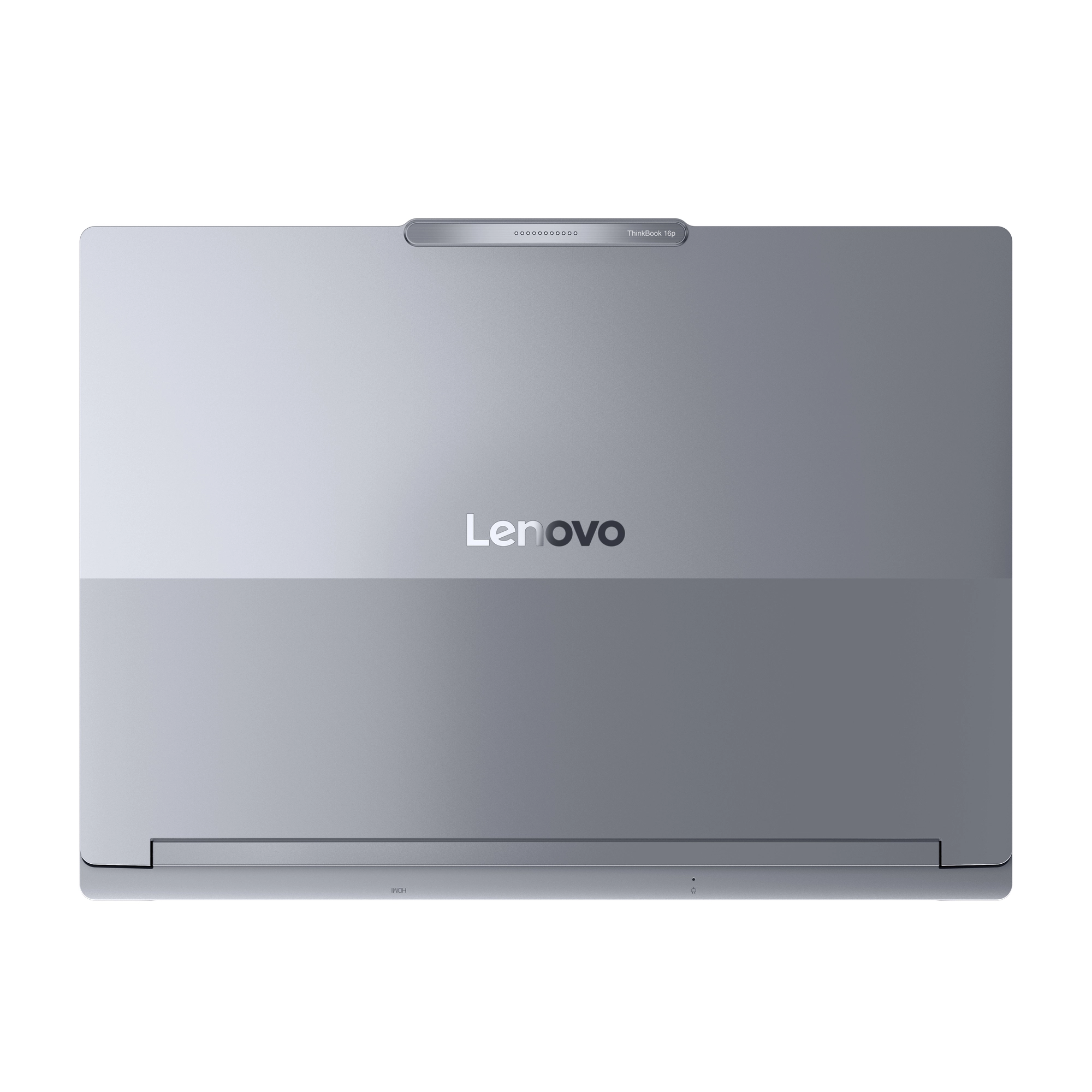

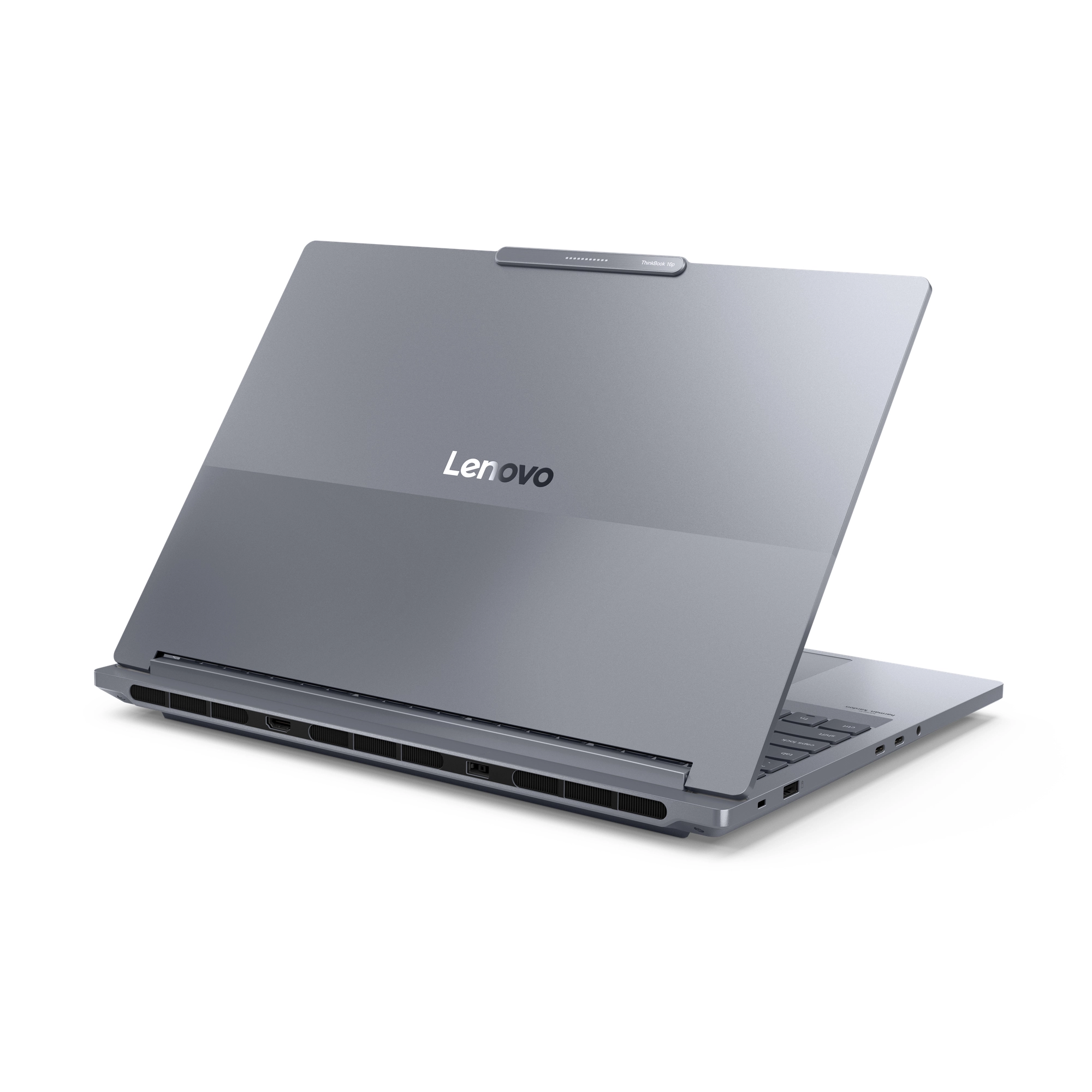

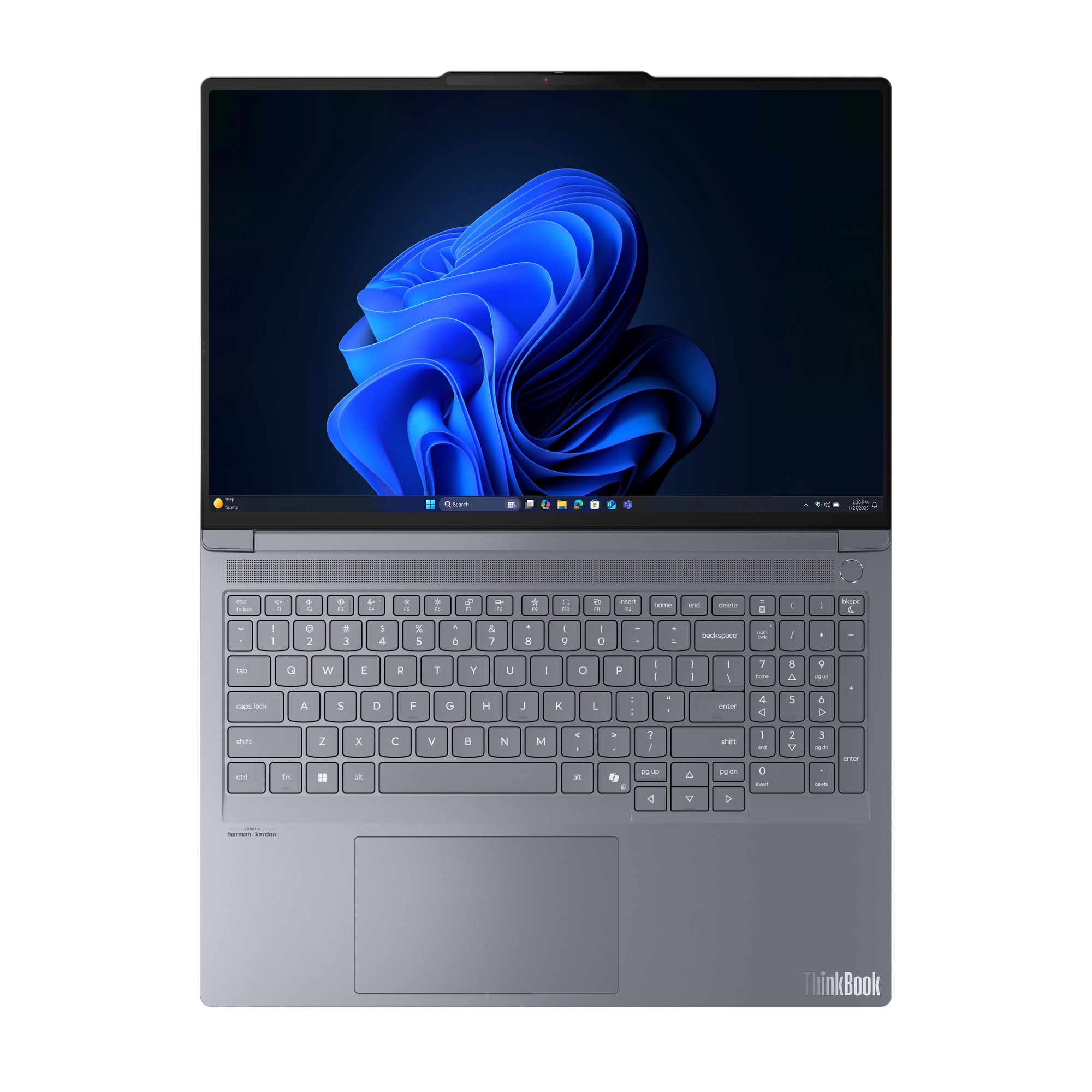

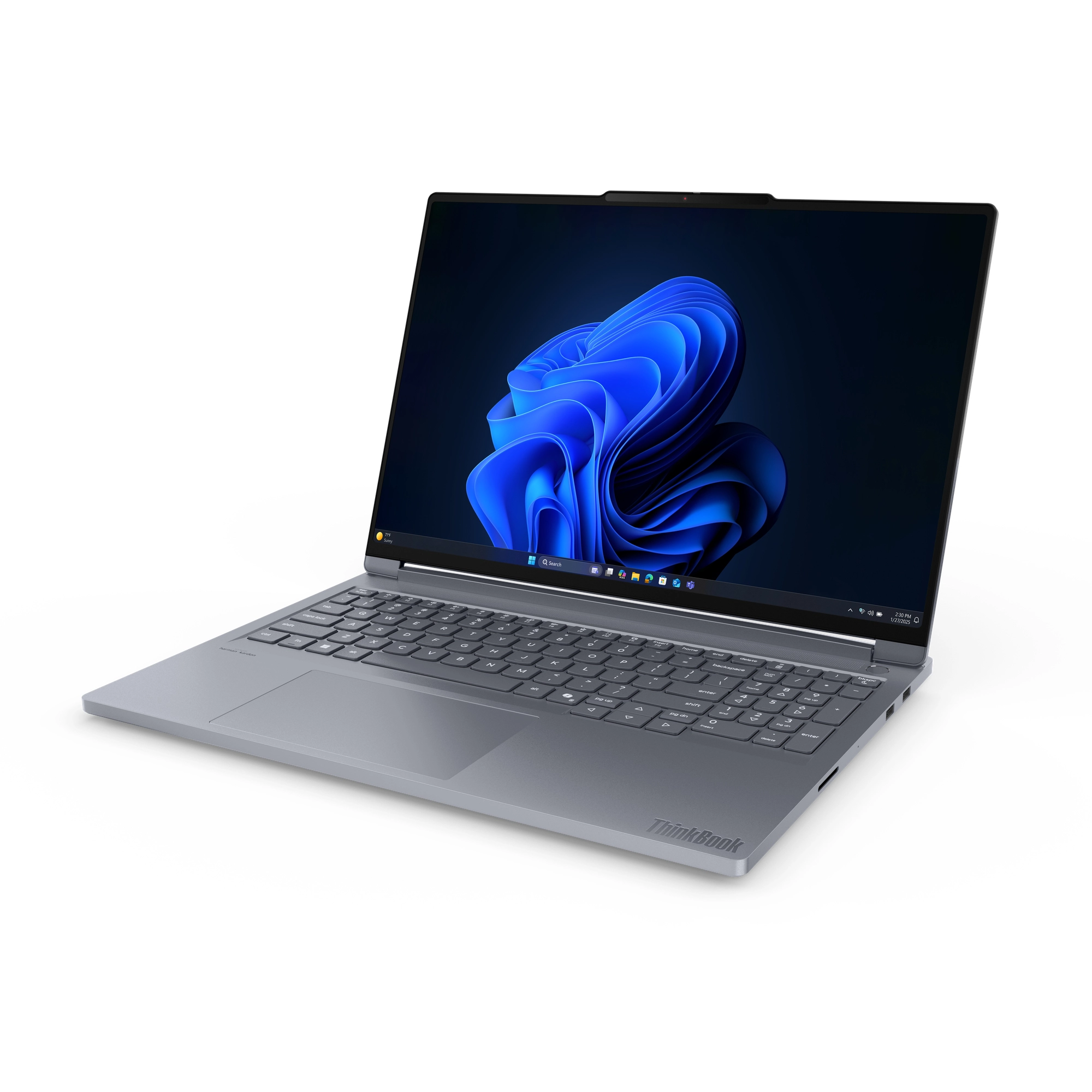

Lenovo ThinkBook 16p G6 IAX. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 40.6 cm (16"), HD type: 3.2K, Display resolution: 3200 x 2000 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Pro. Product colour: Grey

Specification

Product
Product id	1009811
Brand	Lenovo
Partnr	21R00014MH
EAN/UPC code	198158694636
Design
Product type	Notebook
Product colour	Grey
Colour name	Luna Grey
Form factor	Clamshell
Housing material	Aluminium
Display
Display diagonal	16 inch
Display resolution	3200 x 2000 Pixels
Touchscreen	N
Panel type	IPS
HD type	3.2K
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	500 cd/m²
Colour gamut	100 procent
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	Dolby Vision
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Y
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor model	275HX
Processor generation	Intel Core Ultra (Series 2)
Processor boost frequency	5.4 GHz
Processor cores	24
Processor threads	24
Efficient-core base frequency	2.1 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Processor cache	36 MB
Performance-core base frequency	2.7 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Motherboard chipset	Intel HM870
Processor base power	55 W
Maximum turbo power	160 W
Performance cores	8
Efficient cores	16
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance (up to)	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	SD
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA GeForce RTX 5060
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Discrete graphics adapter memory	8 GB
Discrete graphics memory type	GDDR7
Audio
Audio chip	Realtek ALC3306-CG
Built-in microphone	Y
Number of microphones	2
Camera
Front camera	Y
Front camera resolution	1920 x 1080 Pixels
Front camera HD type	Full HD
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	N
Bluetooth version	5.4
WWAN	Not installed
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
USB Power Delivery	Y
USB Sleep-and-Charge	Y
Keyboard
Pointing device	Touchpad
Keyboard language	English
Keyboard backlit	Y
Numeric keypad	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	ENG, FRE, DEU, DUT, ITA
Trial software	Office
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	85 Wh
Power
AC adapter power	300 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Y
Security
Cable lock slot	Y
Cable lock slot type	Kensington
Fingerprint reader	Y
Windows Hello	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Certificates
Certification	ENERGY STAR, TCO, EPEAT Gold, RoHS
Weight & dimensions
Weight	2100 g
Width	354.6 mm
Depth	256.2 mm
Height	17.9 mm
Other features
AC adapter included	Y
