Lenovo ThinkStation P3 + ThinkVision P25i-30. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4400 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel UHD Graphics 770, Discrete graphics card model: NVIDIA T1000. Operating system installed: Windows 11 Pro. Power supply: 500 W. Chassis type: Tower. Product type: Workstation. Product colour: Black

Specification

Product
Product id	993075
Brand	Lenovo
Partnr	30GS00AGMH-B1
EAN/UPC code
Processor
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor generation	Intel Core i7-14xxx
Processor model	i7-14700
Processor cores	20
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Processor cache	33 MB
Processor cache type	Smart Cache
Performance-core base frequency	2.1 GHz
Processor threads	28
Efficient-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	219 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	4400 MHz
Non-ECC	Y
Storage
Total storage capacity	1000 GB
Optical drive type	N
Card reader integrated	Y
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Compatible memory cards	SD
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA T1000
Discrete graphics memory type	GDDR6
Discrete graphics adapter memory	8 GB
On-board graphics adapter family	Intel UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics 770
Graphics card Mini DisplayPort ports quantity	4
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 1000, 100 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel I219-LM
Wi-Fi	N
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Line-out	Y
Combo headphone/mic port	Y
Design
Chassis type	Tower
Volume	27 l
Placement supported	Vertical
Product colour	Black
Performance
Product type	Workstation
Market positioning	Business
Motherboard chipset	Intel W680
Audio chip	Realtek ALC897Q-CG
Audio system	High Definition Audio
Built-in speaker(s)	Y
Number of speakers	1
Password protection	Y
Password protection type	Power on, Supervisor
Trusted Platform Module (TPM)	Y
Software
Operating system installed	Windows 11 Pro
Operating system language	DUT, FRE, ENG, ITA, DEU
Power
Power supply	500 W
80 PLUS certification	80 PLUS Platinum
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Y
Weight & dimensions
Width	180 mm
Depth	370 mm
Height	415 mm
Weight	13600 g
Packaging content

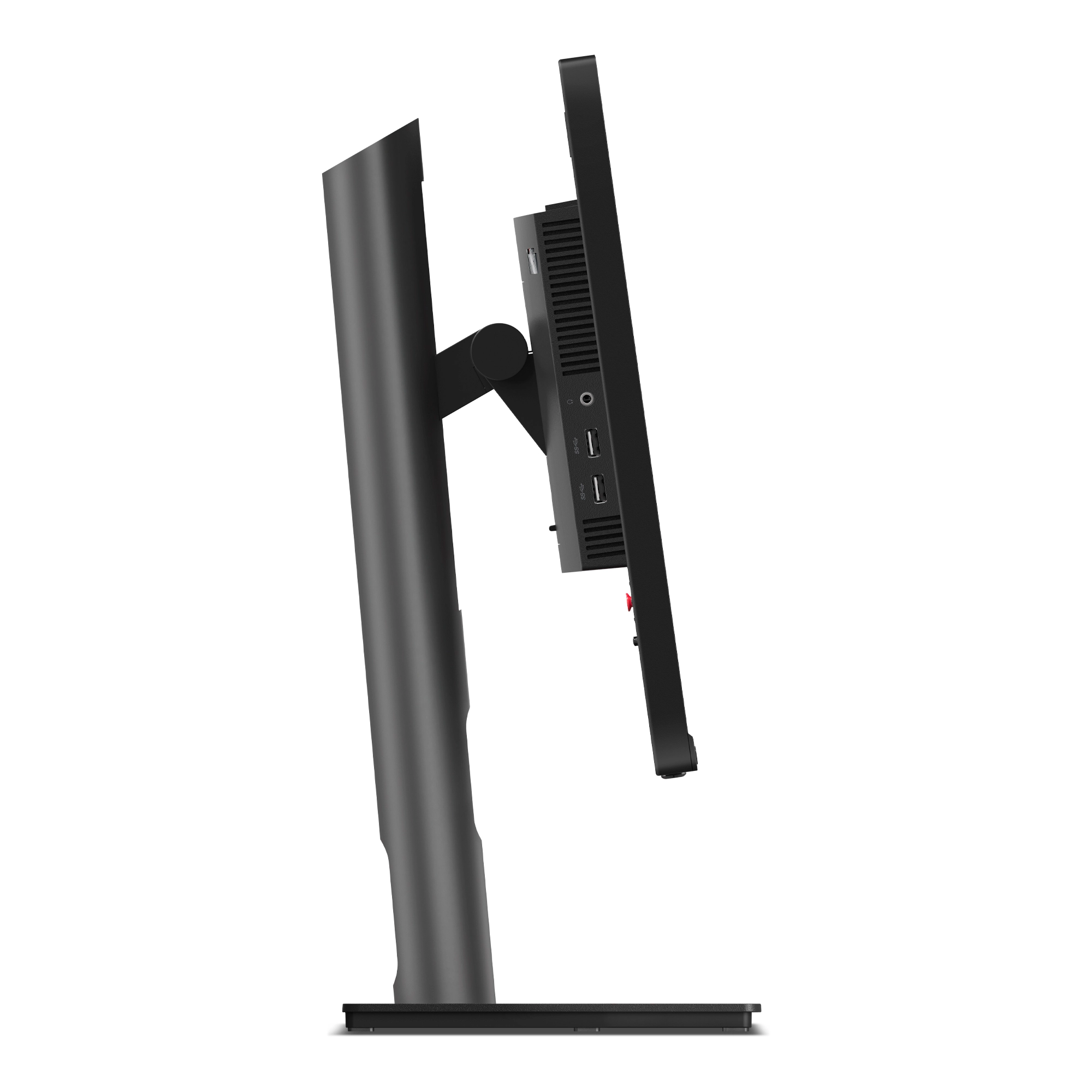

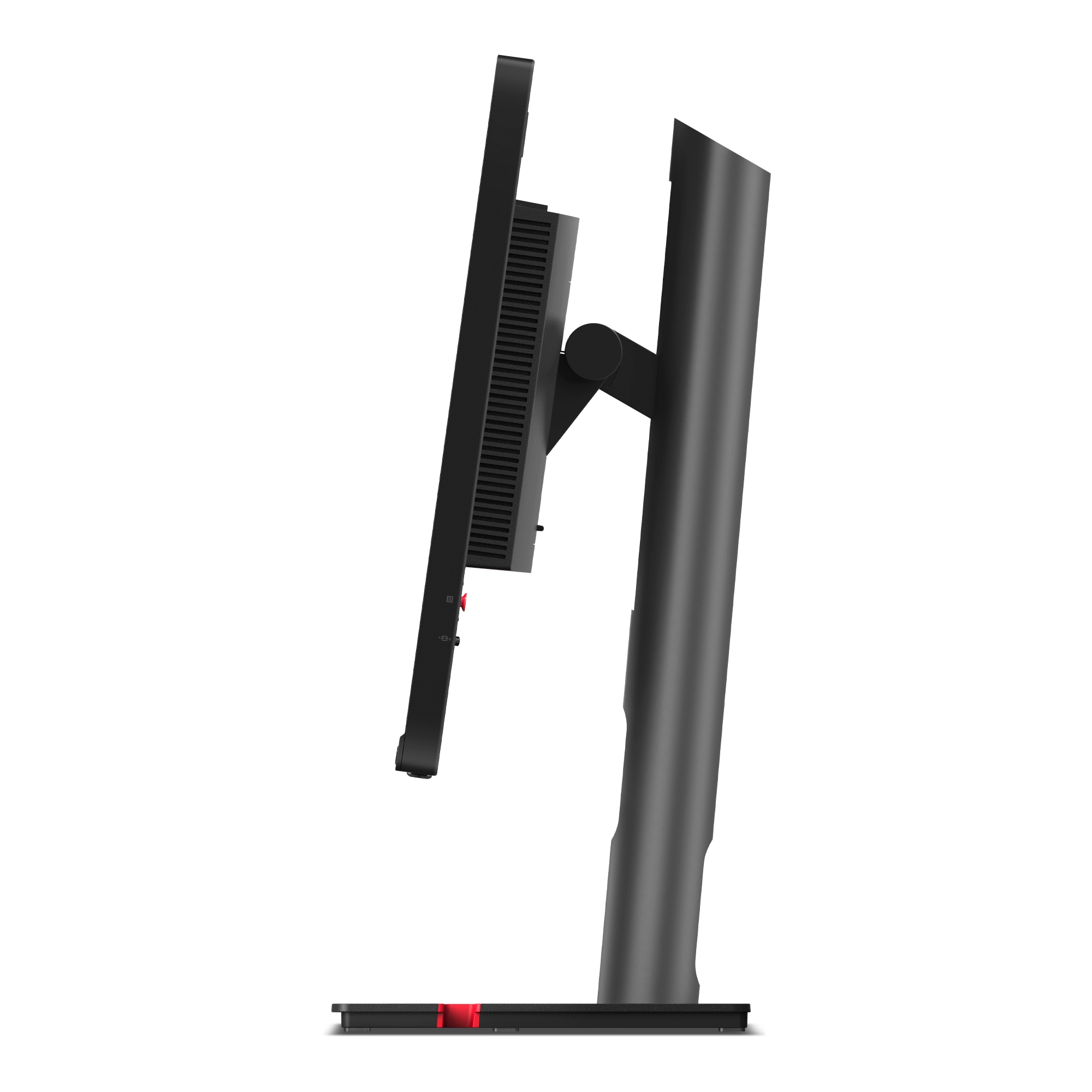

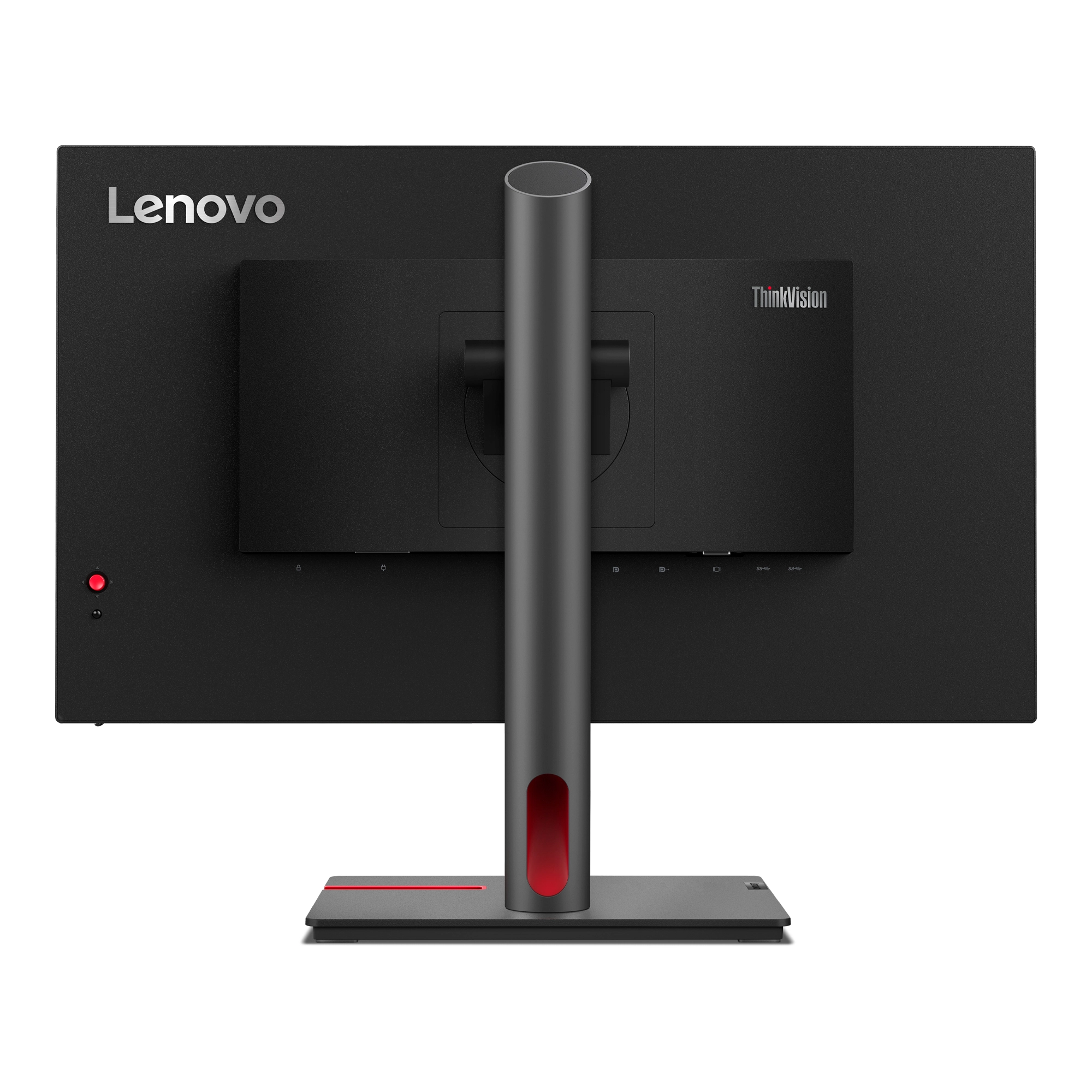

Display included	Y
Display diagonal	24.5 inch
Display resolution	1920 x 1080 Pixels
Panel type	IPS
Native aspect ratio	16:9
Contrast ratio (typical)	1300:1
Display brightness	250 cd/m²
Display number of colours	16.78 million colours
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Mouse included	Y
Keyboard included	Y
Display
Contrast ratio (dynamic)	3000000:1
HD type	Full HD
Screen shape	Flat screen
Backlight type	W-LED
Response time	6 ms
Response time (fast)	4 ms
Maximum refresh rate	100 Hz
Pixel pitch	0.2802 x 0.2802 mm
Pixel density	89.9 ppi
Colour gamut standard	DCI-P3
Colour gamut	83 procent
sRGB coverage (typical)	99 procent
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	15 kWu
Technical details
Sustainability certificates	TCO, ENERGY STAR, EPEAT Gold, ErP
Other features
Touchscreen	N
