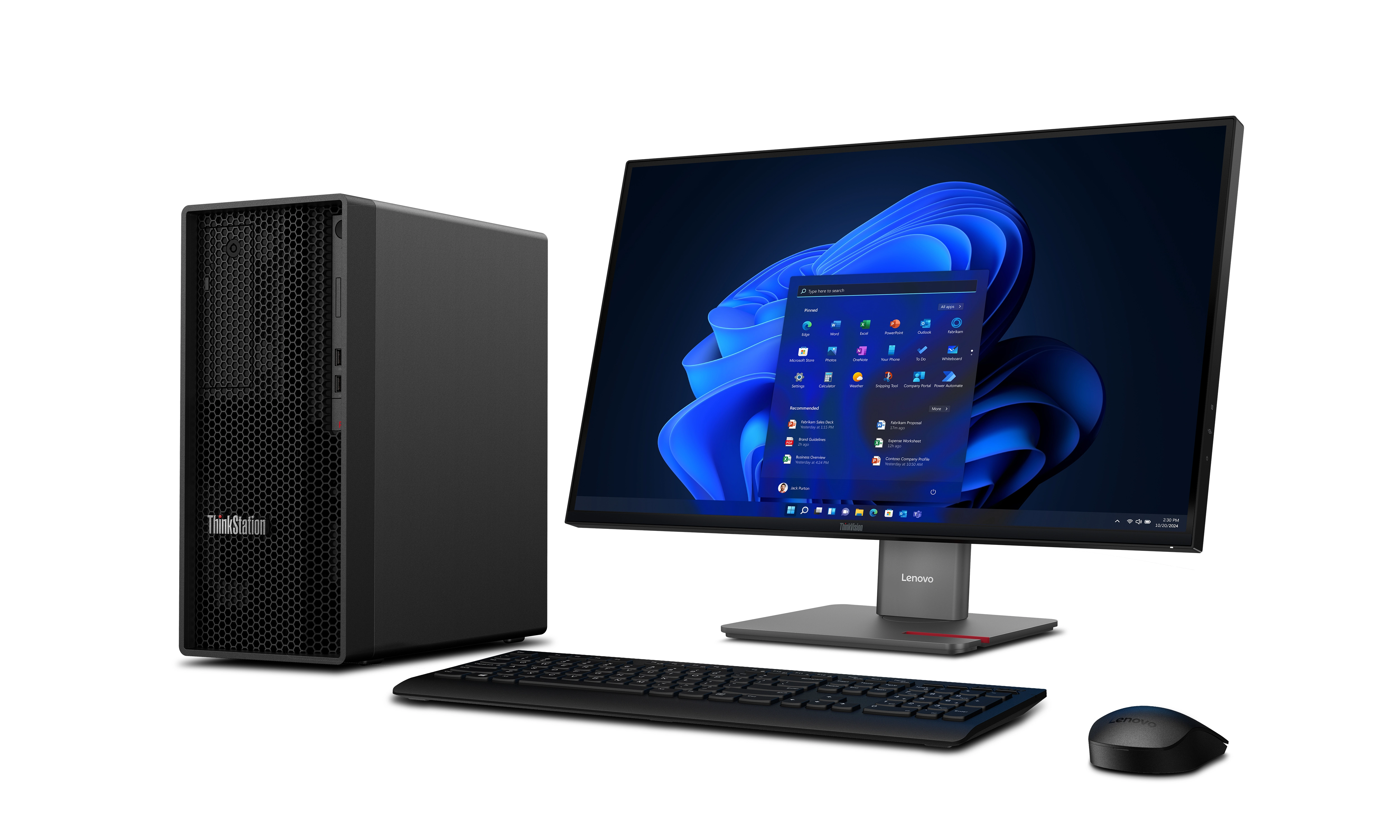

LENOVO THINKSTATION P2 TOWER GEN 2
Workstation Power at Desktop Value
Workstation performance is within reach with the Lenovo ThinkStation P2 Tower Gen 2. Intel® Core™ Ultra processors with an integrated neural processing unit (NPU) and NVIDIA RTX™ Ada Generation graphics set a new standard in the entry space while offering outstanding value. This workstation is ideal for entry-level CAD, product design, STEAM, and beyond.

POTENT COMBINED AI ACCELERATION
Accelerate Your Workflows with Advanced AI
Push your creative boundaries with next-generation AI – up to 36 TOPS from the system and integrated NPU, plus 192 TOPS from NVIDIA RTX™ Ada graphics. From simulation and modeling to automation, the ThinkStation P2 Tower Gen 2 empowers teams to streamline tasks and innovate faster.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specification

Product
Product id	1016044
Brand	Lenovo
Partnr	30JQ00AWBF
EAN/UPC code	199275516252
Warranty (months)	3-year, Onsite
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	265K
Processor cores	20
Processor boost frequency	5.5 GHz
Performance cores	8
Processor socket	LGA 1851 (Socket V1)
Efficient cores	12
Processor cache	30 MB
Processor cache type	Smart Cache
Performance-core base frequency	3.7 GHz
Processor threads	20
Efficient-core base frequency	3.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.5 GHz
Number of processors installed	1
Processor base power	125 W
Maximum turbo power	250 W
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Memory channels	Single-channel
Non-ECC	Y
Buffered memory type	Unregistered (unbuffered)
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance (up to)	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Storage
Total storage capacity	512 GB
Optical drive type	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA GeForce RTX 5060
Discrete graphics memory type	GDDR7
Discrete graphics adapter memory	8 GB
Number of discrete graphics adapters	1
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel I219-LM
Wi-Fi	N
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Line-out	Y
Combo headphone/mic port	Y
Design
Chassis type	Tower
Volume	17 l
Placement supported	Vertical
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	Workstation
Motherboard chipset	Intel W880
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Built-in speaker(s)	Y
Number of speakers	1
Password protection	Y
Password protection type	BIOS, Power on
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Bundled software	Lenovo AI Now
Power
Power supply	750 W
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
80 PLUS certification	80 PLUS Platinum
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Certification	TCO Certified 10.0
Compliance certificates	RoHS
Weight & dimensions
Width	170 mm
Depth	315.35 mm
Height	376 mm
Weight	9670 g
Packaging content
Display included	N
Mouse connectivity	Wired
Mouse included	Y
