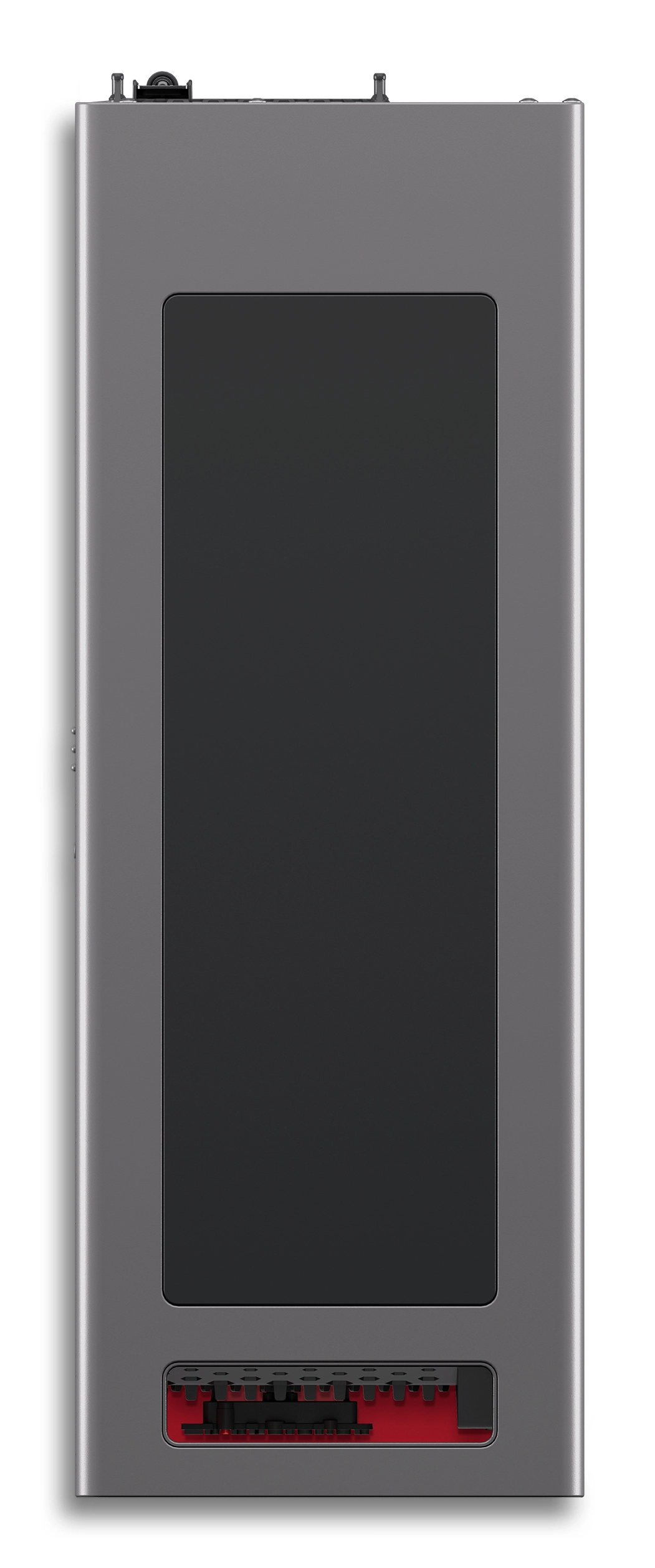

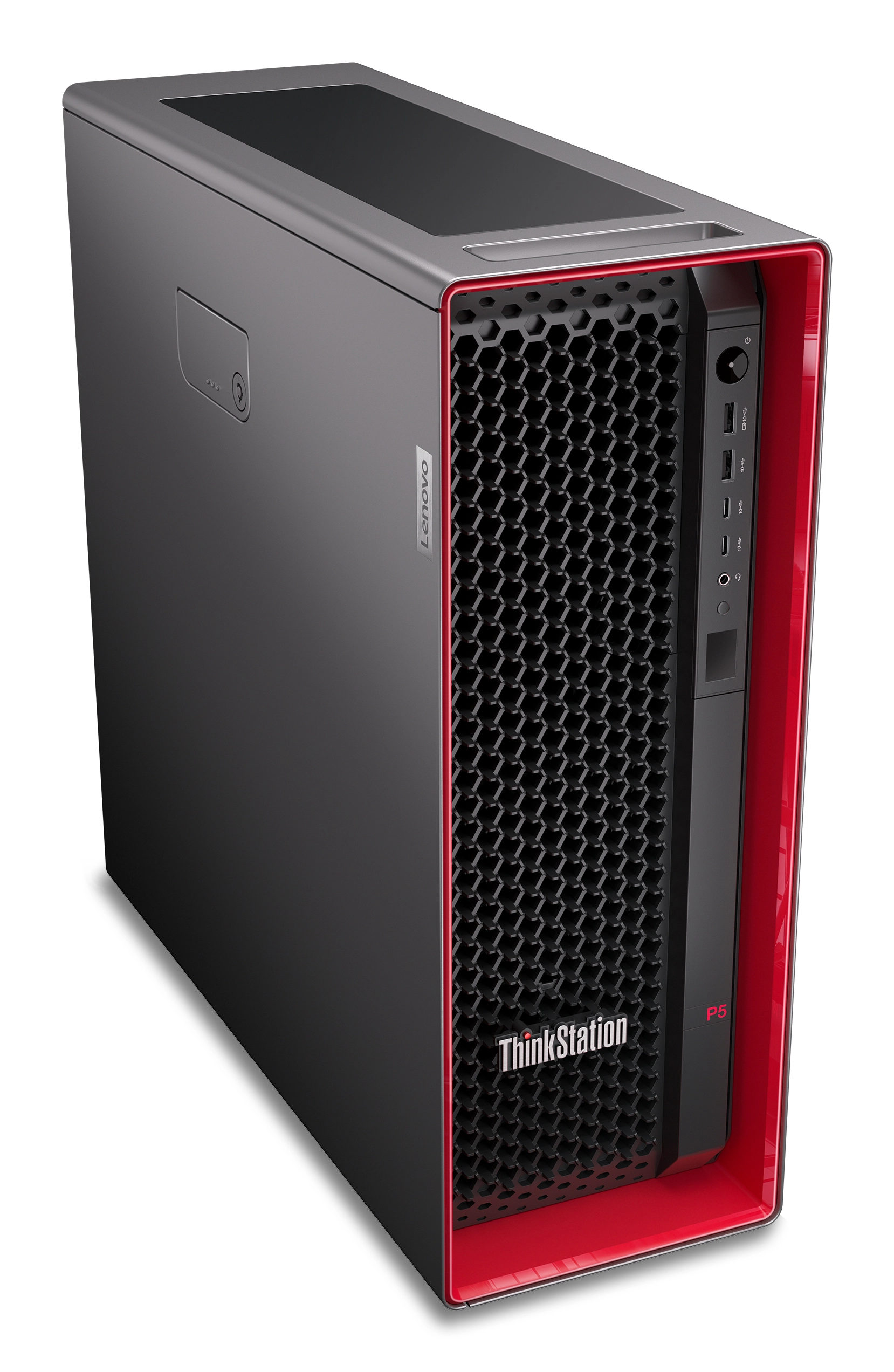

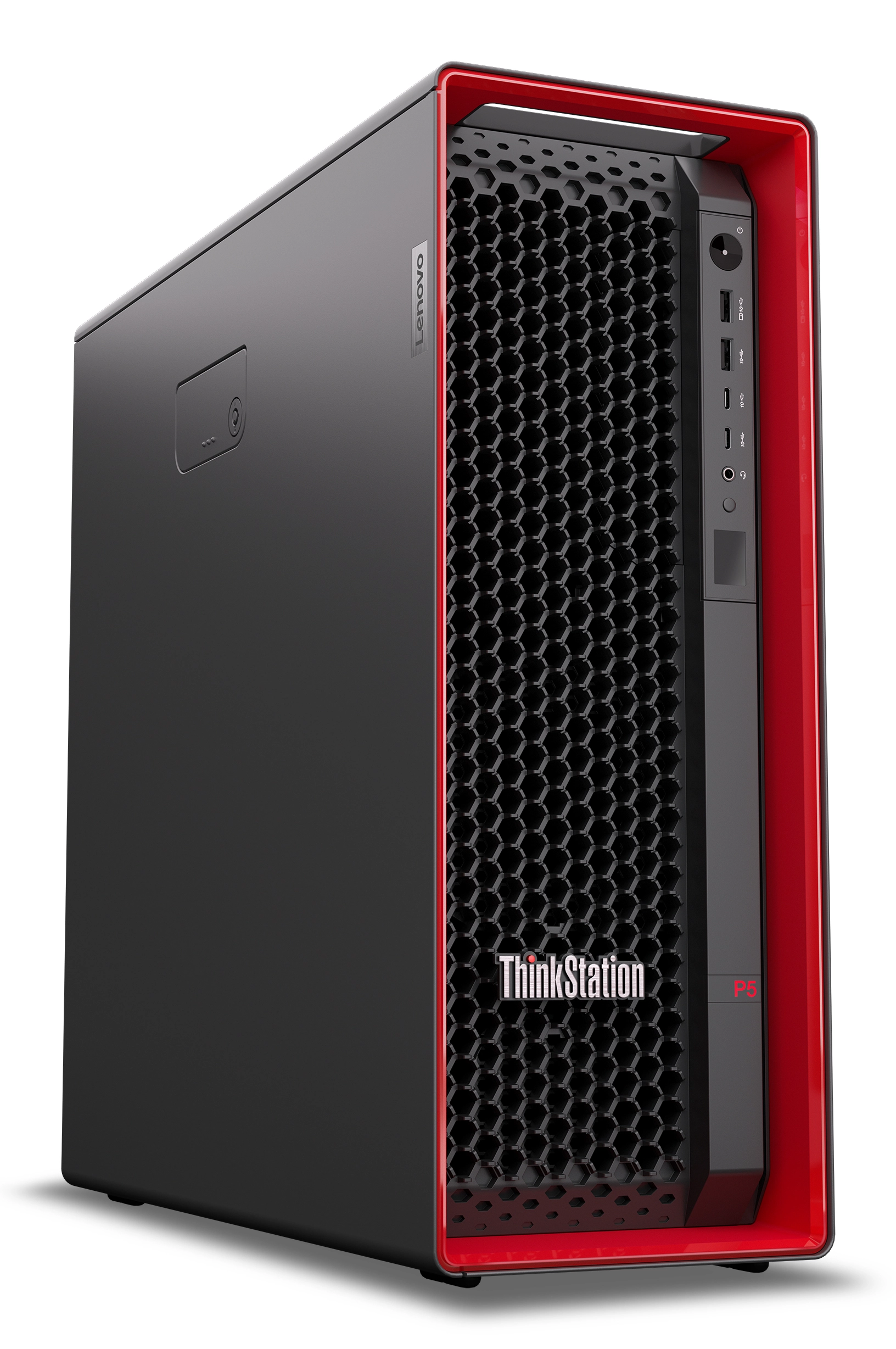

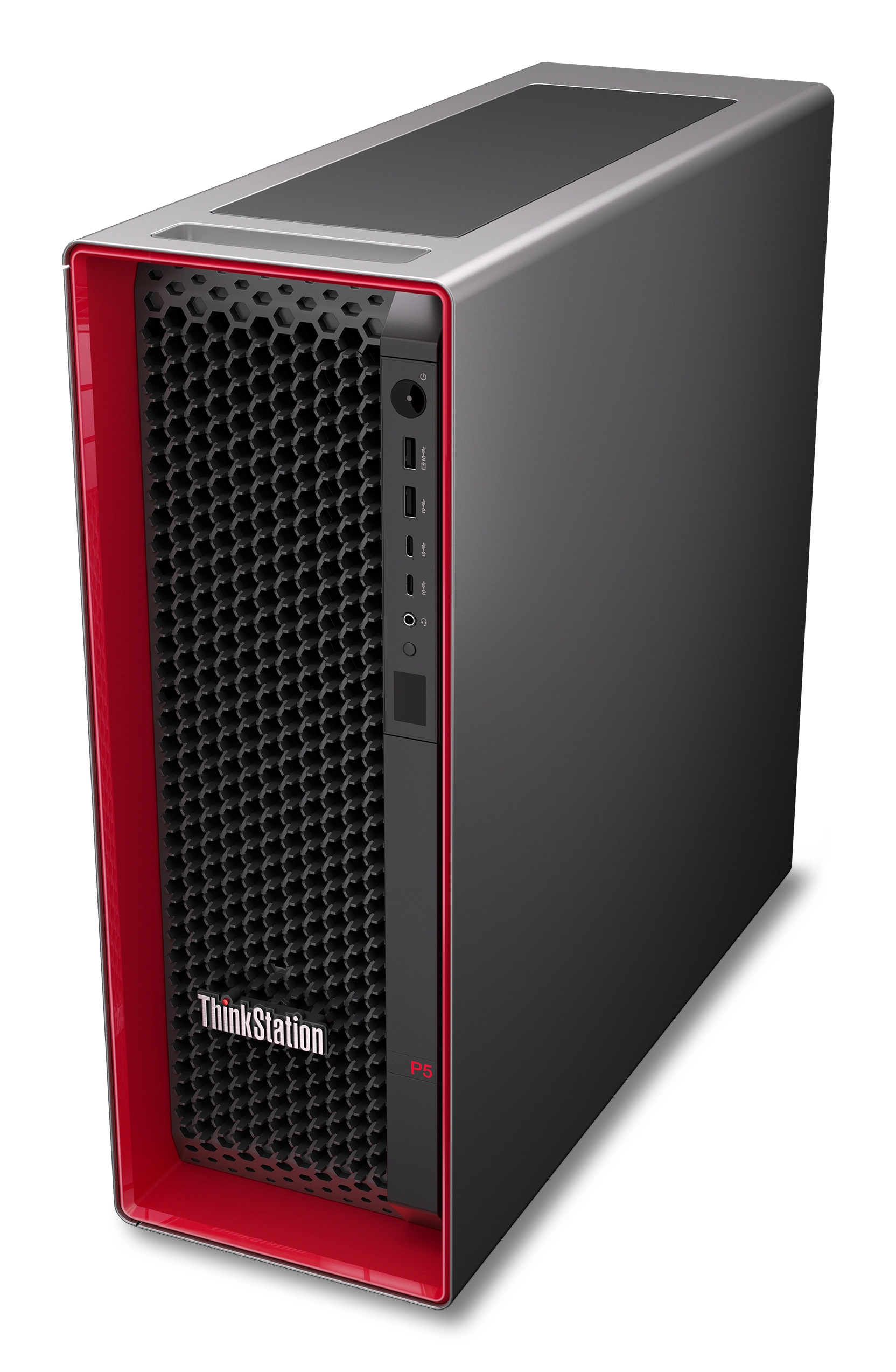

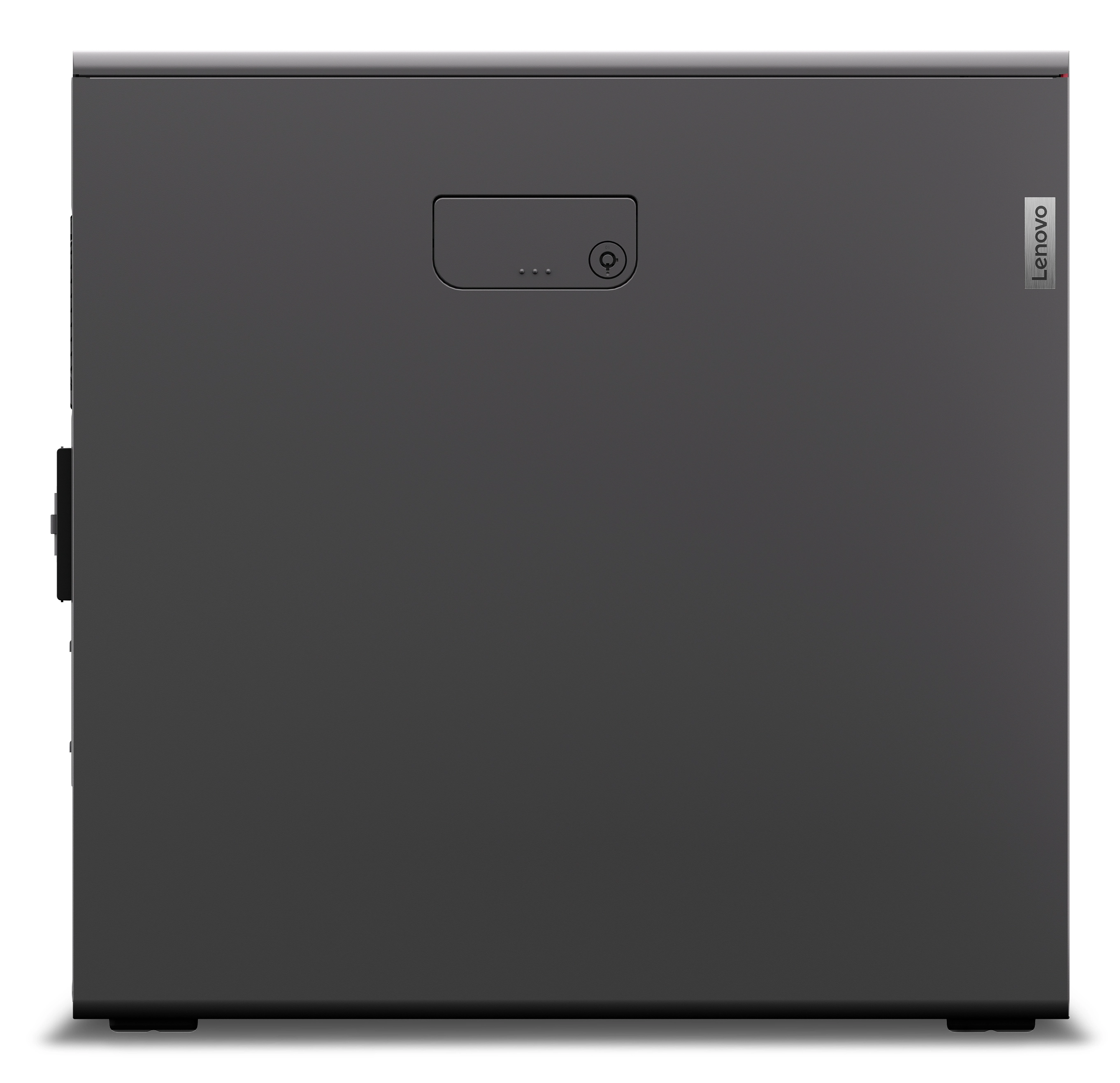

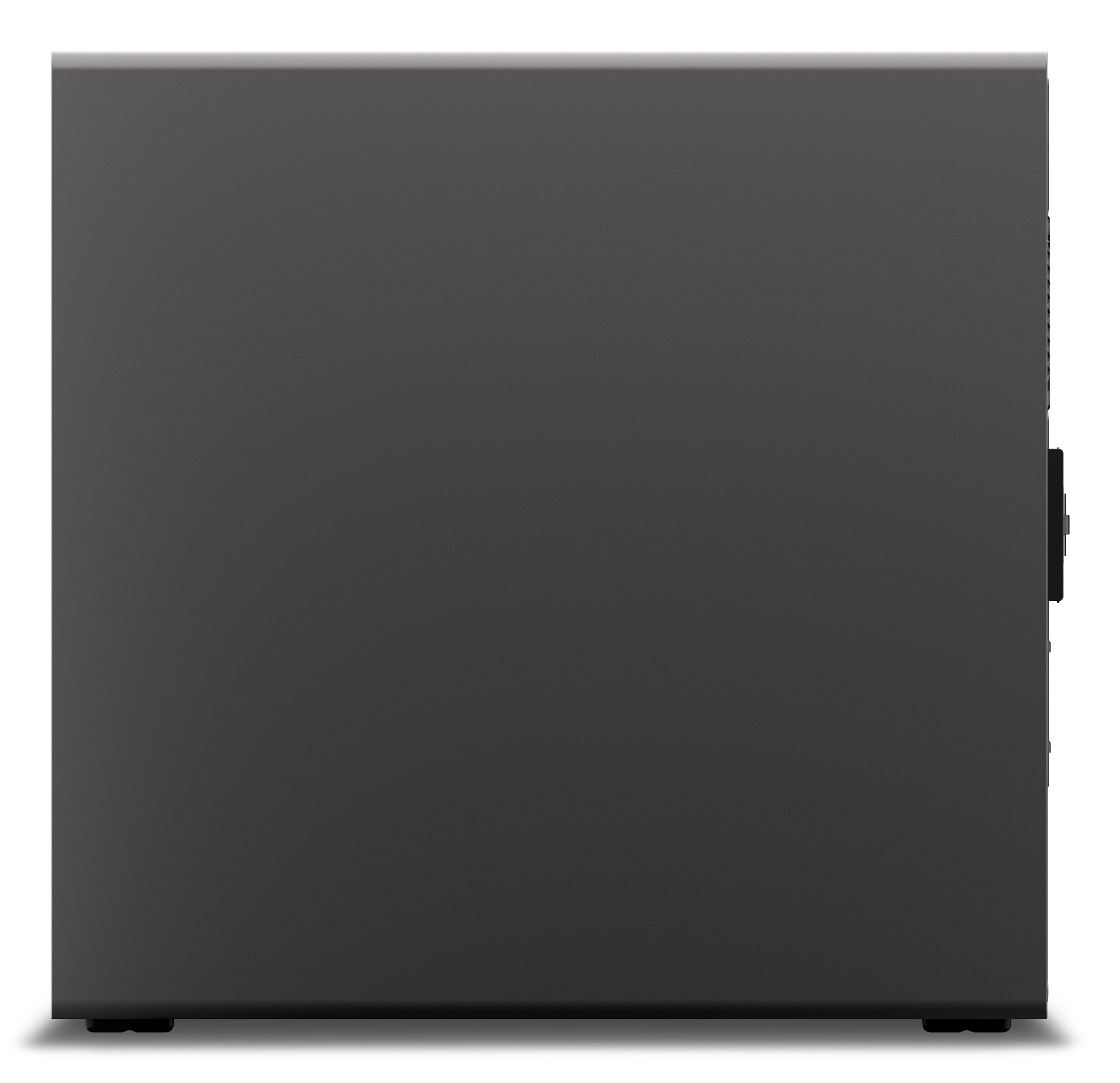

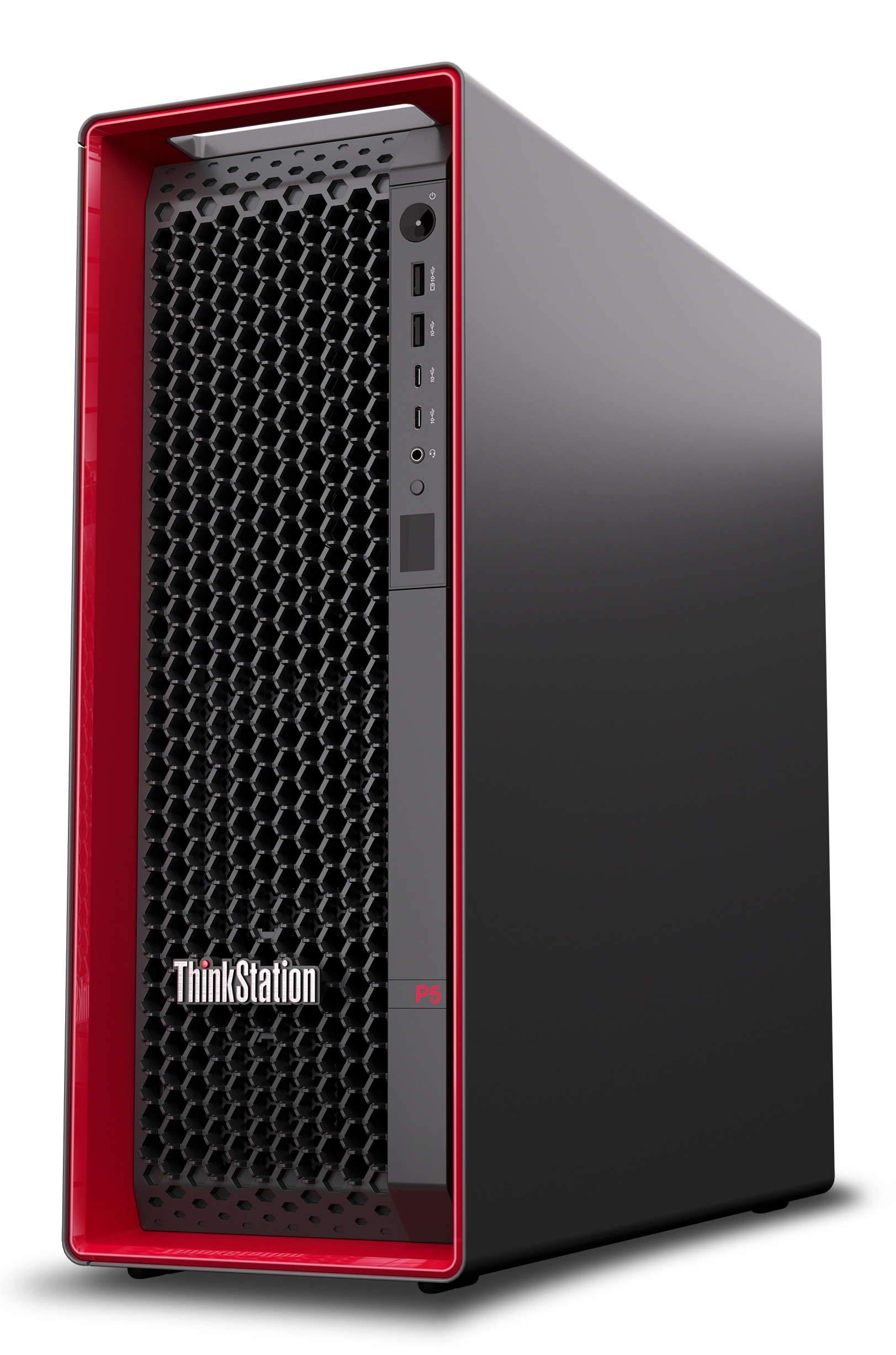

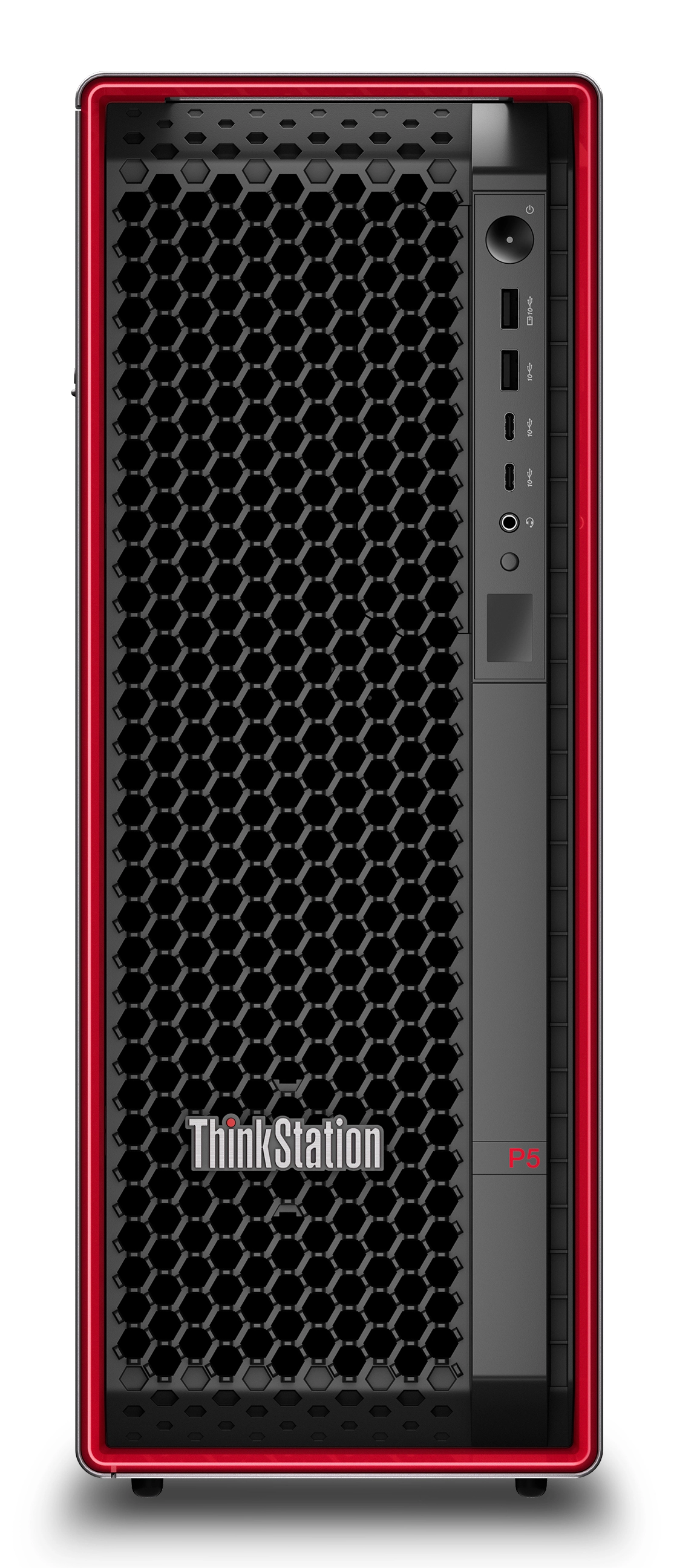

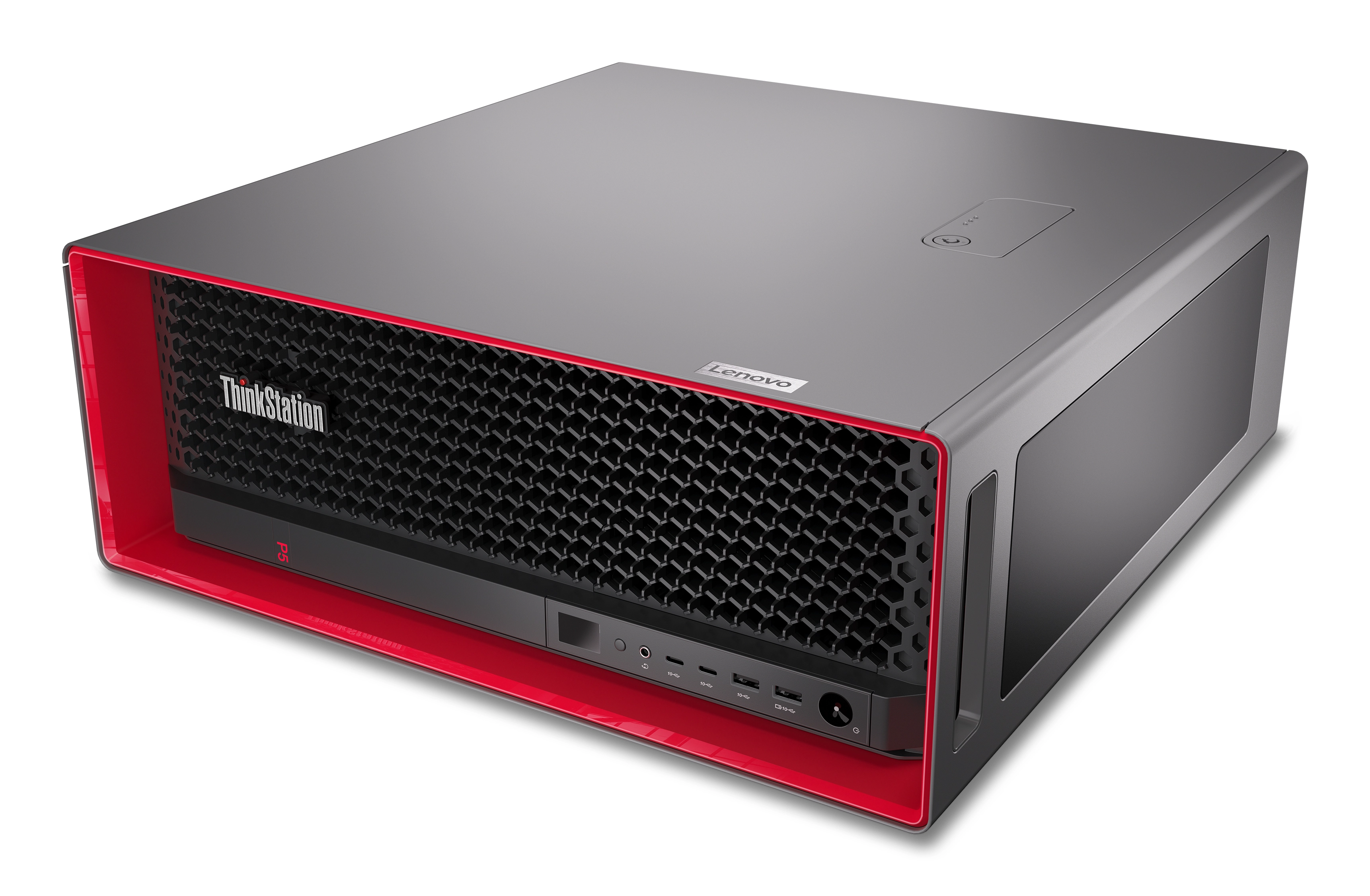

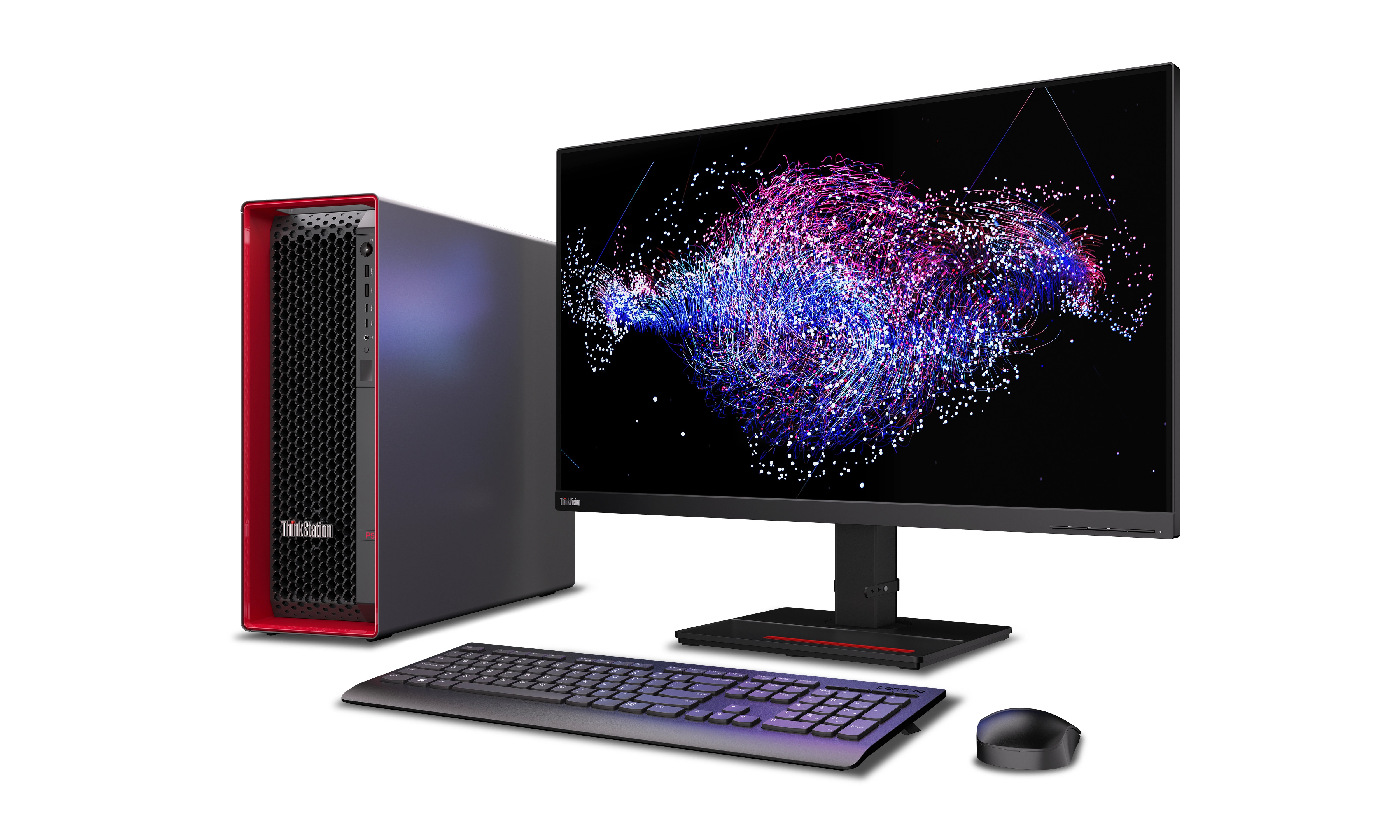

Lenovo ThinkStation P5 Gen 2. Processor frequency: 3.2 GHz, Processor family: Intel® Xeon®, Processor model: 638. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 1 TB, Storage media: SSD. Operating system installed: Windows 11 Pro for Workstations, Operating system architecture: 64-bit. Power supply: 750 W. Chassis type: Tower. Product type: Workstation. Weight: 19 kg. Product colour: Black

Specification

Product
Product id	1016041
Brand	Lenovo
Partnr	30KB001WBF
EAN/UPC code	199275665134
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon
Processor generation	Intel Xeon 6
Processor model	638
Processor cores	16
Processor frequency	3.2 GHz
Processor boost frequency	4.8 GHz
Performance cores	16
Processor socket	LGA 4710
Processor cache	72 MB
Processor threads	32
Processor base power	180 W
Maximum turbo power	216 W
Memory
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	1000 GB
Memory layout (slots x size)	1 x 64 GB
Memory slots	8x DIMM
Memory clock speed	6400 MHz
ECC	Y
Buffered memory type	Registered (buffered)
Memory data transfer rate	6400 MT/s
Storage
Total storage capacity	1000 GB
Optical drive type	N
Card reader integrated	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 5.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	N
On-board graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter model	Not available
Network
Ethernet LAN	Y
Ethernet LAN data rates	2500 Mbit/s
LAN controller	Intel I226-LM
Wi-Fi	N

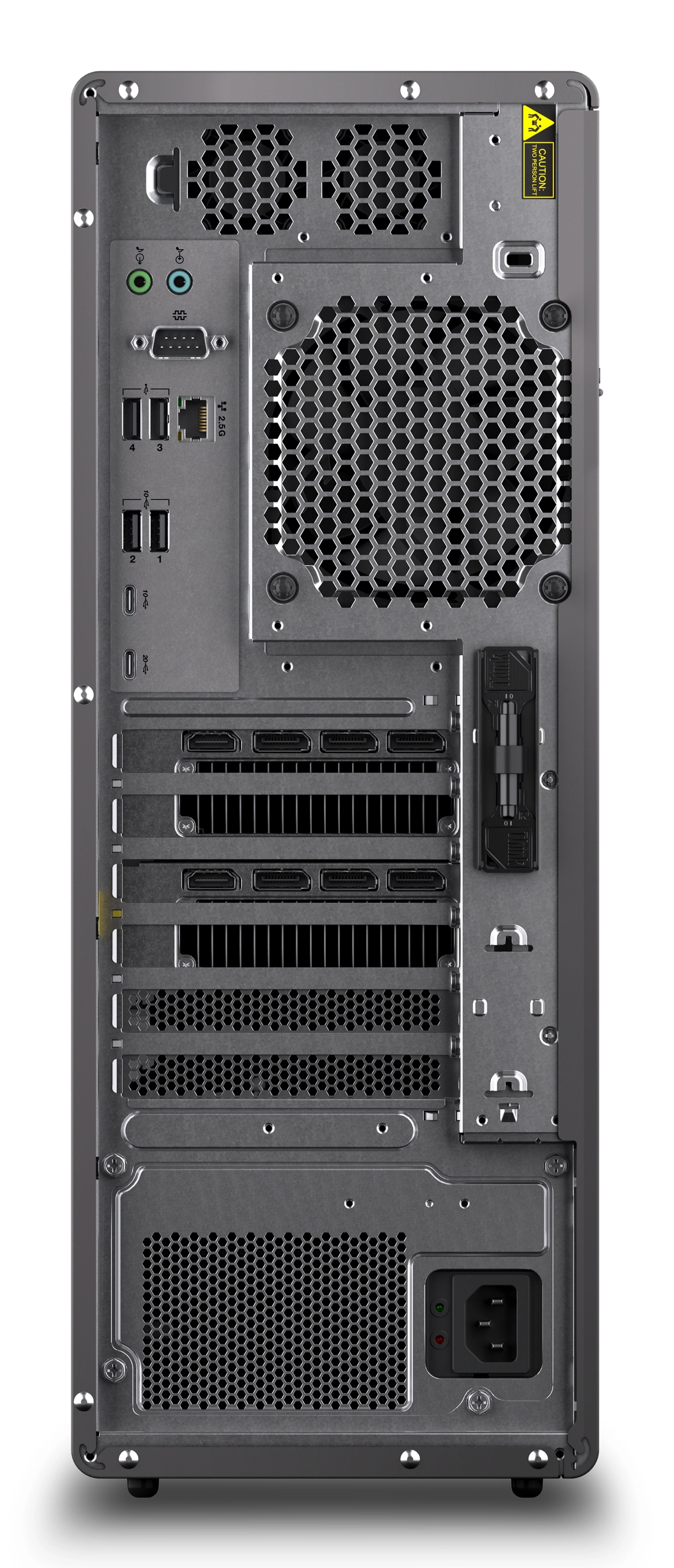

Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
Line-in	Y
Line-out	Y
Combo headphone/mic port	Y
Design
Chassis type	Tower
Volume	33 l
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	Workstation
Motherboard chipset	Intel W890
Audio chip	Realtek ALC897-Q
Audio system	High Definition Audio
Built-in speaker(s)	Y
Number of speakers	1
Password protection	Y
Password protection type	BIOS, Power on
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro for Workstations
Operating system architecture	64-bit
Operating system language	ENG, FRE, DUT, DEU, ITA
Power
Power supply	750 W
80 PLUS certification	80 PLUS Platinum
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	165 mm
Depth	453.9 mm
Height	440 mm
Weight	19000 g
Packaging content
Display included	N
Mouse connectivity	Wired
Mouse included	Y
