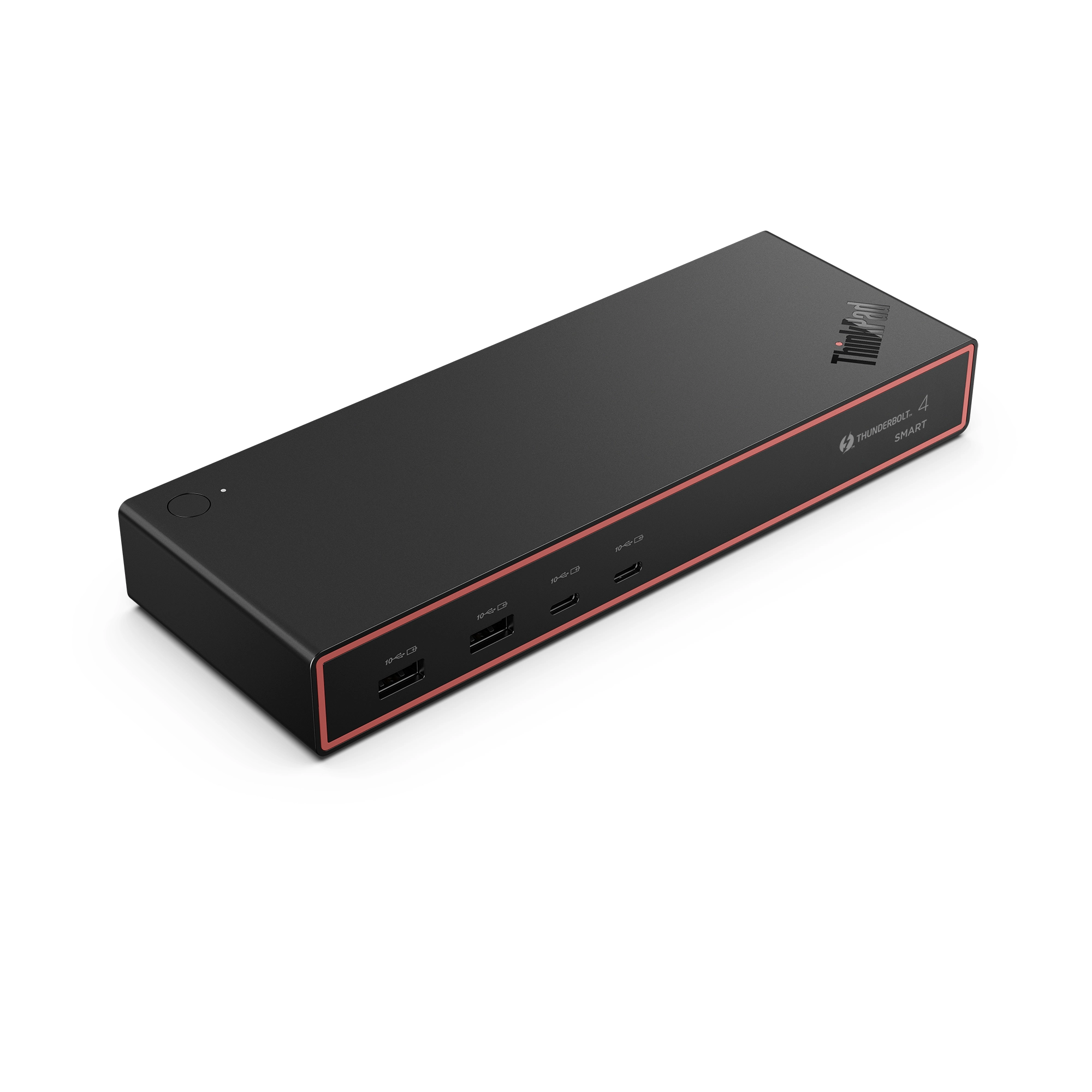

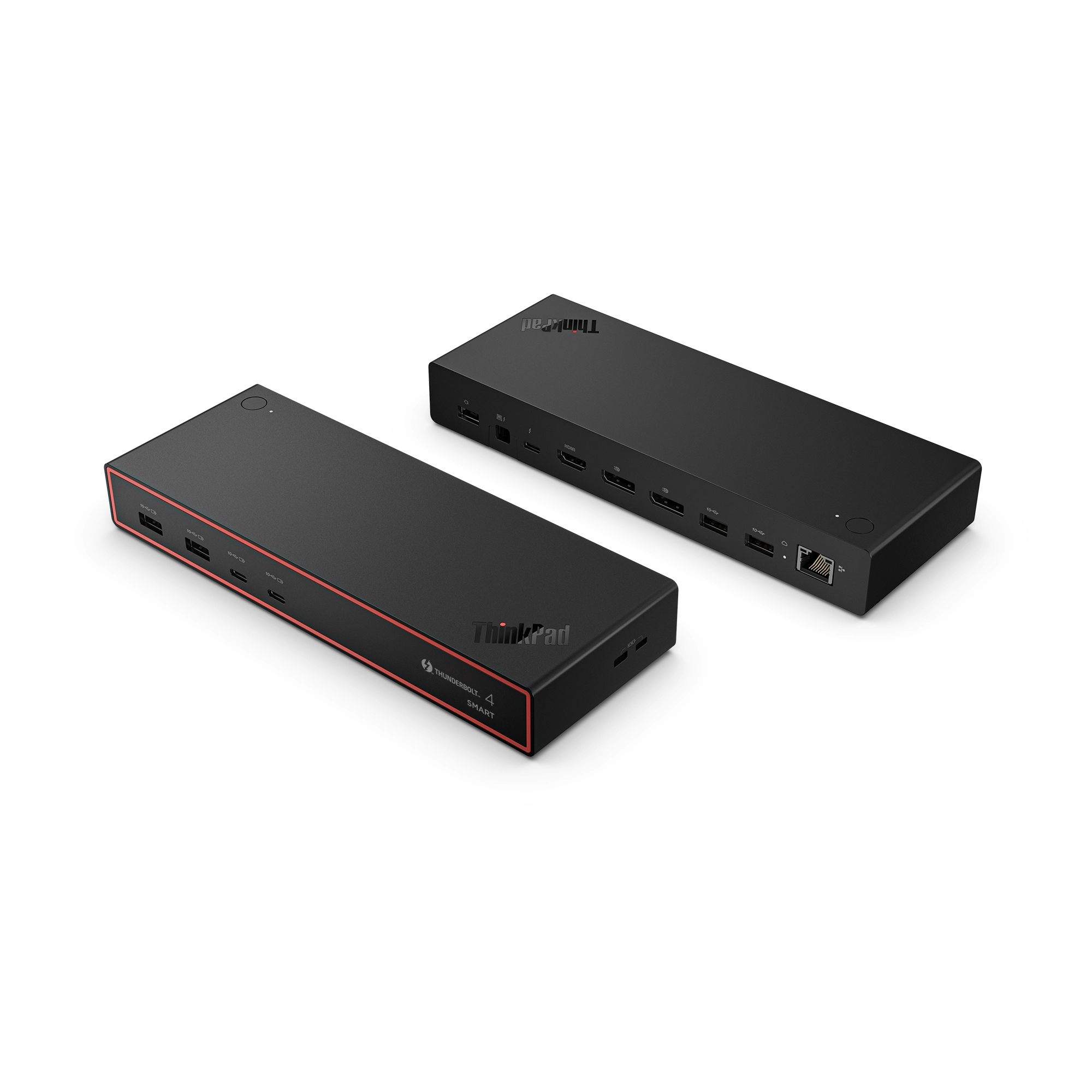

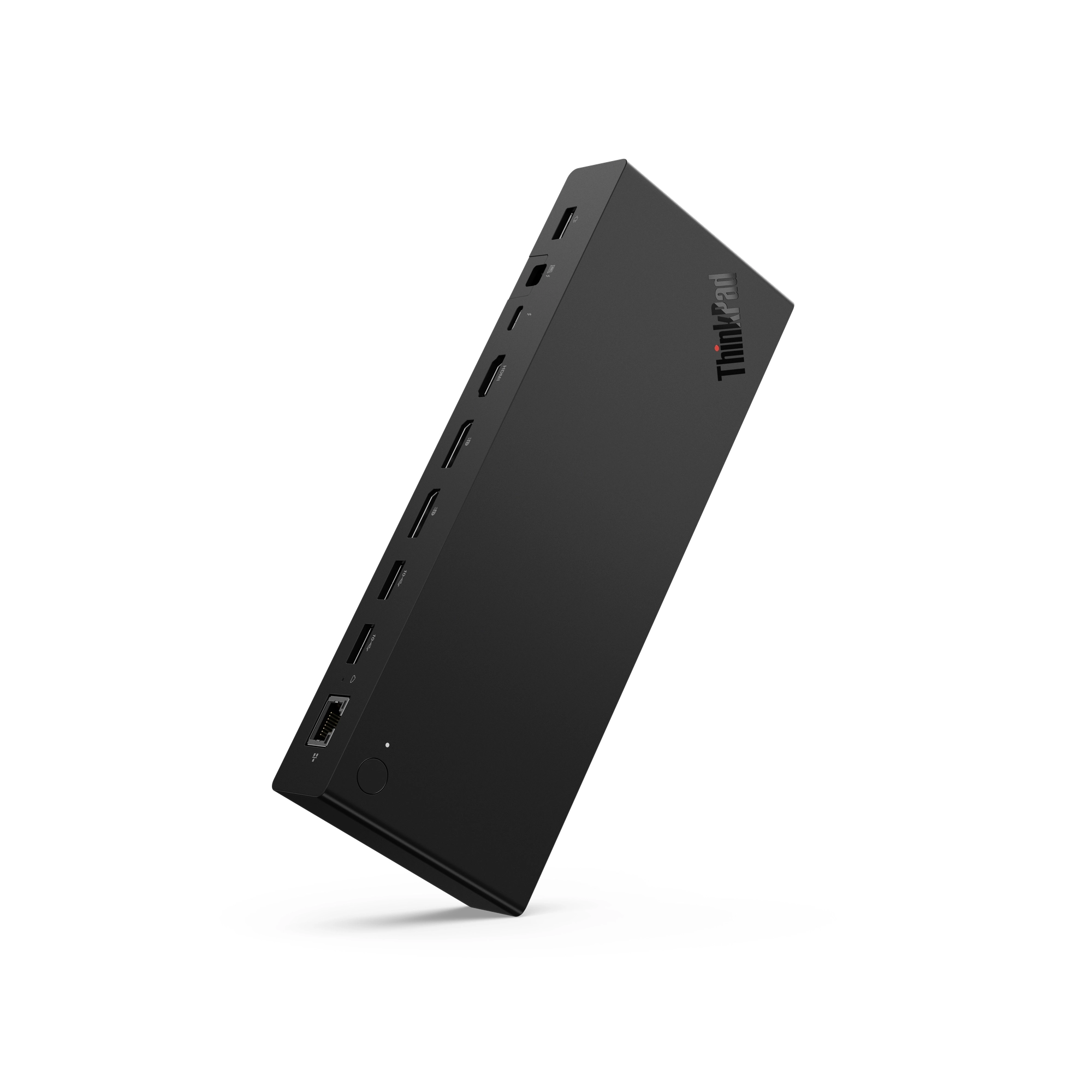

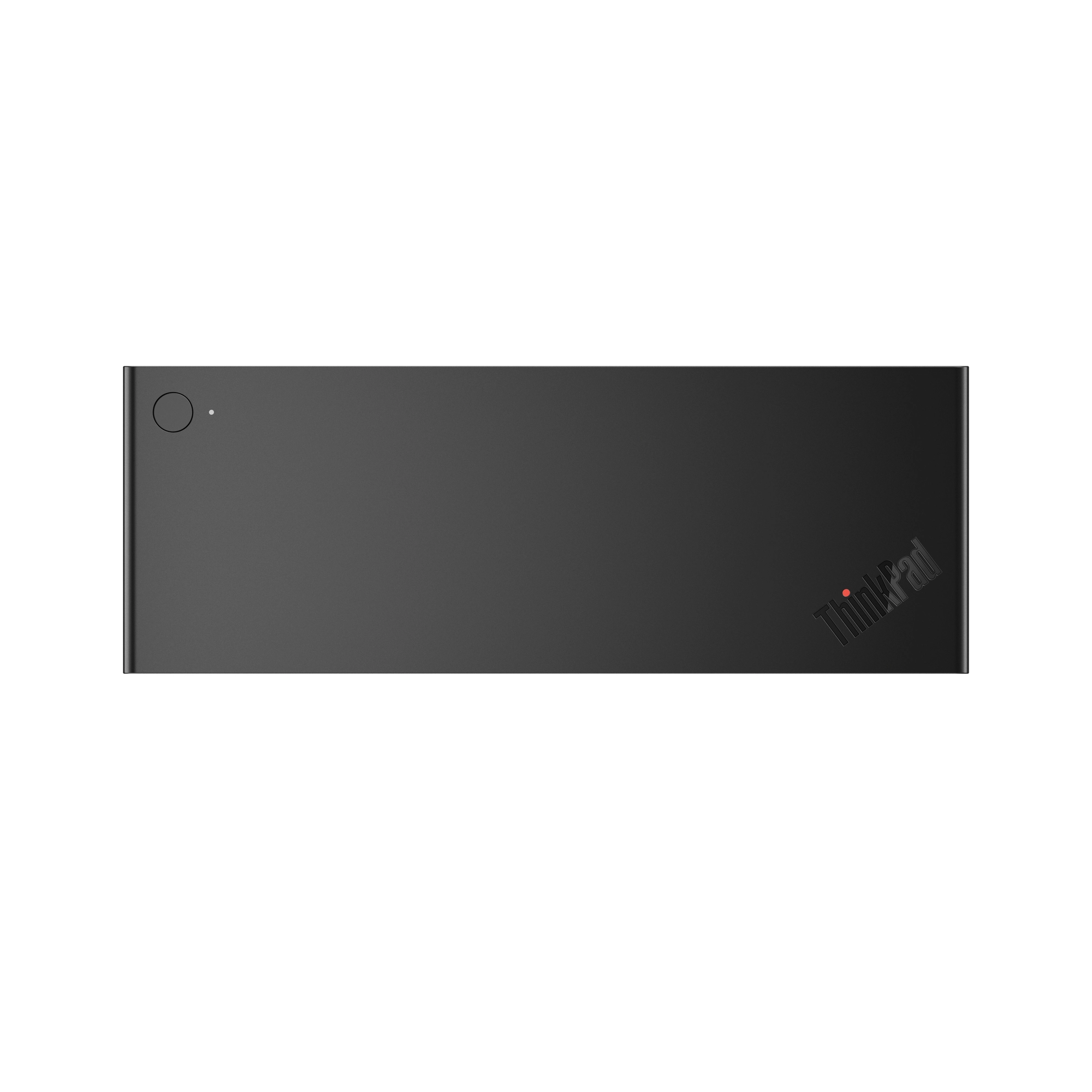

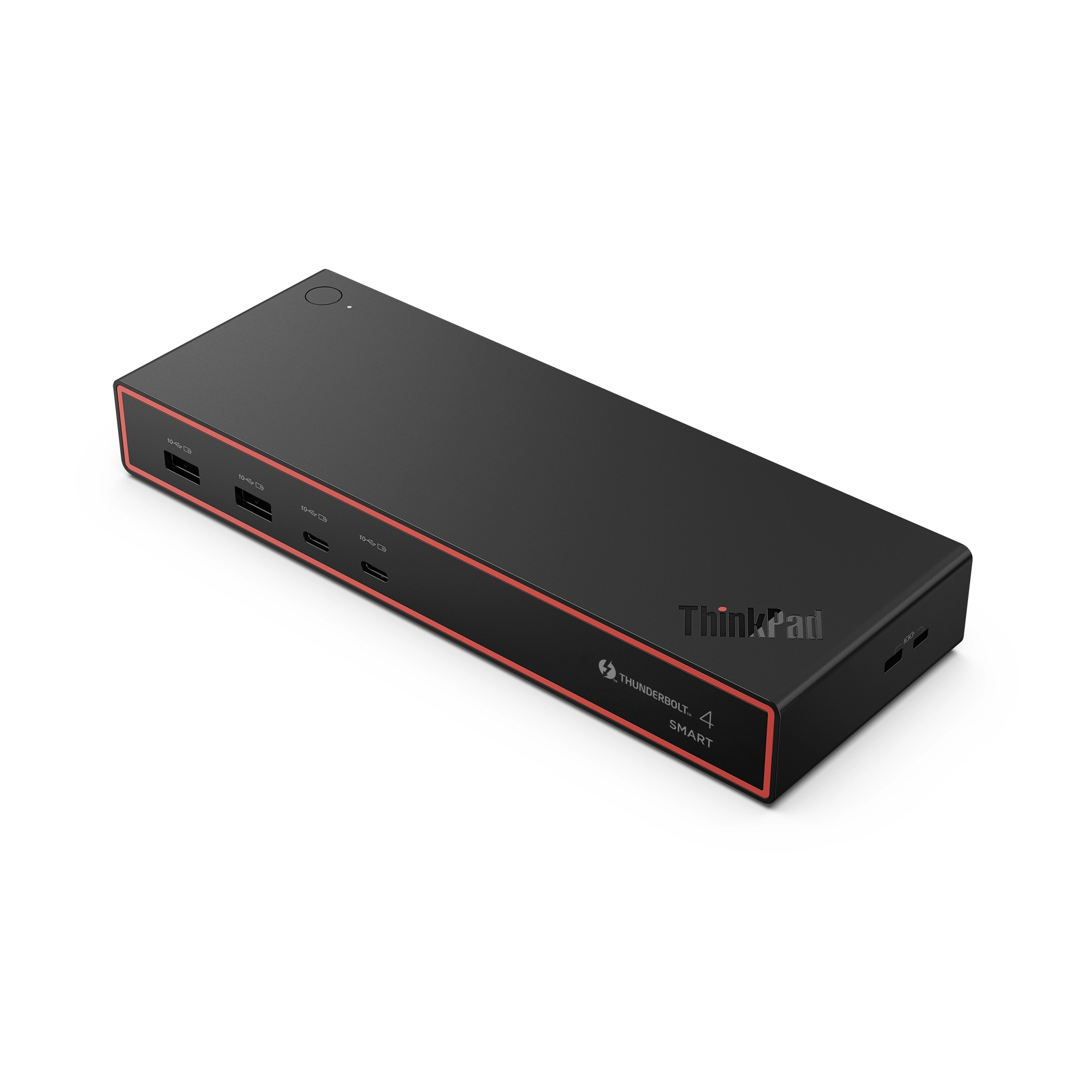

New Generation ThinkPad® Thunderbolt™ 4 Smart Dock; The ThinkPad® Thunderbolt™ 4 Smart Dock Gen 2 7500 is a refresh of its Thunderbolt™ 4 Smart Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed, and new generation cloud-based management console powered by AWS for IT managers.

Specification

Product
Product id	1000945
Brand	Lenovo
Partnr	40BE0135EU
EAN/UPC code	195892121305
Warranty (months)	3 Year

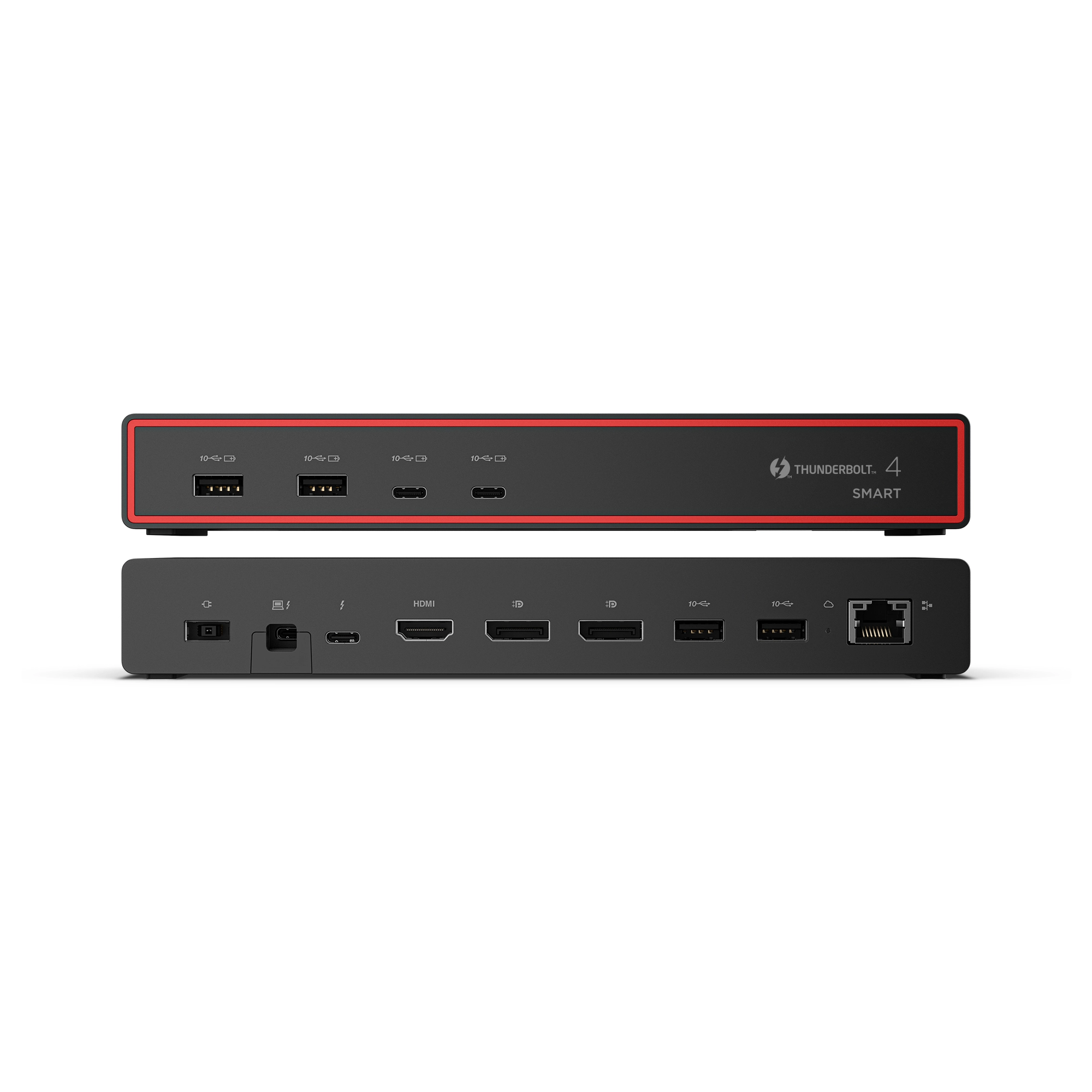

Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 4

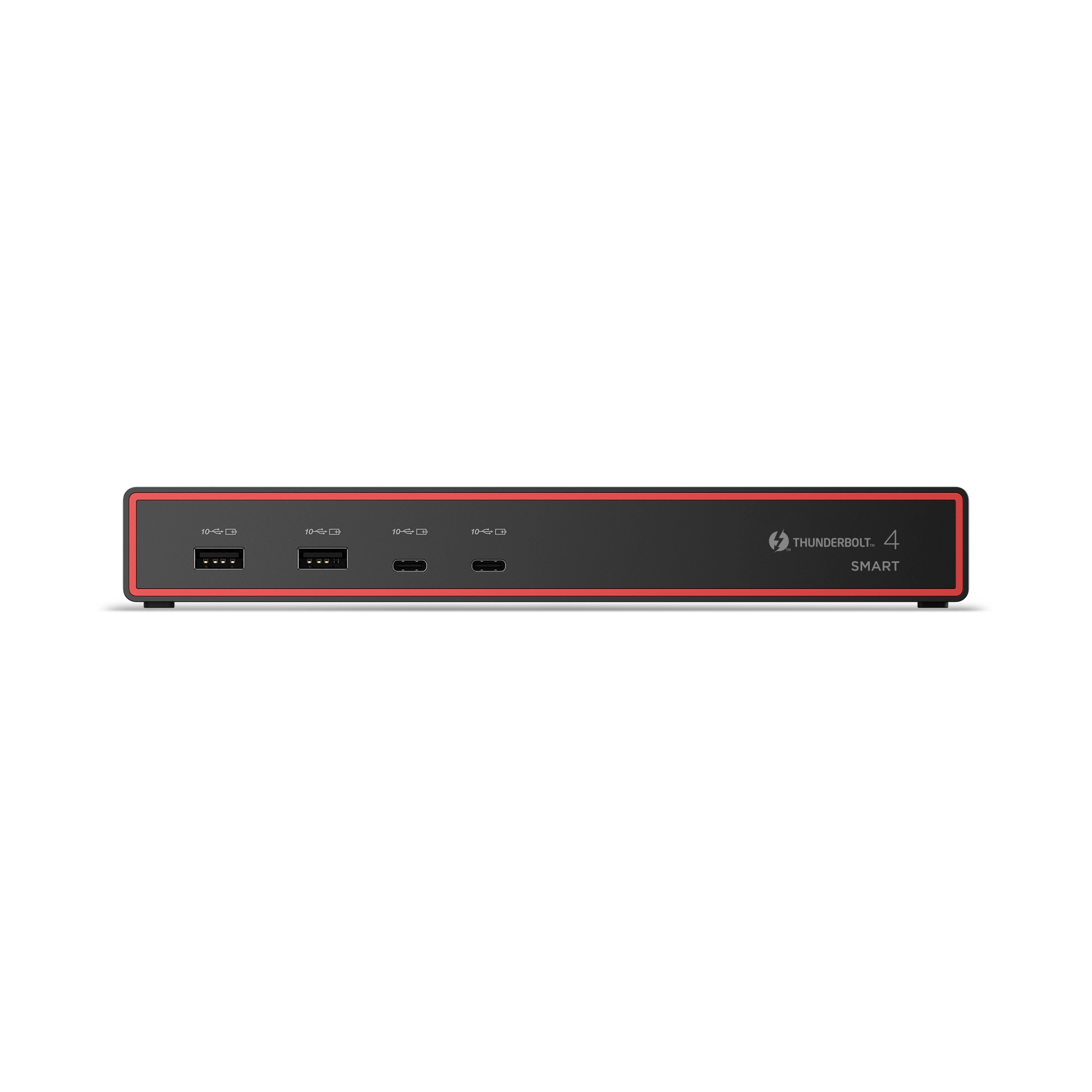

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.1
USB Power Delivery up to	100 W

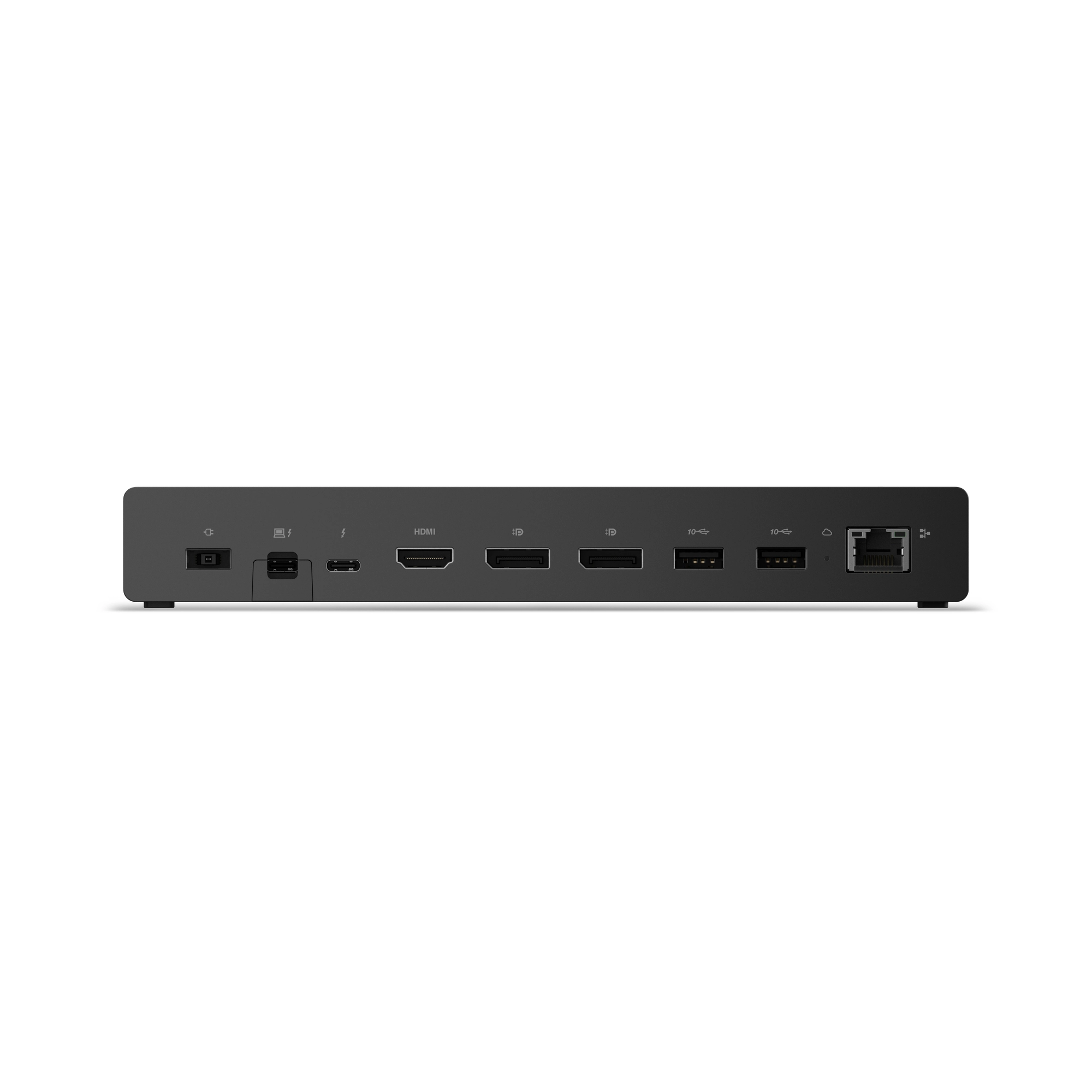

HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4

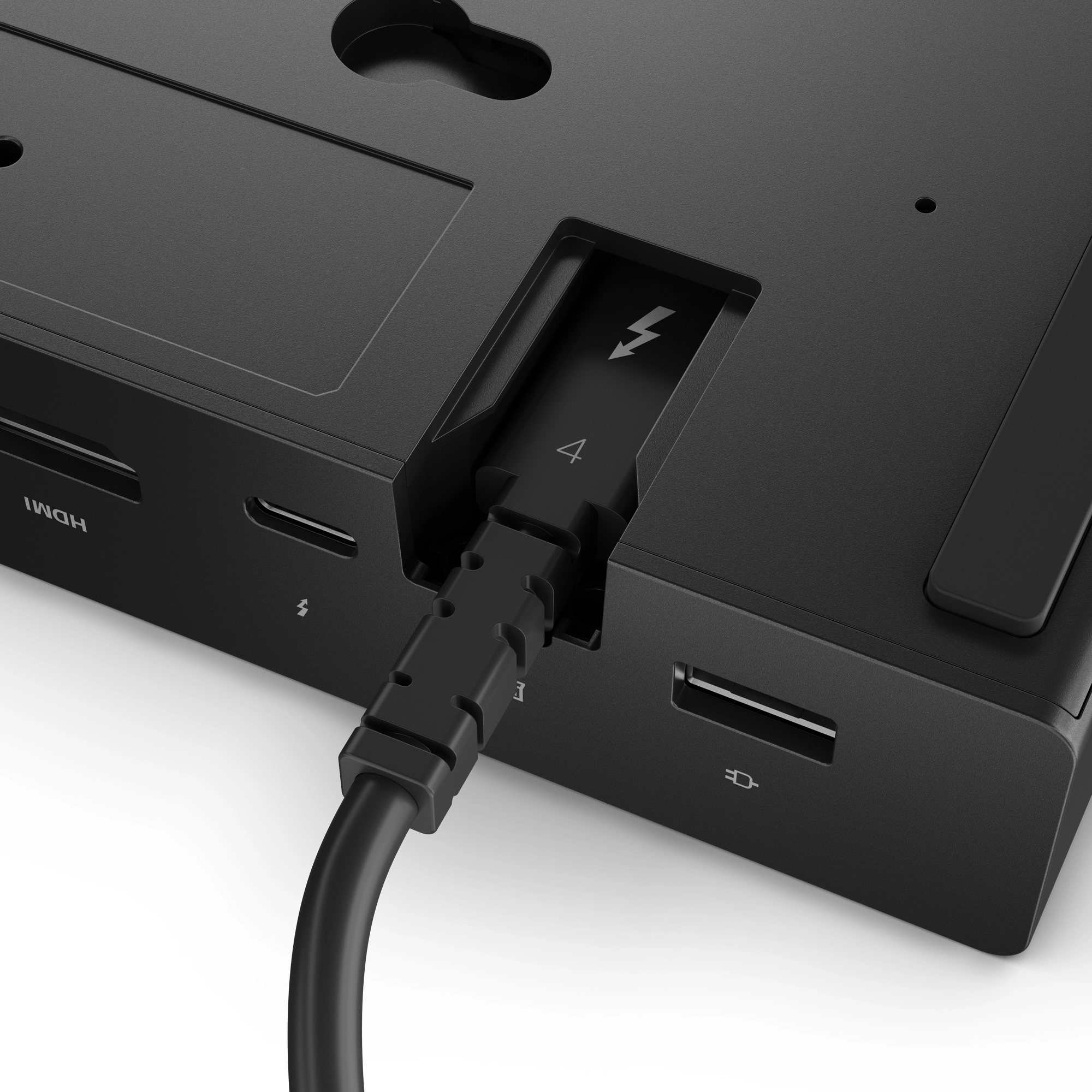

Thunderbolt ports quantity	2
Microphone in	N
Thunderbolt 4 ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y

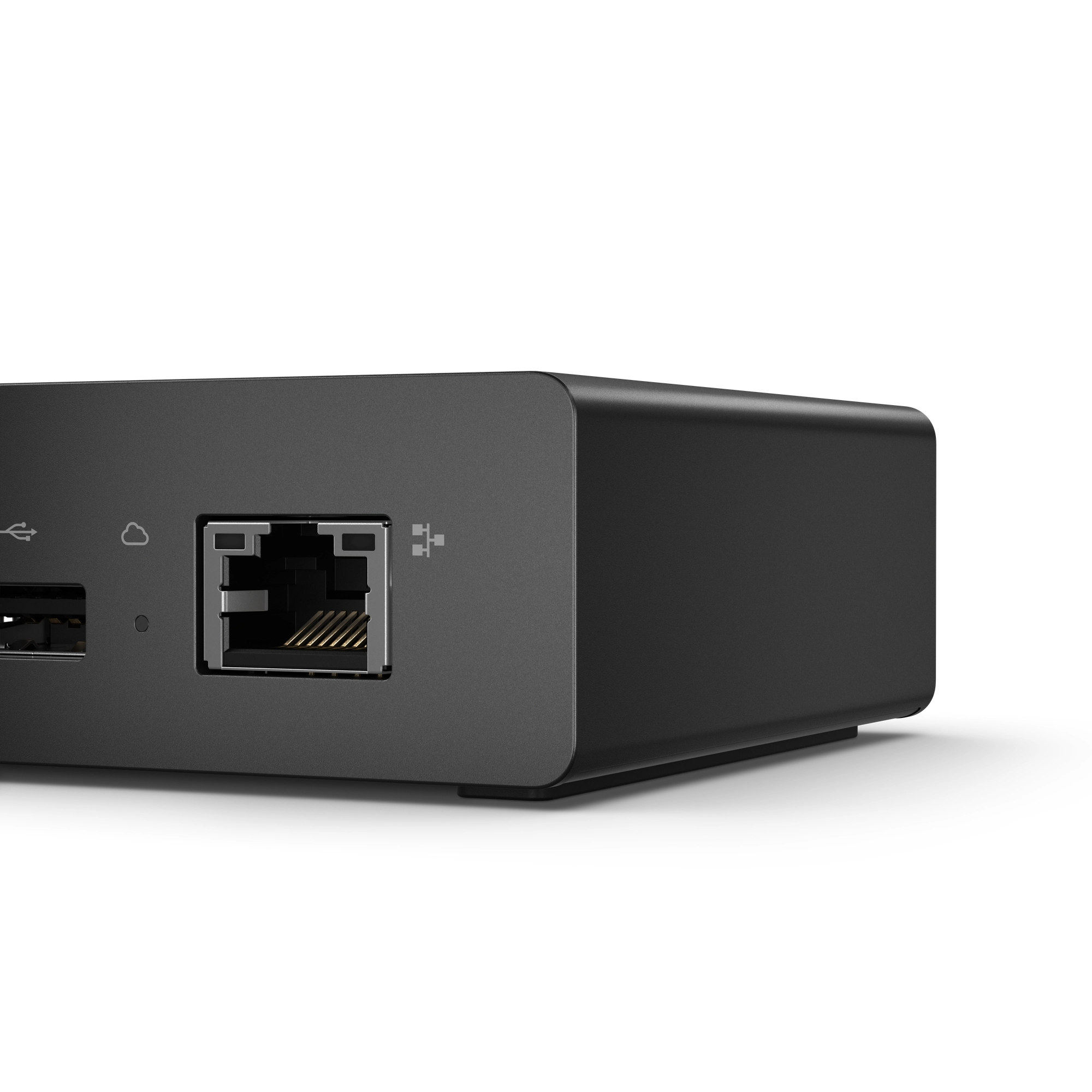

Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	2500 Mbit/s
Performance
Product colour	Black
Card reader integrated	N
Colour name	Eclipse Black
Maximum digital resolution	7680 x 4320 Pixels
Number of displays supported	4

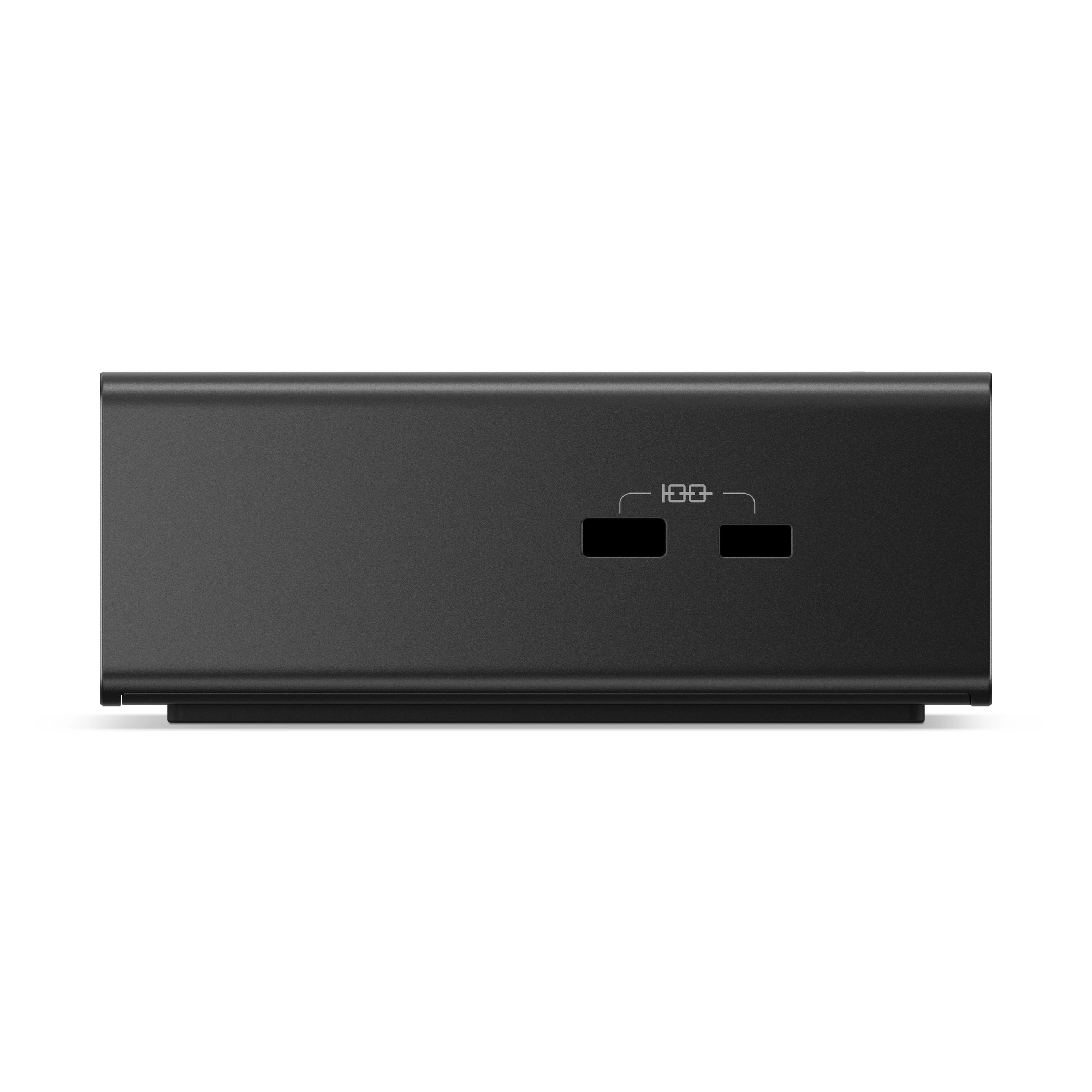

Cable lock slot	Y
Cable lock slot type	Kensington
Maximum refresh rate	60 Hz
On/off switch	Y
LED indicators	Y
Certification	FCC/ICES CE KCC RCM BSMI NCC VCCI CB cULus EAC TUV-Mark LoA Ukraine DoC NOM IFT TELEC UKCA FAC DoC VNTA WPC ETA SRRC SDPPI IMDA SIRIM NBTC SUBTEL KVALITET/RATEL MCIT ANRT UCC INACOM CITRA TRA NTC PSRC NCA ARTCI INCM Thunderbolt Cert. EVO
Power
Power source type	AC
Power supply	135 W
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Weight & dimensions
Width	220 mm
Depth	80 mm
Height	30 mm
Weight	547.5 g
Packaging data
Package width	237.8 mm
Package depth	141 mm
Package height	75.8 mm
Package weight	1261.5 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 95 procent
