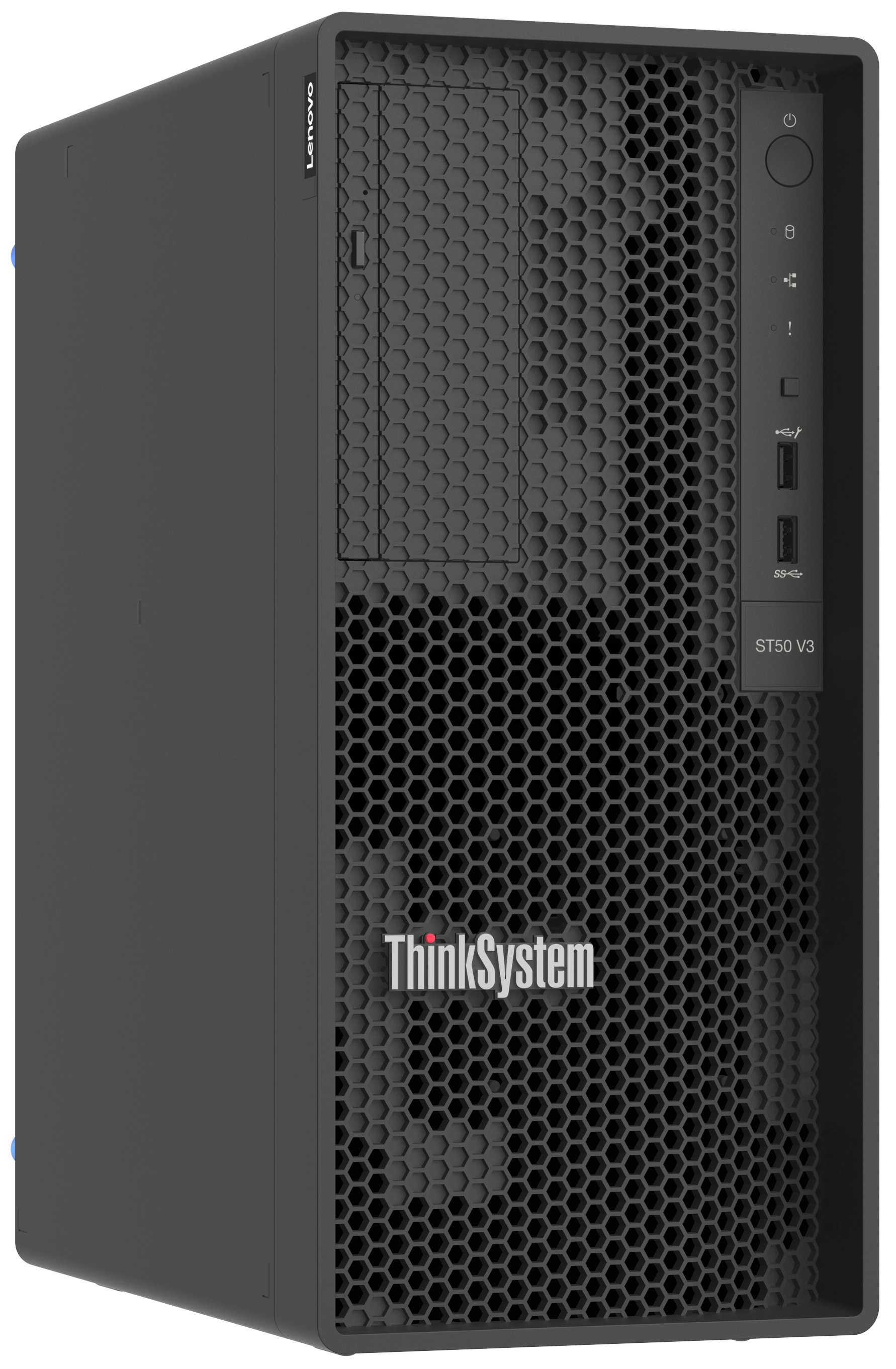

The Lenovo ThinkSystem ST50 V3 is a value 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".

This product guide provides essential presales information to understand the ThinkSystem ST50 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V3 and consider its use in IT solutions.

Specification

Product
Product id	986788
Brand	Lenovo
Partnr	7DF3A00YEA
EAN/UPC code	8032976192351
Warranty (months)	3 year
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2434
Processor frequency	3.4 GHz
Processor boost frequency	5 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel C266
Number of processors installed	1
Performance cores	4
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
ECC	Y
Memory clock speed	4400 MHz
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	128 GB
Storage
Total storage capacity	1920 GB
Number of HDDs installed	2
HDD capacity	960 GB
HDD interface	SATA III
Supported storage drive interfaces	Serial ATA
Optical drive type	N
Internal drive bays	3
Graphics
On-board graphics adapter	Y
Maximum graphics adapter memory	16 MB
Network
LAN controller	Broadcom BCM5720
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Design
Chassis type	Tower
Product colour	Black
Performance
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Y
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Power supply	500 W
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	8 - 90 procent
Operating altitude	0 - 3050 m
Certificates
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	170 mm
Depth	370 mm
Height	376 mm
Weight	11960 g
Technical details
Supported storage drives form factor (internal)	3.5"
