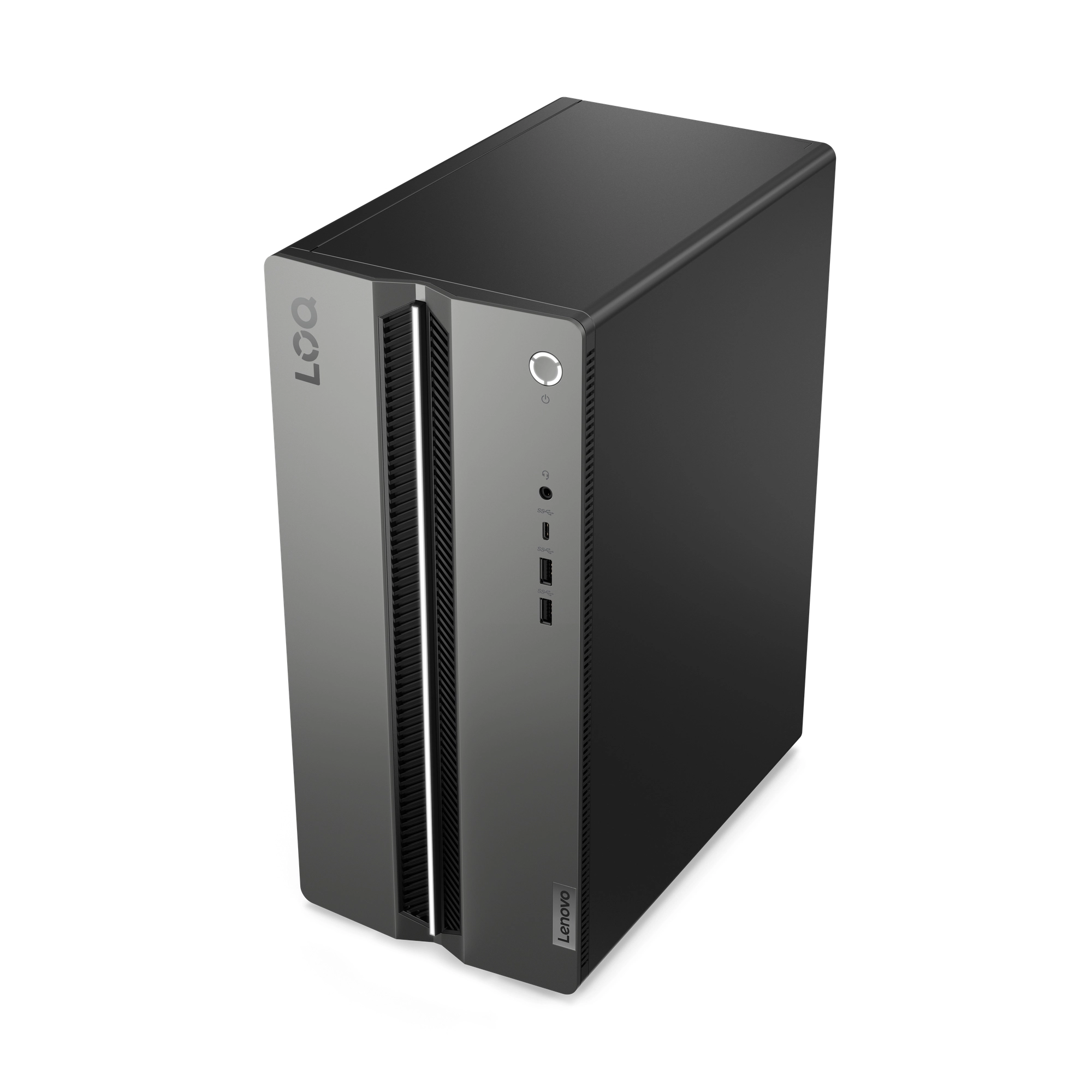

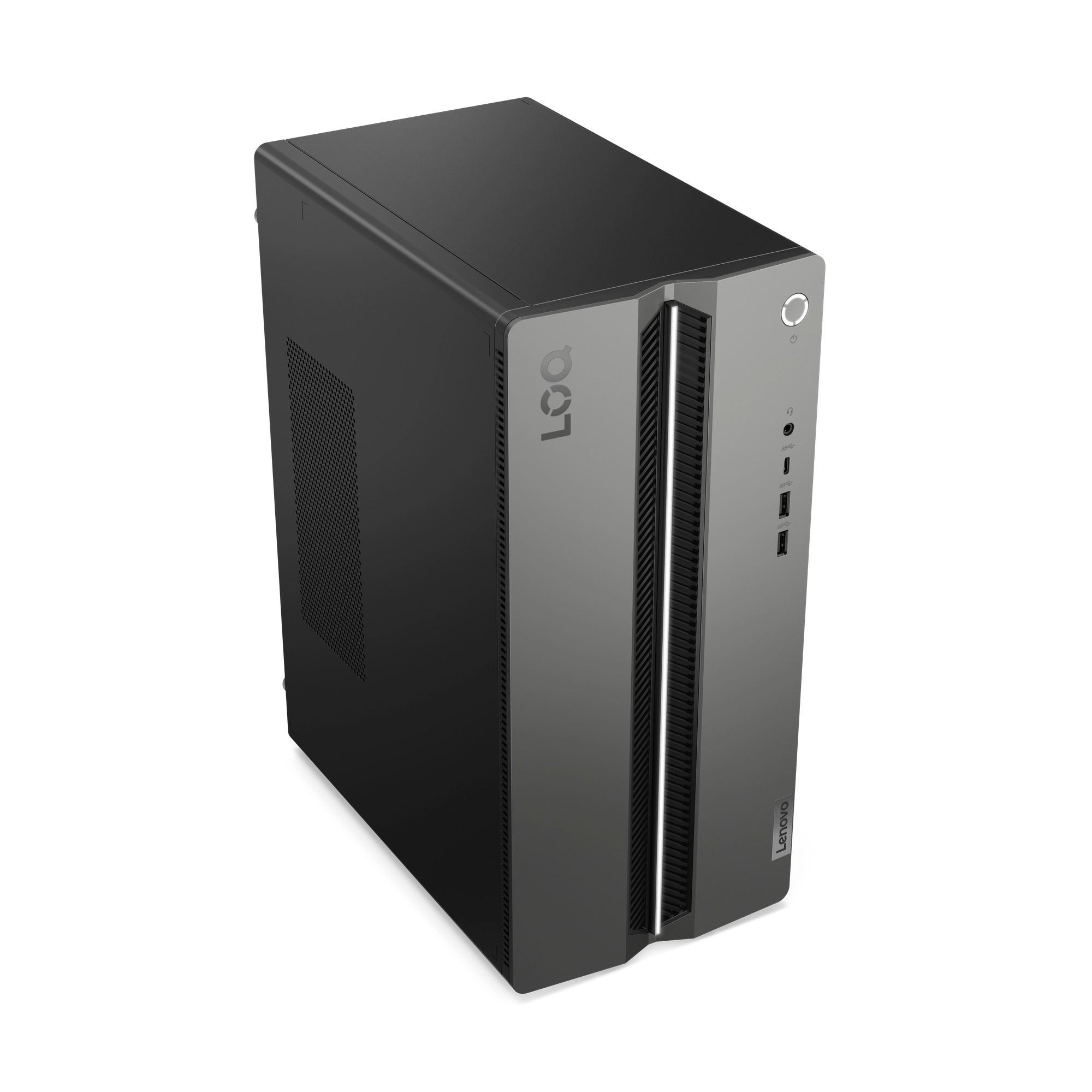

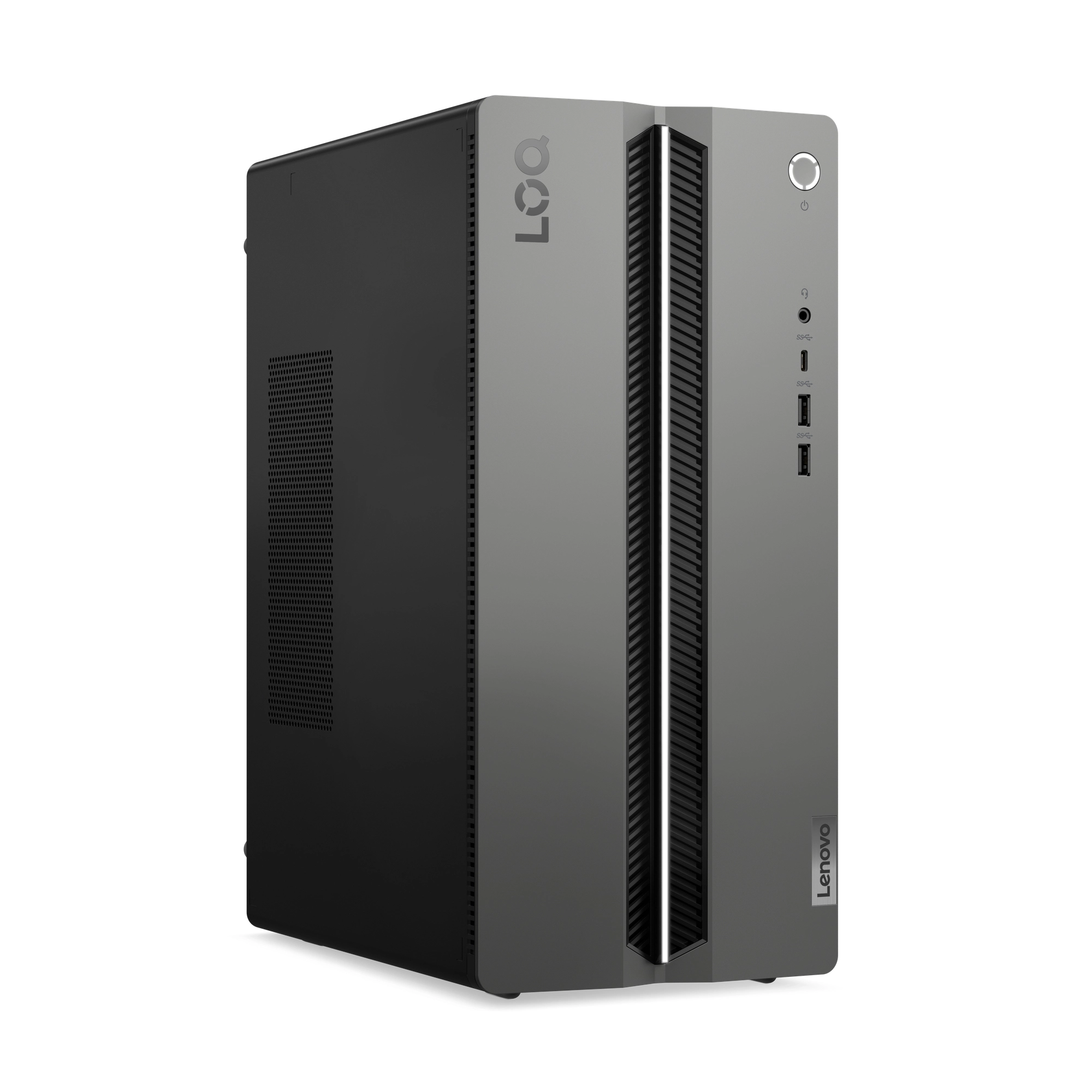

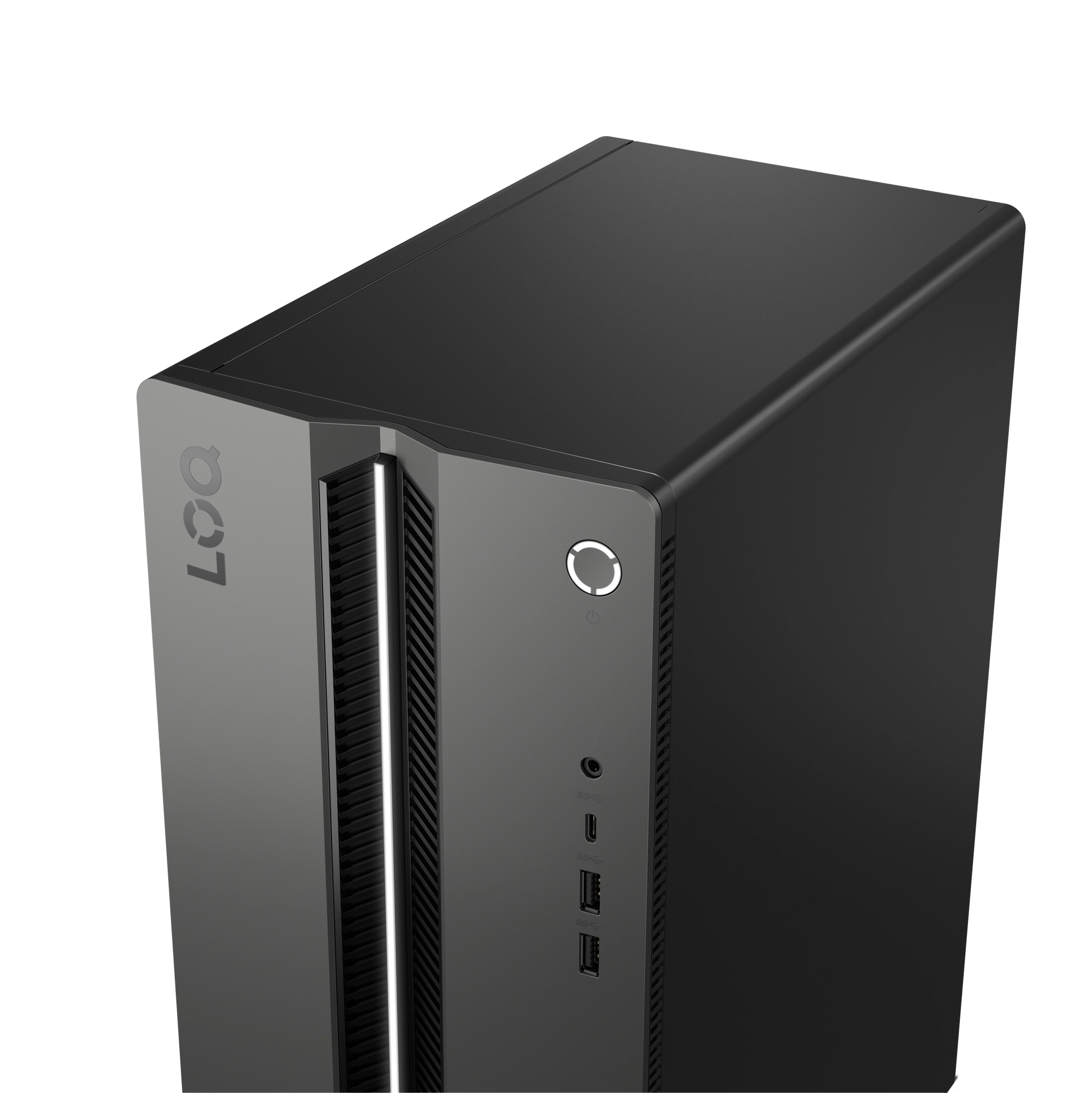

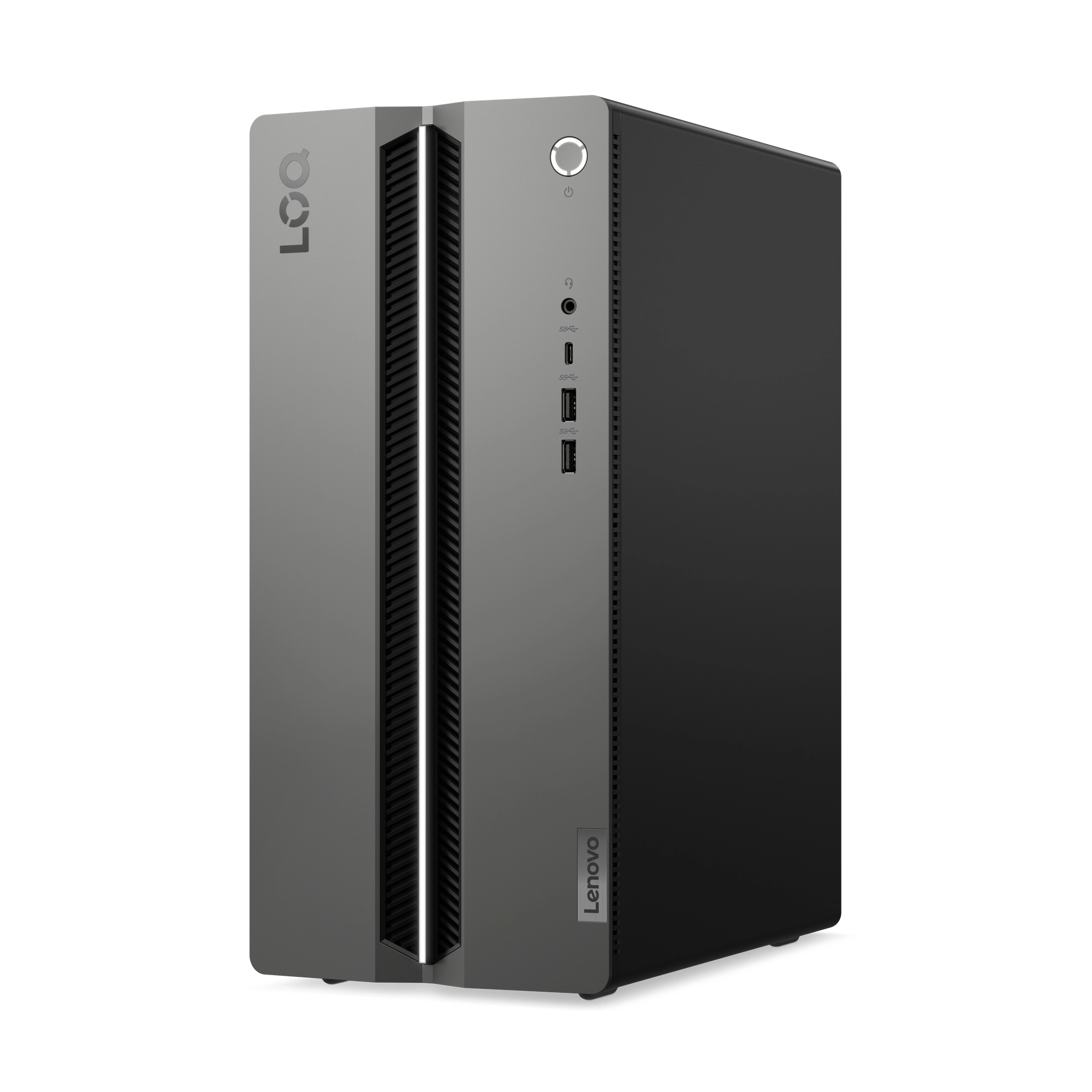

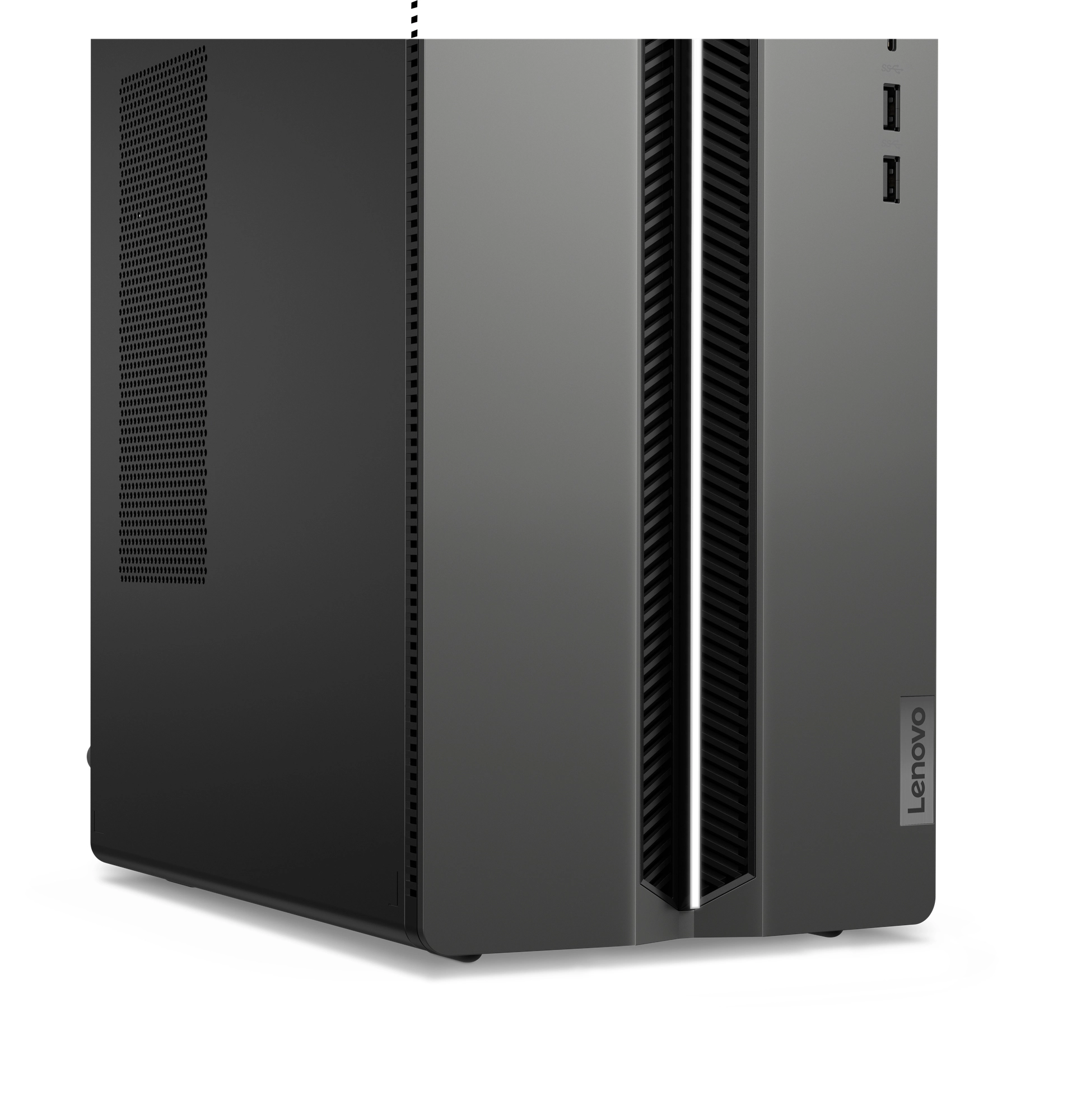

Lenovo LOQ Tower 17IRR9. Processor family: Intel® Core™ i5, Processor model: i5-14400F. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 512 GB, Storage media: SSD. Discrete graphics card model: NVIDIA GeForce RTX 4060. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 310 W. Chassis type: Tower. Product type: PC. Weight: 8 kg. Product colour: Black

Specification

Product
Product id	950967
Brand	Lenovo
Partnr	90X0005EMH
EAN/UPC code	198153603329
Warranty (months)	24 months
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor generation	Intel Core i5-14xxx
Processor model	i5-14400F
Processor cores	10
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	4
Processor cache	20 MB
Processor cache type	Smart Cache
Performance-core base frequency	2.5 GHz
Processor threads	16
Efficient-core base frequency	1.8 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Processor base power	65 W
Maximum turbo power	148 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x DIMM
Memory clock speed	4800 MHz
Storage
Total storage capacity	512 GB
Optical drive type	N
Card reader integrated	N
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	N
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA GeForce RTX 4060
Discrete graphics memory type	GDDR6
Discrete graphics adapter memory	8 GB
On-board graphics adapter model	Not available
Network
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.3
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Combo headphone/mic port	Y
Design
Chassis type	Tower
Colour name	Luna Grey (Front Bezel), Raven Black (Chassis)
Volume	17 l
Product colour	Black
Performance
Product type	PC
Motherboard chipset	Intel B760
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Trusted Platform Module (TPM)	Y
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Power
Power supply	310 W
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	20 - 90 procent
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Weight & dimensions
Width	170 mm
Depth	279 mm
Height	376 mm
Weight	8000 g
Packaging content
Display included	N
