Ultra-Fast Mobile Gaming With AMD Ryzen™ 8000 Series Processors
The ultimate mobile processor is here. Whether you want ultra-fast and smooth gaming experiences or need top-tier performance on-the-go for serious work, a Ryzen™ 8000 HX series processor is what you need to get it done.

Enjoy 3 Months of PC Game Pass on Lenovo LOQ Devices
Play hundreds of high-quality PC games with your new Lenovo LOQ device and 3 months of PC Game Pass - including EA Play. With new games added all the time, there’s always something new to play.

Whisper Quiet Cooling
The Lenovo LOQ Tower 26ADR10 allows you to effortlessly switch between Quiet, Balance, and Performance modes with this convenient Fn+Q key combination to game in stealth or speed through creation and class assignments. Further, maximize thermal capability with minimum noise level for peaceful gaming, thanks to the Whisper Concealed air duct design.

ATTRACTIVE DESIGN. GREATER STABILITY.
Forge Your Path with Style

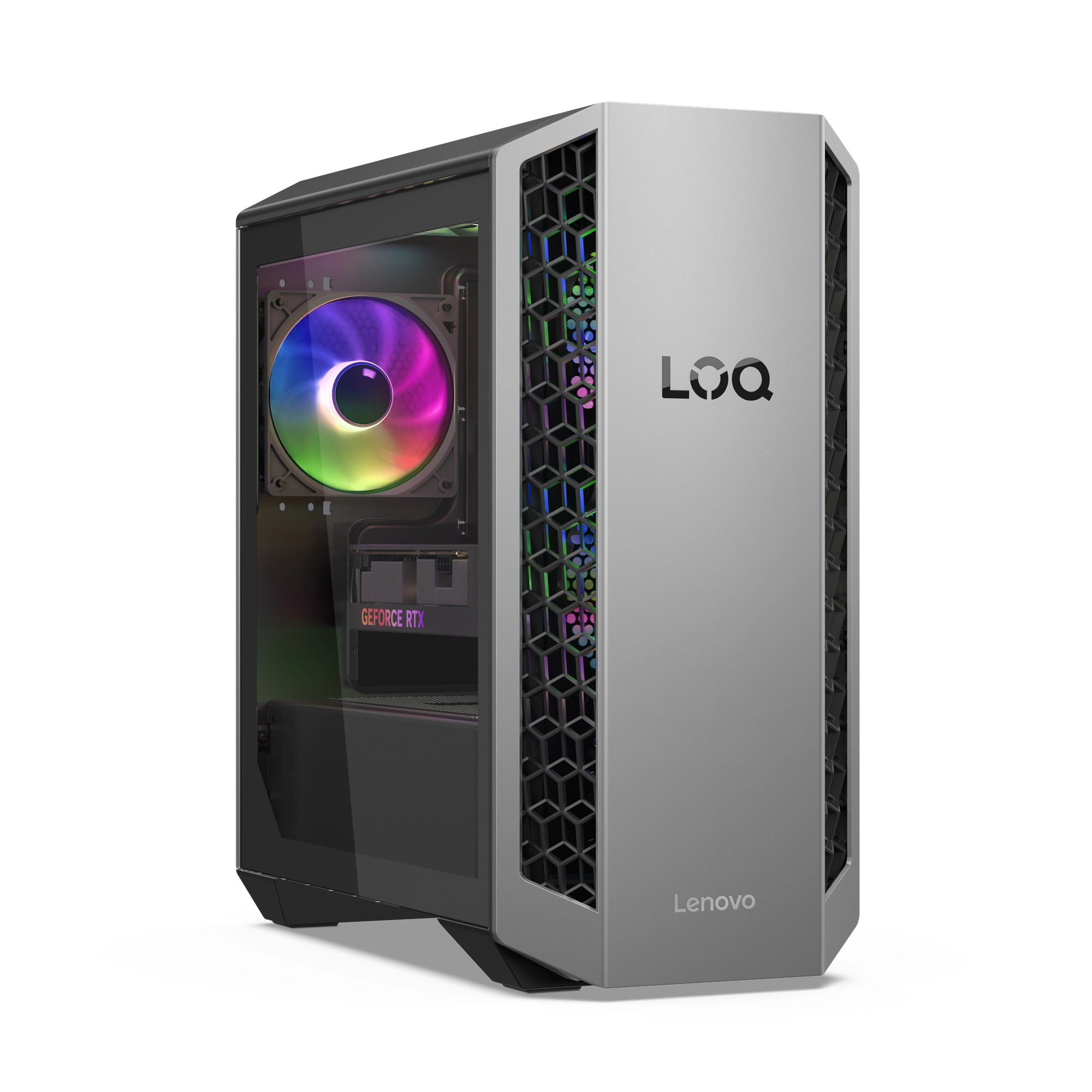

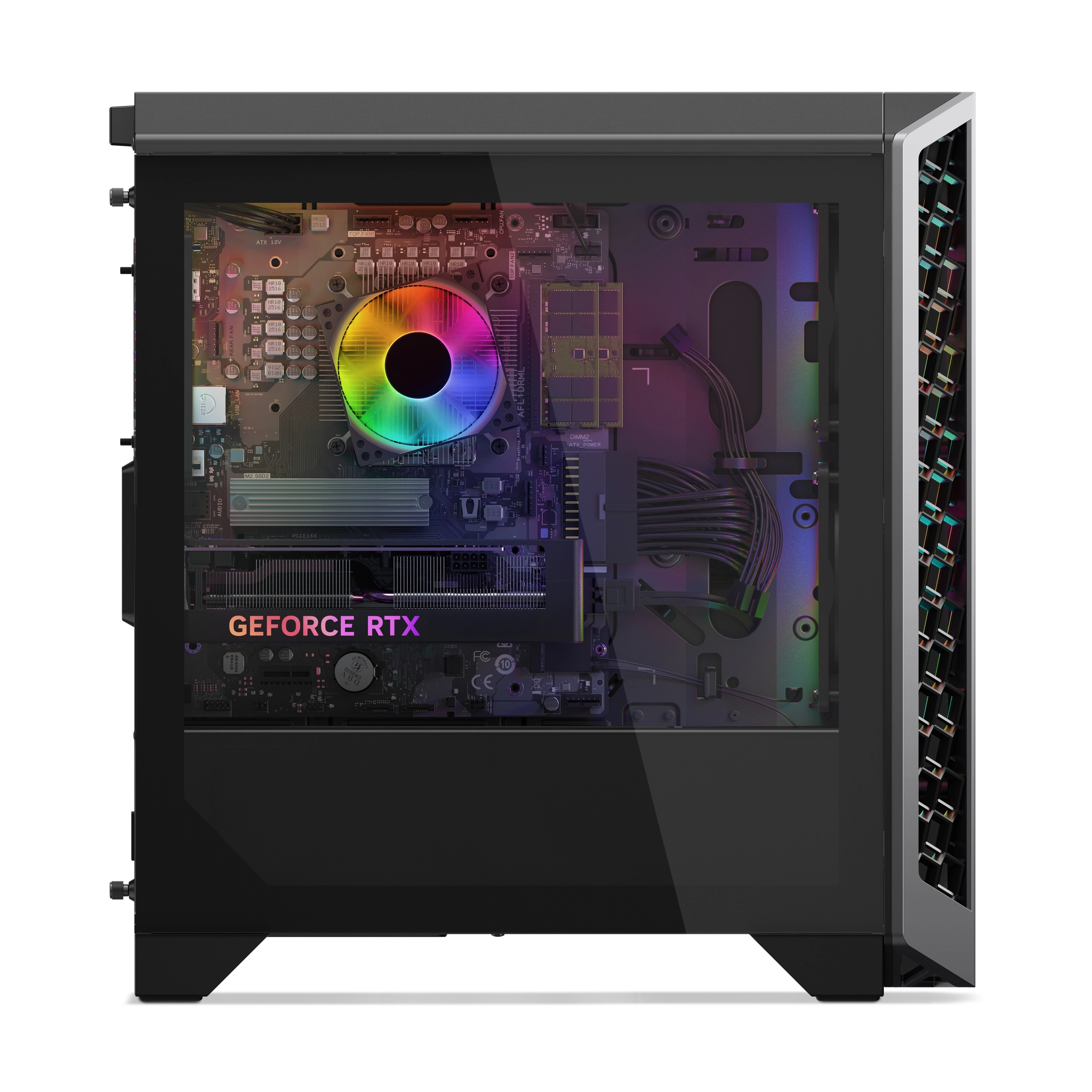

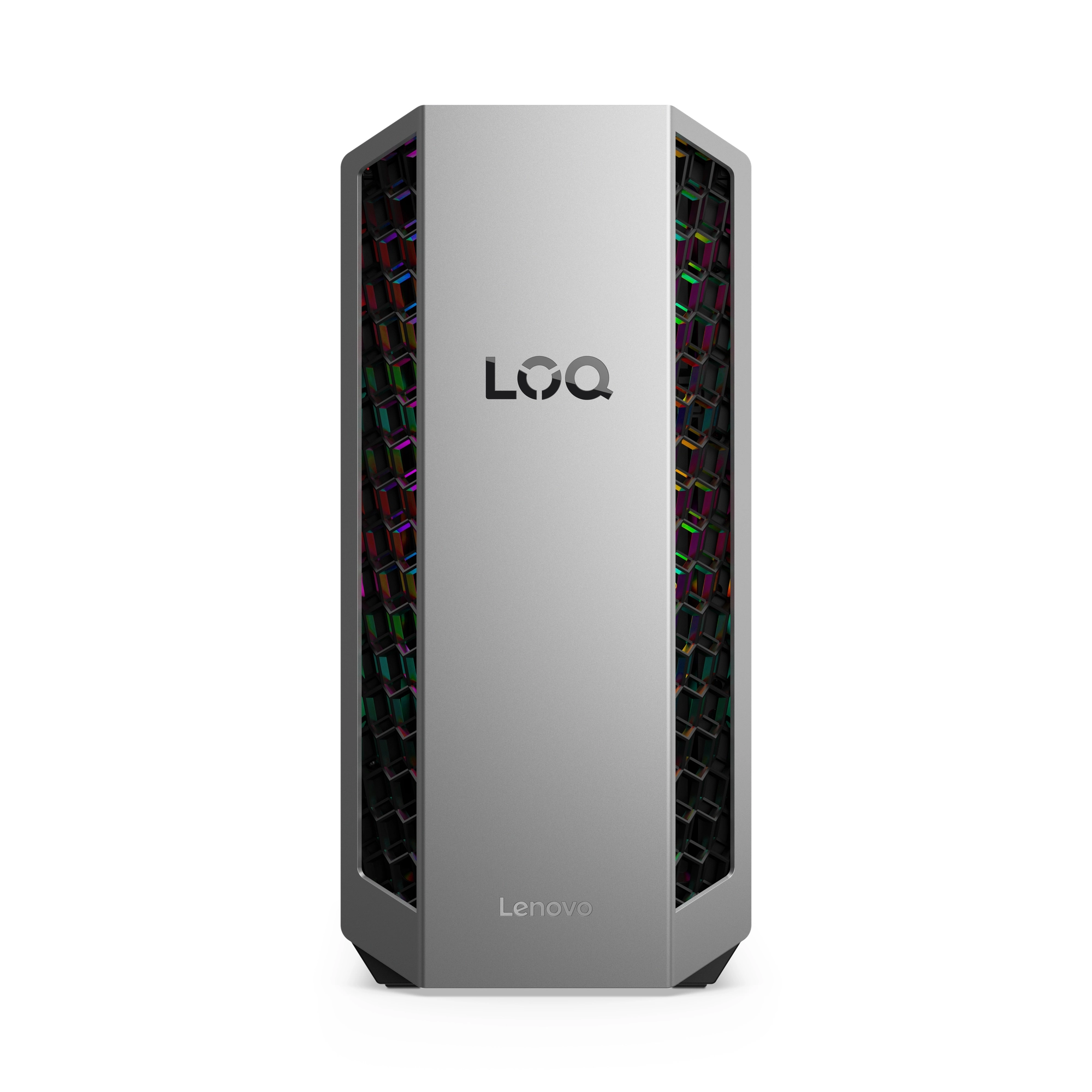

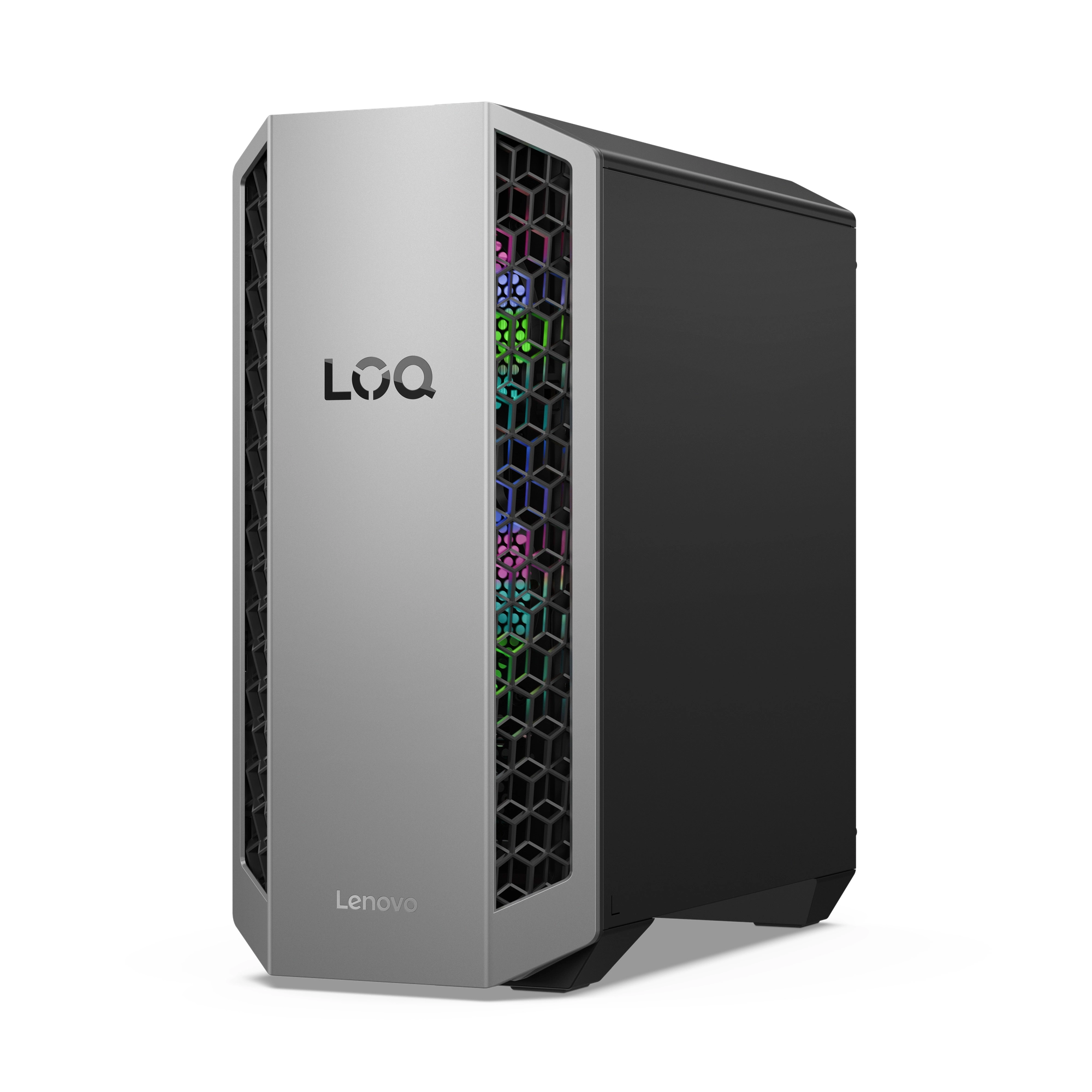

The Lenovo LOQ Tower 26ADR10 features a brand-new ID design – a transparent side panel to flaunt your ammunition with RGB lighting. It adds uniqueness with dual-tone colors, Raven Black and Luna Grey. Smartly integrating ventilation into the 3D texture and light bar ensures effective airflow while maintaining sleekness.

ENJOY LOQ ECOSYSTEM EXPERIENCES
Evolve With AI
The LOQ Tower ecosystem offers a unified design across PCs, monitors, keyboards, and mice. Software for a seamless experience. Legion Space adds evolving AI features for enhanced creativity and gaming. Enjoy out-of-the-box compatibility with driver updates, ensuring reliable performance for years to come.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specification

Product
Product id	1011816
Brand	Lenovo
Partnr	91DF004AMH
EAN/UPC code	199275159718
Warranty (months)	2-year, Courier or Carry-in
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen 7
Processor model	8745HX
Processor cores	8
Processor frequency	3.6 GHz
Processor boost frequency	5.1 GHz
Processor cache type	L2 & L3
Processor threads	16
L2 cache	8 MB
L3 cache	32 MB
Number of processors installed	1
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Memory clock speed	5200 MHz
Memory channels	Dual-channel
Non-ECC	Y
Storage
Total storage capacity	1000 GB
Optical drive type	N
Card reader integrated	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Graphics
Discrete graphics adapter	Y
On-board graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA GeForce RTX 5060
Discrete graphics memory type	GDDR7
Discrete graphics adapter memory	8 GB
On-board graphics adapter family	AMD Radeon
On-board GPU manufacturer	AMD
On-board graphics adapter model	AMD Radeon 610M
Network
Ethernet LAN	Y
Ethernet LAN data rates	100, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.2

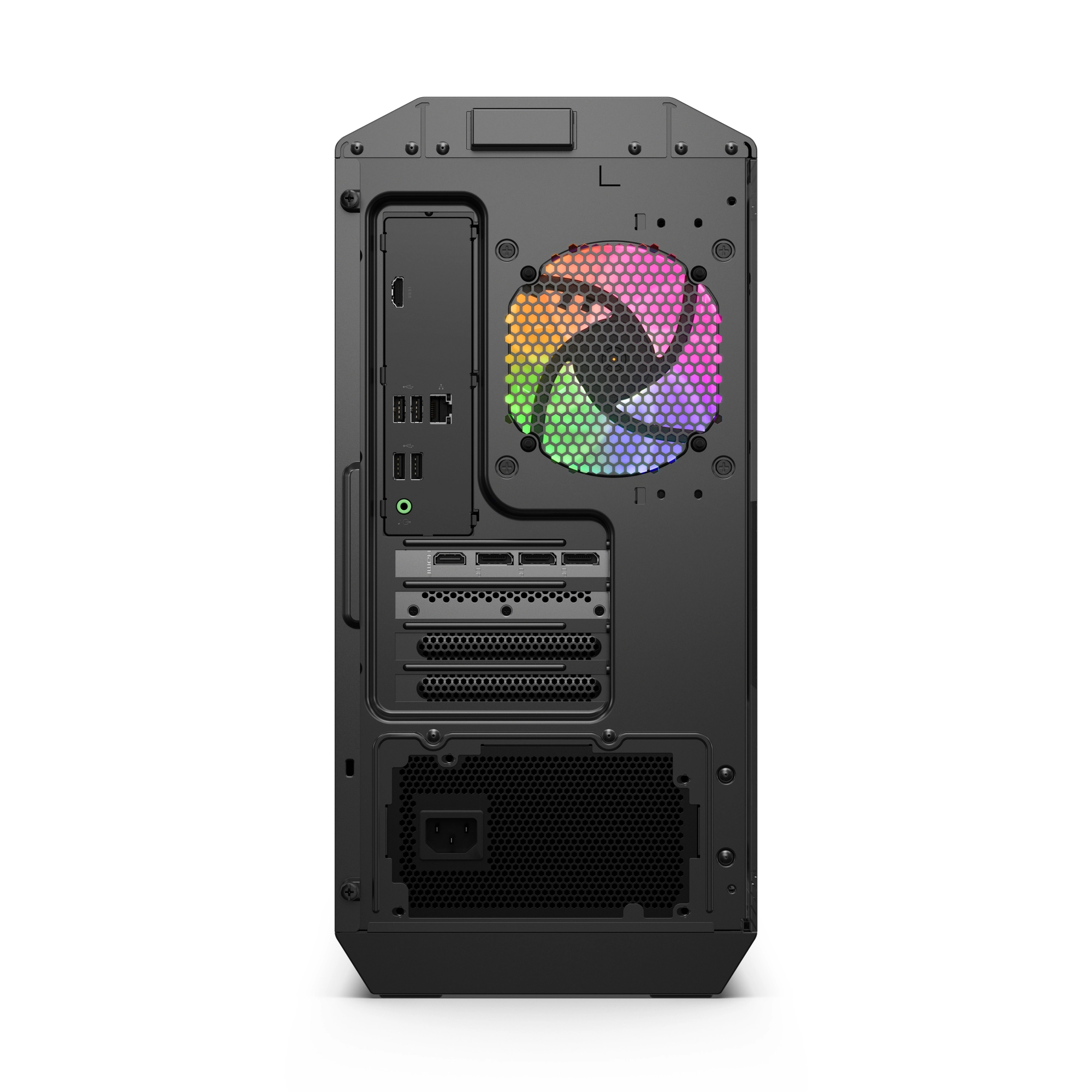

Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Combo headphone/mic port	Y
Design
Chassis type	Tower
Colour name	Luna Grey (Front Bezel), Eclipse Black (Chassis)
Volume	26 l
Placement supported	Vertical
Number of 3.5" bays	2
Product colour	Black
Certified refurbished	N
Performance
Product type	PC
Motherboard chipset	AMD SoC
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Password protection	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Home
Operating system language	ENG, FRE, DUT, DEU
Power
Power supply	500 W
Power supply input voltage	100 - 240
Power supply input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	10 - 90 procent
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Certification	ENERGY STAR, RoHS
Weight & dimensions
Width	205 mm
Depth	404.5 mm
Height	437.1 mm
Weight	10500 g
Package width	560 mm
Package depth	330 mm
Package height	548 mm
Package weight	13200 g
Packaging content
Display included	N
Mouse included	N
Keyboard included	N
