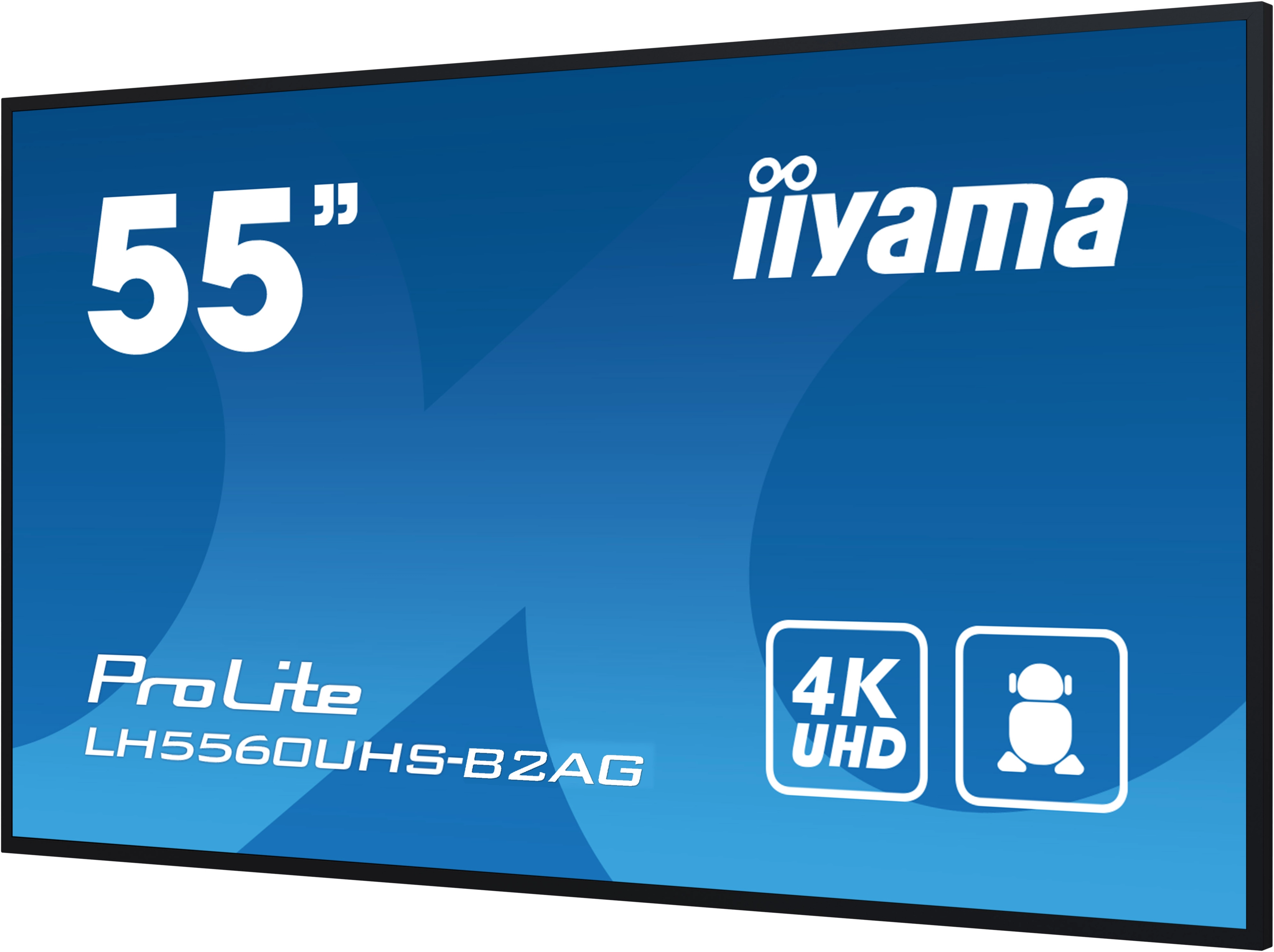

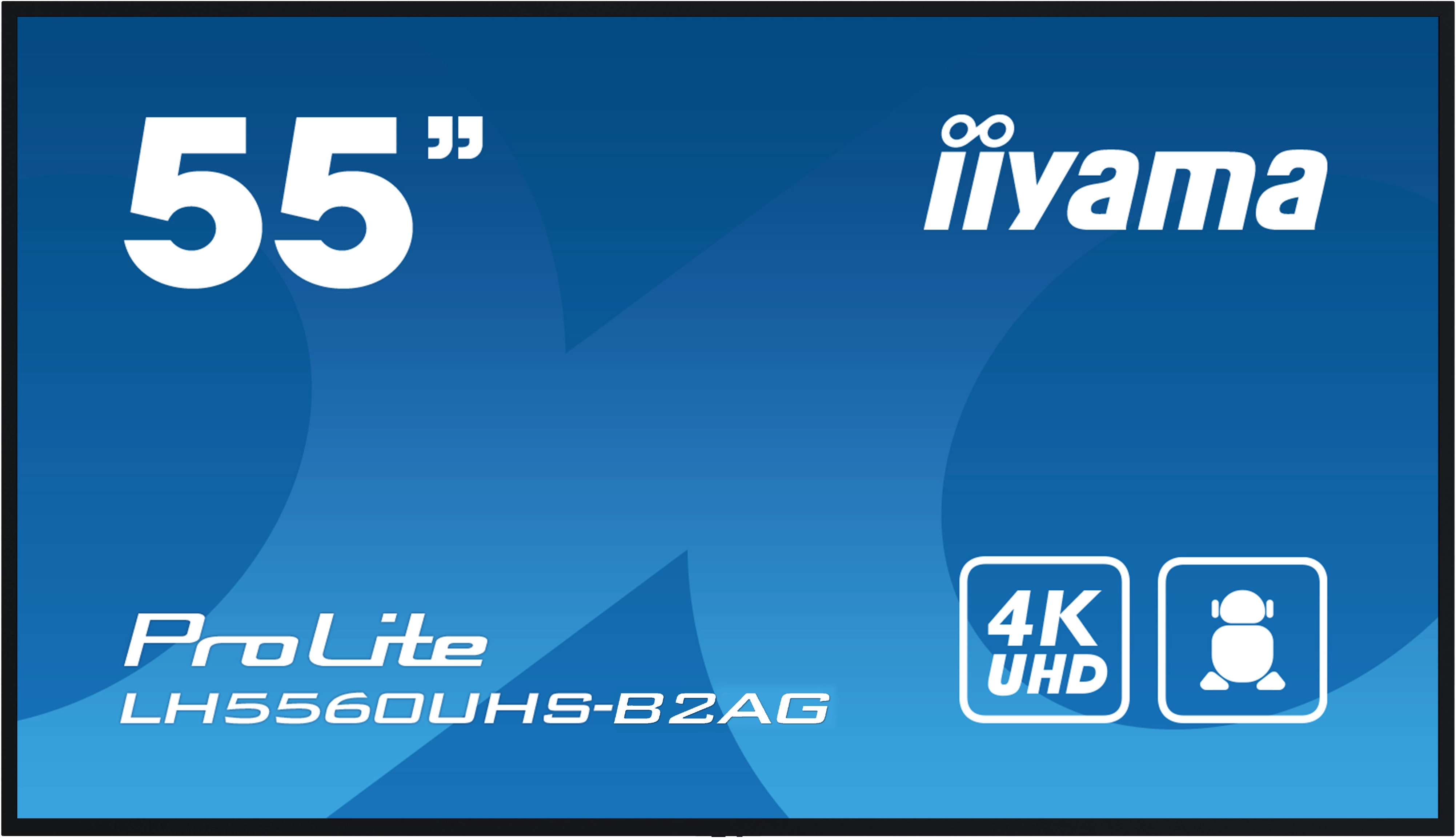

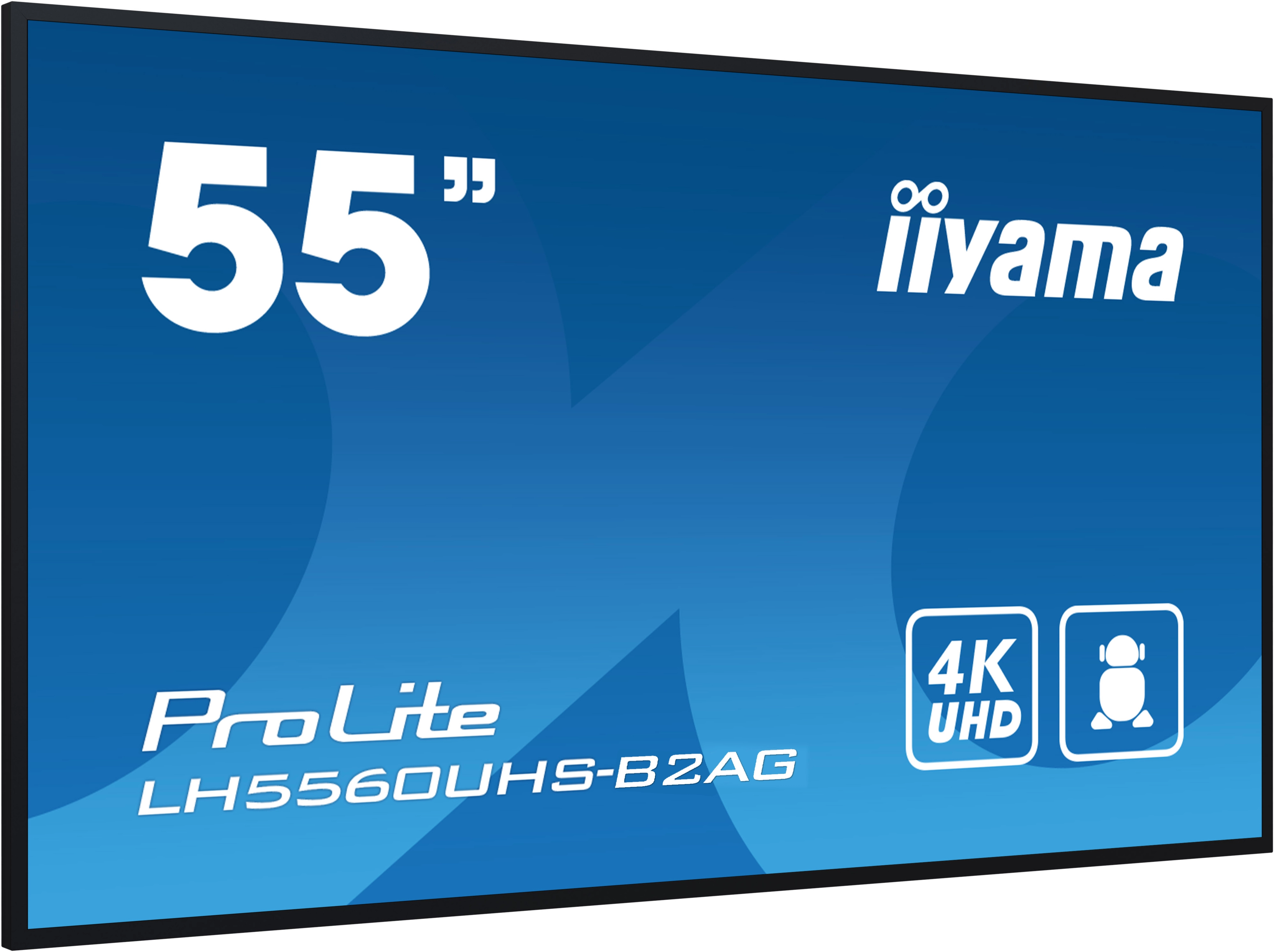

55" 4K UHD professional digital signage display with advanced control and connectivity options

Elevate your visual communication with the LH5560UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver, and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

IISIGNAGE
iiSignage is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

MEDIA PLAYER
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Specification

Product
Product id	996031
Brand	iiyama
Partnr	LH5560UHS-B2AG
EAN/UPC code	4948570125685
Warranty (months)	24 months
Display
Display diagonal	55 inch
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	6.5 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.315 x 0.315 mm
Active display area (W x H)	1209.6 x 680.4 mm
Display diagonal (metric)	139 cm
Native refresh rate	60 Hz
Surface hardness	3H
Haze rate	25 procent
Horizontal scan range	28 - 160 kHz
Panel type	VA
Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
DVI port	N
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
PC Audio in	Y
RS-232 interface	Y
RS-232C	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	10 W
Design
Design	Digital A-board
Product colour	Black
Placement supported	Indoor

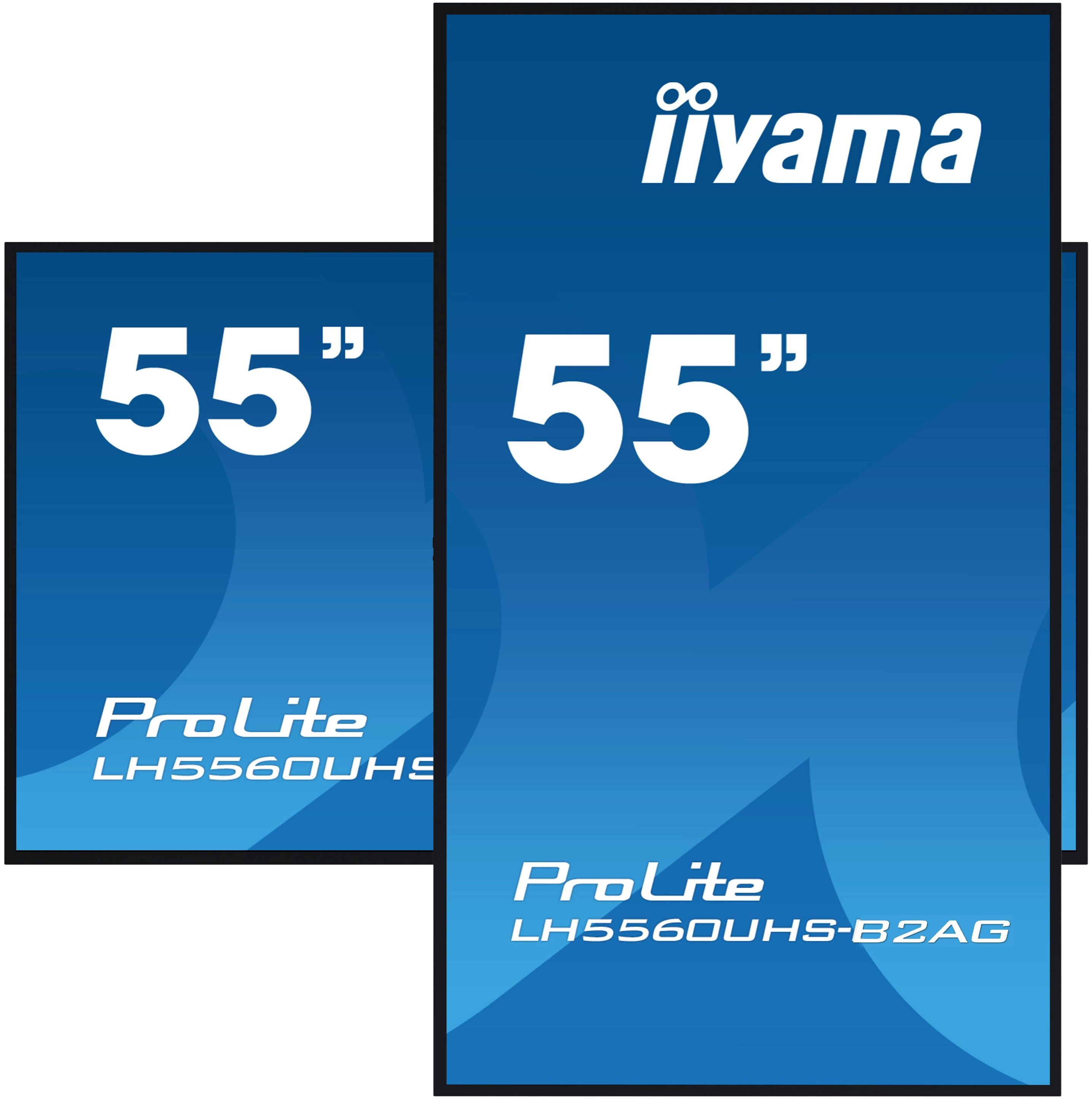

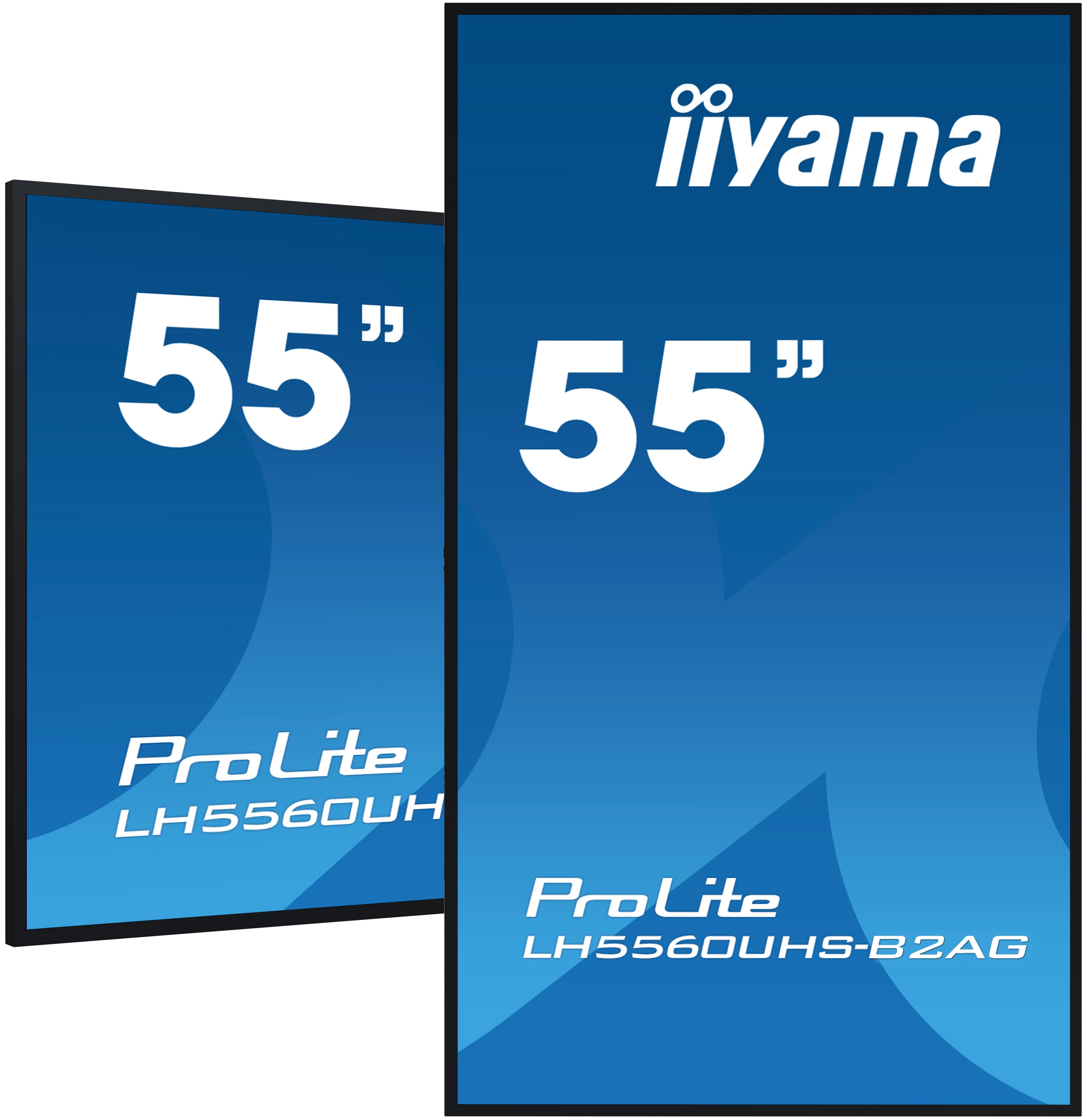

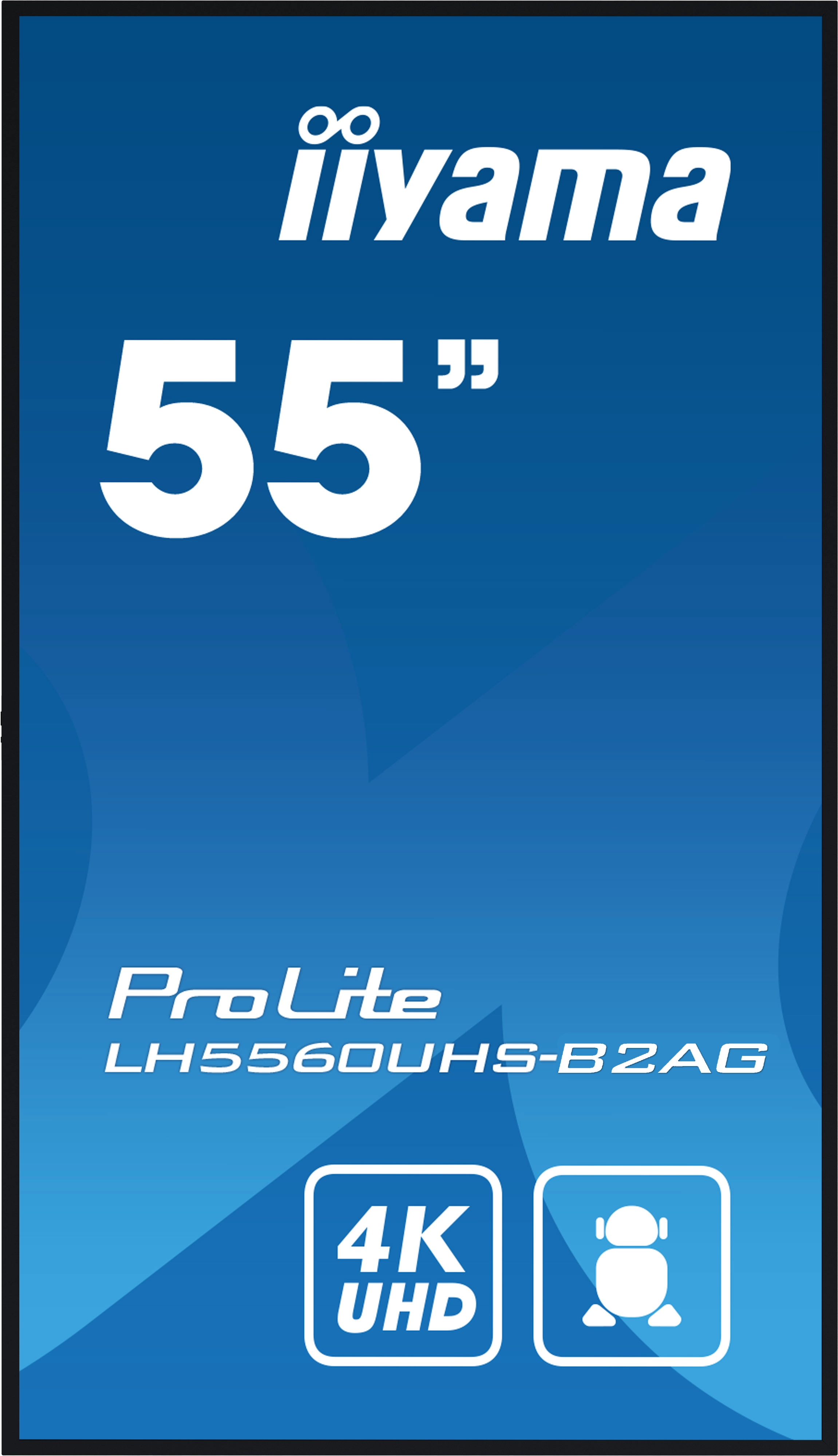

Orientation	Horizontal/Vertical
Wall mountable	Y
VESA mounting	Y
Panel mounting interface	300 x 400 mm
Anti-glare screen	Y
Bezel width (top)	13.3 mm
Bezel colour	Black
Bezel width (side)	13.3 mm
Bezel width (bottom)	15.3 mm
Performance
Purpose	Universal
On Screen Display (OSD)	Y
Number of OSD languages	15
On Screen Display (OSD) languages	CHI (SIMPL), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, POL, RUS, SLV
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	1.4/2.2
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	55 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	E
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy consumption (SDR) per 1000 hours	54.9 kWu
Energy efficiency scale	A to G
Computer system
Computer system	N
Built-in processor	Y
Processor manufacturer	ARM
Processor family	ARM Cortex
Processor model	A53
Processor architecture	ARM Cortex-A53
Processor cores	4
Internal memory	2 GB
Internal storage capacity	16 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android 11
Weight & dimensions
Display width	1239.7 mm
Display depth	38.6 mm
Display height	712.5 mm
Display weight	17600 g
Packaging data
Package width	1390 mm
Package depth	136 mm
Package height	850 mm
Package weight	22900 g
Packaging content
Handheld remote control	Y
Batteries included	Y

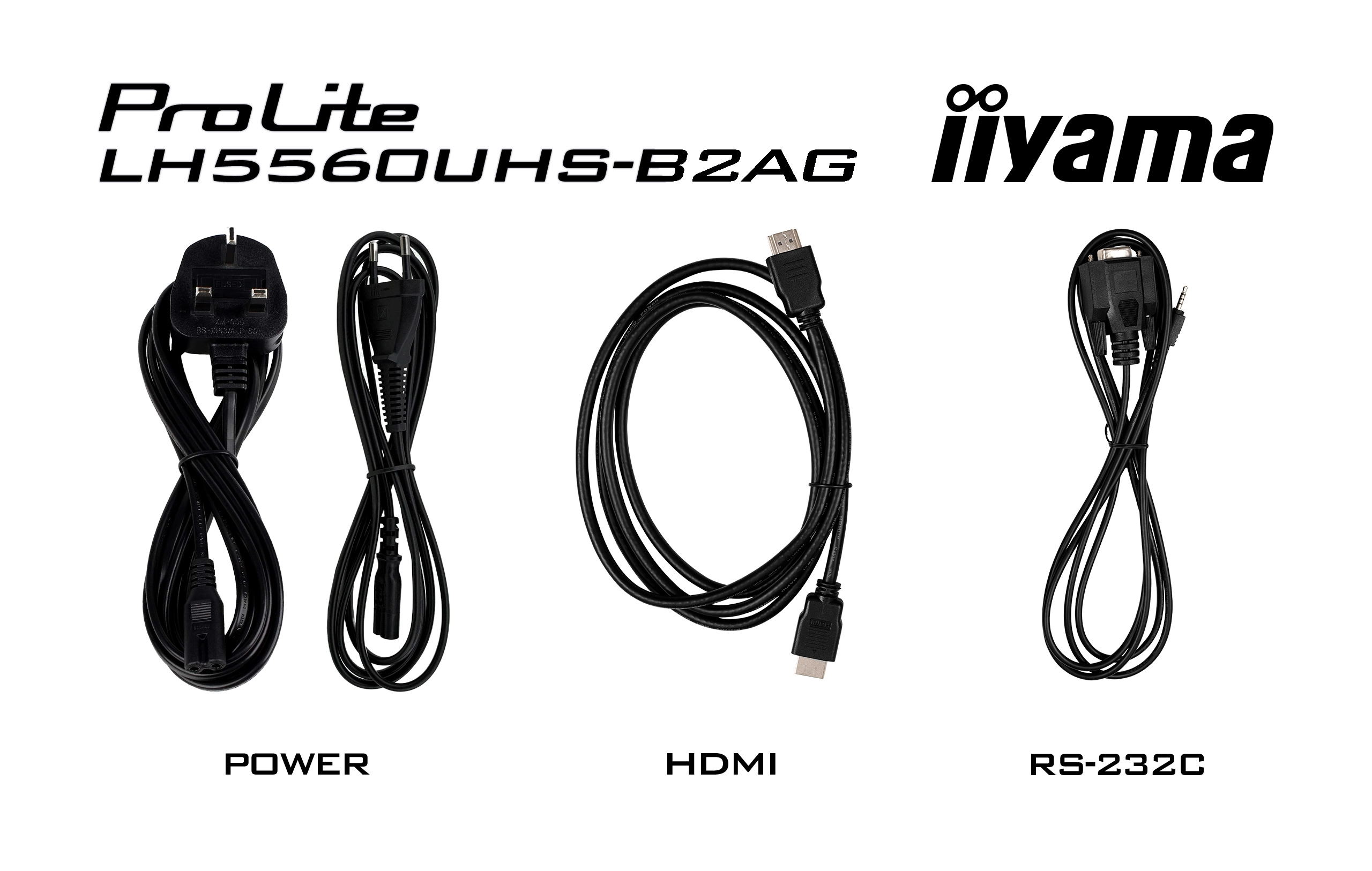

Cables included	HDMI, Power, RS-232
Mounting kit	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates	ErP
Other features
Power supply type	Internal
Quick start guide	Y
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Display technology	LED
