Product |
Product id
| 956993
|
Brand
| iiyama
|
Partnr
| LH6565UHSB-B1
|
EAN/UPC code
| 4948570123582
|
Warranty (months)
| 36 months
|
Display |
Display diagonal
| 64.5 inch
|
Display resolution
| 3840 x 2160 Pixels
|
Display brightness
| 800 cd/m²
|
HD type
| 4K Ultra HD
|
Touchscreen
| N
|
Native aspect ratio
| 16:9
|
Response time
| 8 ms
|
Contrast ratio (typical)
| 1200:1
|
Viewing angle, horizontal
| 178 °
|
Viewing angle, vertical
| 178 °
|
Display number of colours
| 1.07 billion colours
|
Pixel pitch
| 0.372 x 0.372 mm
|
Active display area (W x H)
| 803.52 x 680.72 mm
|
Display diagonal (metric)
| 163.9 cm
|
Native refresh rate
| 60 Hz
|
Haze rate
| 1 procent
|
Horizontal scan range
| 28 - 160 kHz
|
Panel type
| IPS
|
Ports & interfaces |
HDMI ports quantity
| 2
|
HDMI version
| 2.0
|
DisplayPorts quantity
| 1
|
USB port
| Y
|
USB ports quantity
| 2
|
USB version
| 2.0
|
Ethernet LAN
| Y
|
Ethernet LAN (RJ-45) ports
| 1
|
Wi-Fi
| Y
|
Audio (L/R) in
| 1
|
RS-232 interface
| Y
|
RS-232C
| Y
|
Audio |
Built-in speaker(s)
| Y
|
Number of built-in speakers
| 2
|
RMS rated power
| 20 W
|
Design |
Design
| Kiosk design
|
Product colour
| Black
|
Placement supported
| Indoor/outdoor
|
VESA mounting
| Y
|
Panel mounting interface
| 400 x 400 mm
|
Bezel width (top)
| 14.9 mm
|
Bezel colour
| black
|
Bezel width (side)
| 14.9 mm
|
Bezel width (bottom)
| 14.9 mm
|
Performance |
Purpose
| Commercial
|
Number of OSD languages
| 8
|
On Screen Display (OSD) languages
| CHI (SIMPL), CZE, DEU, ENG, ESP, FRE, ITA, JPN, POL, RUS
|
Operating hours (hours/days)
| 24/7
|
HDCP
| Y
|
HDCP version
| 2.2
|
Mean time between failures (MTBF)
| 50000 uur
|
Power |
Power consumption (typical)
| 104 W
|
Power consumption (standby)
| 0.5 W
|
Power consumption (off)
| 0.3 W
|
Energy efficiency class (SDR)
| E
|
AC input voltage
| 100 - 240 V
|
AC input frequency
| 50/60 Hz
|
Energy consumption (SDR) per 1000 hours
| 104 kWu
|
Computer system |
Computer system
| Y
|
Built-in processor
| Y
|
Processor manufacturer
| ARM
|
Processor family
| ARM Cortex
|
Processor architecture
| ARM Cortex-A53+Cortex-A73
|
Processor cores
| 8
|
Internal memory
| 4 GB
|
Internal storage capacity
| 32 GB
|
On-board graphics adapter model
| ARM Mali-G52
|
Operating system installed
| Android 11
|
Weight & dimensions |
Width (with stand)
| 1456.5 mm
|
Depth (with stand)
| 56 mm
|
Height (with stand)
| 832.5 mm
|
Weight (with stand)
| 20700 g
|
Packaging data |
Package width
| 1345 mm
|
Package depth
| 162 mm
|
Package height
| 1016 mm
|
Package weight
| 28700 g
|
Packaging content |
Handheld remote control
| Y
|

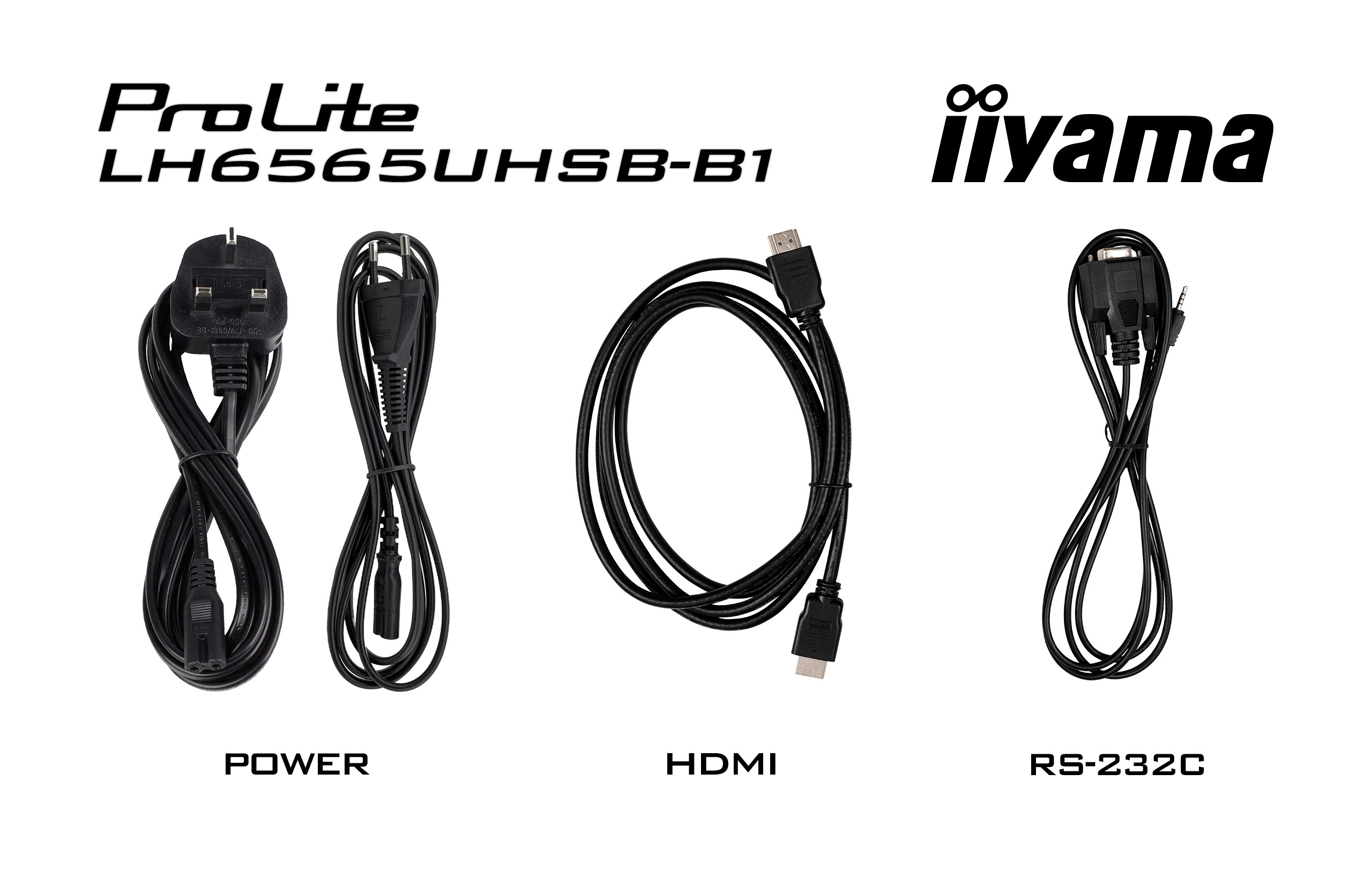

Cables included
| HDMI, Power, RS-232
|
Operational conditions |
Operating temperature (T-T)
| 0 - 40 °C
|
Operating relative humidity (H-H)
| -20 - 60 procent
|
Other features |
DisplayPort version
| 1.2
|
Wi-Fi standards
| Wi-Fi 5 (802.11ac)
|
Display technology
| LED
|
