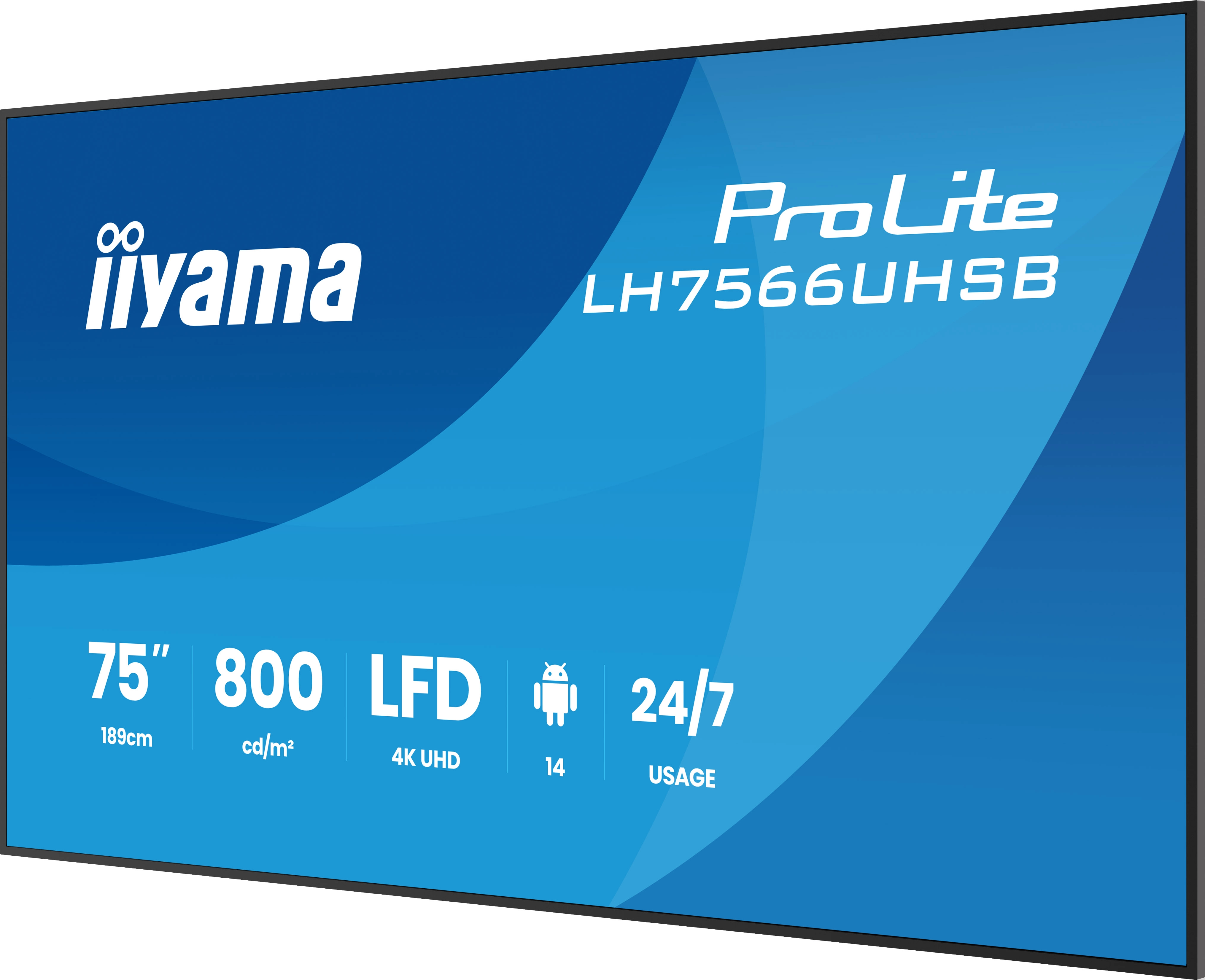

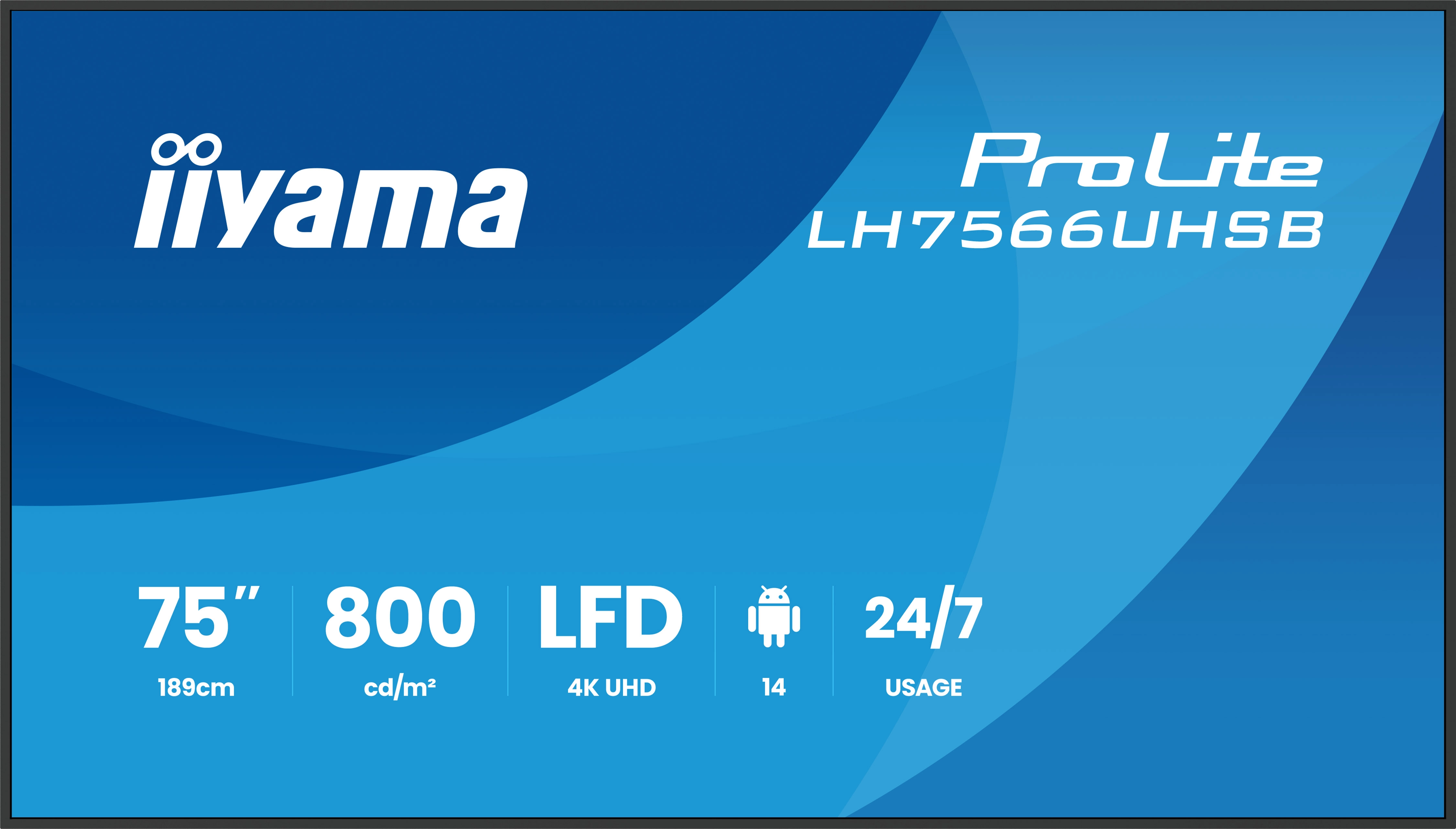

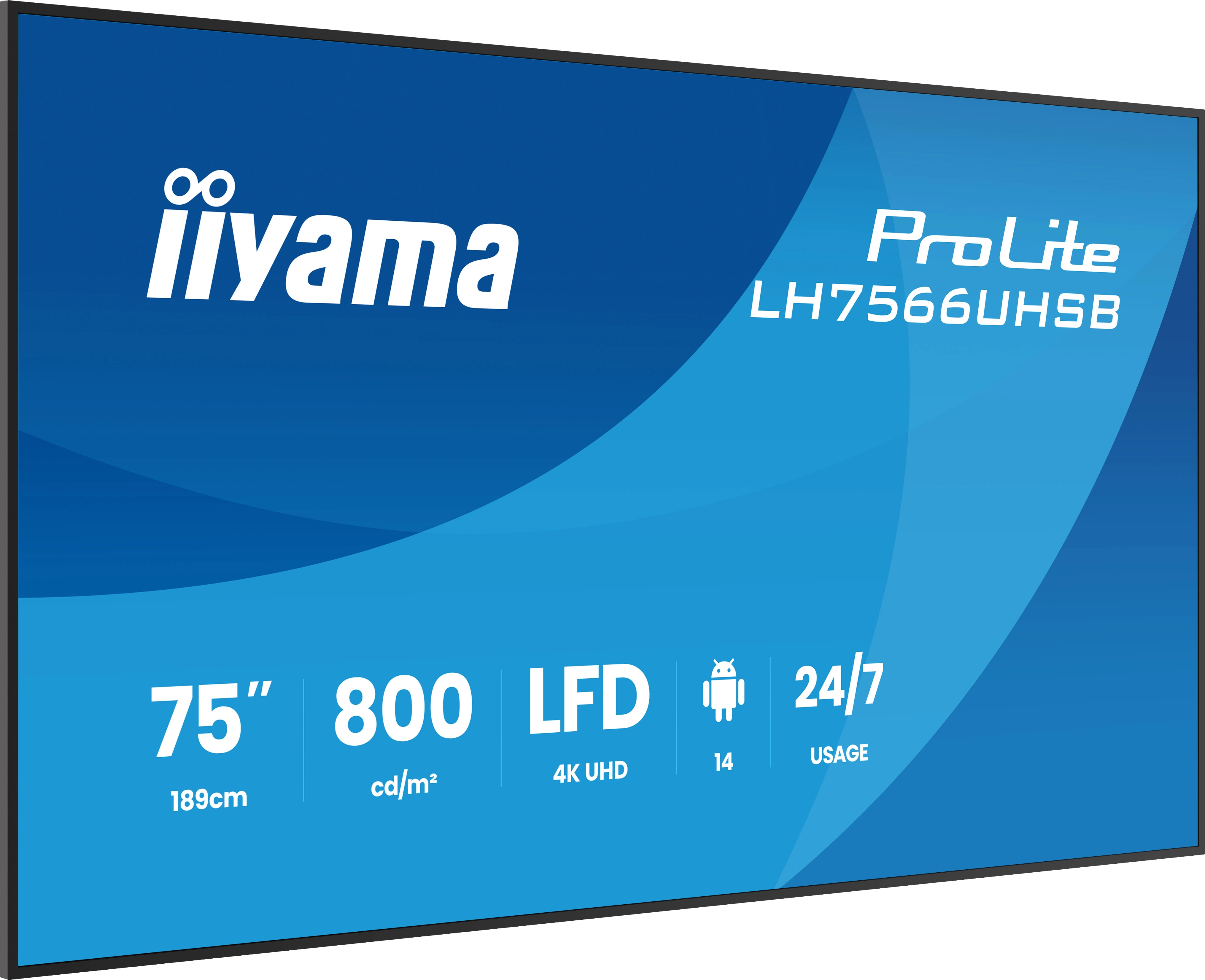

The ProLite LH7566UHSB-B1AG is a 75" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m2 .

Specification

Product
Product id	1025498
Brand	iiyama
Partnr	LH7566UHSB-B1AG
EAN/UPC code	49485870128242
Warranty (months)	36 months
Display
Display diagonal	75 inch
Display resolution	3840 x 2160 Pixels
Display brightness	800 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	6.5 ms
Contrast ratio (typical)	5000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.429 x 0.429 mm
Active display area (W x H)	1650.24 x 928.26 mm
Display diagonal (metric)	189.5 cm
Native refresh rate	60 Hz
Haze rate	25 procent
Horizontal scan range	57 - 62 kHz
Panel type	VA

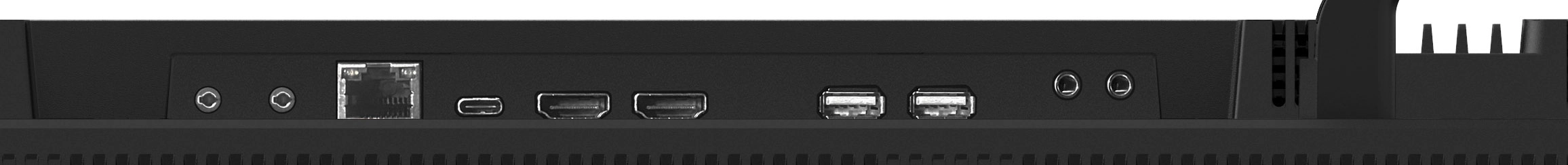

Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
DVI port	N
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
USB Power Delivery	Y
USB Power Delivery up to	15 W
USB Type-C DisplayPort Alternate Mode	Y
RS-232C	Y
Remote (IR) input	1
Remote (IR) output	1
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor

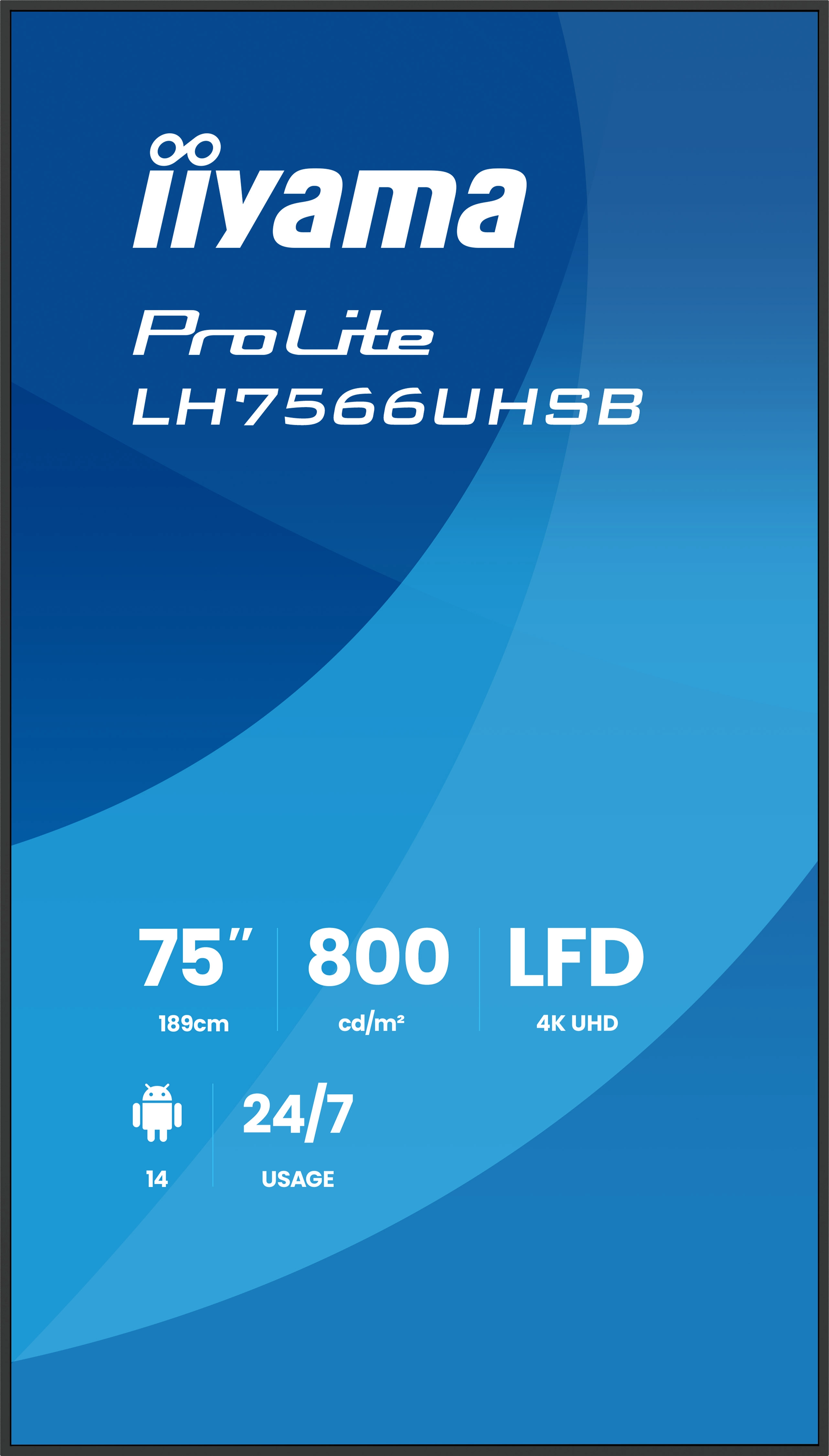

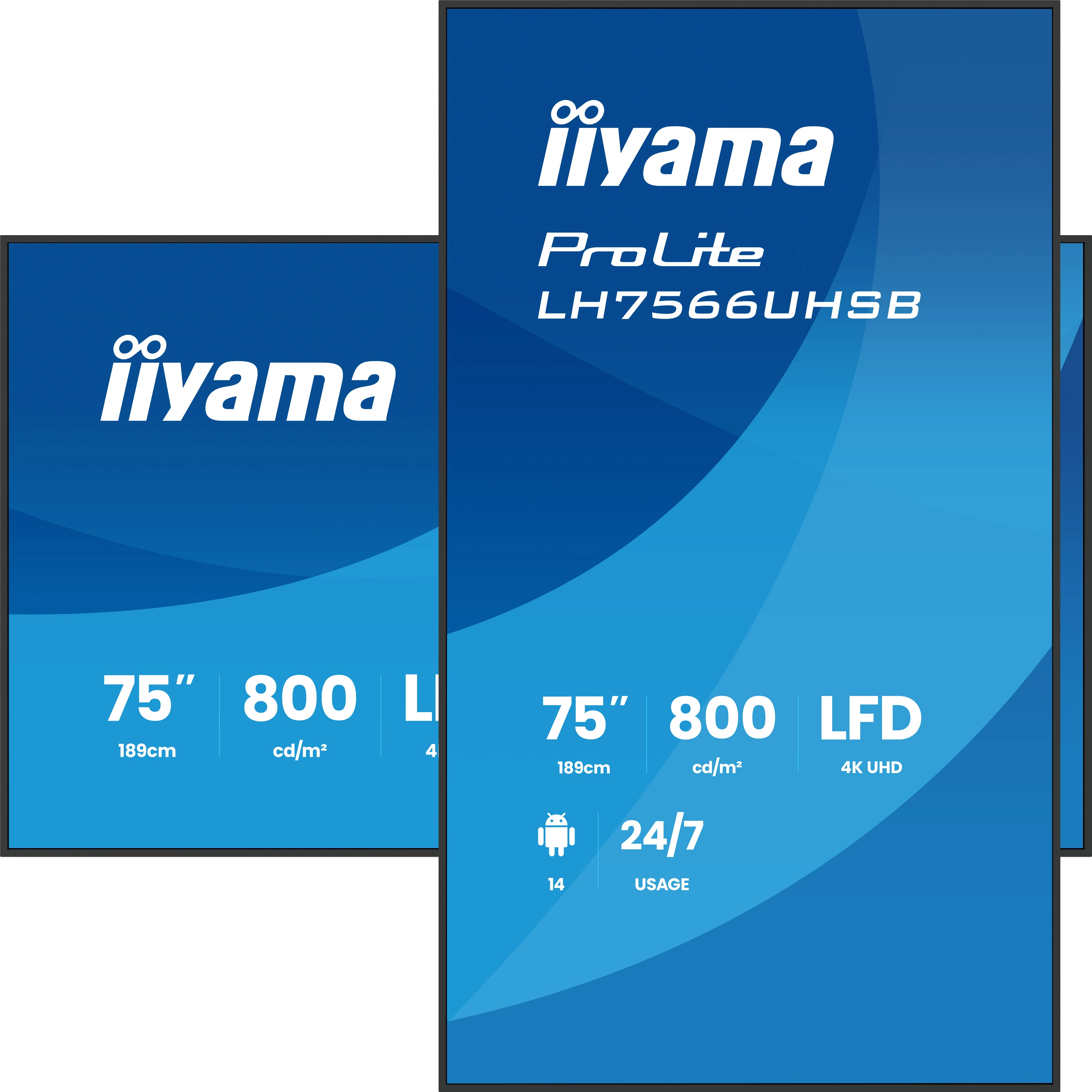

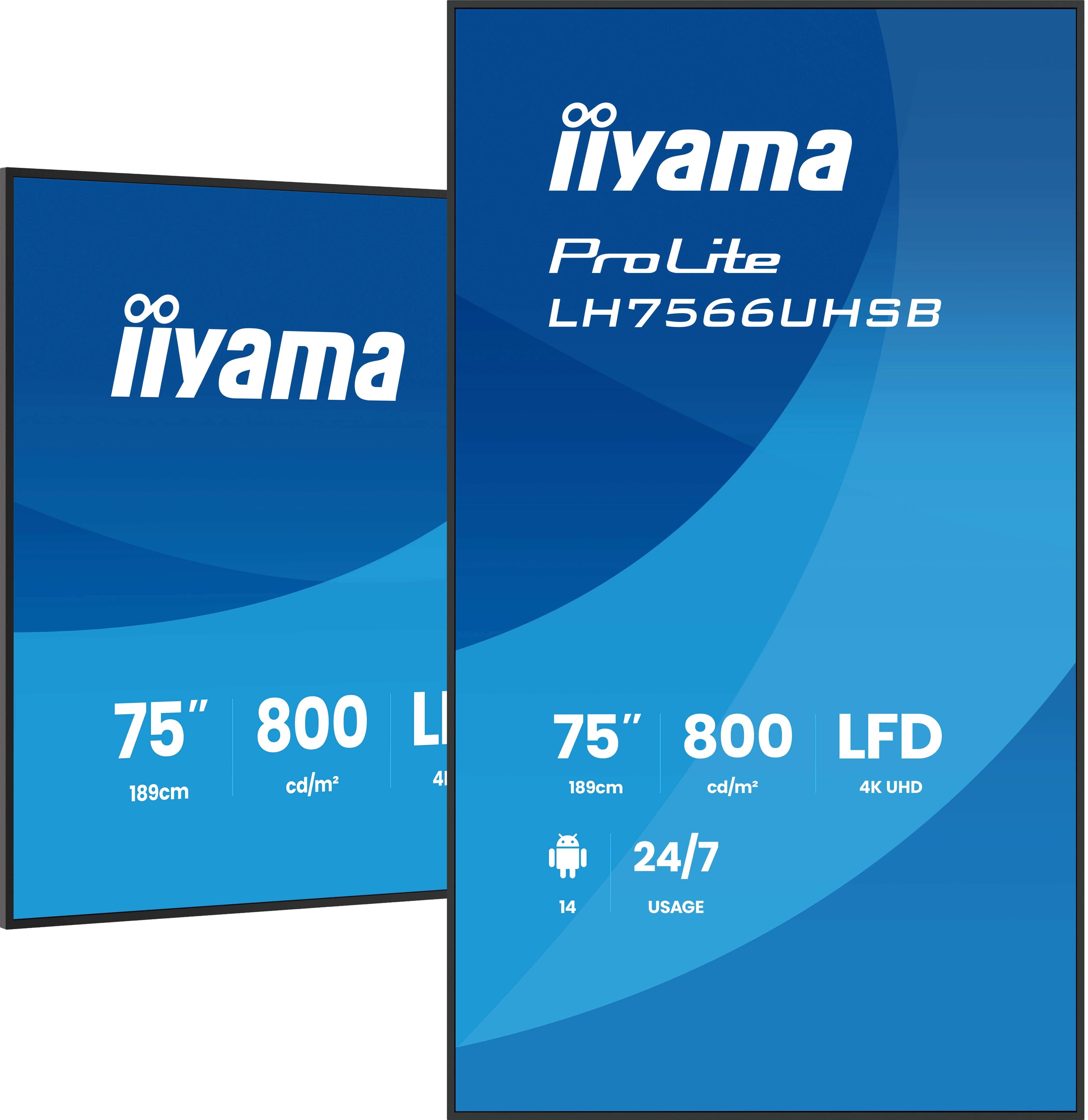

Orientation	Horizontal/Vertical

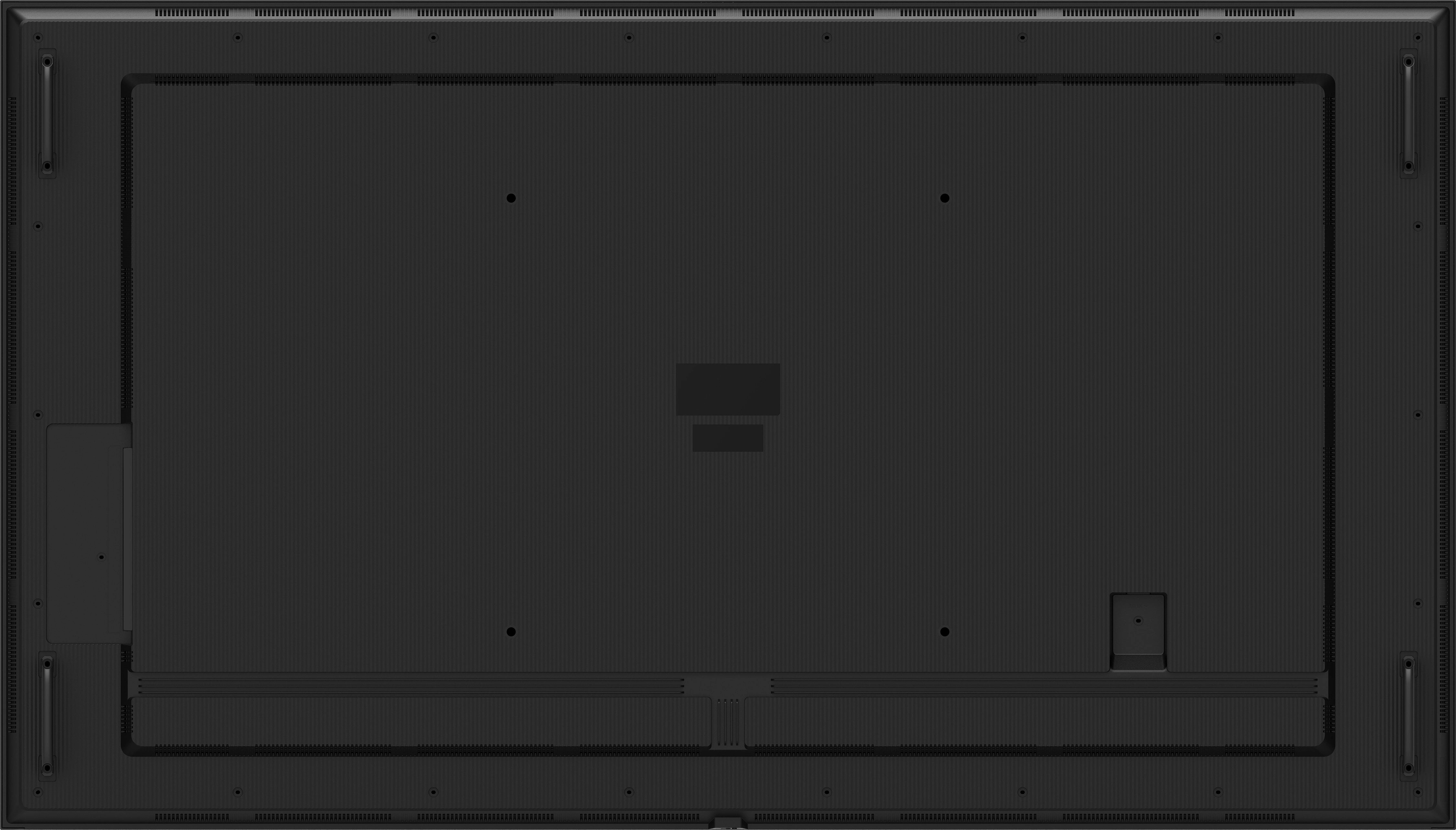

VESA mounting	Y
Panel mounting interface	500 x 500 mm
Anti-glare screen	Y
Bezel width (top)	12.8 mm
Bezel colour	Black
Bezel width (side)	12.8 mm
Bezel width (bottom)	12.8 mm
Performance
Purpose	Universal
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CHI (TR), CZE, DAN, DEU, ENG, ESP, FIN, FRE, ITA, JPN, NOR, DUT, POL, RUS, SWE
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	1.4/2.0
International Protection (IP) code	IP5X
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	219 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Computer system	Y
Built-in processor	Y
Processor manufacturer	MediaTek
Processor family	ARM Cortex
Processor model	MT9679
Processor architecture	ARM Cortex-A73
Internal memory	4 GB
Internal storage capacity	32 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android
Operating system version	14
Weight & dimensions
Display width	1679 mm
Display depth	69 mm
Display height	957.1 mm
Display weight	28000 g
Width	1679 mm
Depth	69 mm
Height	957.1 mm
Weight	28000 g
Packaging data
Package width	1840 mm
Package depth	1112 mm
Package height	177 mm
Package weight	39630 g
Packaging content
Handheld remote control	Y
Cables included	AC, HDMI, RS-232
Mounting kit	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Logistics data
Quantity per pallet	12 stuk(s)
Features
Base material	Plastic
Technical details
Pallet net depth	1112 mm
Pallet net width	1850 mm
Compliance certificates	CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates	ErP
Pallet net height	1072 mm
Playback media	Y
User controls	network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp. , colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Other features
Power supply type	Internal
Quick start guide	Y
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Display technology	LCD
