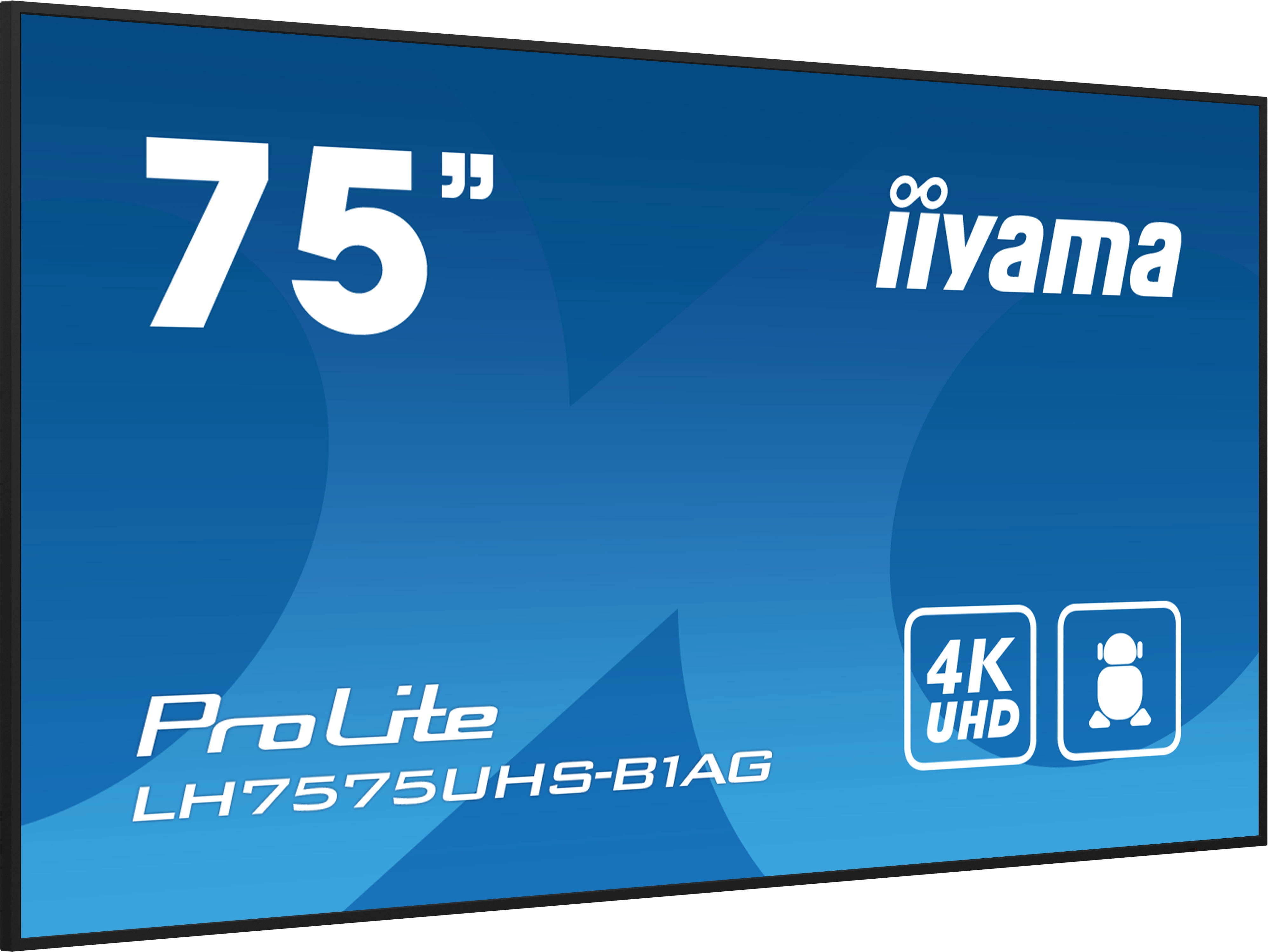

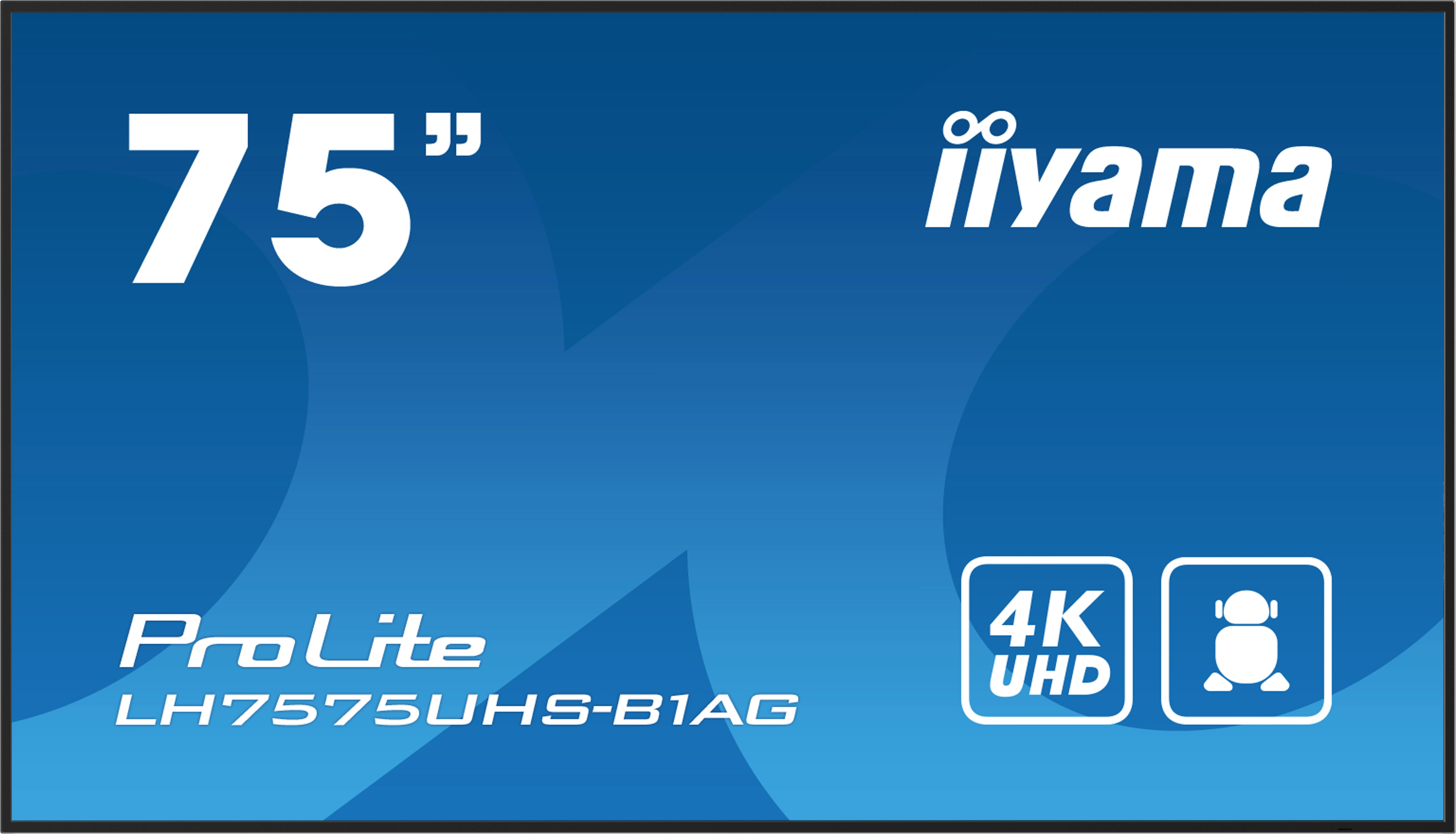

75" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH7575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

IISIGNAGE²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

SMART DISPLAY MODULE
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

Specification

Product
Product id	951826
Brand	iiyama
Partnr	LH7575UHS-B1AG
EAN/UPC code	4948570123483
Warranty (months)	36 months
Display
Display diagonal	75 inch
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	N
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.429 x 0.429 mm
Active display area (W x H)	1650 x 928 mm
Display diagonal (metric)	189.3 cm
Maximum frame rate	60 fps
Haze rate	25 procent
Horizontal scan range	28 - 160 kHz
Panel type	IPS
RGB colour space	sRGB
Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
DisplayPorts quantity	1
USB port	Y
USB ports quantity	2
USB version	2.0
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
PC Audio in	Y
RS-232C	Y
Remote (IR) input	1
Remote (IR) output	1
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20 W
Design
Design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	600 x 400 mm
Bezel width (top)	14.9 mm
Bezel width (side)	14.9 mm
Bezel width (bottom)	14.9 mm
Performance
Purpose	Universal
On Screen Display (OSD)	Y
Number of OSD languages	15
On Screen Display (OSD) languages	CHI (SIMPL), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, POL, RUS, SWE
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	2.2
Mean time between failures (MTBF)	44000 uur
Power
Power consumption (typical)	189 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy consumption (SDR) per 1000 hours	189 kWu
Energy efficiency scale	A to G
Computer system
Built-in processor	Y
Processor manufacturer	ARM
Processor family	ARM Cortex
Processor architecture	ARM Cortex-A53+Cortex-A73
Processor cores	4
Internal memory	4 GB
Internal storage capacity	32 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android 11
Weight & dimensions
Display width	1679.5 mm
Display depth	55 mm
Display height	958.5 mm
Display weight	29500 g
Packaging data
Package width	1883 mm
Package depth	186 mm
Package height	1140 mm
Package weight	41000 g
Packaging content
Handheld remote control	Y
Batteries included	Y
Cables included	AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Features
Harmonized System (HS) code	85285210
Technical details
Sustainability certificates	RoHS
Other features
Housing material	Metal
DisplayPort version	1.2
Quick start guide	Y
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Display technology	LCD
