OPS Slot PC-Module with 5K video support Intel Core i5-12450H 8GB DDR4 M2 256GB SSD W11IOTE



iiyama
Limited stock
€ 463,04
€ 560,27 incl 21% VAT

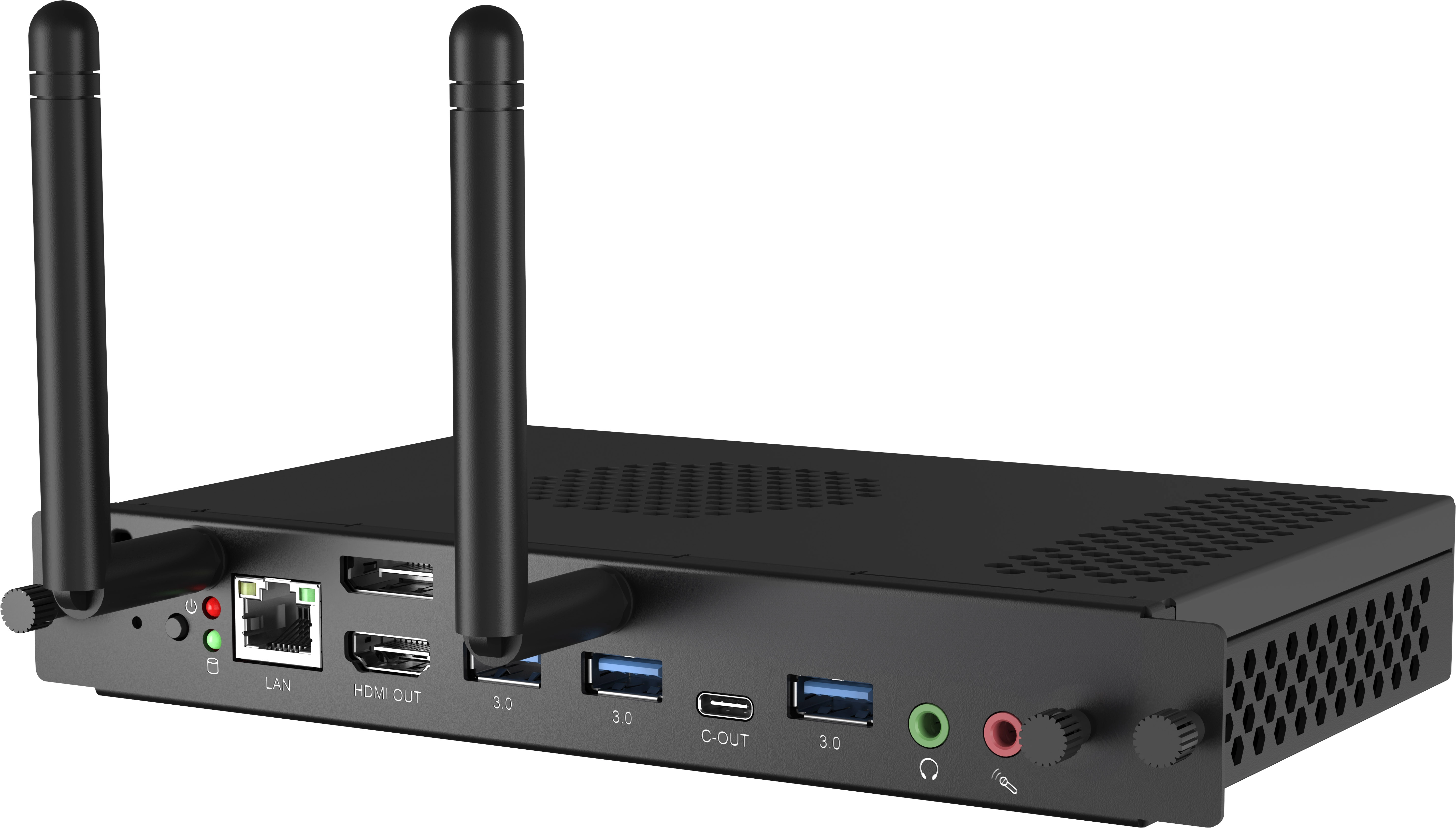

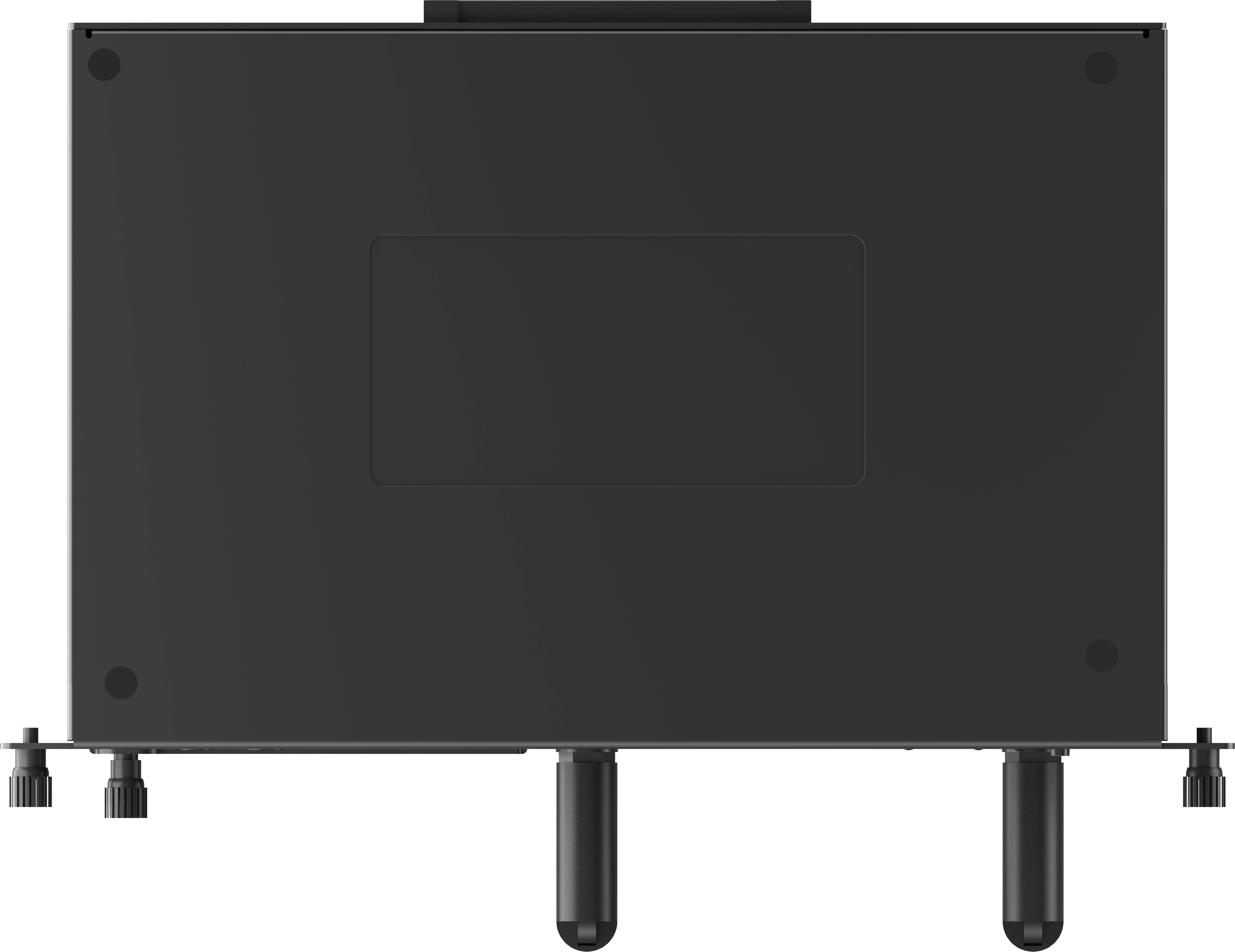

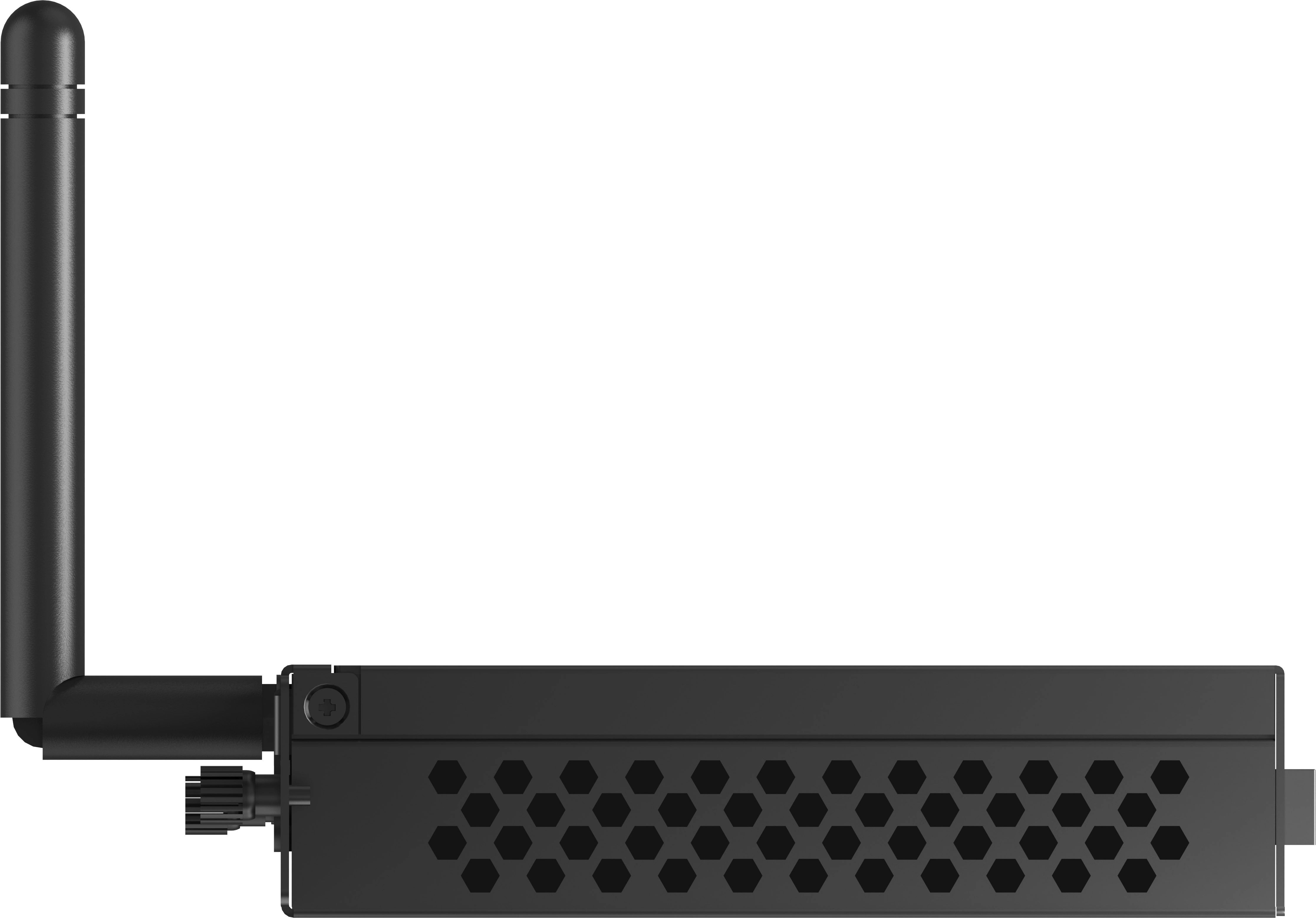

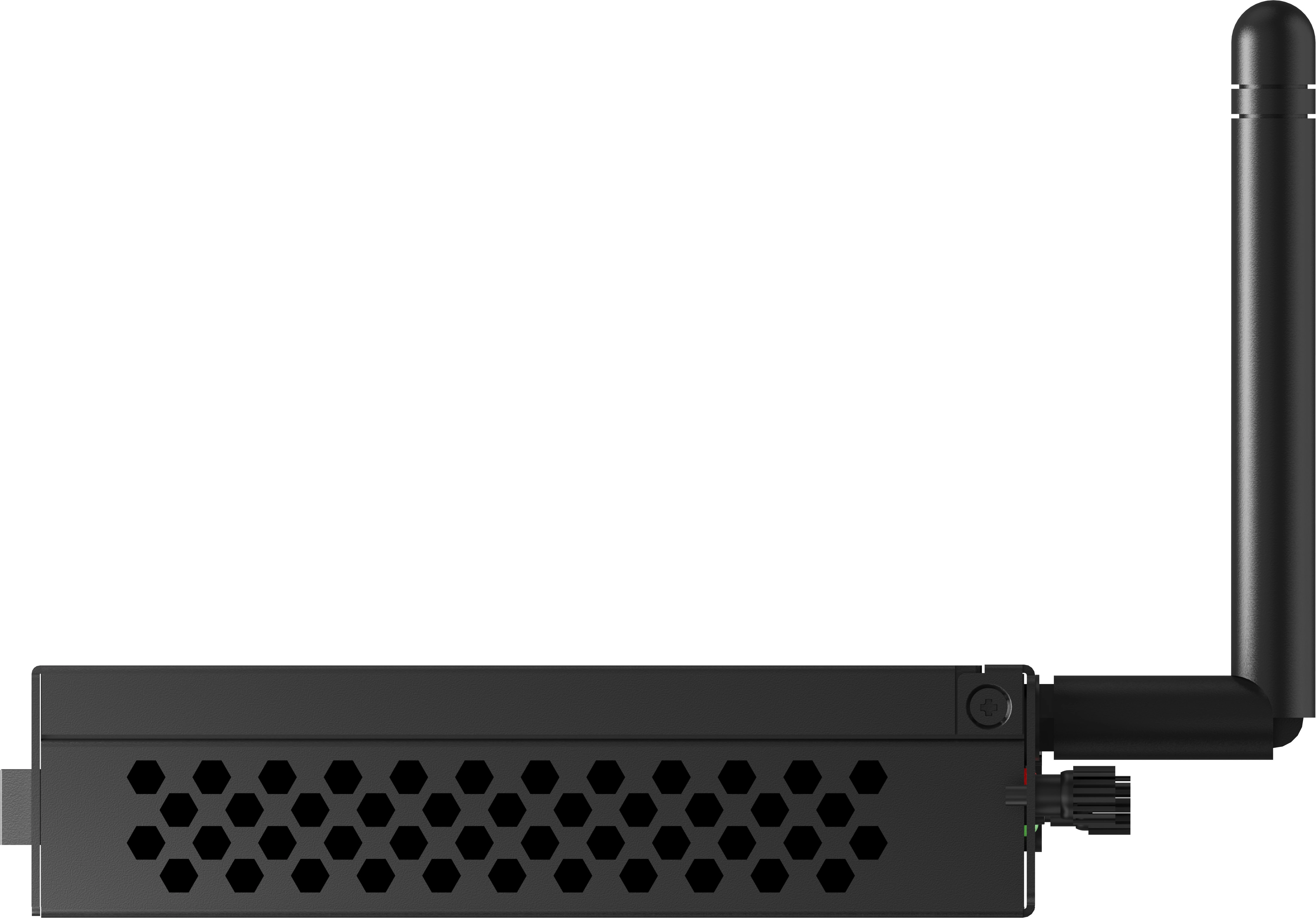

This mini OPS PC with Intel® Core™ i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.

Specification

Product
Product id 956996
Brand iiyama
Partnr OPC51204BC-1
EAN/UPC code 4948570033331
Warranty (months) 36 months
Processor
Processor manufacturer Intel
Processor family Intel Core i5
Processor generation Intel Core i5-12xxx
Processor model i5-12450H
Processor cores 8
Performance cores 4
Efficient cores 4
Processor cache 12 MB
Processor cache type Smart Cache
Efficient-core Max Turbo Frequency 3.3 GHz
Performance-core Max Turbo Frequency 4.4 GHz
Processor base power 45 W
Maximum turbo power 95 W
Memory
Internal memory 8 GB
Internal memory type DDR4-SDRAM
Maximum internal memory 32 GB
Memory clock speed 3200 MHz
Storage
Total storage capacity 256 GB
Optical drive type N
Storage media SSD
Total SSDs capacity 256 GB
Number of SSDs installed 1
SSD capacity 256 GB
SSD interface PCI Express
SSD form factor M.2
Graphics
Discrete graphics adapter N
On-board graphics adapter Y
Discrete graphics adapter model Not available
On-board graphics adapter family Intel UHD Graphics
On-board GPU manufacturer Intel
On-board graphics adapter model Intel UHD Graphics
Network
Ethernet LAN Y
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Wi-Fi Y
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version 5.2

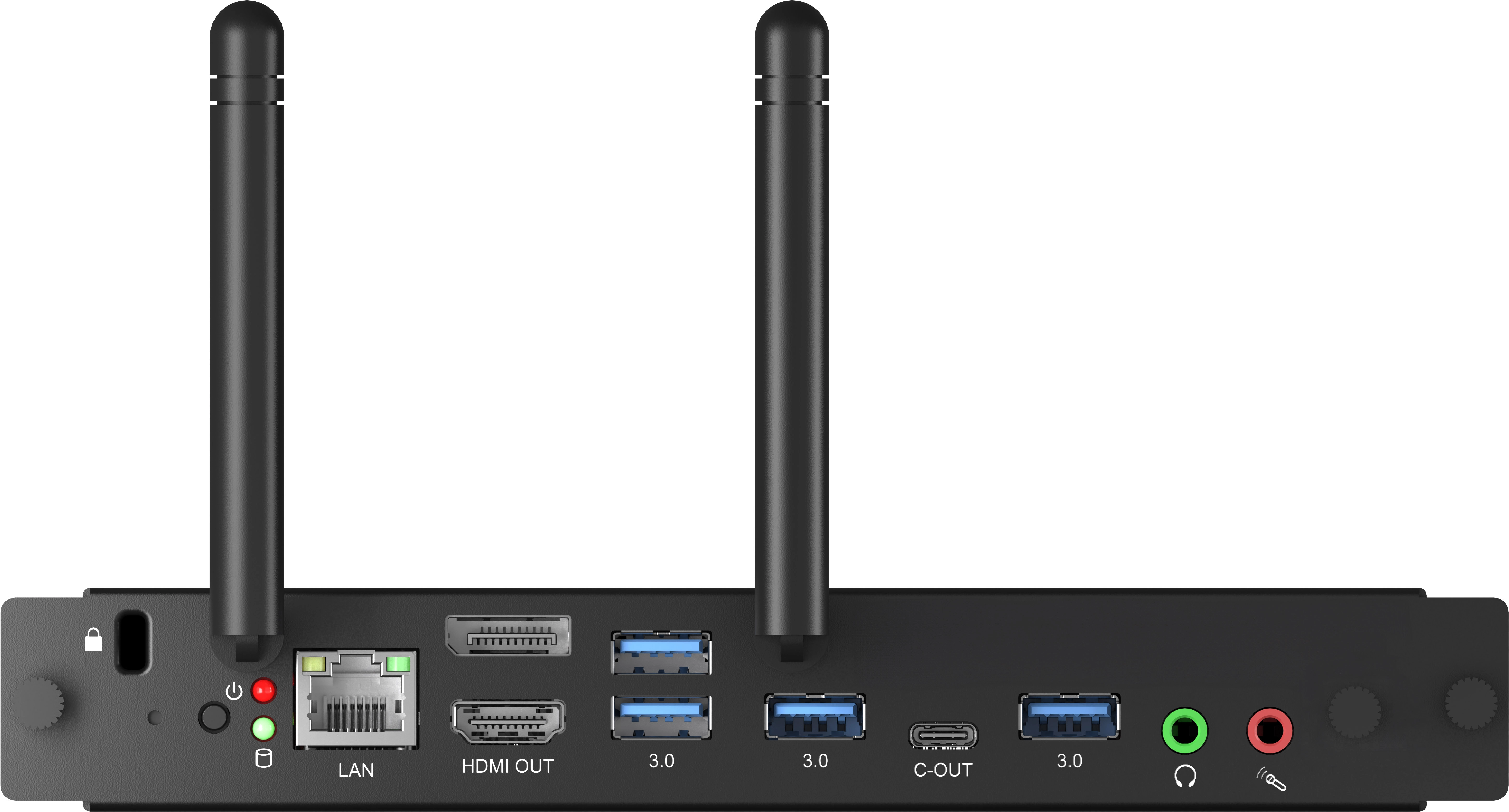

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
HDMI ports quantity 1
HDMI version 2.0
DisplayPorts quantity 1
DisplayPort version 1.4
Ethernet LAN (RJ-45) ports 1
Microphone in Y
Headphone outputs 1
Design
Chassis type Mini PC
Product colour Black
Performance
Product type Mini PC (<= 3L)
Trusted Platform Module (TPM) Y
Trusted Platform Module (TPM) version 2.0
Software
Operating system installed Windows 11 IoT Enterprise
Operating system architecture 64-bit
Power
Power consumption (typical) 80.7 W
Power consumption (standby) 2.9 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 50 °C
Operating relative humidity (H-H) 10 - 95 procent
Storage relative humidity (H-H) 10 - 95 procent
Weight & dimensions
Width 119 mm
Depth 180 mm
Height 30 mm
Weight 600 g
Package width 260 mm
Package depth 72 mm
Package height 192 mm
Package weight 957 g
Packaging content
Display included N
