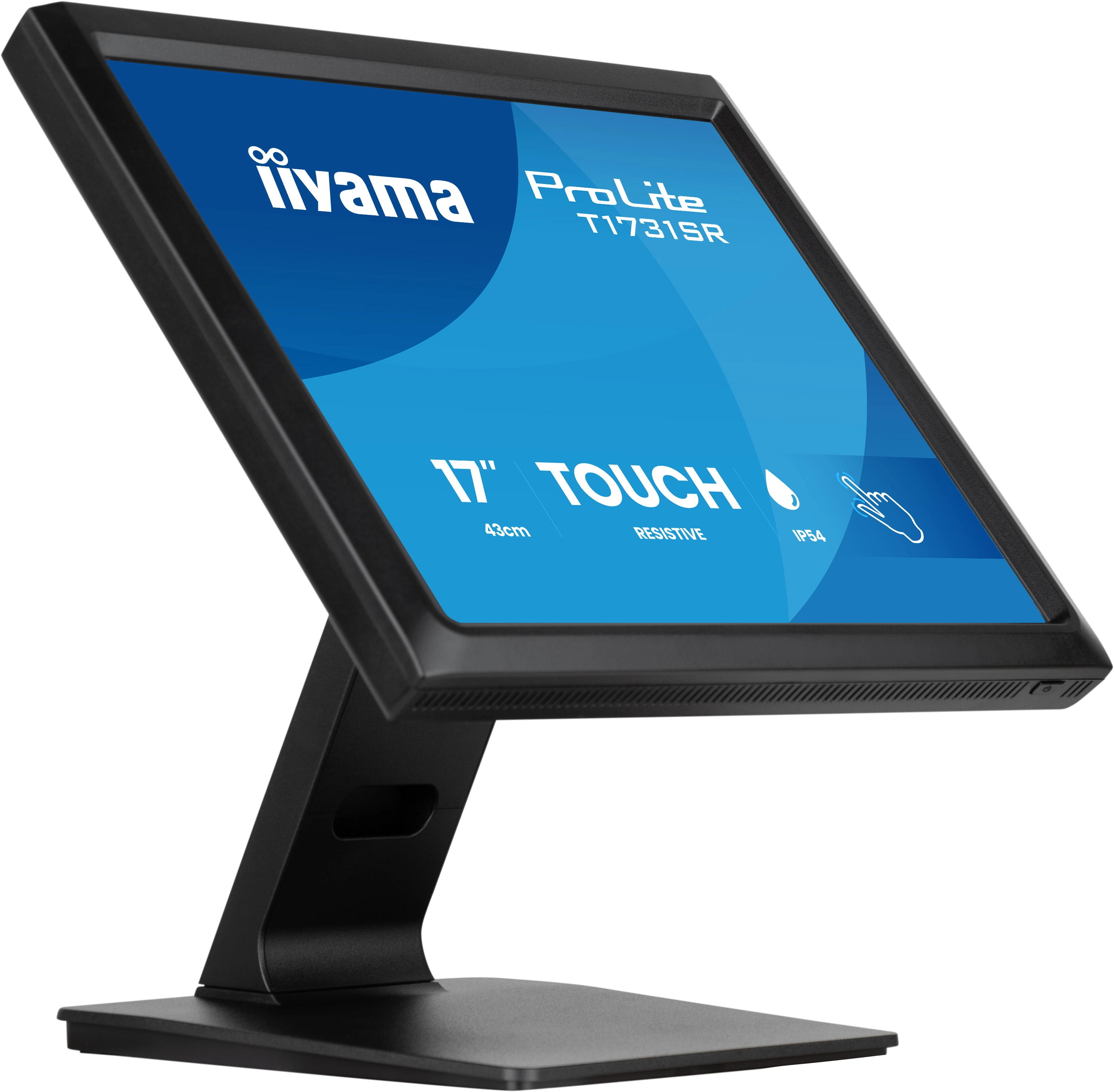

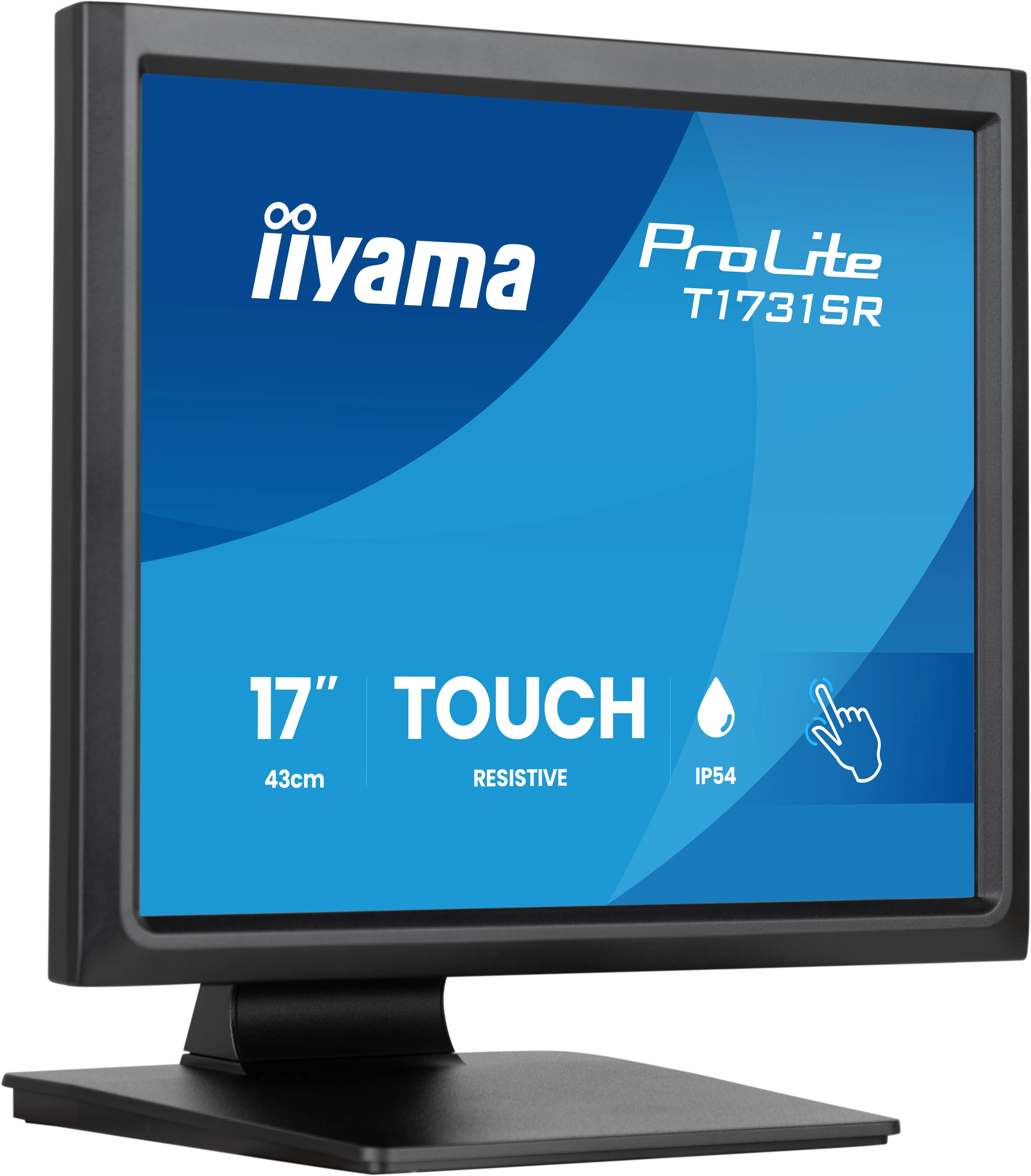

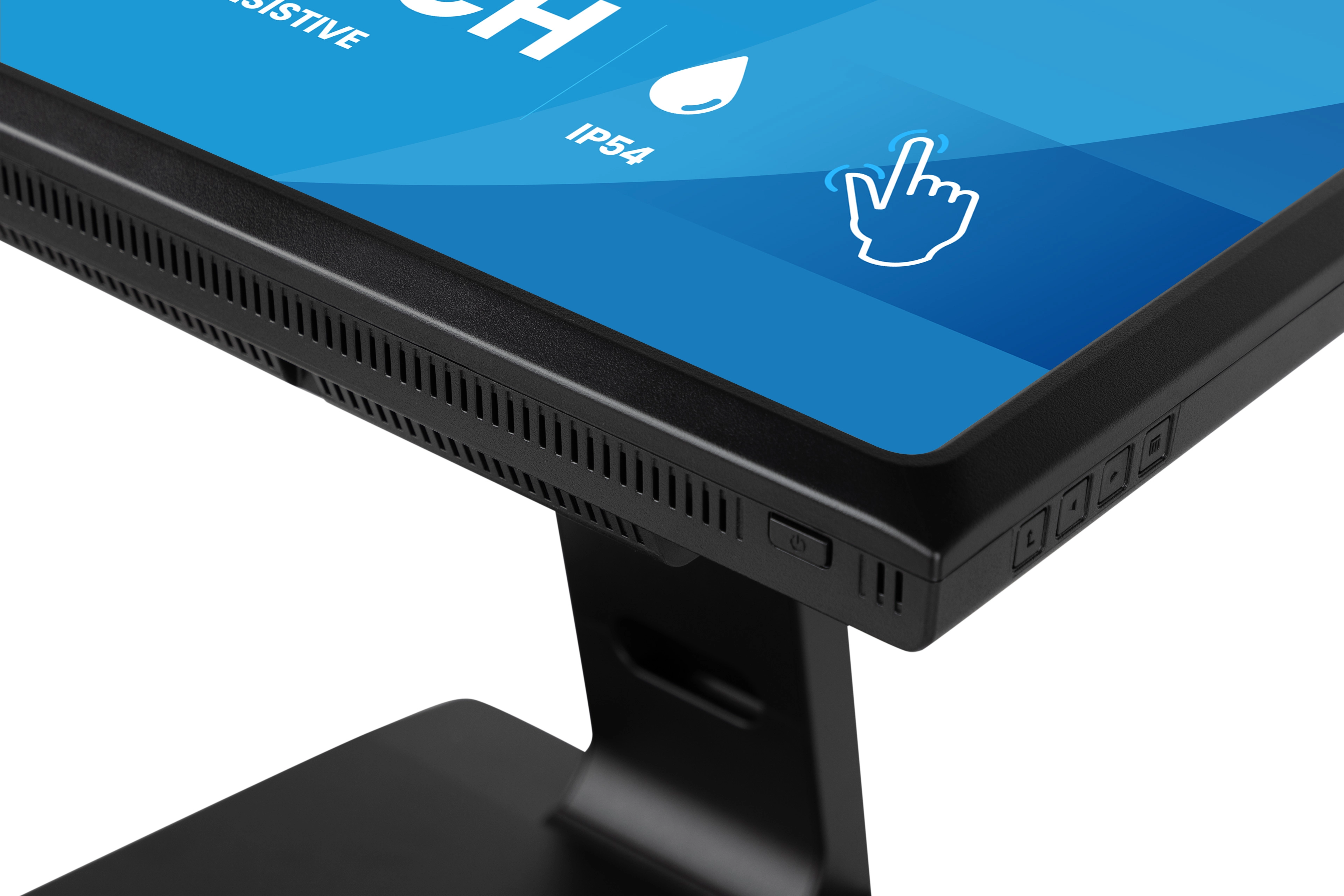

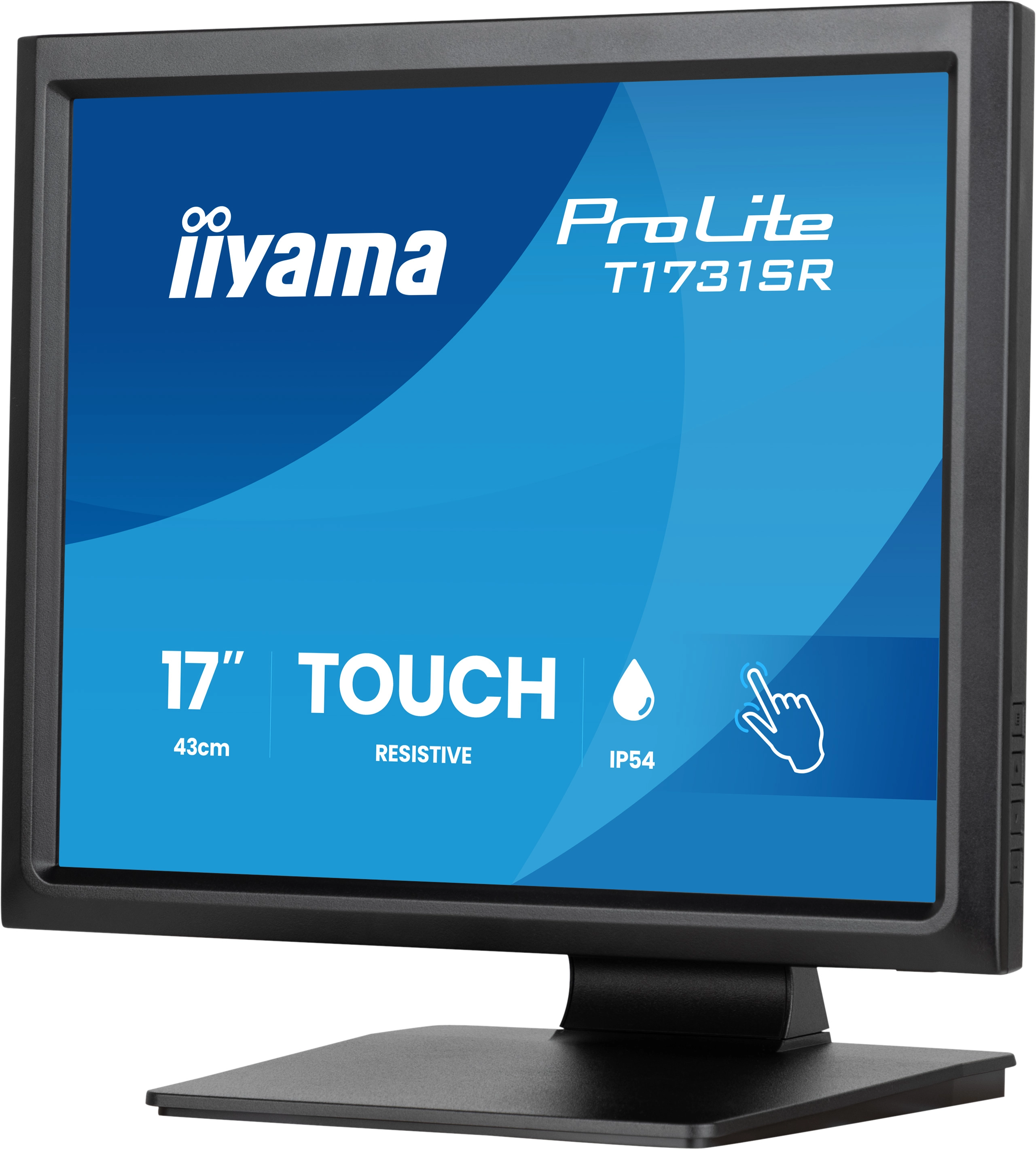

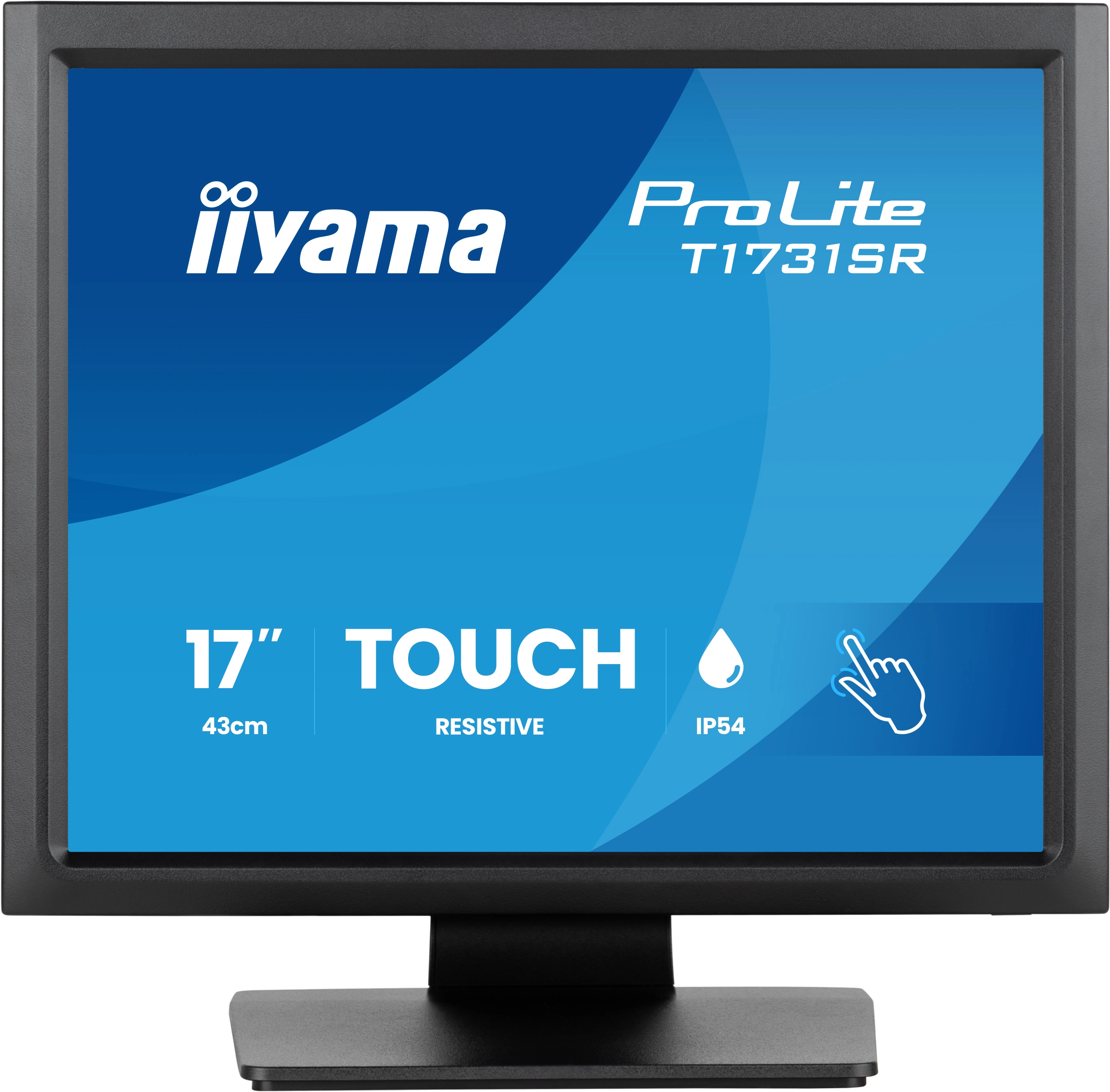

The ProLite T1731SR-B2S is designed for workplaces where touch interaction needs to be simple, reliable and practical. Its 5-wire resistive touch technology responds to almost any suitable input method, including a finger, glove, stylus or pen-like tool. This makes it ideal for environments where users work quickly, wear gloves or need dependable touch operation without relying on bare fingers. With its IP54-rated front surface, the display is protected against dust and splashing water from the front, making it a strong choice for retail counters, restaurants, workshops, warehouses and light industrial applications. The monitor also offers flexible analogue and digital inputs with USB touch support for easy integration. An adjustable ergonomic stand and integrated cable management help create a clean, comfortable and professional workspace.

Specification

Product
Product id	1021780
Brand	iiyama
Partnr	T1731SR-B2S
EAN/UPC code	4948570127702
Warranty (months)	36 months
Technical details
Brightness	195 cd/m²
Sustainability certificates	ErP
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Display
Display diagonal	17 inch
Display brightness	195 cd/m²
Display resolution	1280 x 1024 Pixels
Native aspect ratio	5:4
Panel type	TN
Touchscreen technology	Resistive
Display brightness (typical)	250 cd/m²
Response time	5 ms
Contrast ratio (typical)	1000:1
Maximum refresh rate	75 Hz
Display number of colours	16.7 million colours
Display diagonal (metric)	43 cm
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	31 - 80 kHz
Viewable size, horizontal	338 mm
Viewable size, vertical	270 mm
Performance
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)	Y
Number of speakers	2
RMS rated power	2 W
Design
Front bezel colour	Black
International Protection (IP) code	IP54

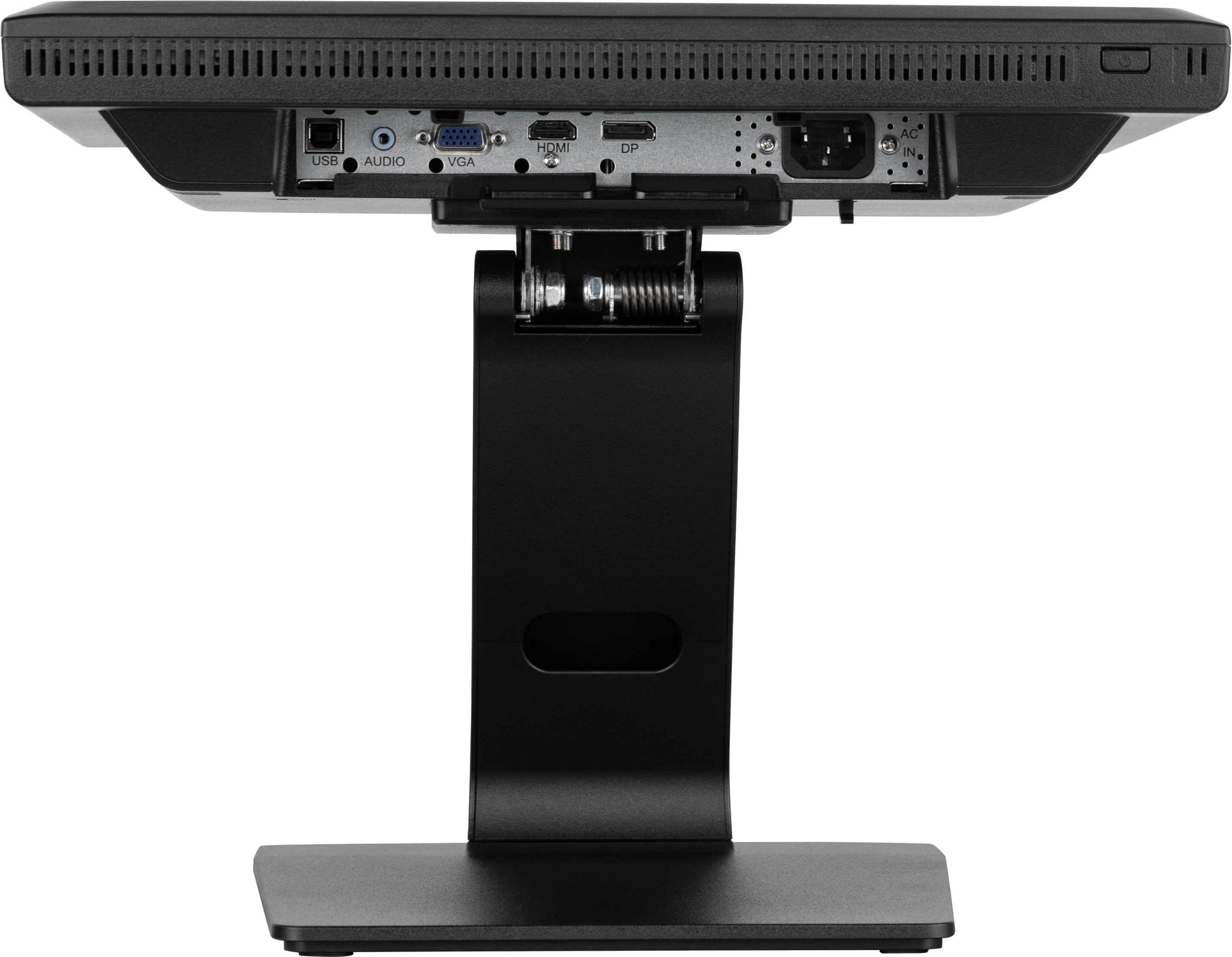

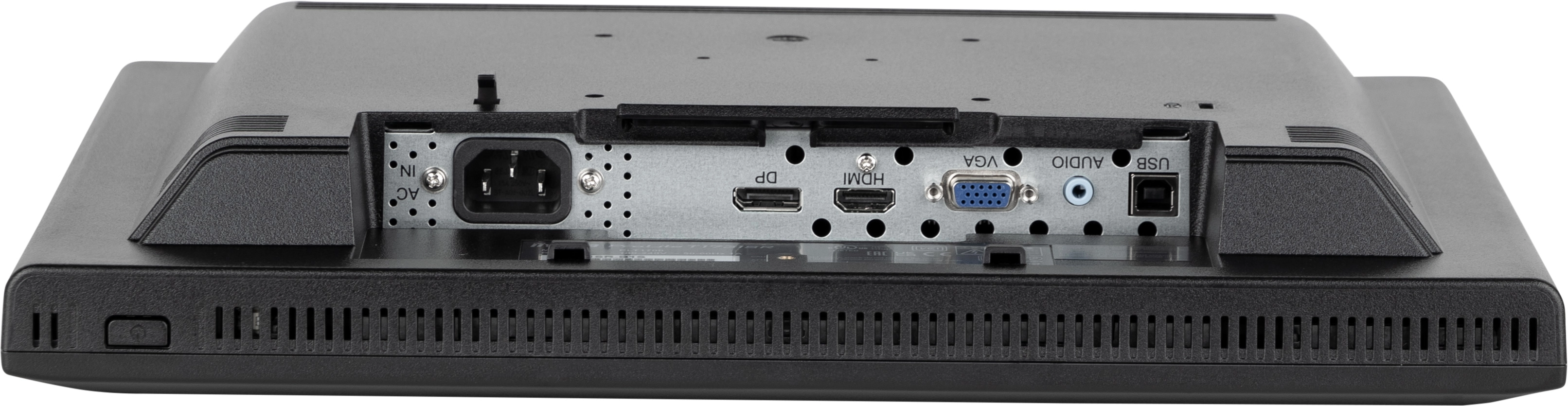

Ports & interfaces
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Audio input	Y
USB Touch port	Y
HDCP	Y

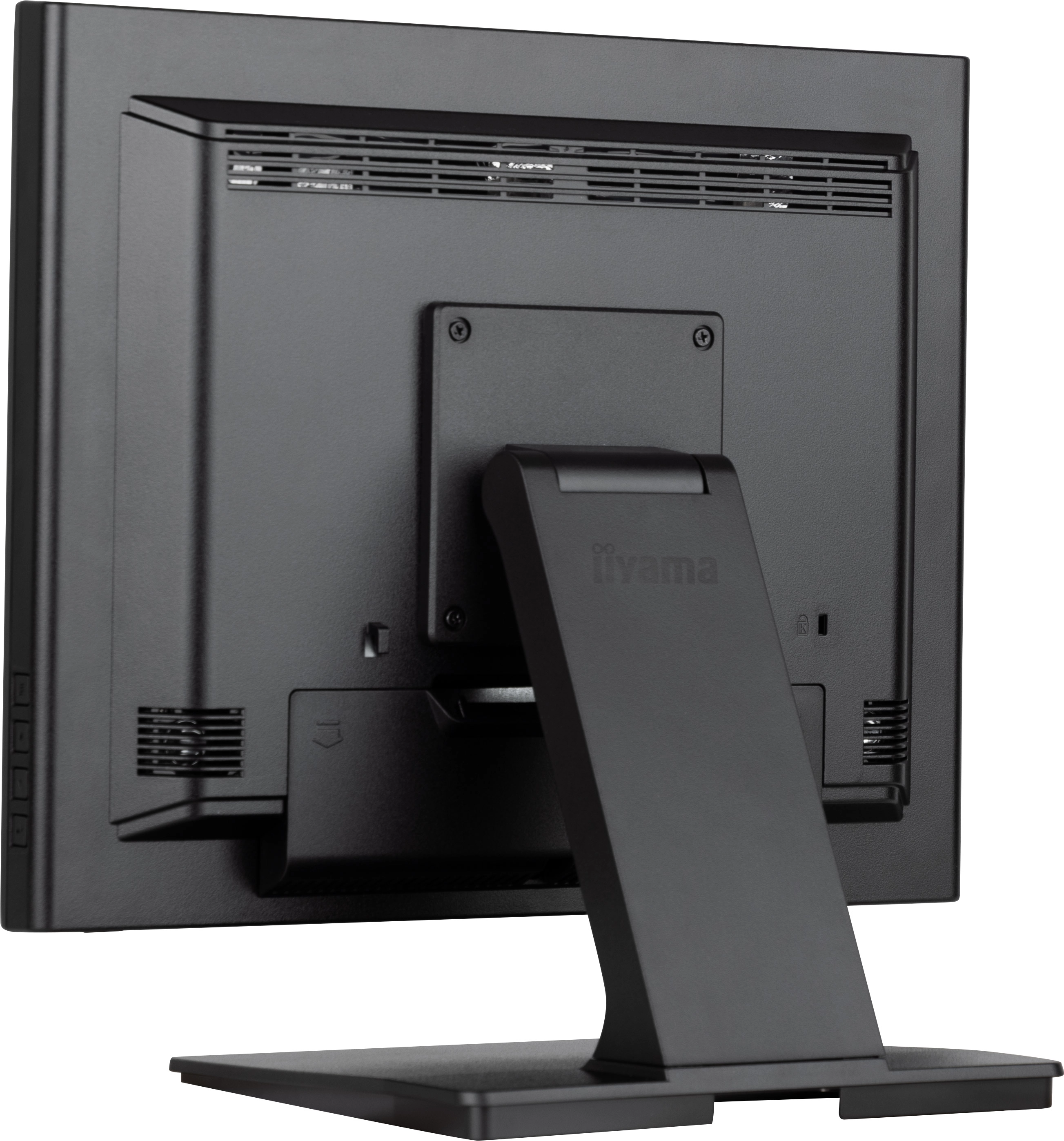

Ergonomics

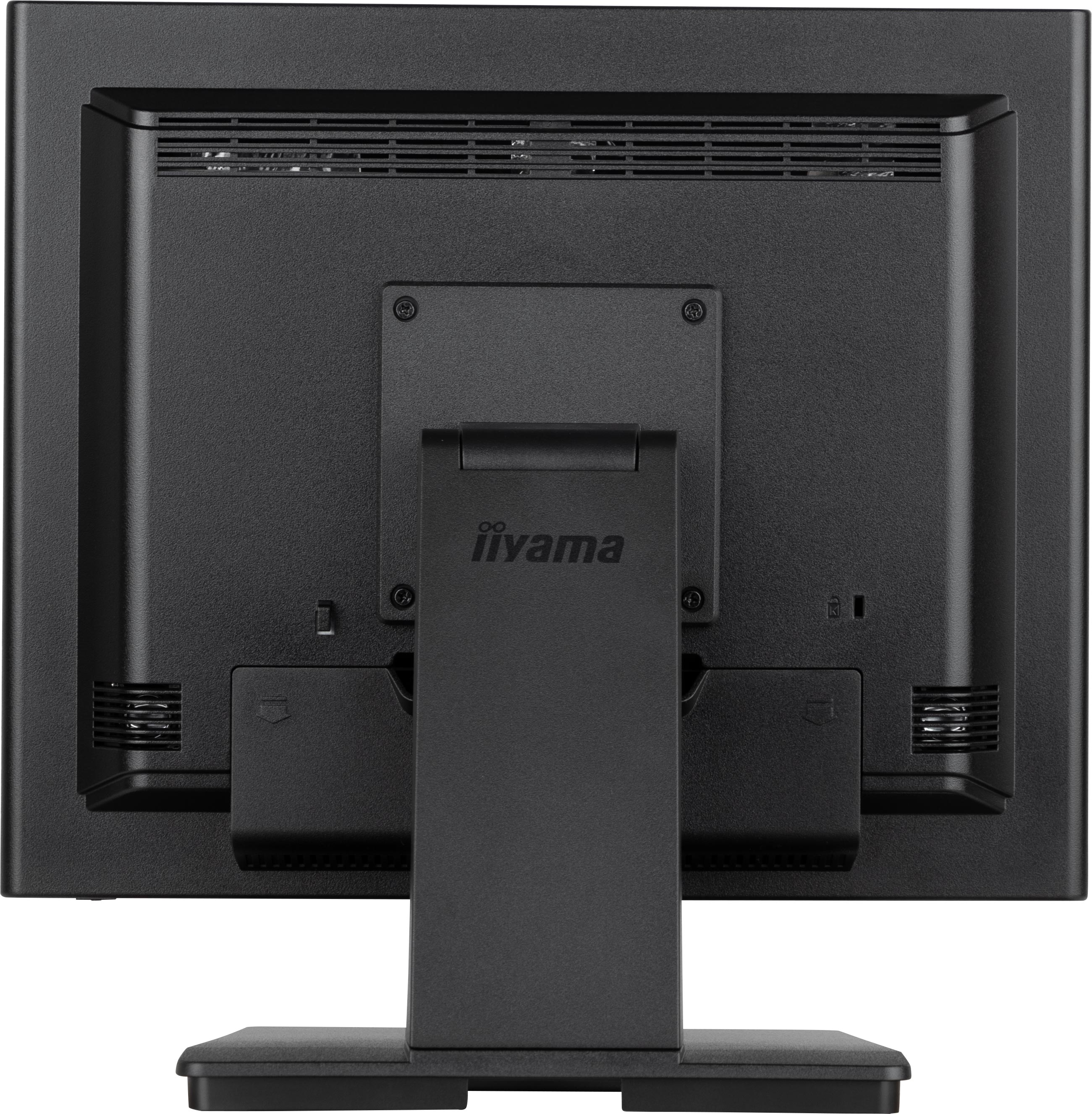

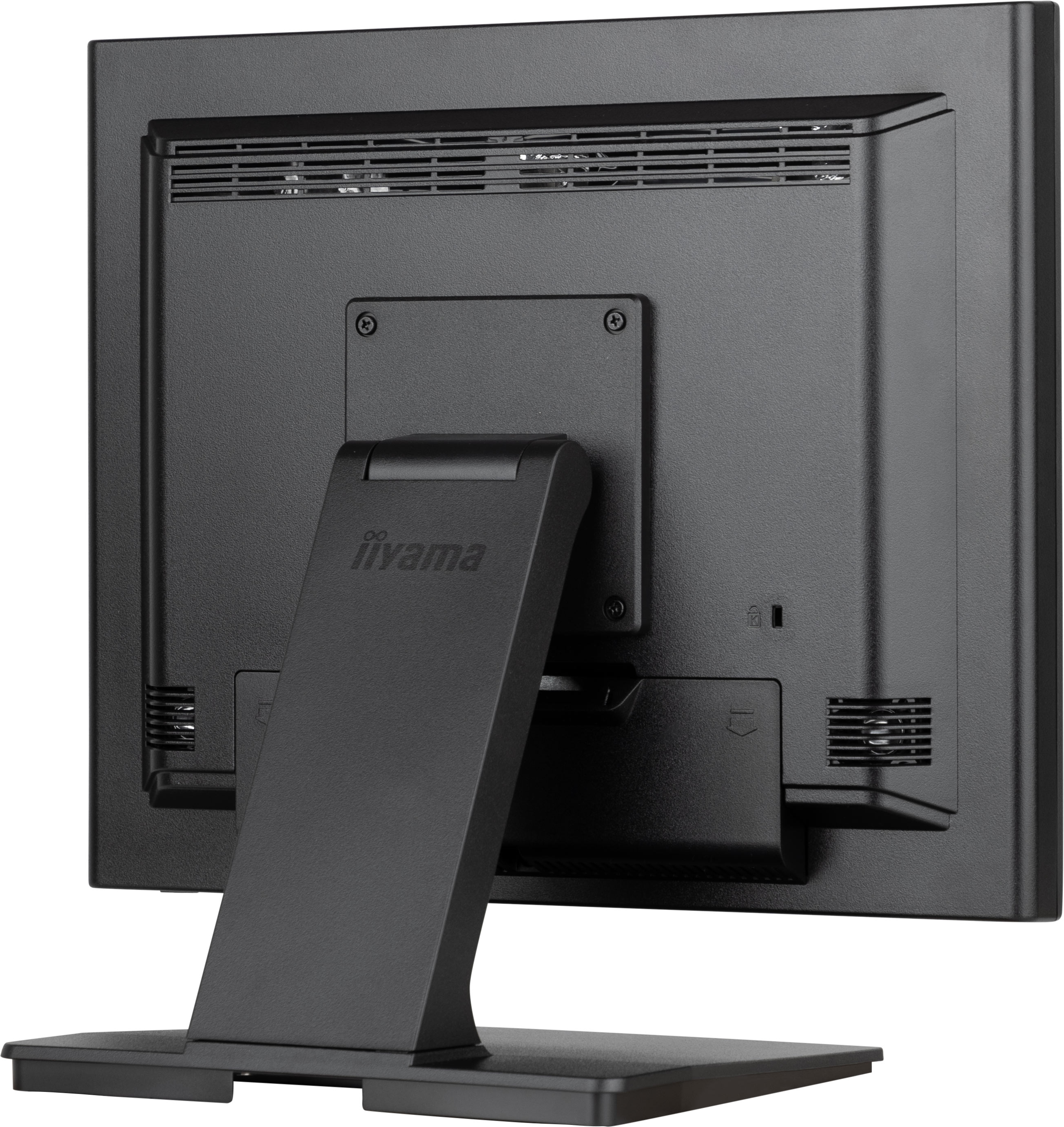

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y

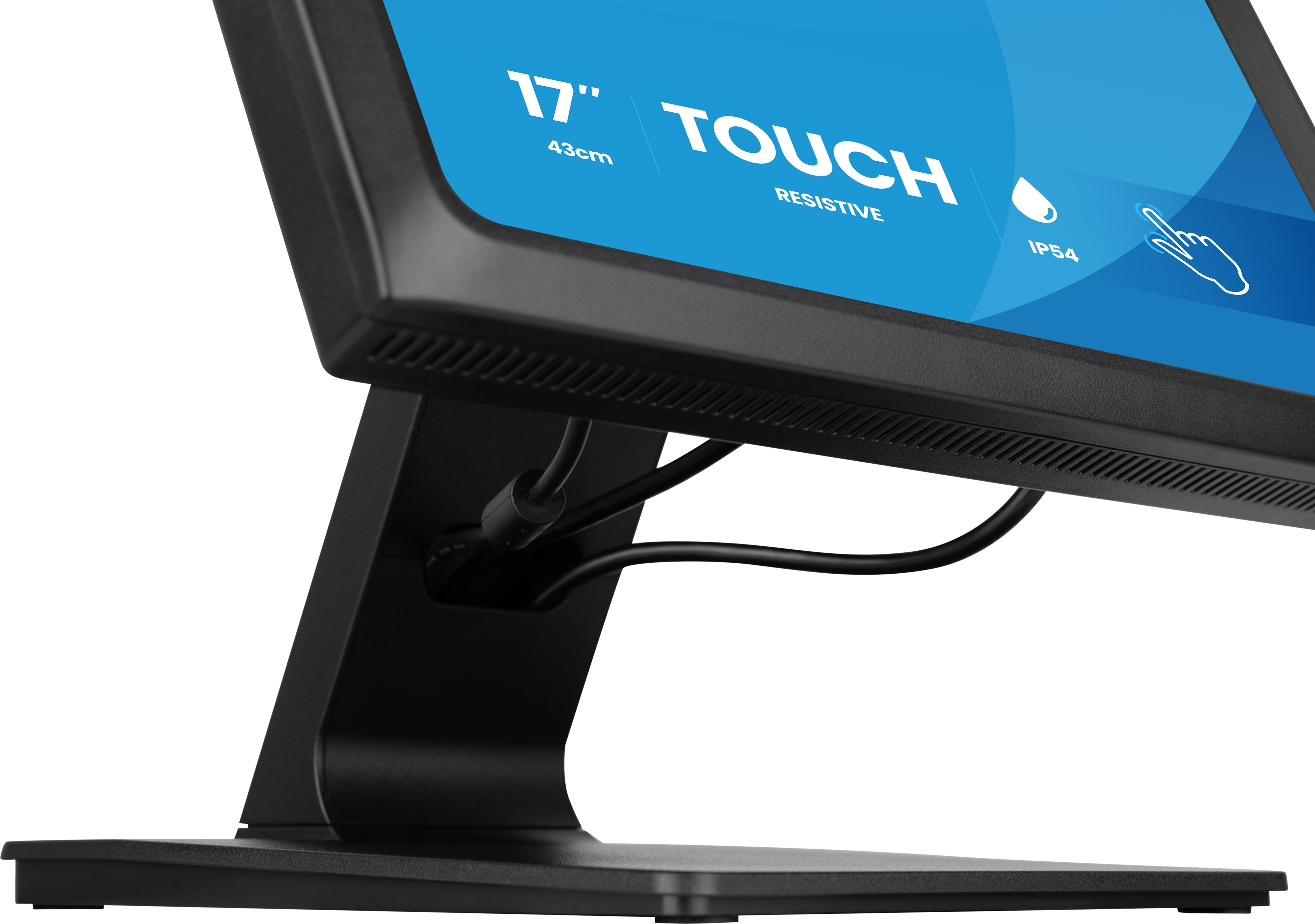

Cable management	Y
Cable lock slot type	Kensington

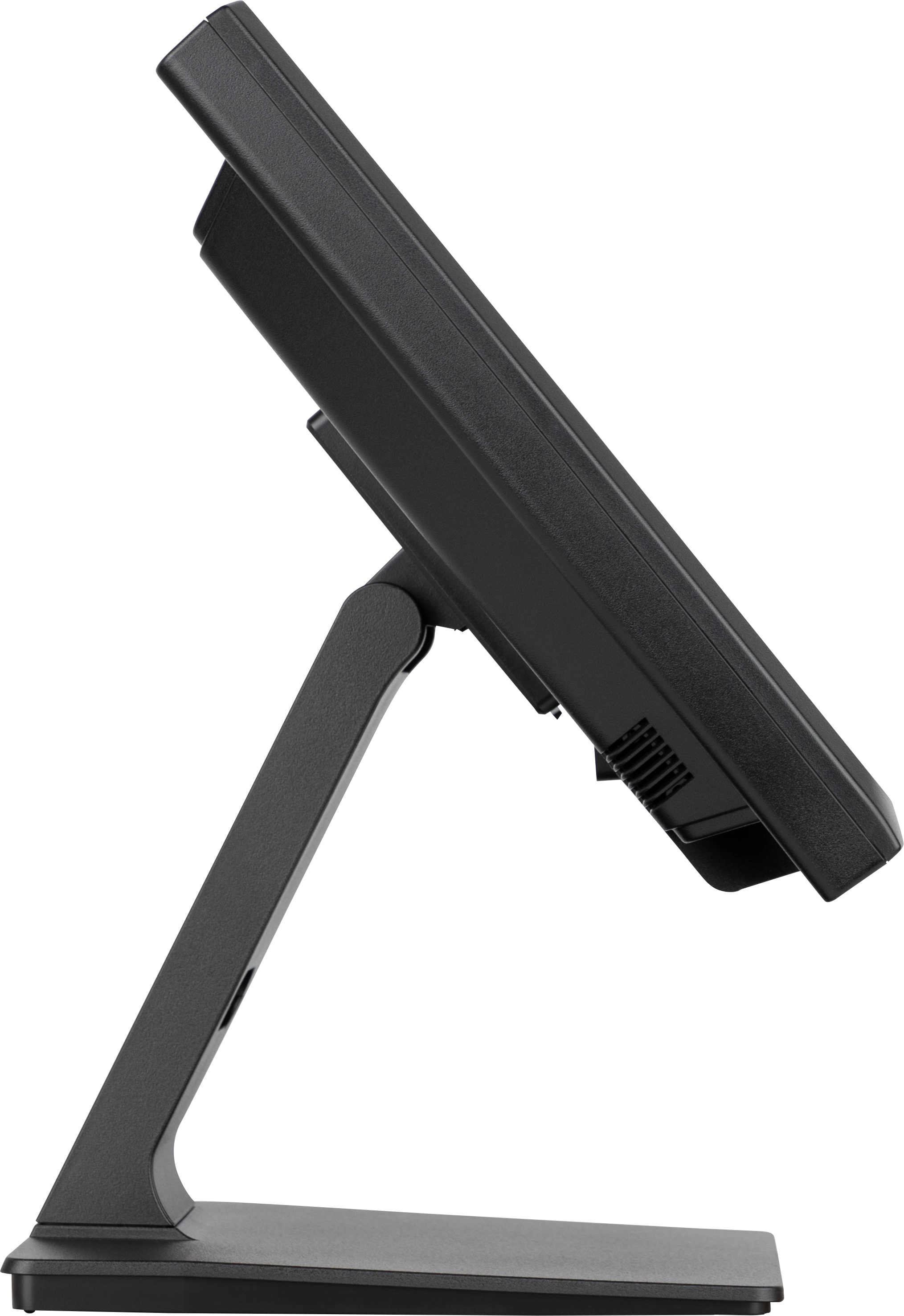

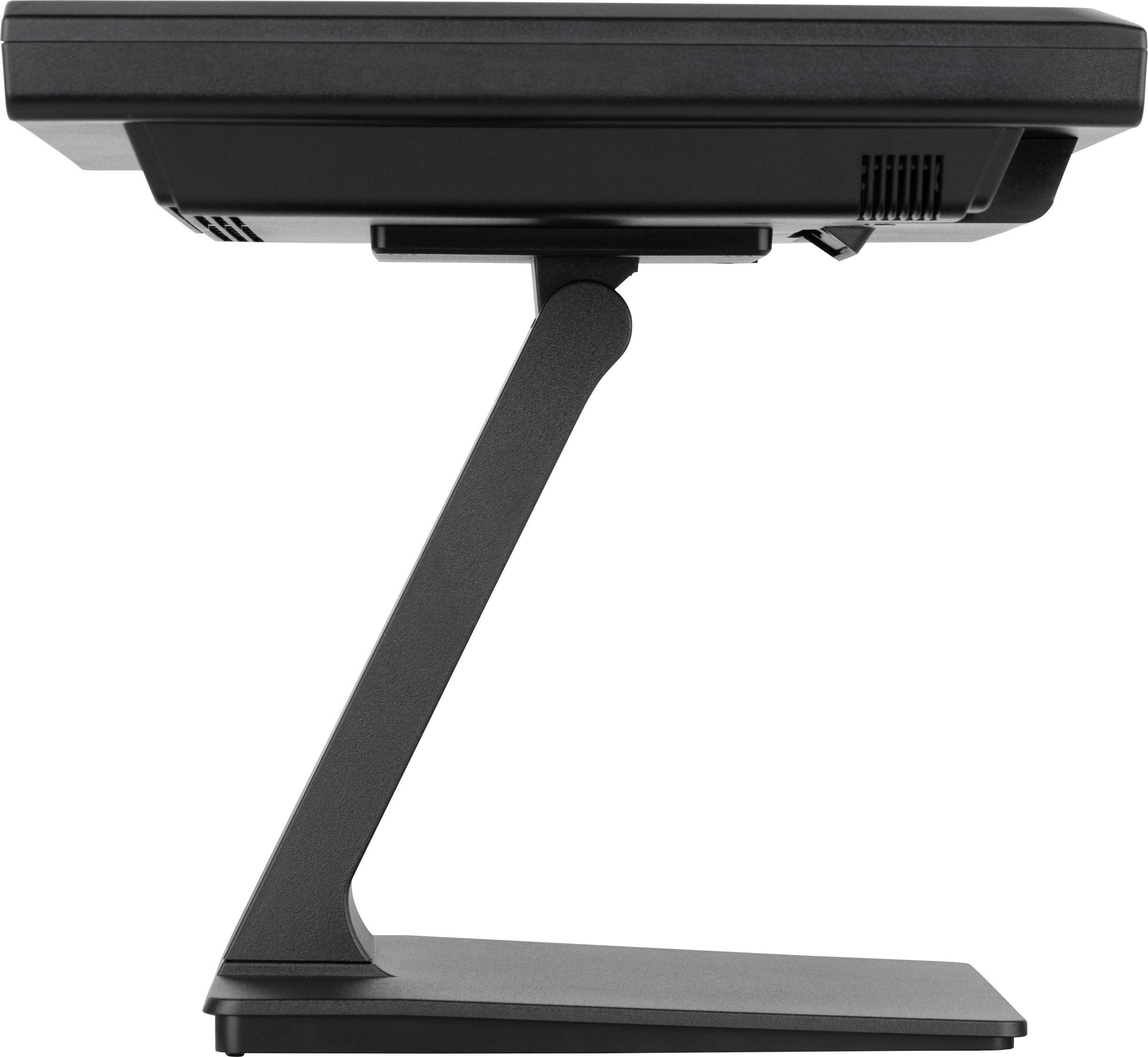

Tilt adjustment	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN, DUT, POL, POR, RUS
Packaging data

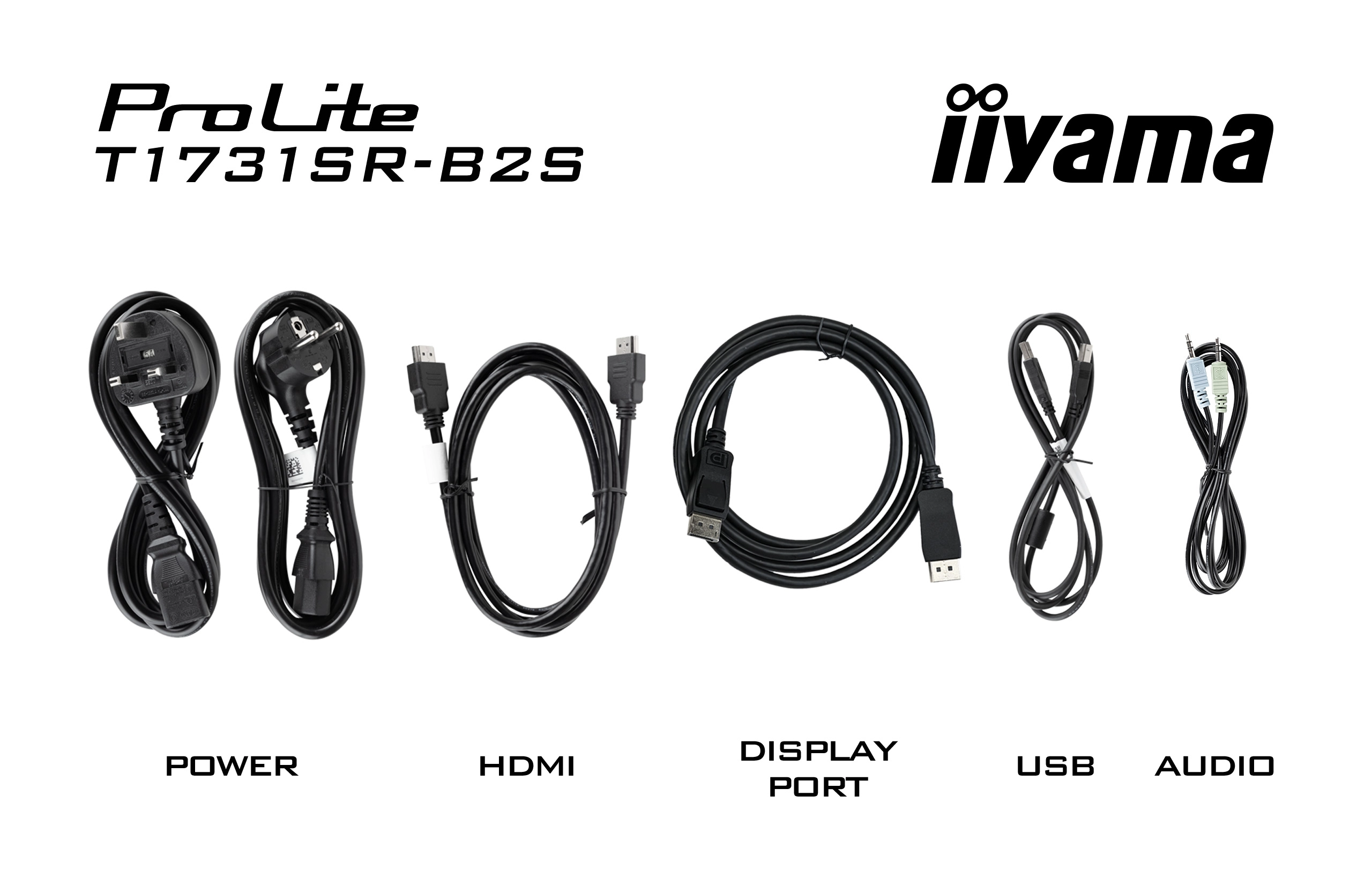

Cables included	AC, USB, HDMI, DisplayPort, Audio
Power cable length	1.8 m
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
USB cable length	1.8 m
Quick start guide	Y
Package width	470 mm
Package depth	180 mm
Package height	445 mm
Package weight	7300 g
Power
Energy efficiency class (SDR)	E
Power consumption (typical)	20 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
Weight & dimensions
Width (with stand)	387 mm
Depth (with stand)	239.5 mm
Height (with stand)	378 mm
Weight (with stand)	5400 g
Width	387 mm
Depth	239.5 mm
Height	378 mm
Weight	5400 g
Other features
Active display area (W x H)	338 x 270 mm
Power supply type	Internal
Touchscreen	Y
Number of simultaneous touchpoints	1
Mean time between failures (MTBF)	50000 uur
Packaging content	Screwdriver
Touch method	stylus, finger, glove, glove (latex)
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls	contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
