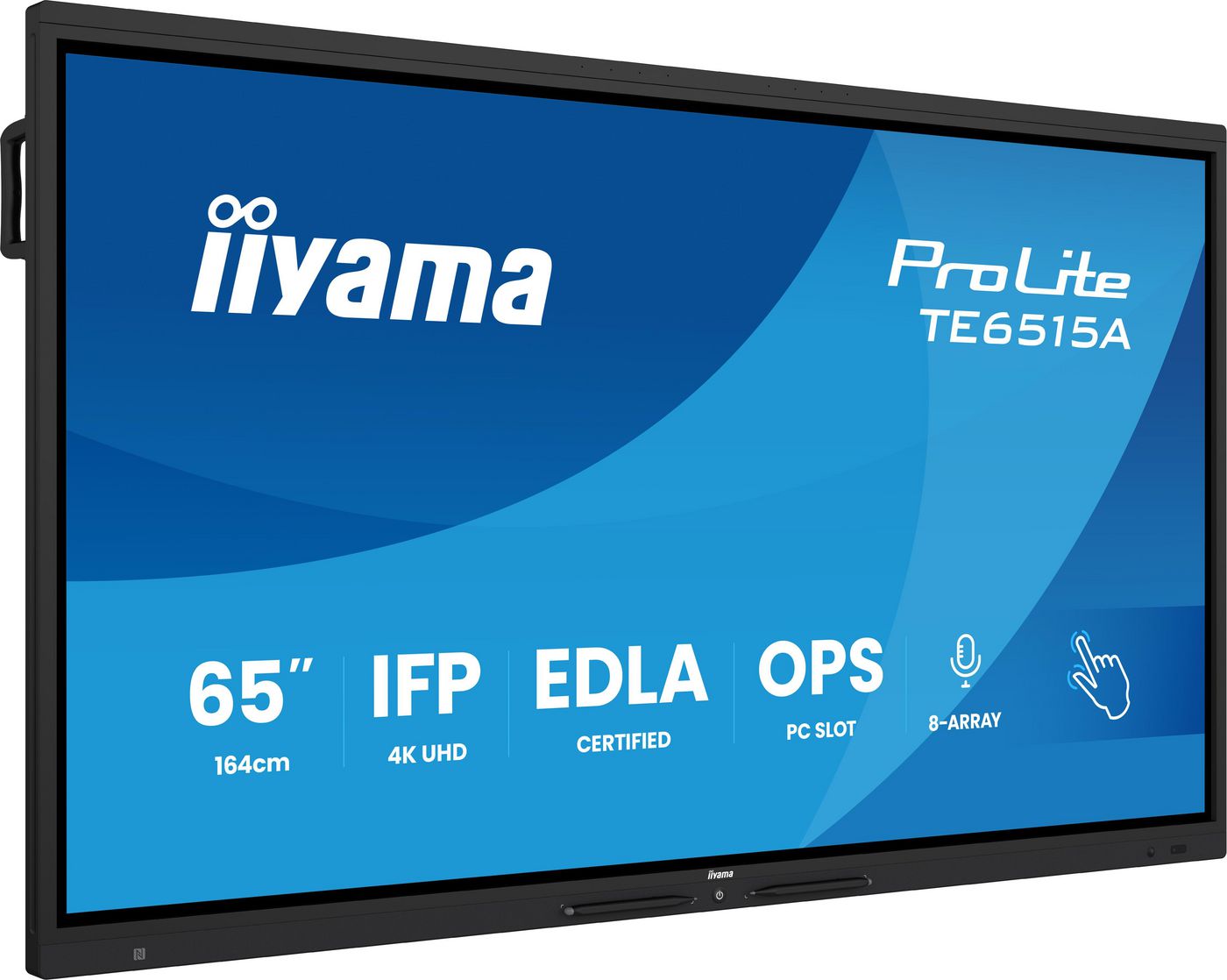

Elegance and functionality come together in the ProLite TE6515A-B2AG. This 65” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE6515A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR++ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi6E, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE6515A promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE6515A-B2AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.

Specification

Product
Product id	1014060
Brand	iiyama
Partnr	TE6515A-B2AG
EAN/UPC code	4948570127481
Warranty (months)	36 months
Display
Display diagonal	64.5 inch
Display resolution	3840 x 2160 Pixels
Display brightness	550 cd/m²
HD type	4K Ultra HD
Touchscreen	Y
Touchscreen technology	Infrared
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	6.5 ms
Contrast ratio (typical)	5000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.124 x 0.124 mm
Active display area (W x H)	1428.5 x 803.5 mm
Display diagonal (metric)	163.9 cm
Surface hardness	7H
Horizontal scan range	30 - 135 kHz
Panel type	VA
Glass thickness	3.2 mm
Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
HDMI input ports quantity	2
HDMI output ports quantity	1
DisplayPorts quantity	1
USB port	Y
USB ports quantity	6
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 Type-B ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
USB Power Delivery	Y
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Y
RS-232C	Y
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
OPS module slot	Y
Audio Return Channel (ARC)	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	60 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
VESA mounting	Y
Panel mounting interface	600 x 400 mm
Anti-glare screen	Y
Bezel width (top)	34.3 mm
Bezel colour	Black
Bezel width (side)	16.7 mm
Bezel width (bottom)	46.7 mm
Positioning accuracy	1 mm
Performance
Purpose	Education
Picture-in-Picture	Y
On Screen Display (OSD)	Y
Number of OSD languages	13
On Screen Display (OSD) languages	CAT, CZE, DAN, DEU, ENG, ESP, EST, FIN, FRE, HUN, ITA, LIT, NOR, DUT, POL, RUS, SWE, LAT, UKR
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	2.2
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	170 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy consumption (SDR) per 1000 hours	144 kWu
Energy efficiency scale	A to G
Computer system
Computer system	Y
Built-in processor	Y
Processor architecture	ARM Cortex-A53+Cortex-A72
Internal memory	8 GB
Internal storage capacity	128 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android
Operating system version	14
Weight & dimensions
Display width	1489.1 mm
Display depth	87.1 mm
Display height	911.8 mm
Display weight	43500 g
Width	1489.1 mm
Depth	87.1 mm
Height	911.8 mm
Weight	43500 g
Packaging data
Package width	1640 mm
Package depth	185 mm
Package height	1010 mm
Package weight	47400 g
Packaging content
Handheld remote control	Y

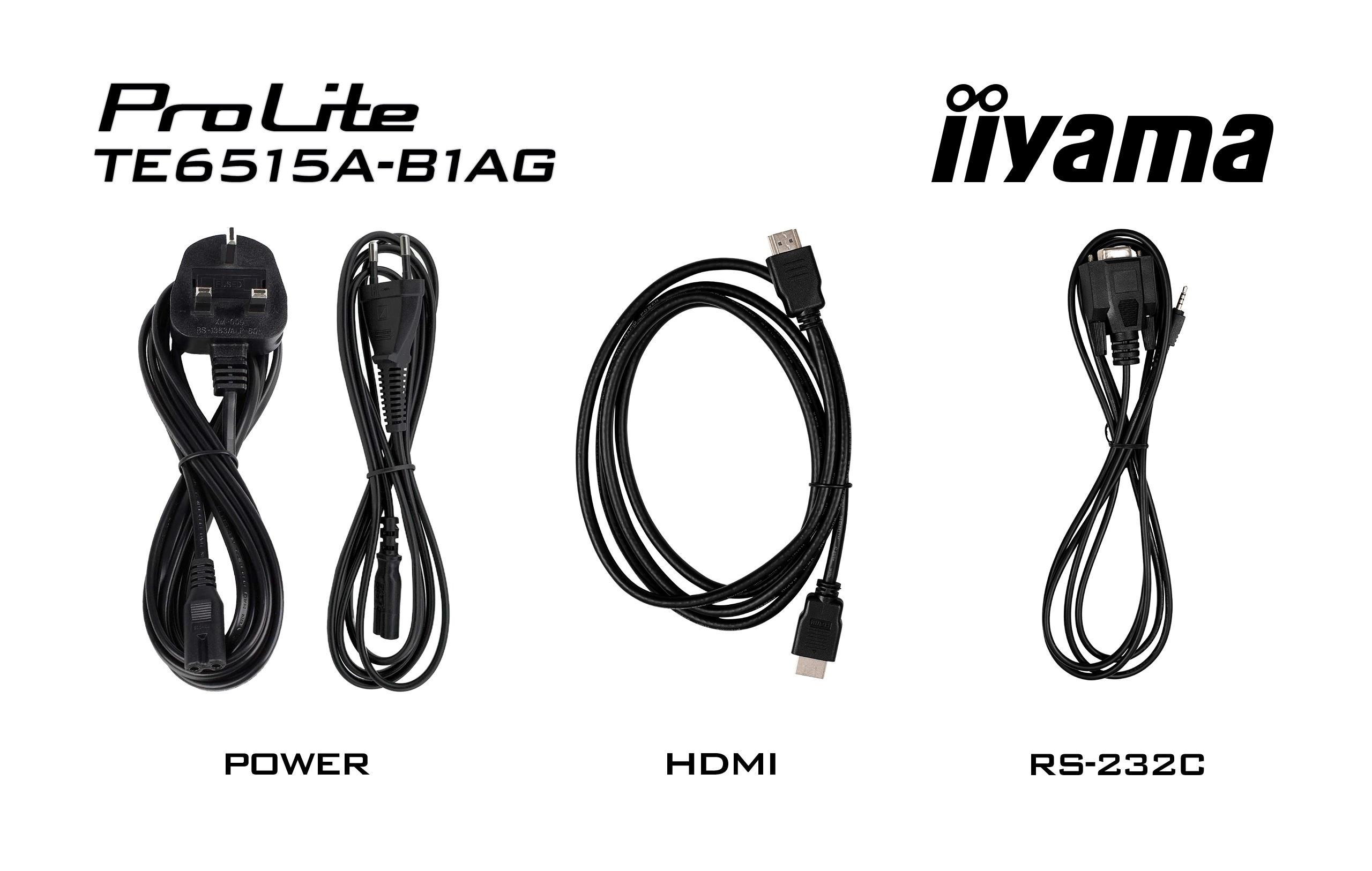

Cables included	AC, USB, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Quantity per pallet	4 stuk(s)
Technical details
Warranty period	5 jaar
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Sustainability certificates	EPEAT, ErP, EPEAT Bronze
OPS slot	1
Playback media	Y
User controls	personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp. , eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
Audio in (mini jack)	Y
Other features
Stylus pen	Y
Number of stylus pens	4
USB connector type	USB Type-C, USB Type-A, USB Type-B
Power supply type	Internal
DisplayPort version	1.2
Built-in microphone	Y
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Bluetooth version	5.0
Bluetooth	Y
Quick start guide	Y
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), 802.11a, 802.11b
