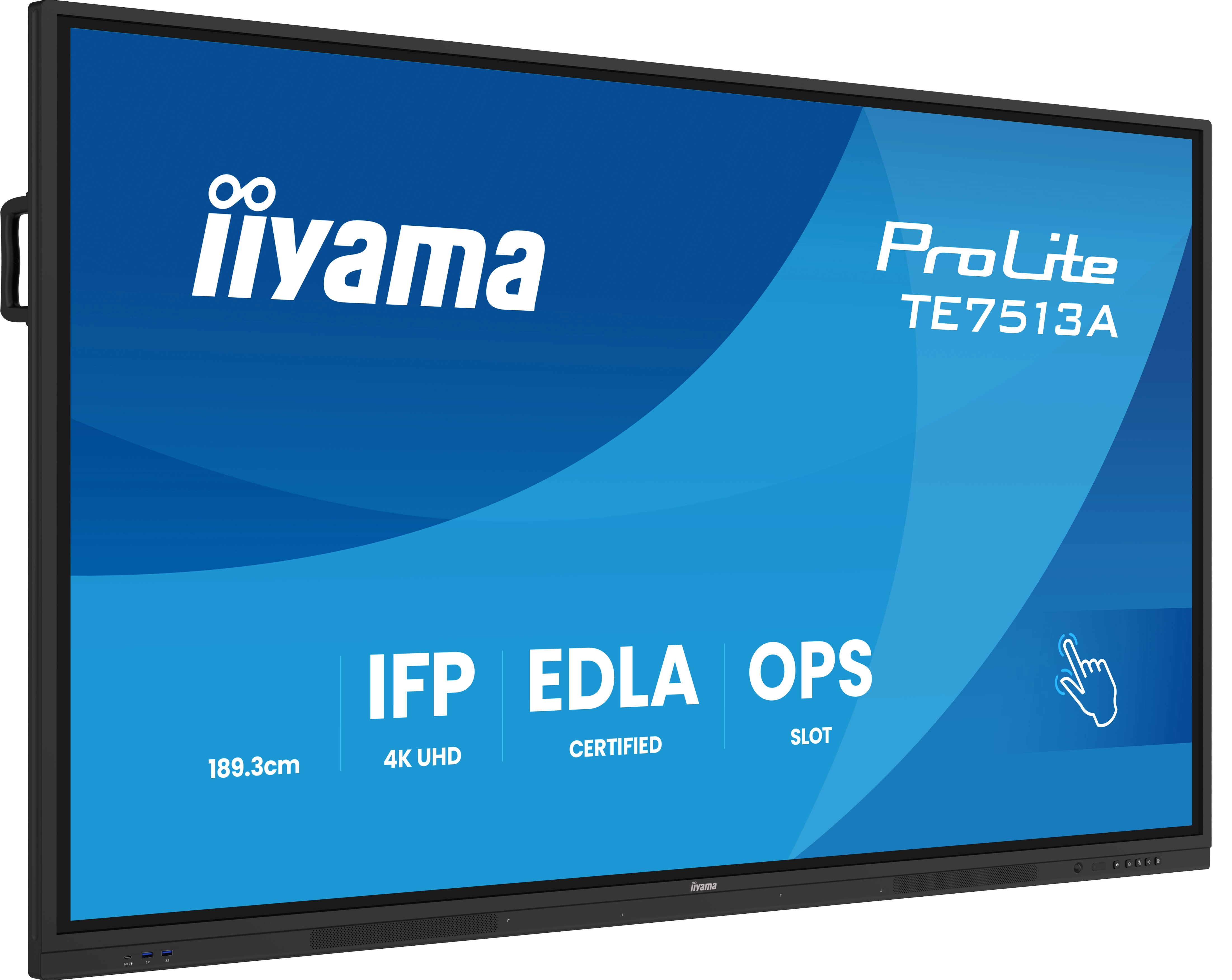

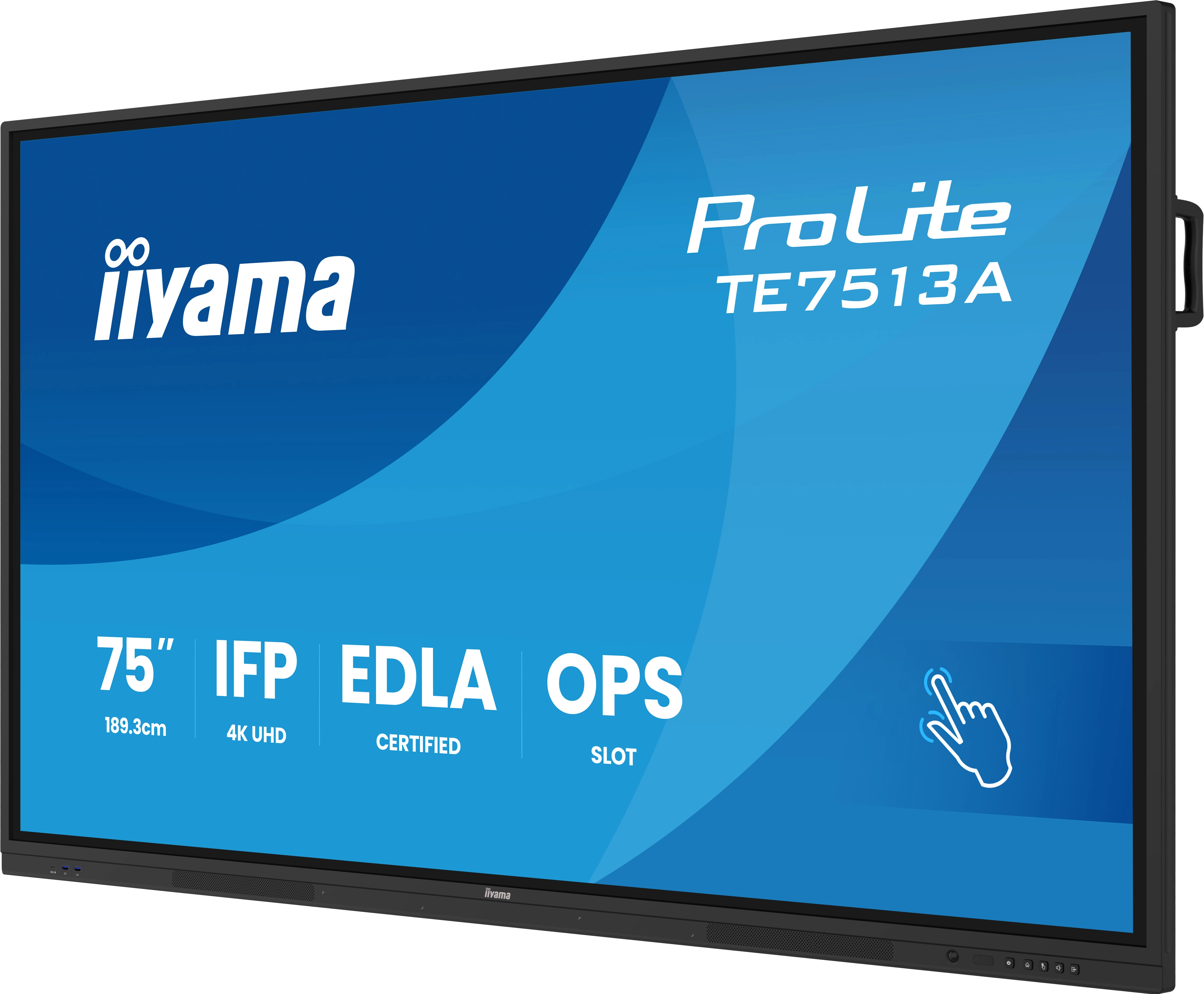

The TE7513A-B3AG is a 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with BT 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Specification

Product
Product id	1023117
Brand	iiyama
Partnr	TE7513A-B3AG
EAN/UPC code	4948570128129
Warranty (months)	36 months
Display
Display diagonal	75 inch
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	Y
Touchscreen technology	PureTouch-IR
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Multi-touch	Y
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.4296 x 0.4296 mm
Active display area (W x H)	1650 x 928 mm
Display diagonal (metric)	189.3 cm
Colour saturation	72 procent
Surface hardness	7H
Haze rate	25 procent
Touch response time	5 ms
Horizontal scan range	30 - 135 kHz
Panel type	IPS
Glass thickness	3.2 mm
Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
HDMI input ports quantity	1
HDMI output ports quantity	1
DVI port	N
Consumer Electronics Control (CEC)	Yes
DisplayPorts quantity	1
USB port	Y
USB ports quantity	6
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
USB Power Delivery	Y
USB Power Delivery up to	100 W
RS-232 interface	Y
RS-232C	Y
OPS module slot	Y
Audio Return Channel (ARC)	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	60 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
VESA mounting	Y
Panel mounting interface	800 x 400 mm
Anti-glare screen	Y
Bezel width (top)	14.1 mm
Bezel colour	Black
Bezel width (side)	16.7 mm
Bezel width (bottom)	46.7 mm
Performance
Purpose	Commercial
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	CZE, DAN, DEU, ENG, ESP, EST, FIN, FRE, HUN, ITA, LIT, LAT, NOR, DUT, POL, RUS, SWE, UKR
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	2.2
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	188 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Computer system	Y
Computer system type	System on Chip (SoC)
Built-in processor	Y
Processor manufacturer	Rockchip
Processor family	ARM Rockchip
Processor model	RK3576
Processor architecture	ARM Cortex-A53+Cortex-A72
Processor cores	8
Internal memory	6 GB
Internal storage capacity	128 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android
Operating system version	14
Weight & dimensions
Display width	1710 mm
Display depth	87 mm
Display height	1016 mm
Display weight	51800 g
Width	1710 mm
Depth	87 mm
Height	1016 mm
Weight	51800 g
Packaging data
Package width	1860 mm
Package depth	185 mm
Package height	1125 mm
Package weight	63000 g
Packaging content
Handheld remote control	Y
Cables included	AC, USB, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Quantity per pallet	6 stuk(s)
Technical details
Warranty period	5 jaar
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Sustainability certificates	ErP
OPS slot	1
Playback media	Y
User controls	general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Audio in (mini jack)	Y
Other features
Brightness	500 cd/m²
Stylus pen	Y
Number of stylus pens	4
Power supply type	Internal
DisplayPort version	1.2
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Bluetooth version	5.0
Quick start guide	Y
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Display technology	LCD
