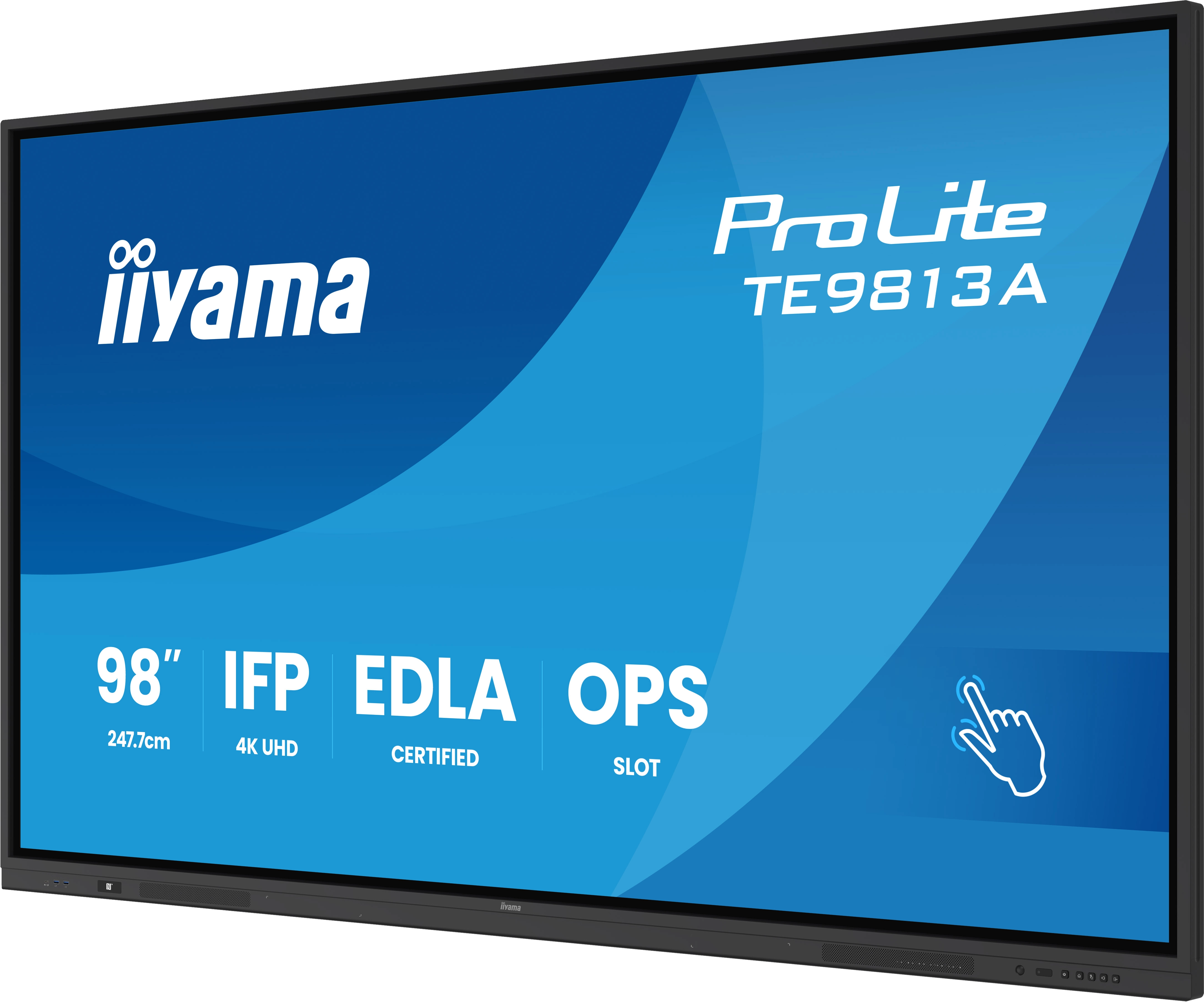

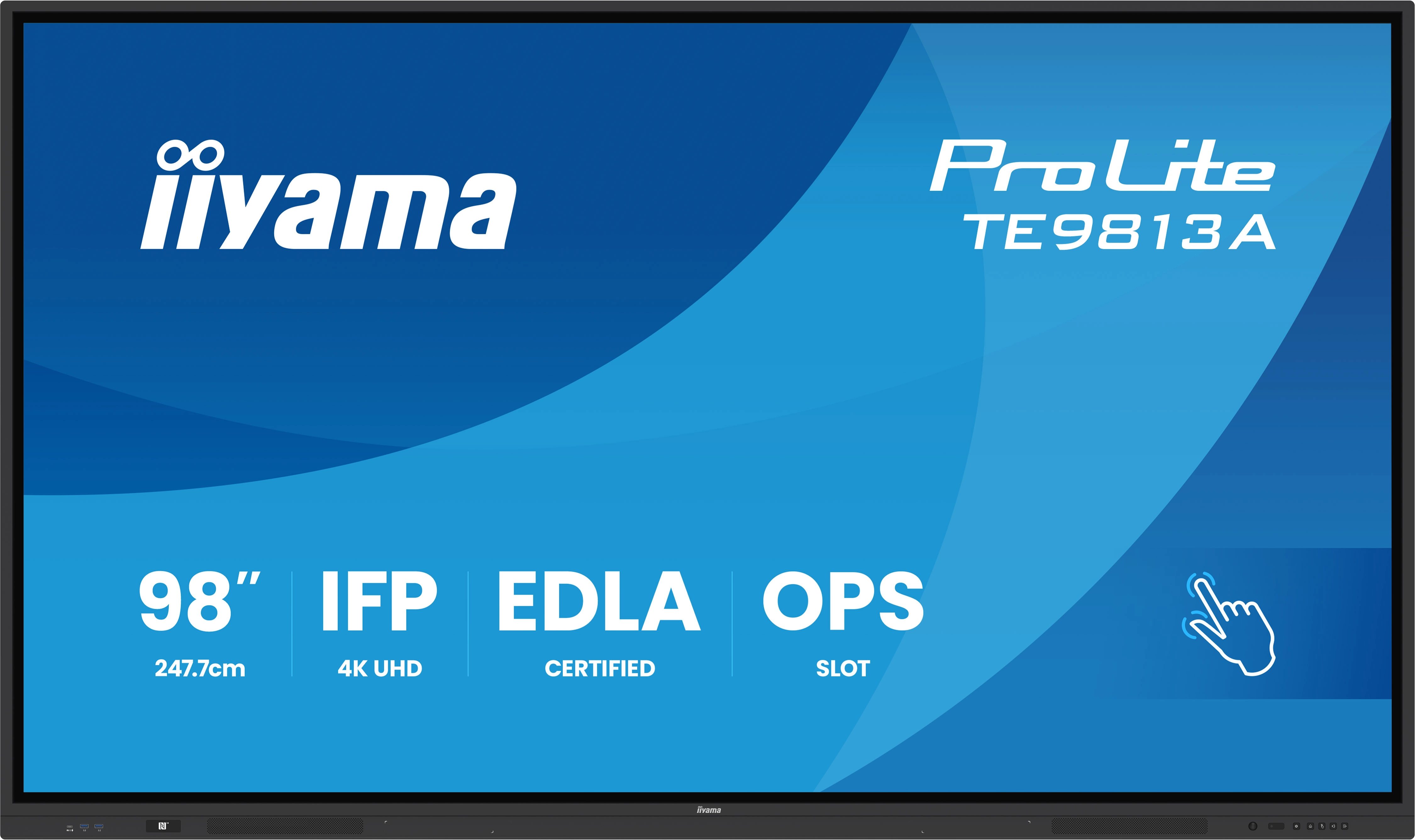

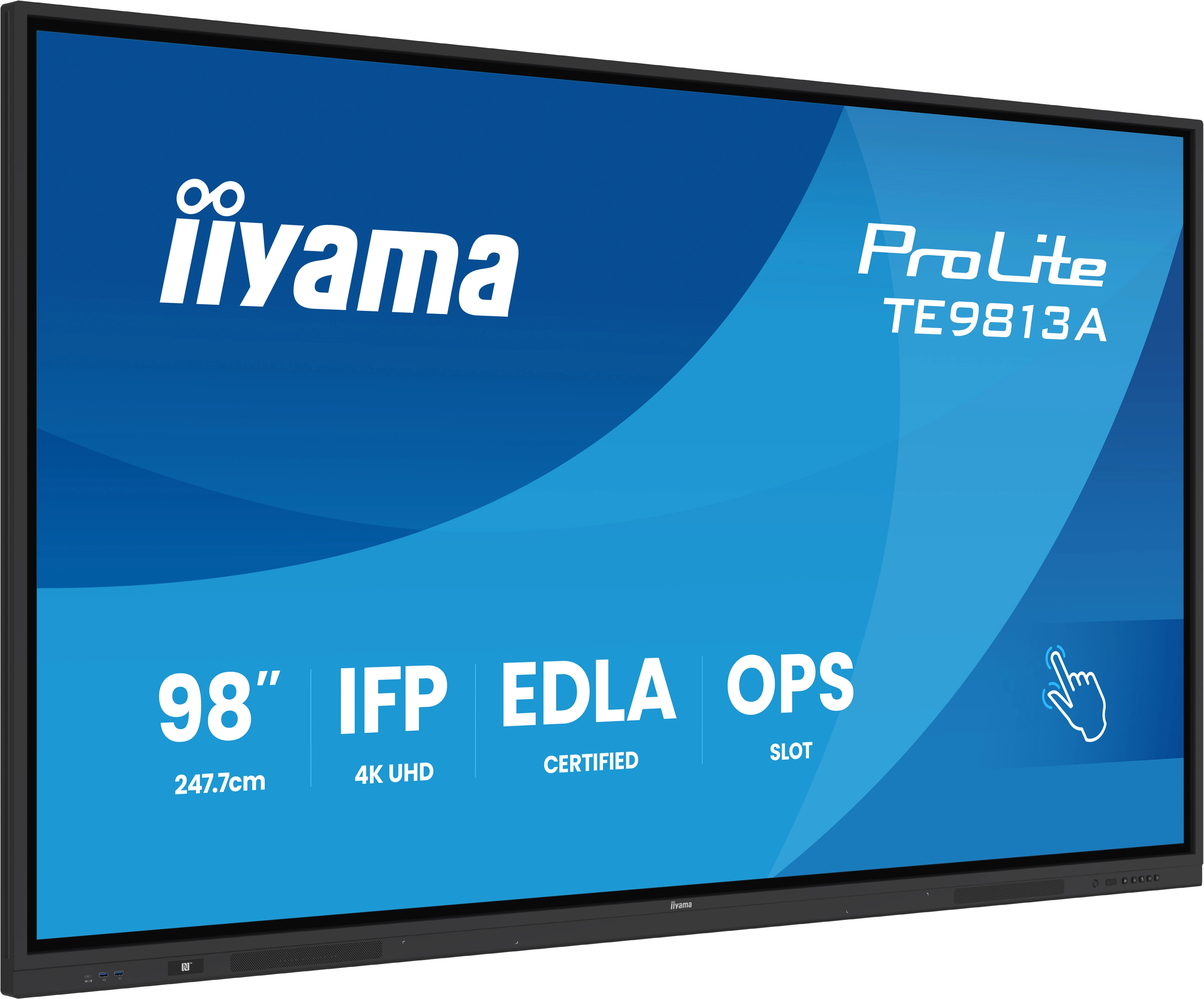

The TE9813A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Specification

Product
Product id	1014065
Brand	iiyama
Partnr	TE9813A-B2AG
EAN/UPC code	4948570125760
Warranty (months)	36 months
Display
Display diagonal	97.5 inch
Display resolution	3840 x 2160 Pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	Y
Touchscreen technology	PureTouch-IR
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.562 x 0.562 mm
Active display area (W x H)	2159 x 1214 mm
Display diagonal (metric)	247.7 cm
Surface hardness	7H
Horizontal scan range	30 - 135 kHz
Panel type	IPS
Glass thickness	4 mm
Ports & interfaces
HDMI ports quantity	3
HDMI version	2.0
HDMI input ports quantity	2
HDMI output ports quantity	1
DisplayPorts quantity	1
USB port	Y
USB ports quantity	5
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 Type-B ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
USB Power Delivery	Y
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Y
RS-232C	Y
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
OPS module slot	Y
Audio Return Channel (ARC)	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	60 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal

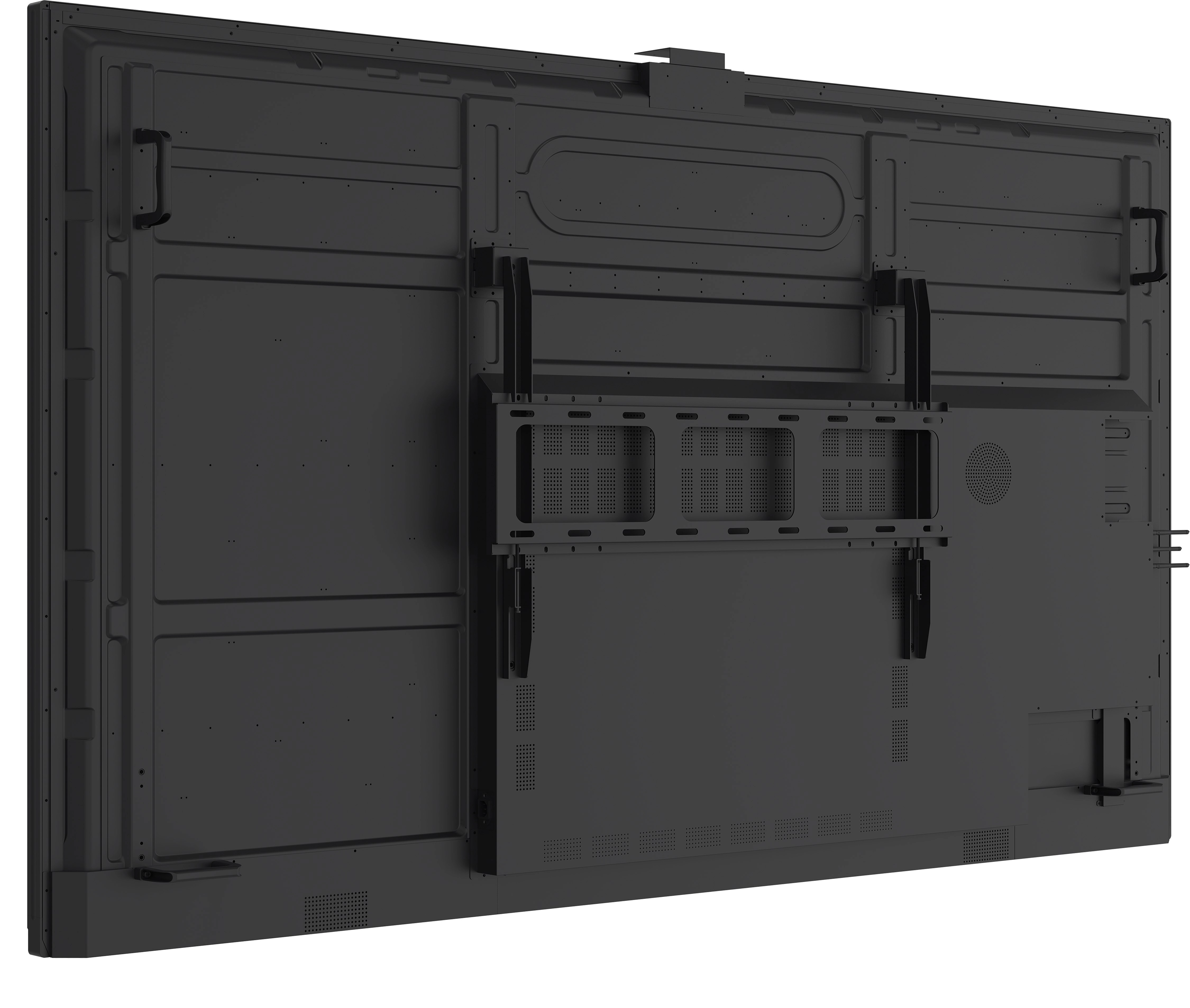

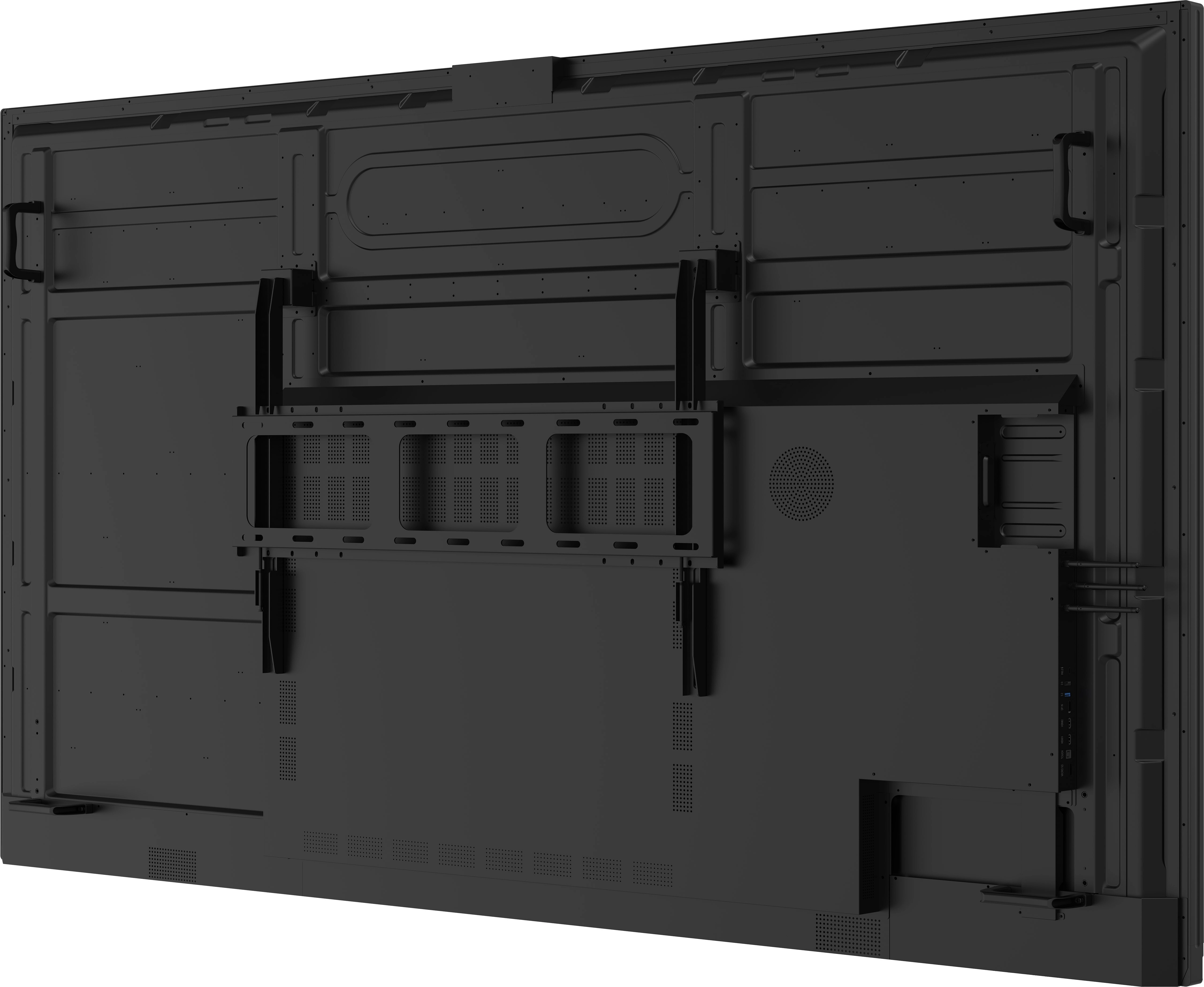

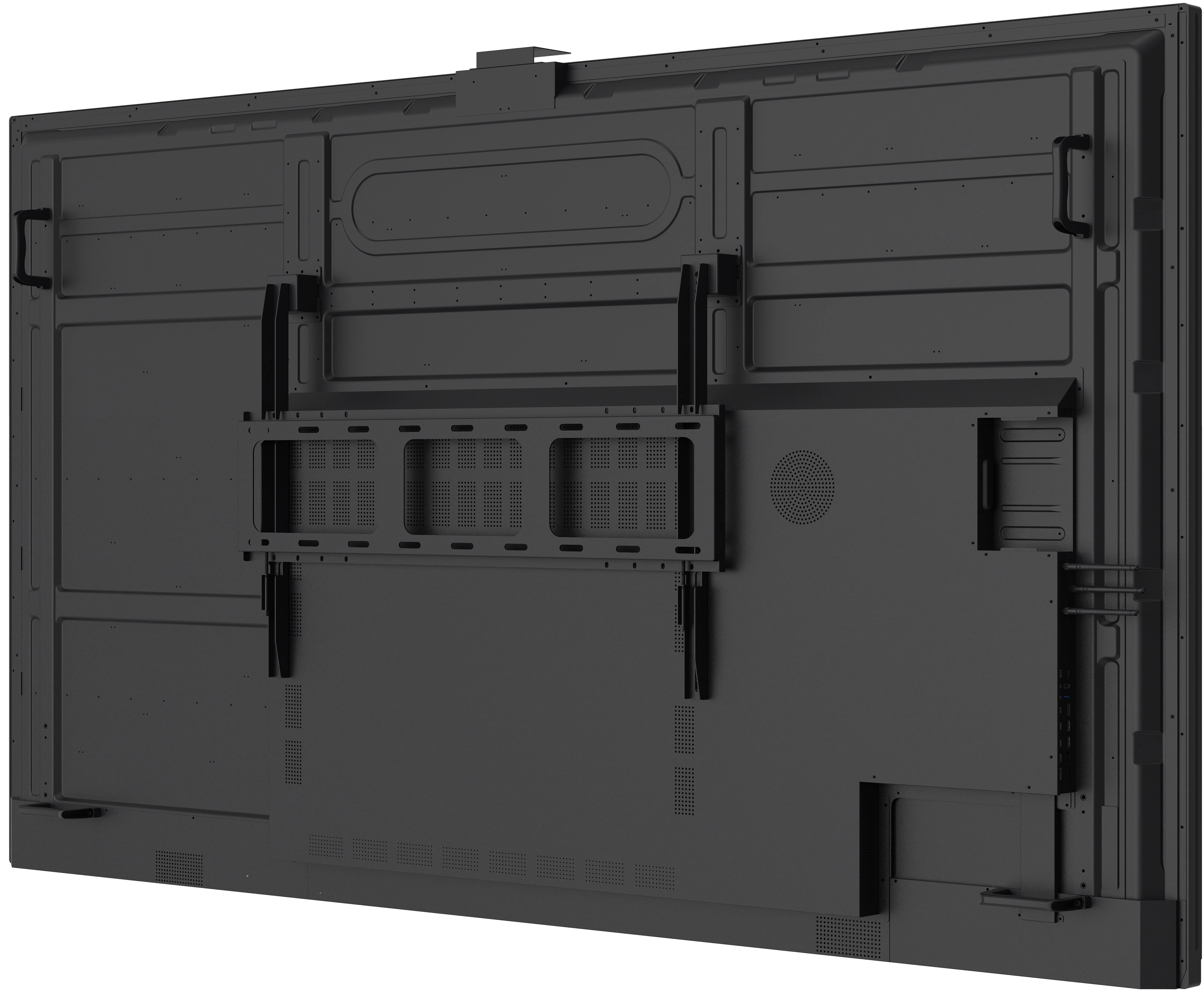

VESA mounting	Y
Panel mounting interface	800 x 600 mm
Anti-glare screen	Y
Bezel width (top)	16.5 mm
Bezel colour	Black
Bezel width (side)	16.5 mm
Bezel width (bottom)	41 mm
Positioning accuracy	1 mm
Performance
Purpose	Education
On Screen Display (OSD)	Y
Number of OSD languages	13
On Screen Display (OSD) languages	CZE, DAN, DEU, ENG, ESP, EST, FIN, FRE, HUN, ITA, LIT, LAT, NOR, DUT, POL, RUS, SWE, UKR, CAT
Operating hours (hours/days)	24/7
HDCP	Y
HDCP version	2.2
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	303 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy consumption (SDR) per 1000 hours	266 kWu
Energy efficiency scale	A to G
Computer system
Computer system	Y
Built-in processor	Y
Processor architecture	ARM Cortex-A53+Cortex-A72
Processor cores	8
Internal memory	8 GB
Internal storage capacity	128 GB
On-board graphics adapter model	ARM Mali-G52
Operating system installed	Android
Operating system version	14
Weight & dimensions
Display width	2235.4 mm
Display depth	103 mm
Display height	1326 mm
Display weight	109600 g
Width	2235.4 mm
Depth	103 mm
Height	1326 mm
Weight	109600 g
Packaging data
Package width	2360 mm
Package depth	280 mm
Package height	1445 mm
Package weight	132200 g
Packaging content
Handheld remote control	Y
Cables included	AC, USB, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Quantity per pallet	4 stuk(s)
Technical details
Warranty period	5 jaar
Compliance certificates	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Sustainability certificates	ErP
OPS slot	1
Playback media	Y
User controls	general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Audio in (mini jack)	Y
Other features
Brightness	500 cd/m²
Stylus pen	Y
Number of stylus pens	4
USB connector type	USB Type-A, USB Type-B, USB Type-C
Power supply type	Internal
DisplayPort version	1.2
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Quick start guide	Y
Wi-Fi standards	Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a
