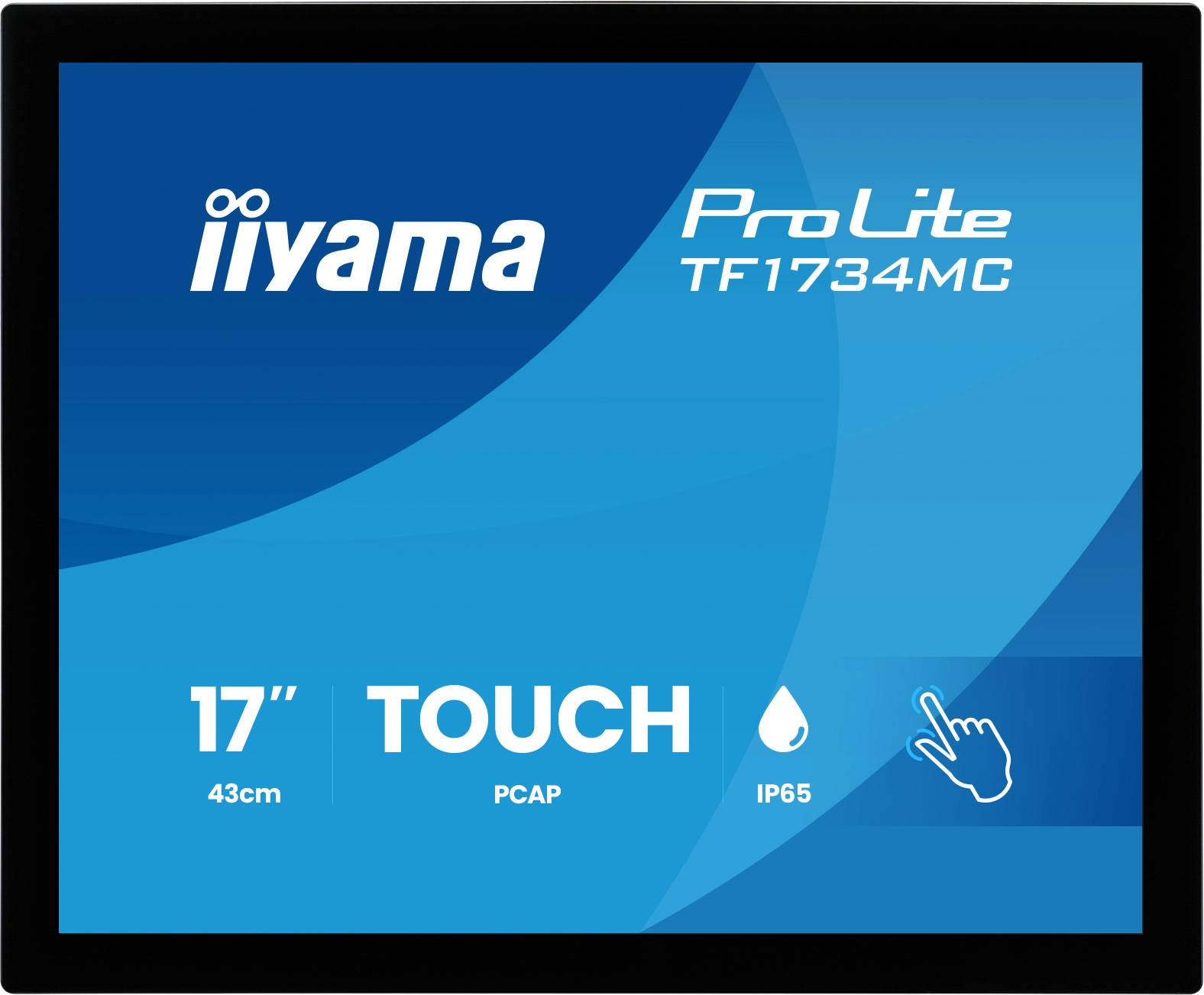

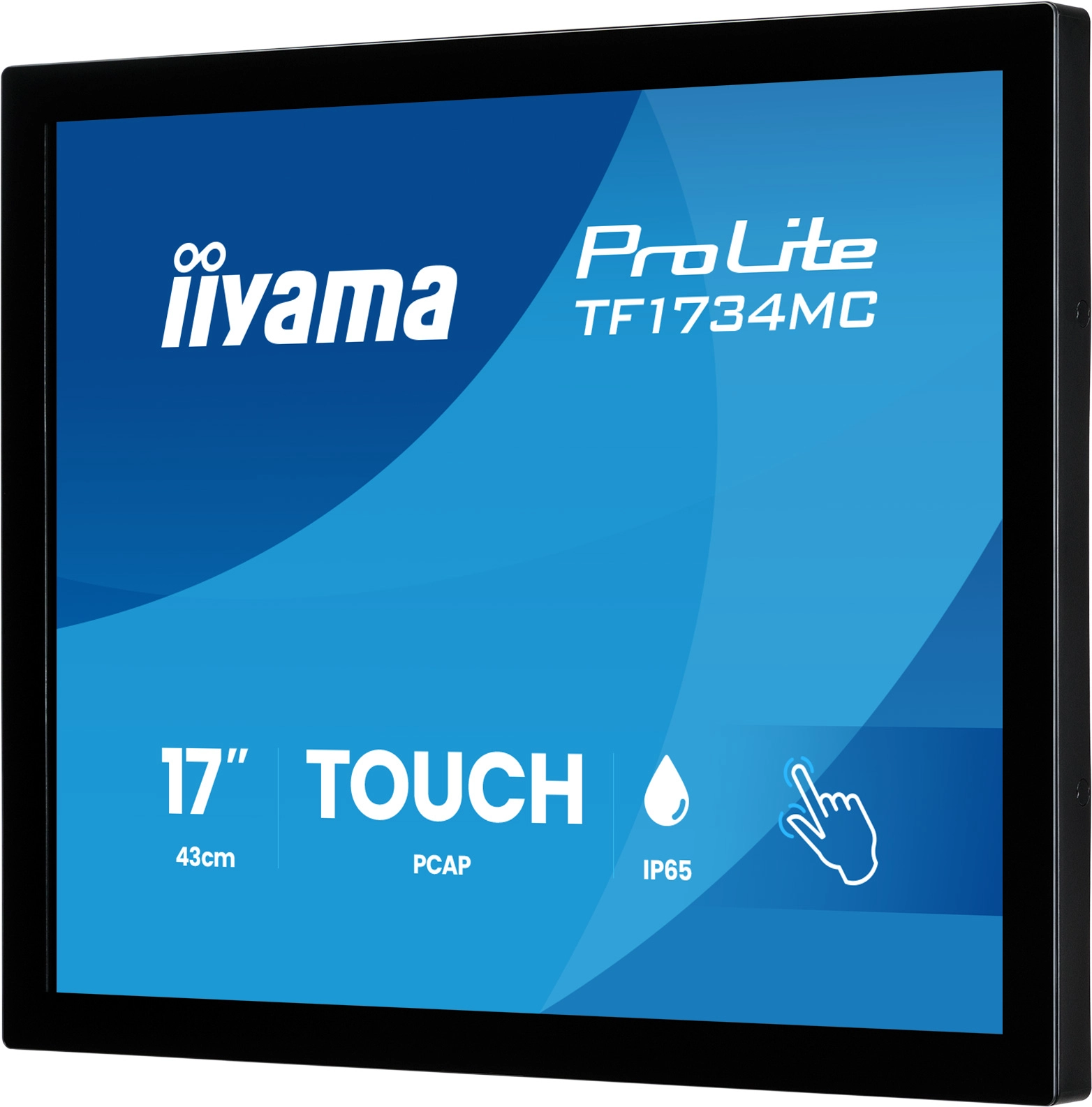

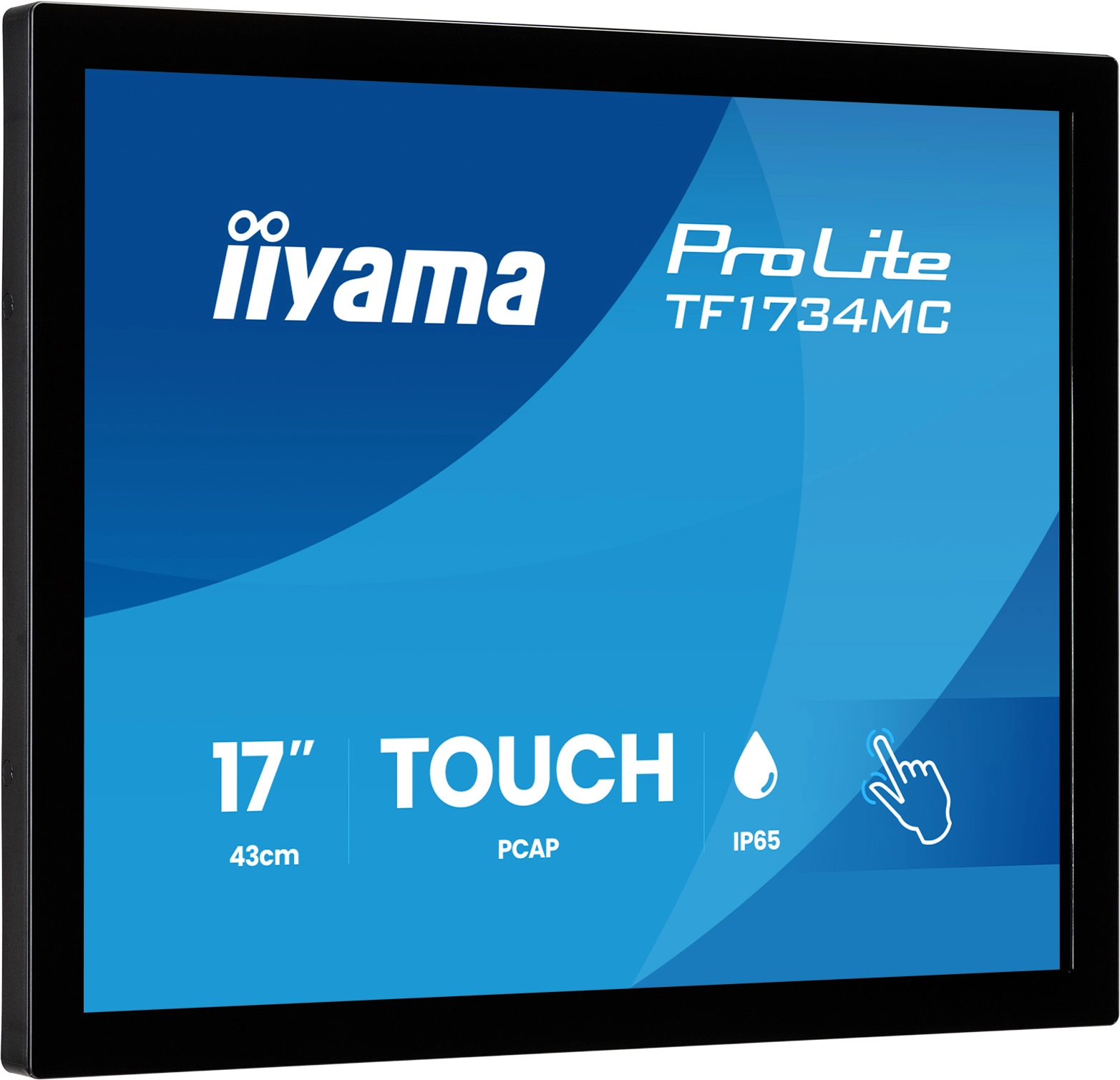

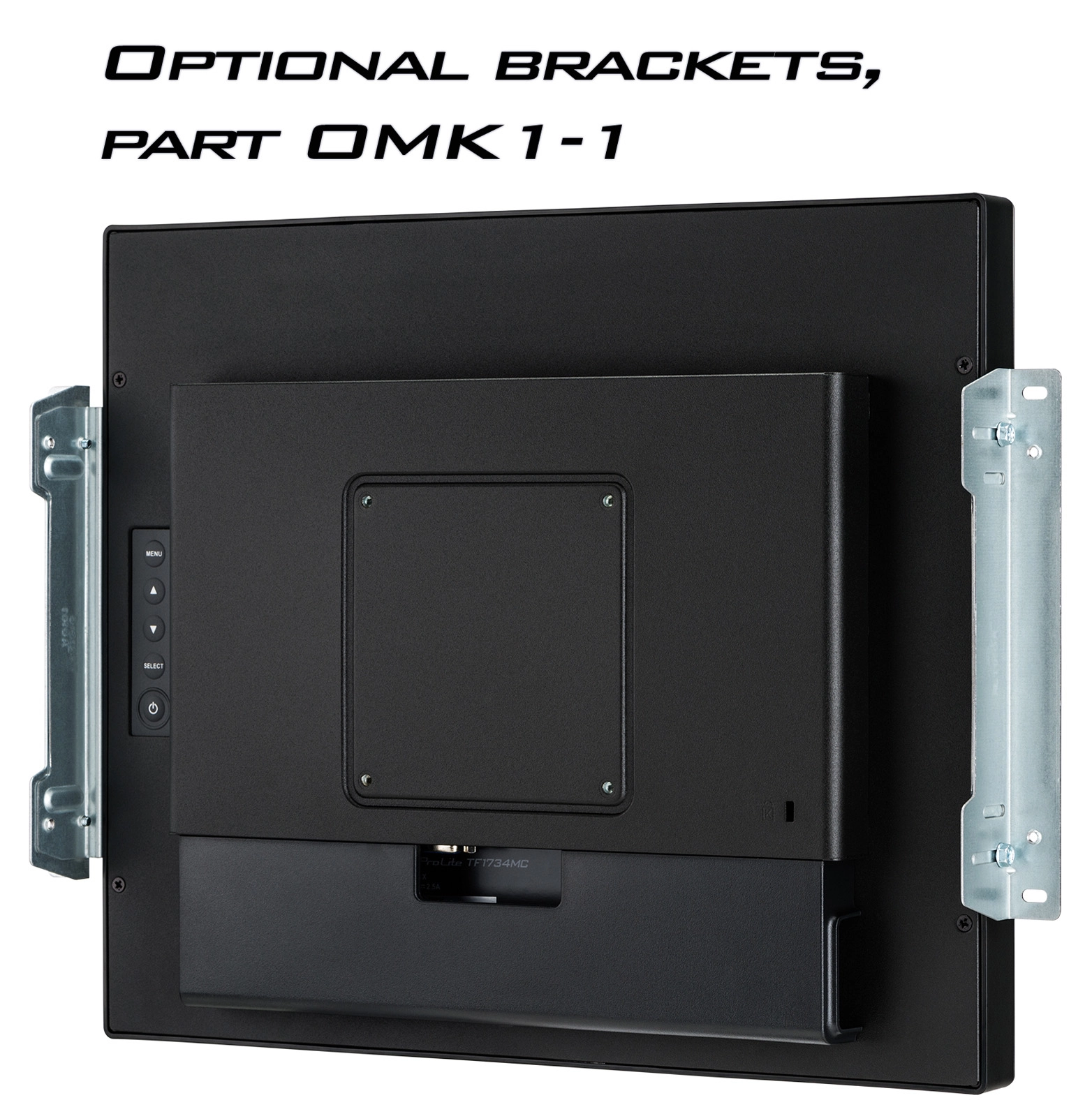

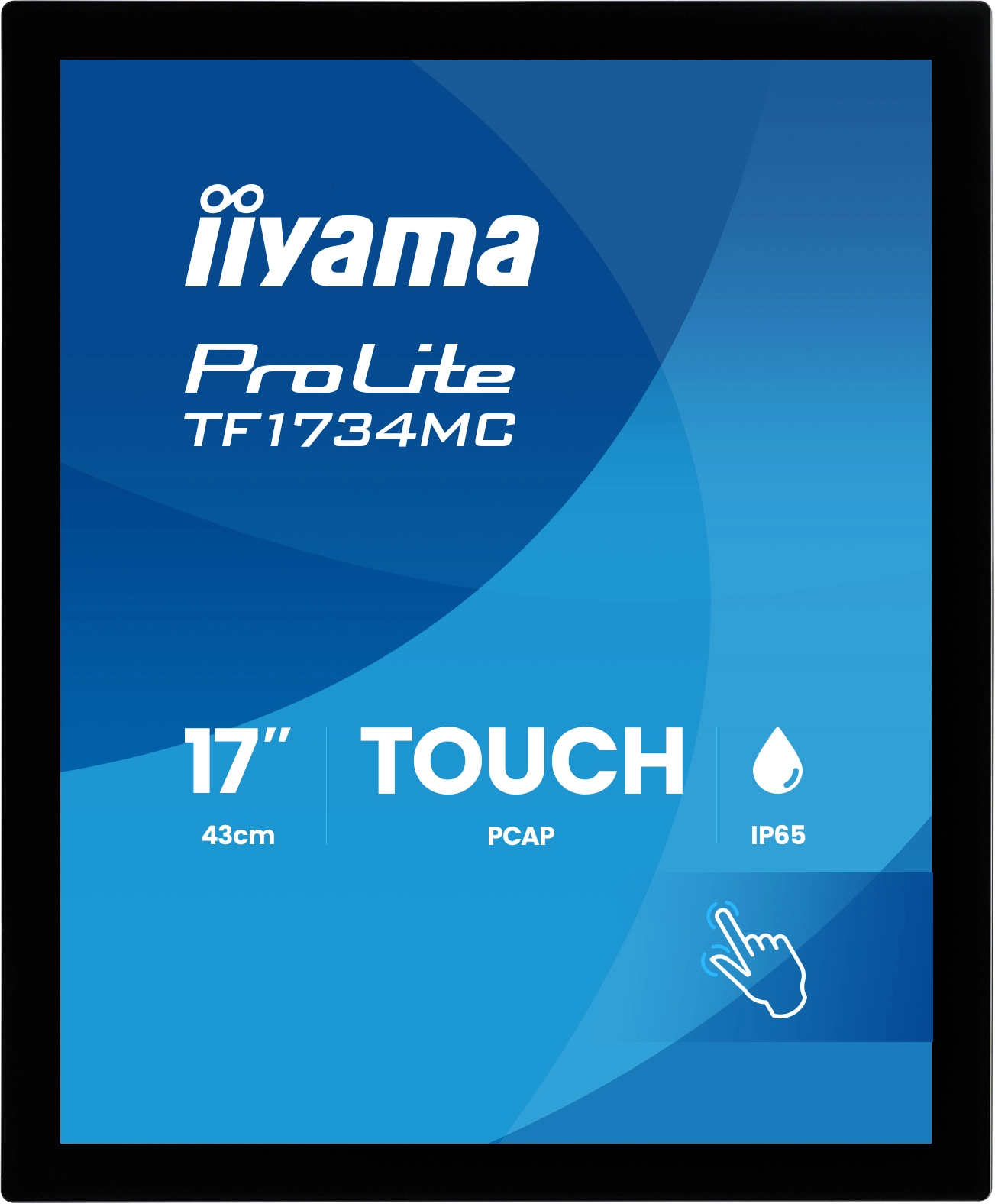

The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Specification

Product
Product id	1021782
Brand	iiyama
Partnr	TF1734MC-B8X
EAN/UPC code	4948570127818
Warranty (months)	36 months
Technical details
Brightness	300 cd/m²
Sustainability certificates	ErP
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Display
Display diagonal	17 inch
Display brightness	300 cd/m²
Display resolution	1280 x 1024 Pixels
Native aspect ratio	5:4
Panel type	TN
Touchscreen technology	Projected capacitive system
Display brightness (typical)	350 cd/m²
Response time	5 ms
Positional accuracy	2 mm
Contrast ratio (typical)	1000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Display number of colours	16.7 million colours
Display diagonal (metric)	43 cm
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	31 - 80 kHz
Viewable size, horizontal	338 mm
Viewable size, vertical	270 mm
Performance
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection	Y
Design
Glass thickness	3 mm
Front bezel colour	Black
International Protection (IP) code	IP65

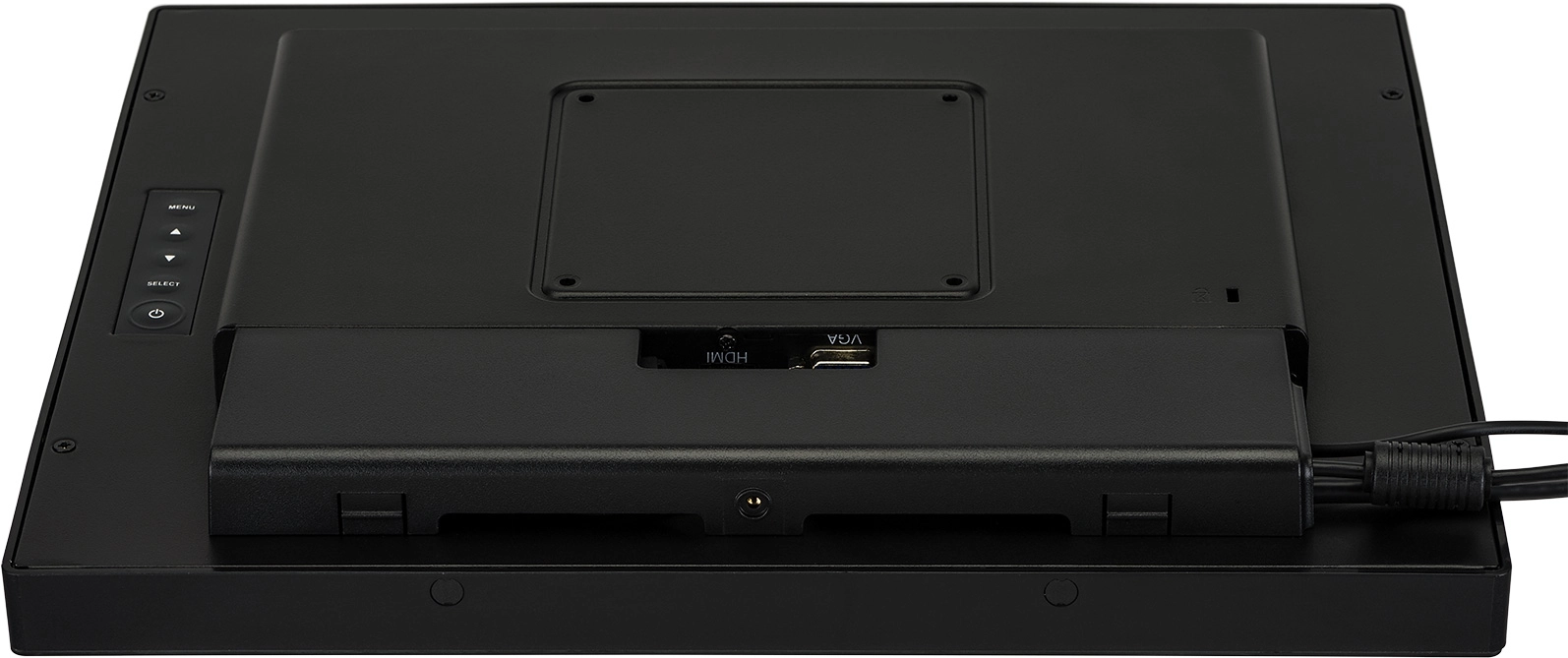

Ports & interfaces
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
USB Touch port	Y
HDCP	Y
Ergonomics

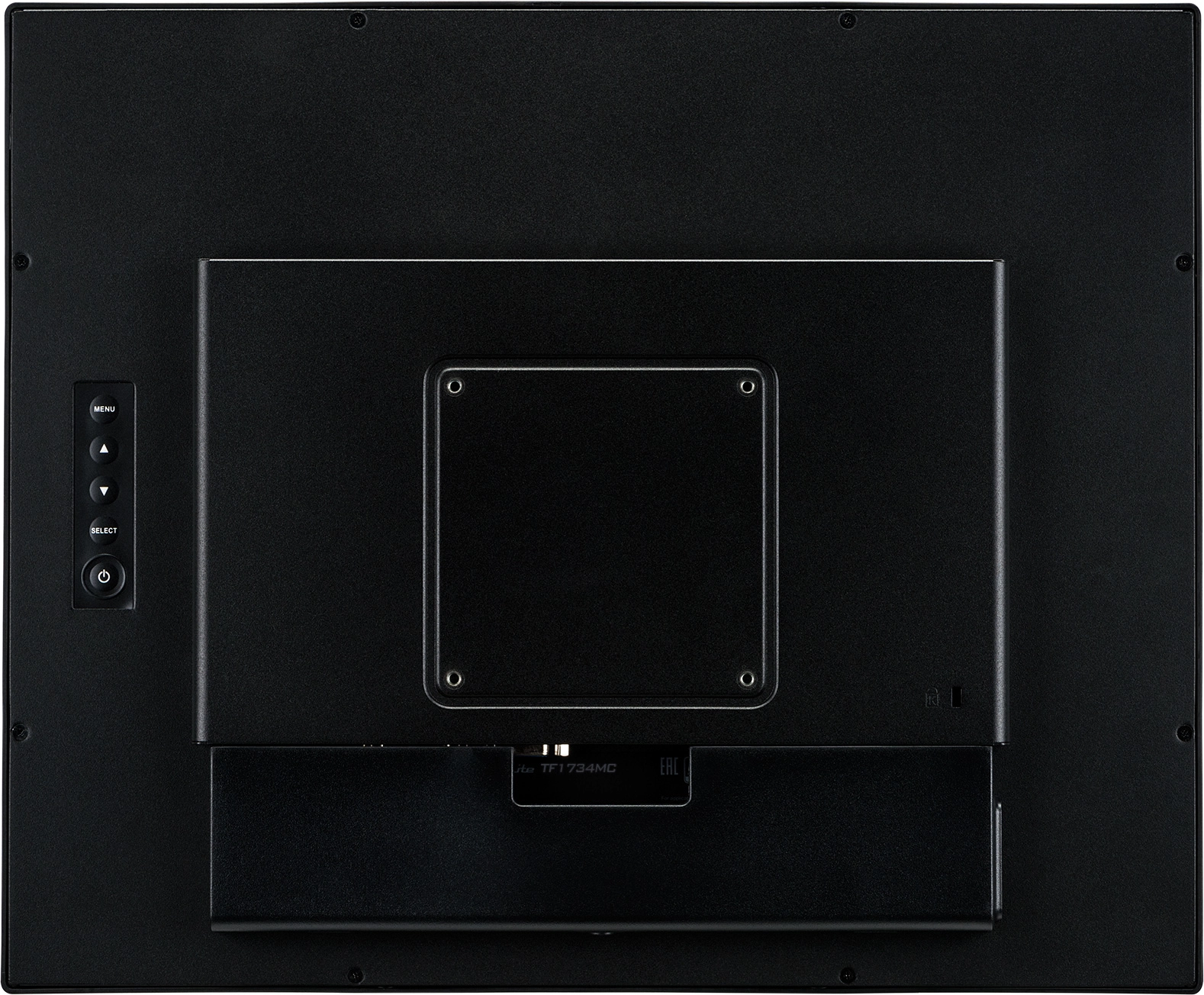

VESA mounting	Y
Panel mounting interface	100 x 100 mm
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN, DUT, POL, POR, RUS
Packaging data

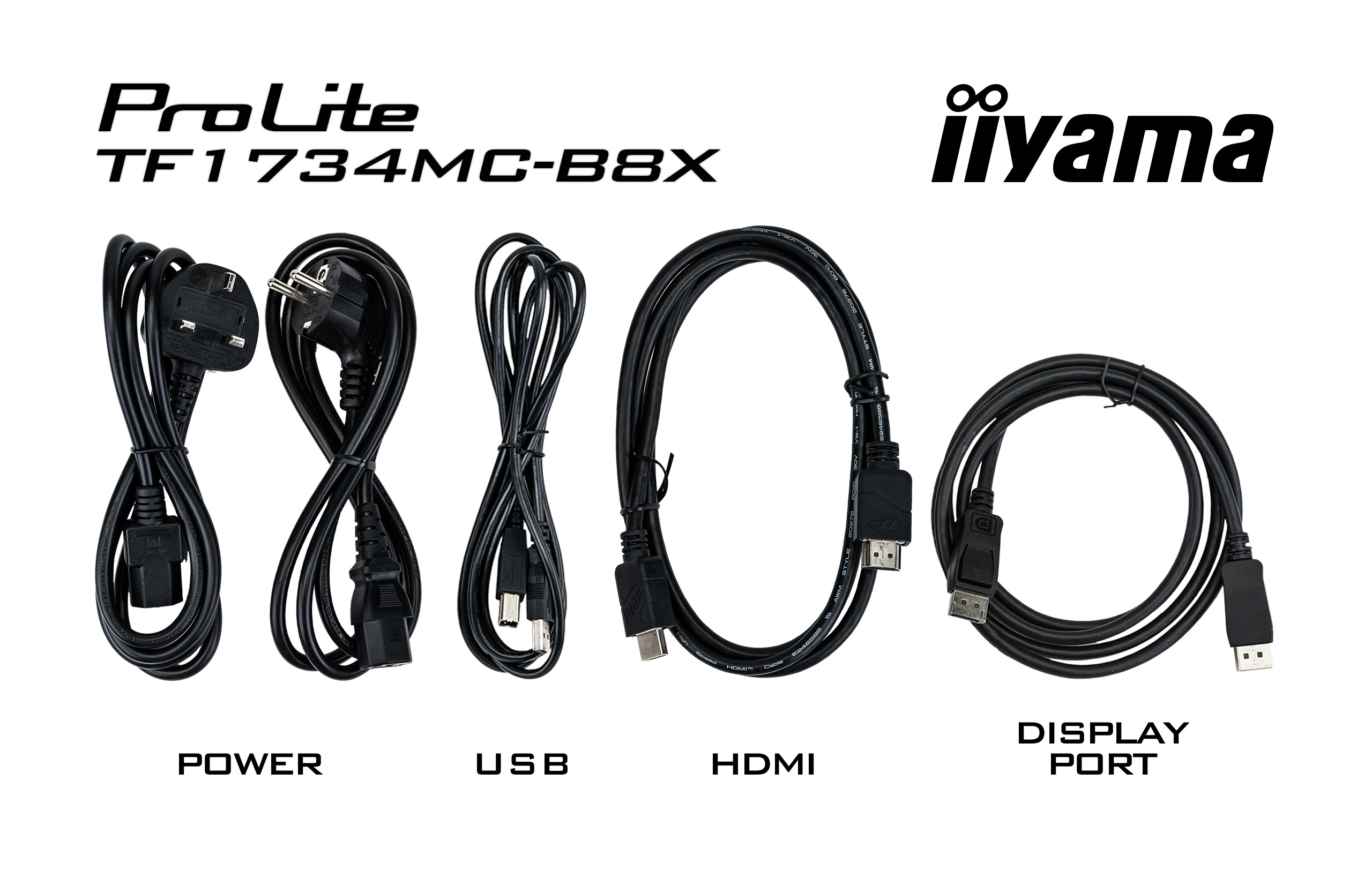

Cables included	AC, USB, HDMI, DisplayPort
Power cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
USB cable length	1.8 m
Quick start guide	Y
Package width	387 mm
Package depth	455 mm
Package height	145 mm
Package weight	5200 g
Power
Energy efficiency class (SDR)	E
Power consumption (typical)	13 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Weight & dimensions
Width (with stand)	369 mm
Depth (with stand)	47.5 mm
Height (with stand)	307 mm
Weight (with stand)	3600 g
Width	369 mm

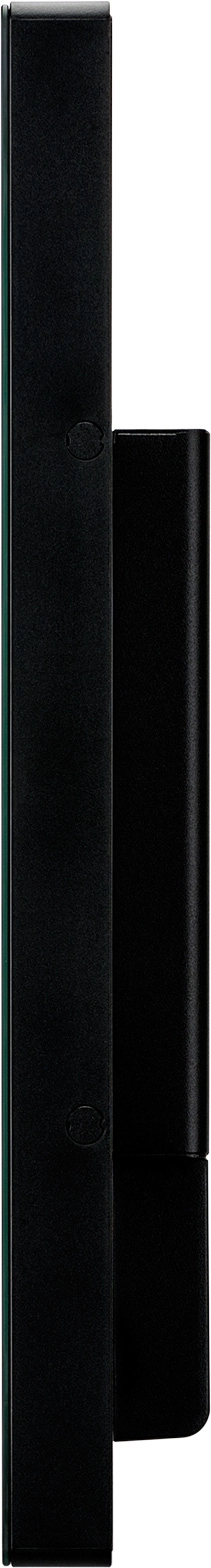

Depth	47.5 mm
Height	307 mm
Weight	3600 g
Other features
AC adapter included	Y
Active display area (W x H)	338 x 270 mm
Power supply type	External
Touchscreen	Y
Number of simultaneous touchpoints	10
Packaging content	AC adapter
Touch method	stylus, finger, glove (latex)
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp. , sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
