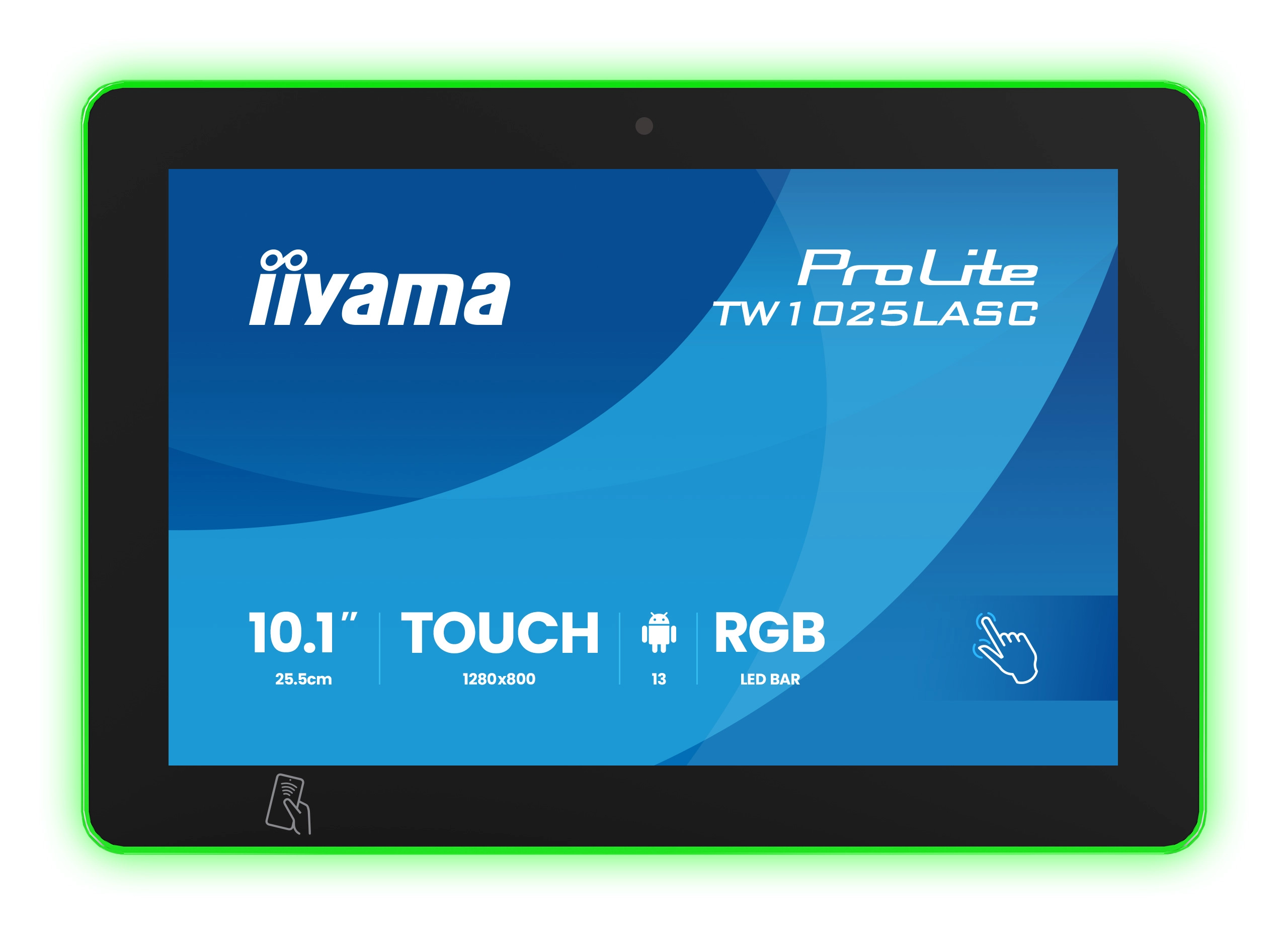

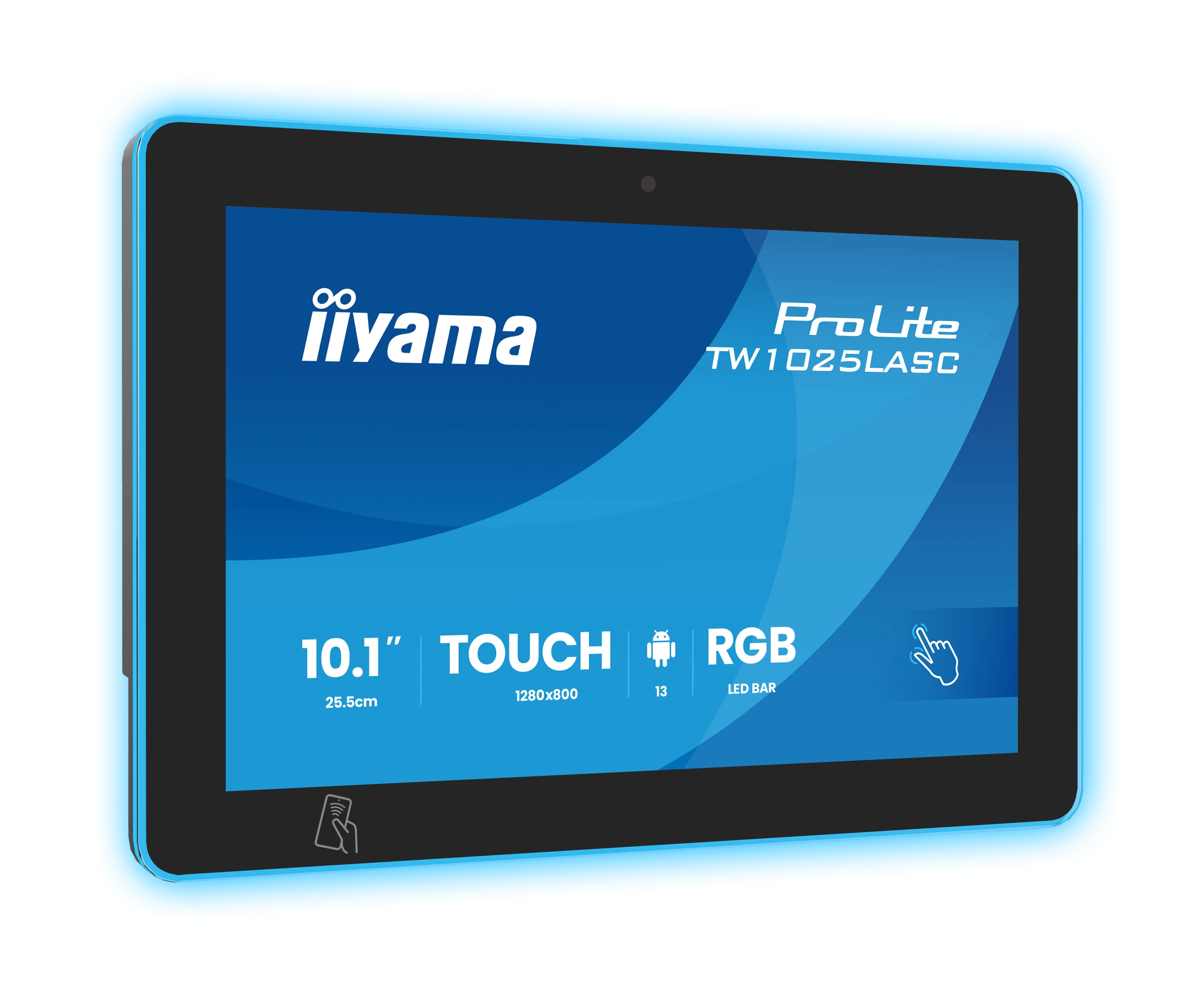

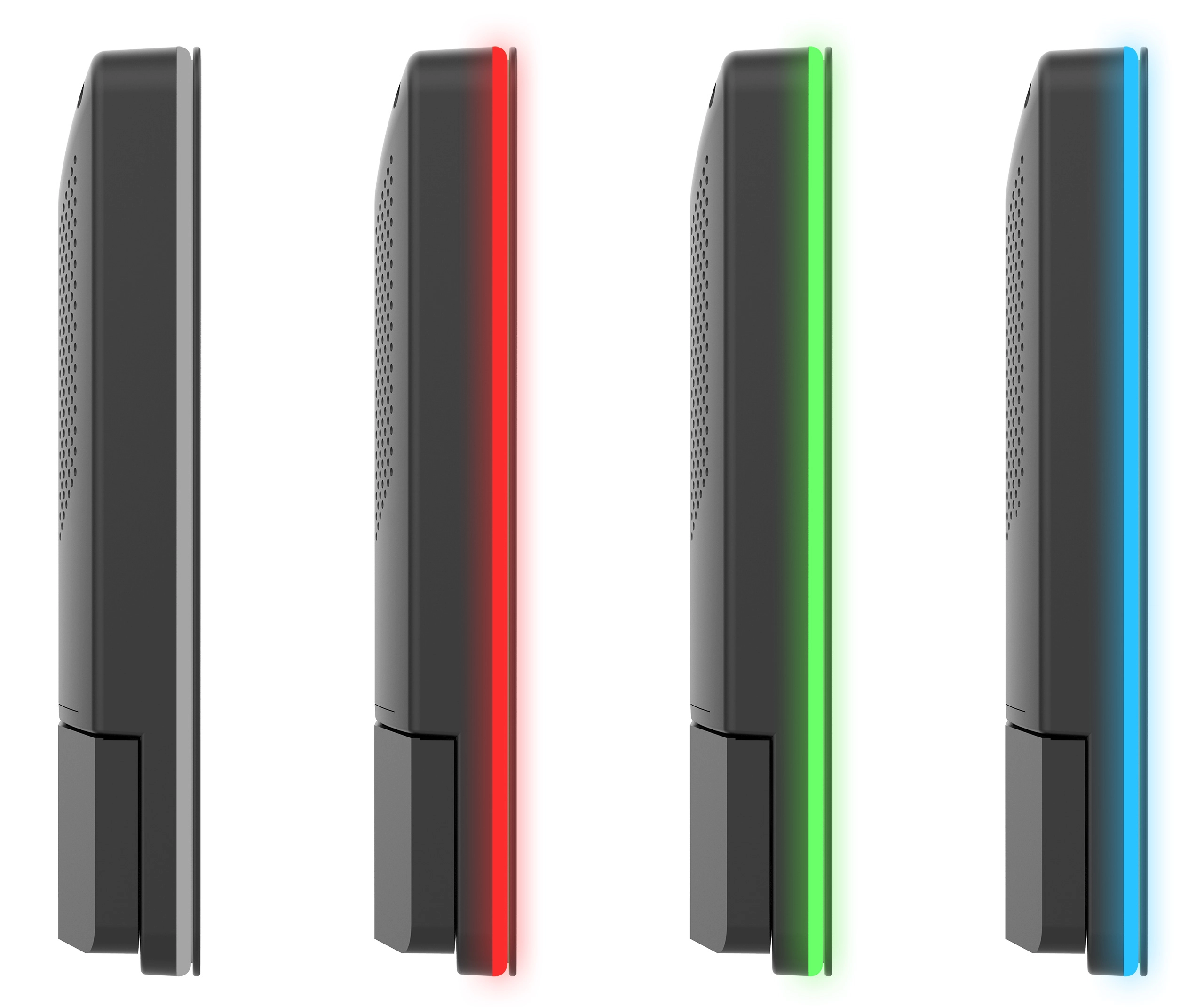

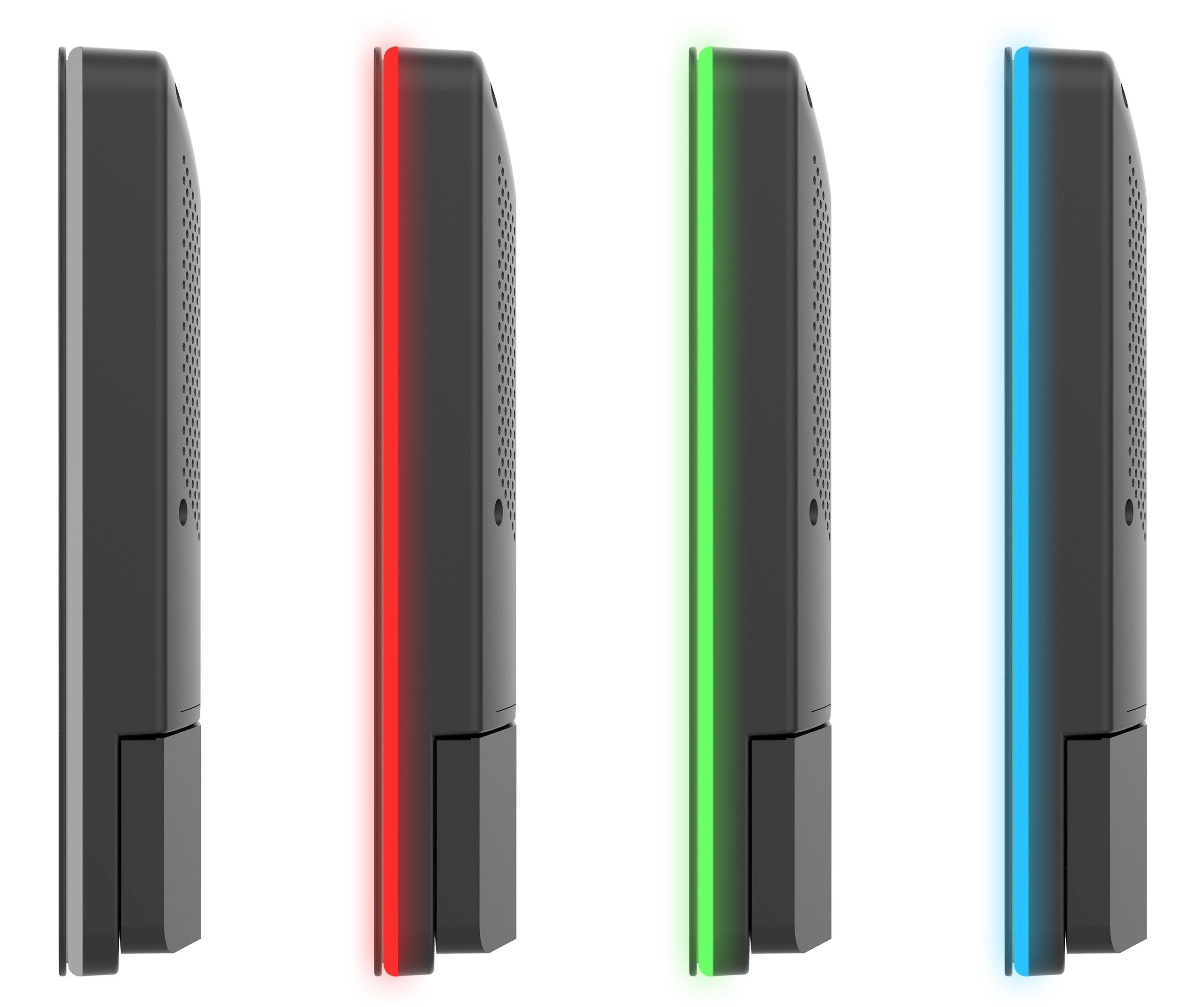

The ProLite TW1025LASC-B3PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 13 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Specification

Product
Product id	1010439
Brand	iiyama
Partnr	TW1025LASC-B3PNR
EAN/UPC code	4948570127146
Warranty (months)	36 months
Network
Wi-Fi	Y
Wi-Fi standards	Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Bluetooth	Y
Bluetooth version	5.2
Technical details
Brightness	390 cd/m²
Sustainability certificates	ErP
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Display
Display diagonal	10.1 inch
Display brightness	390 cd/m²
Display resolution	1280 x 800 Pixels
Native aspect ratio	16:10
Panel type	IPS
Touchscreen technology	Projected capacitive system
Display brightness (typical)	450 cd/m²
Response time	25 ms
HD type	WXGA
Response time measurement type	GTG (Gray to Gray)
Display technology	LED
Screen shape	Flat screen
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	160 °
Display number of colours	16.7 million colours
Display diagonal (metric)	25.5 cm
Pixel pitch	0.1692 x 0.1692 mm
Viewable size, horizontal	216.6 mm
Viewable size, vertical	135.4 mm
Colour depth	8 Bit
Surface hardness	6H
Performance
Operating system version	13
Operating hours (hours/days)	24/7
Multimedia
Built-in speaker(s)	Y
Built-in camera	Y
Number of speakers	2
RMS rated power	4 W
Megapixel	5 MP
Design
Product colour	Black
Glass thickness	1.85 mm
Front bezel colour	Black
Ports & interfaces
Built-in USB hub	Y
HDMI	N
USB Touch port	Y
Card reader integrated	Y
Compatible memory cards	SD
Ergonomics

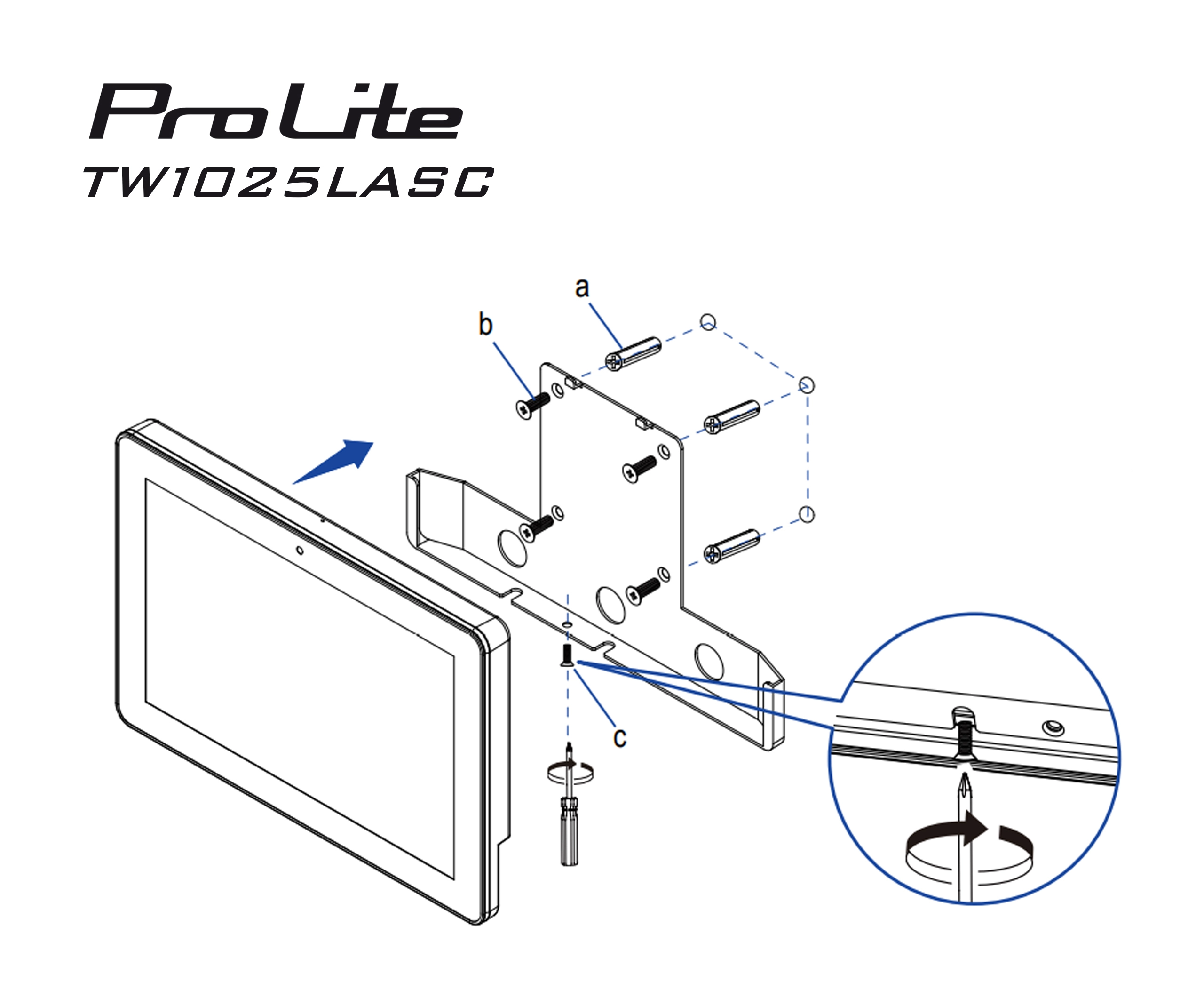

VESA mounting	Y
Panel mounting interface	75 x 75 mm
Cable management	Y
Packaging data
Quick start guide	Y
Package width	363 mm
Package depth	65 mm
Package height	225 mm
Power
Power consumption (typical)	10 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Weight & dimensions
Width (with stand)	259.5 mm
Depth (with stand)	28 mm
Height (with stand)	178.5 mm
Weight (with stand)	1100 g
Weight (without stand)	1600 g
Width	259.5 mm
Depth	28 mm
Height	178.5 mm
Weight	1100 g
Other features
AC adapter included	Y
Active display area (W x H)	216.6 x 135.4 mm
Power supply type	External
Touchscreen	Y
Number of simultaneous touchpoints	10
Touchscreen type	Multi-user
USB ports quantity	3
Ethernet LAN	Y
Built-in processor	Y
Ethernet LAN (RJ-45) ports	1
Packaging content	AC adapter, interchangeable plugs (EU/UK)
Google applications	Google Chrome, Gmail, Google Calendar
Touch method	finger, glove (latex), capacitive stylus
Control panel	Power switch
User controls	Power switch
