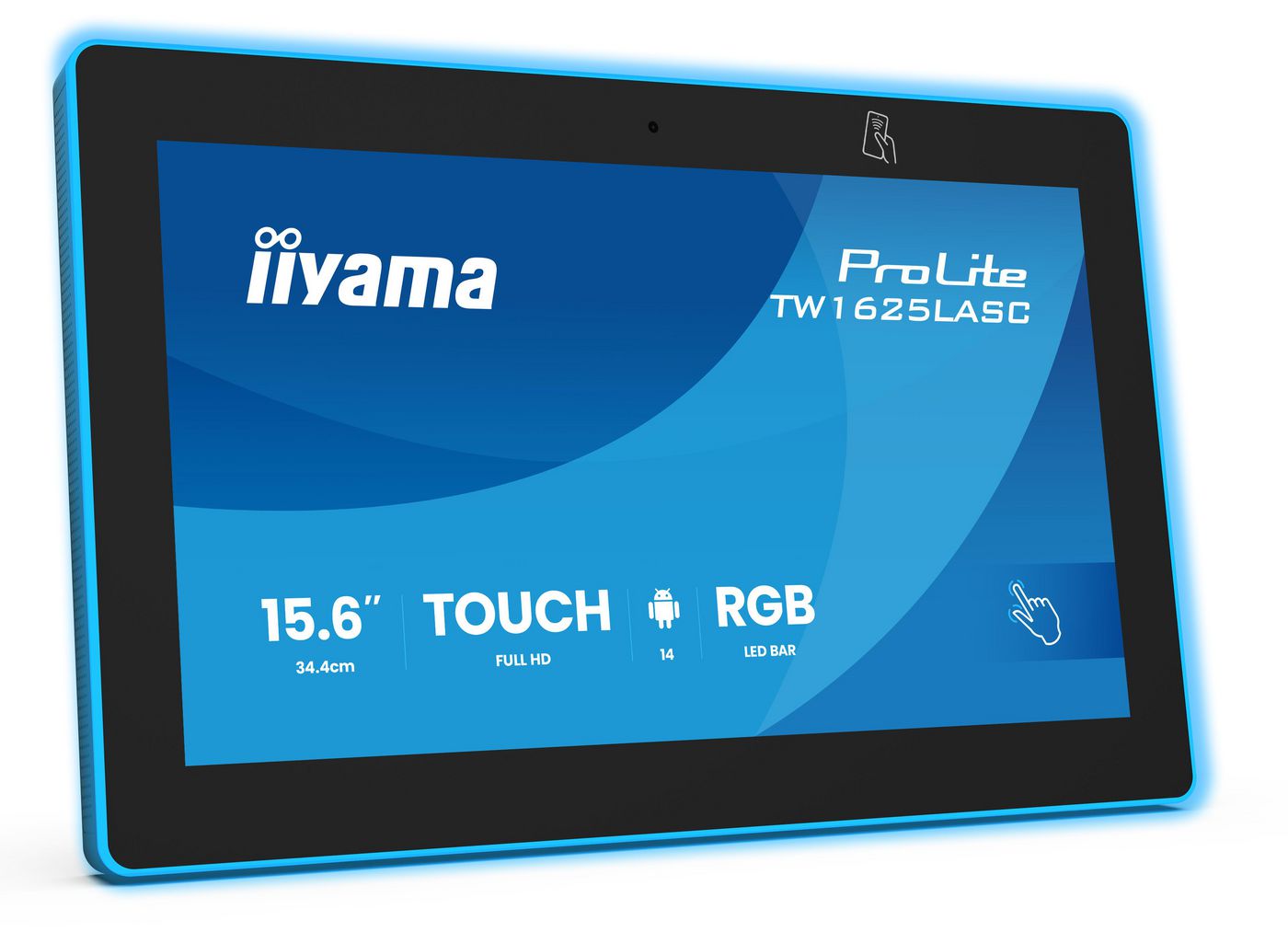

The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices – ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Specification

Product
Product id	997410
Brand	iiyama
Partnr	TW1625LASC-B3PNR
EAN/UPC code	4948570125692
Warranty (months)	24 months
Display
Display diagonal	15.6 inch
LED backlight	Y
Display resolution	1920 x 1080 Pixels
Display brightness	450 cd/m²
HD type	Full HD
Touchscreen	Y
Touchscreen technology	Capacitive
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	20 ms
Multi-touch	Y
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.1792 x 0.1792 mm
Active display area (W x H)	344.16 x 193.5 mm
Surface hardness	6H
Panel type	IPS
Glass thickness	2.05 mm
Ports & interfaces
DVI port	N
USB port	Y
USB ports quantity	3
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Y
PC Audio in	Y
Card reader integrated	Y
Compatible memory cards	SD
PC Audio out	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	4 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Wall mountable	Y
VESA mounting	Y
Panel mounting interface	75 x 75 mm
Anti-glare screen	Y
Fingerprint resistant	Y
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Power
Power consumption (typical)	11 W
Power consumption (standby)	0.5 W
Computer system
Built-in processor	Y
Processor manufacturer	ARM
Processor family	ARM Rockchip
Processor architecture	ARM Cortex-A53+Cortex-A72
Processor frequency	2.2 GHz
Processor cores	8
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system installed	Android
Operating system version	14
Weight & dimensions
Display width	397 mm
Display depth	28.5 mm
Display height	256 mm
Display weight	2000 g
Packaging data
Package width	495 mm
Package depth	75 mm
Package height	305 mm
Package weight	3000 g
Packaging content
Power adapter included	Y
Certificates
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Other features
USB connector type	USB Type-A, USB Type-C
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Display technology	LED
