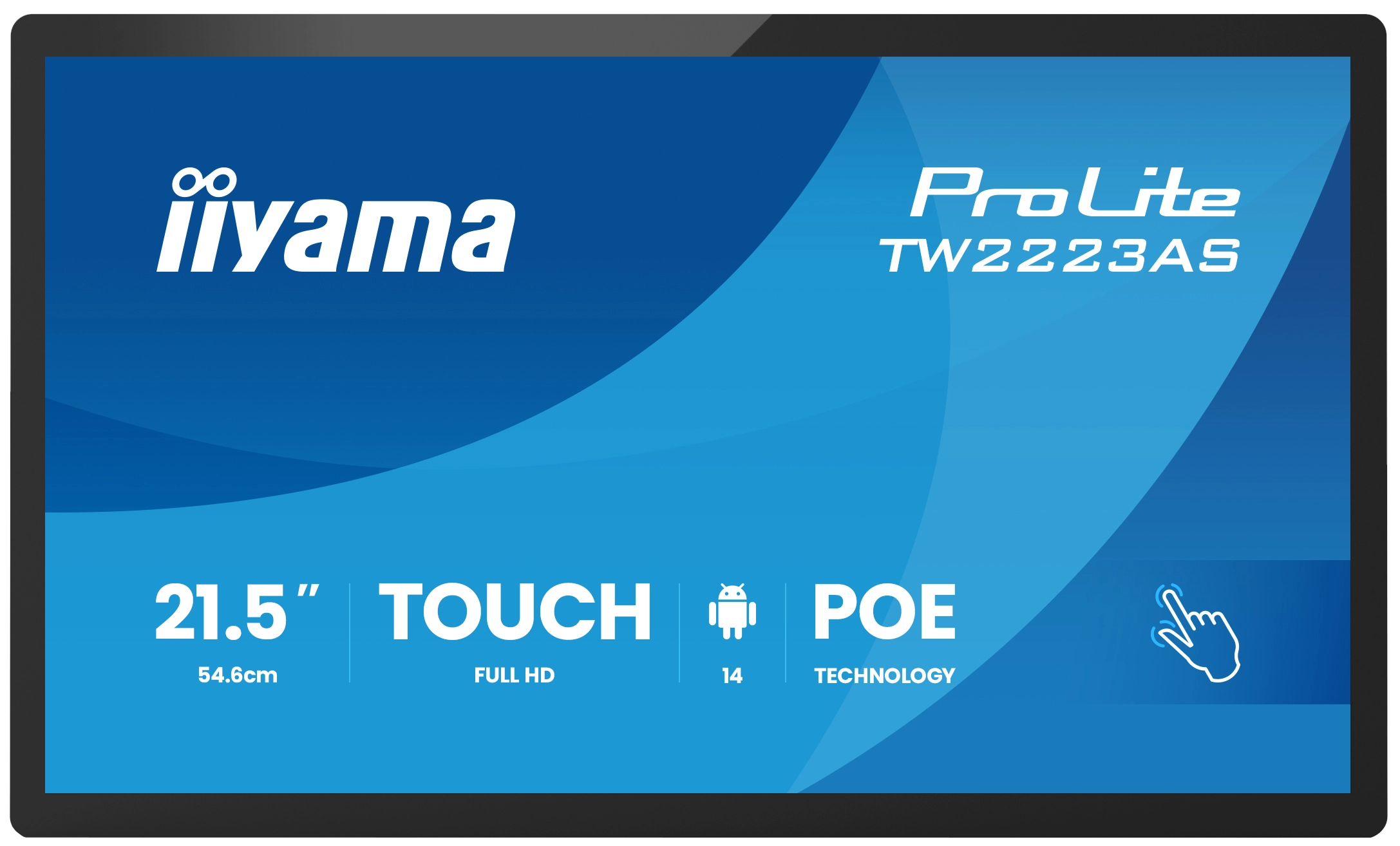

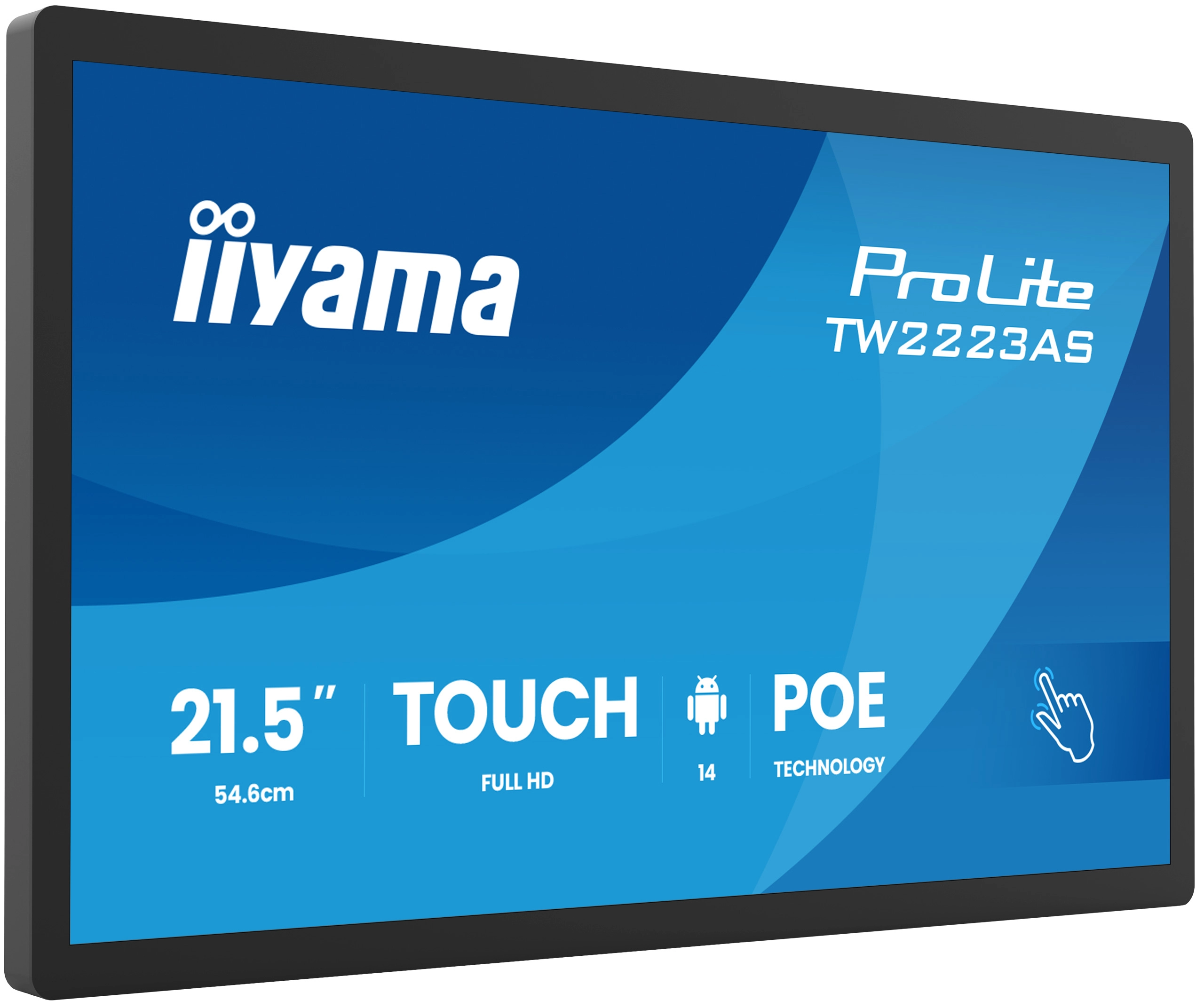

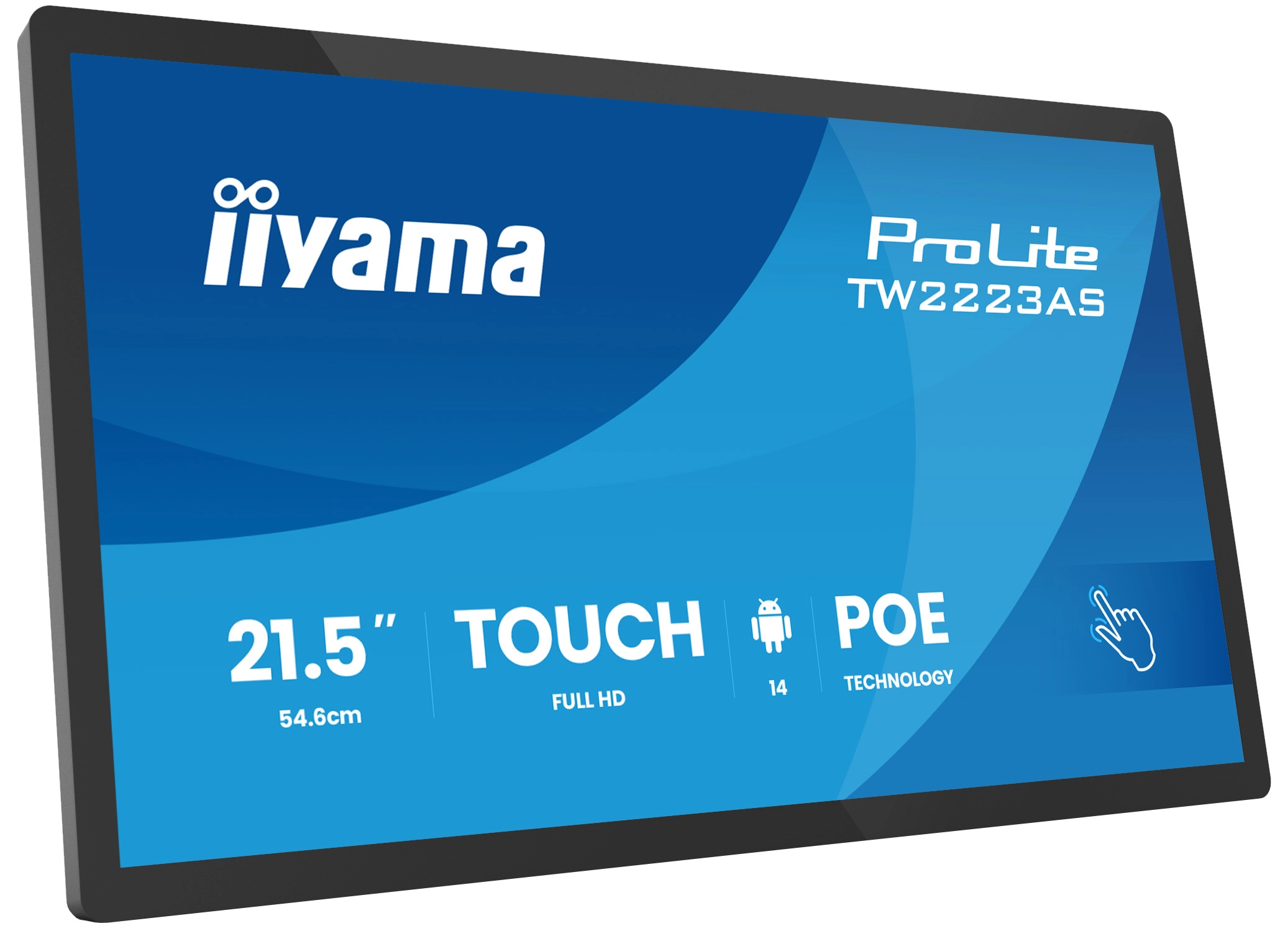

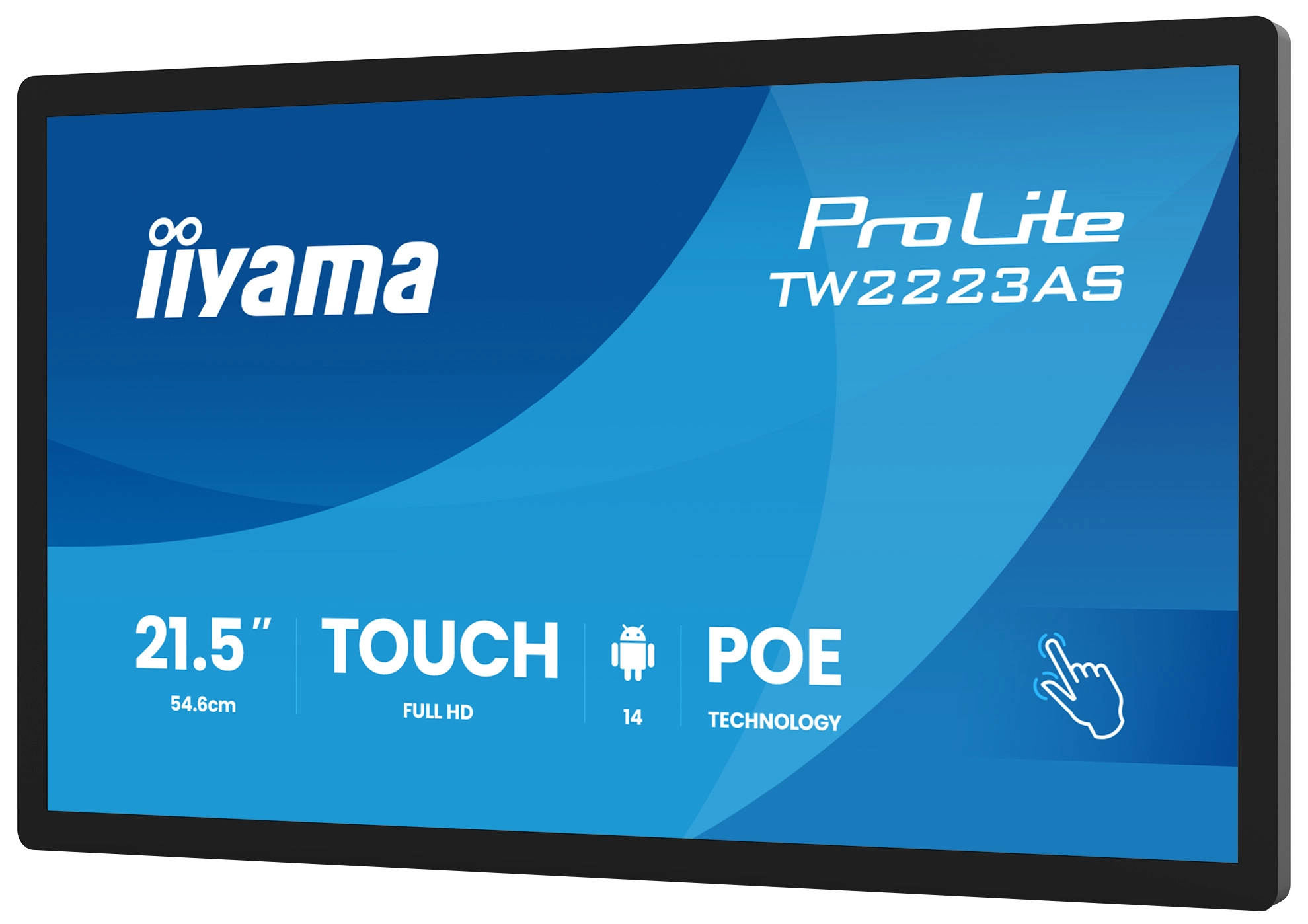

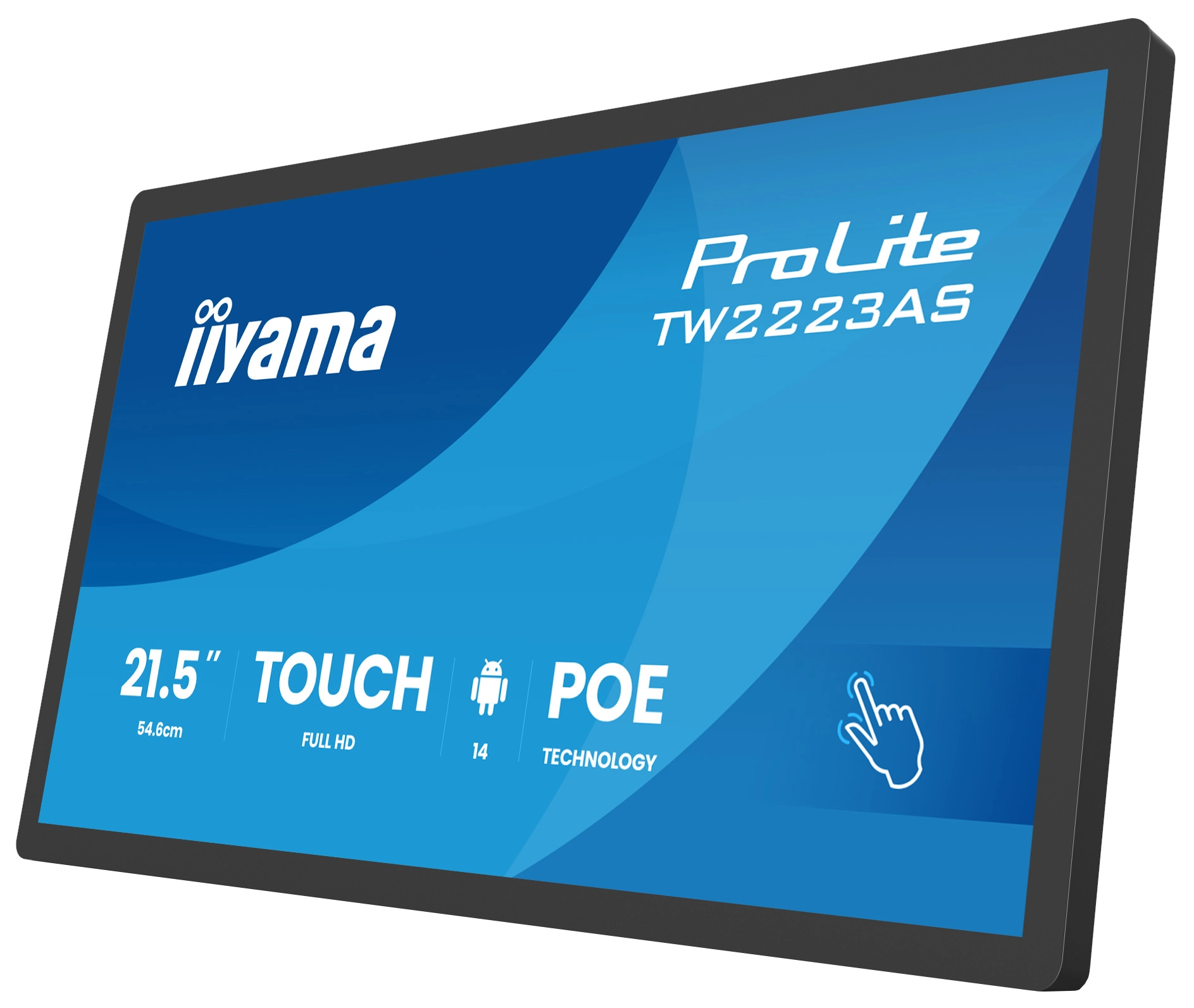

The ProLite TW2223AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

Specification

Product
Product id	1010440
Brand	iiyama
Partnr	TW2223AS-B3P
EAN/UPC code	4948570127160
Warranty (months)	36 months
Display
Display diagonal	21.5 inch
Display resolution	1920 x 1080 Pixels
Display brightness	450 cd/m²
HD type	Full HD
Touchscreen	Y
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	14 ms
Contrast ratio (typical)	1500:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.248 x 0.248 mm
Active display area (W x H)	476.1 x 267.8 mm
Display diagonal (metric)	54.6 cm
Surface hardness	6H
Colour depth	8 Bit
Horizontal scan range	31 - 83 kHz
Panel type	IPS
Glass thickness	2.9 mm

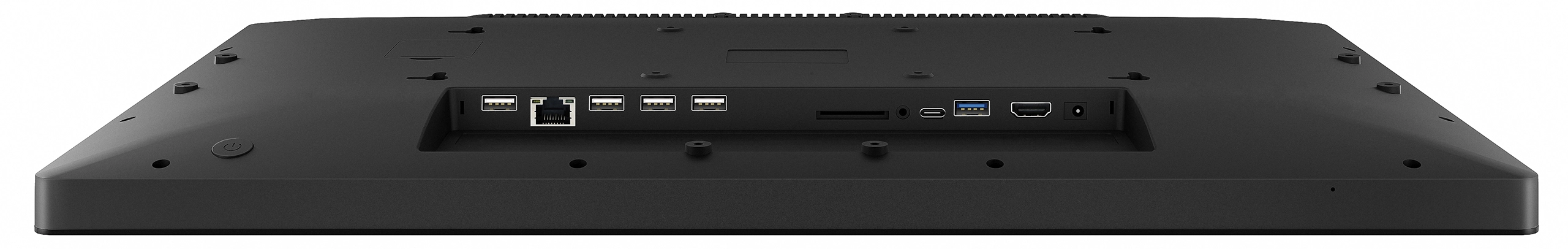

Ports & interfaces
DVI port	N
USB port	Y
USB ports quantity	3
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Y
Audio (L/R) in	2
Microphone in	Y
Card reader integrated	Y
Compatible memory cards	SD
Audio
Built-in speaker(s)	Y
RMS rated power	4 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Screen shape	Flat screen

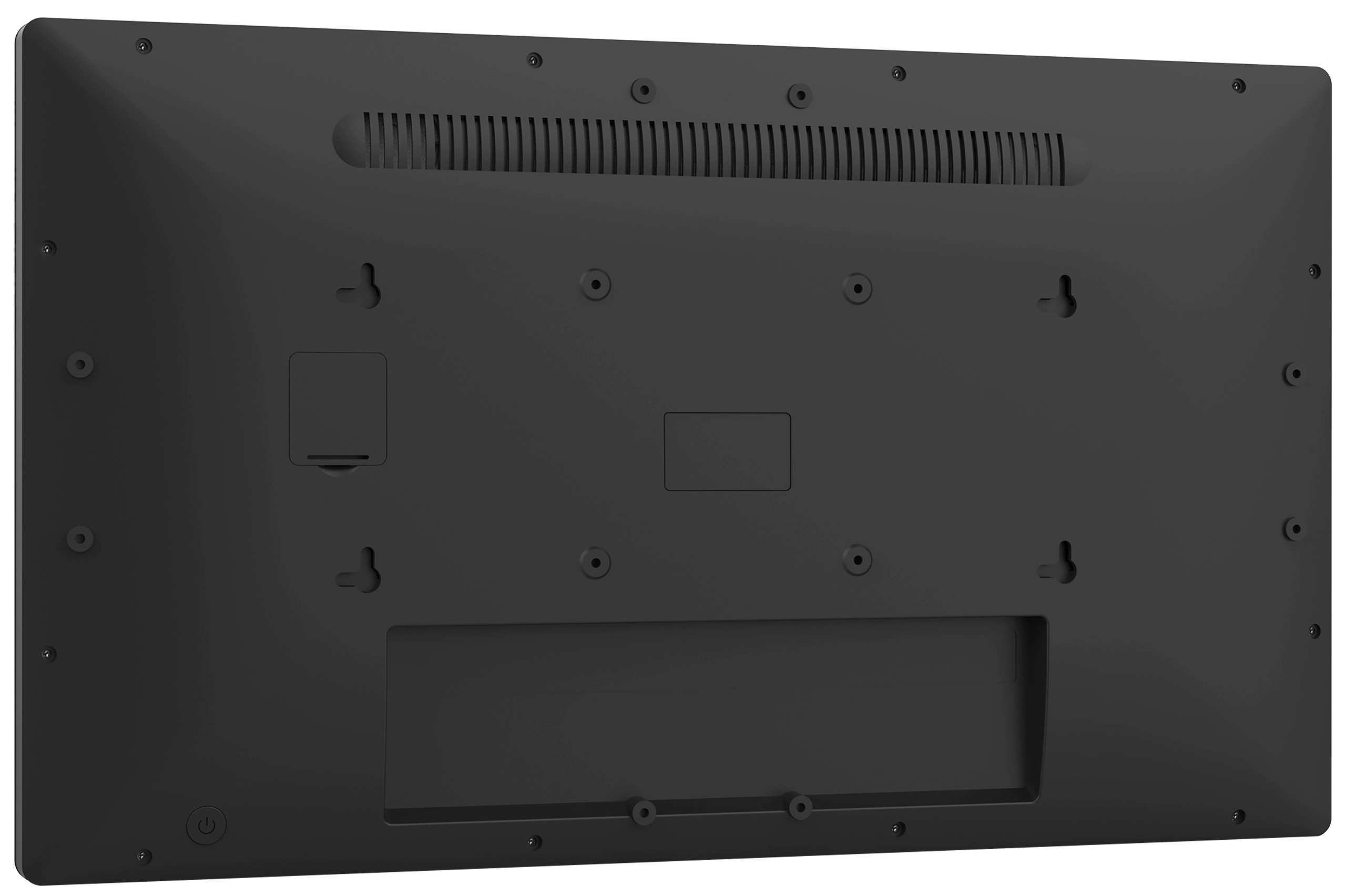

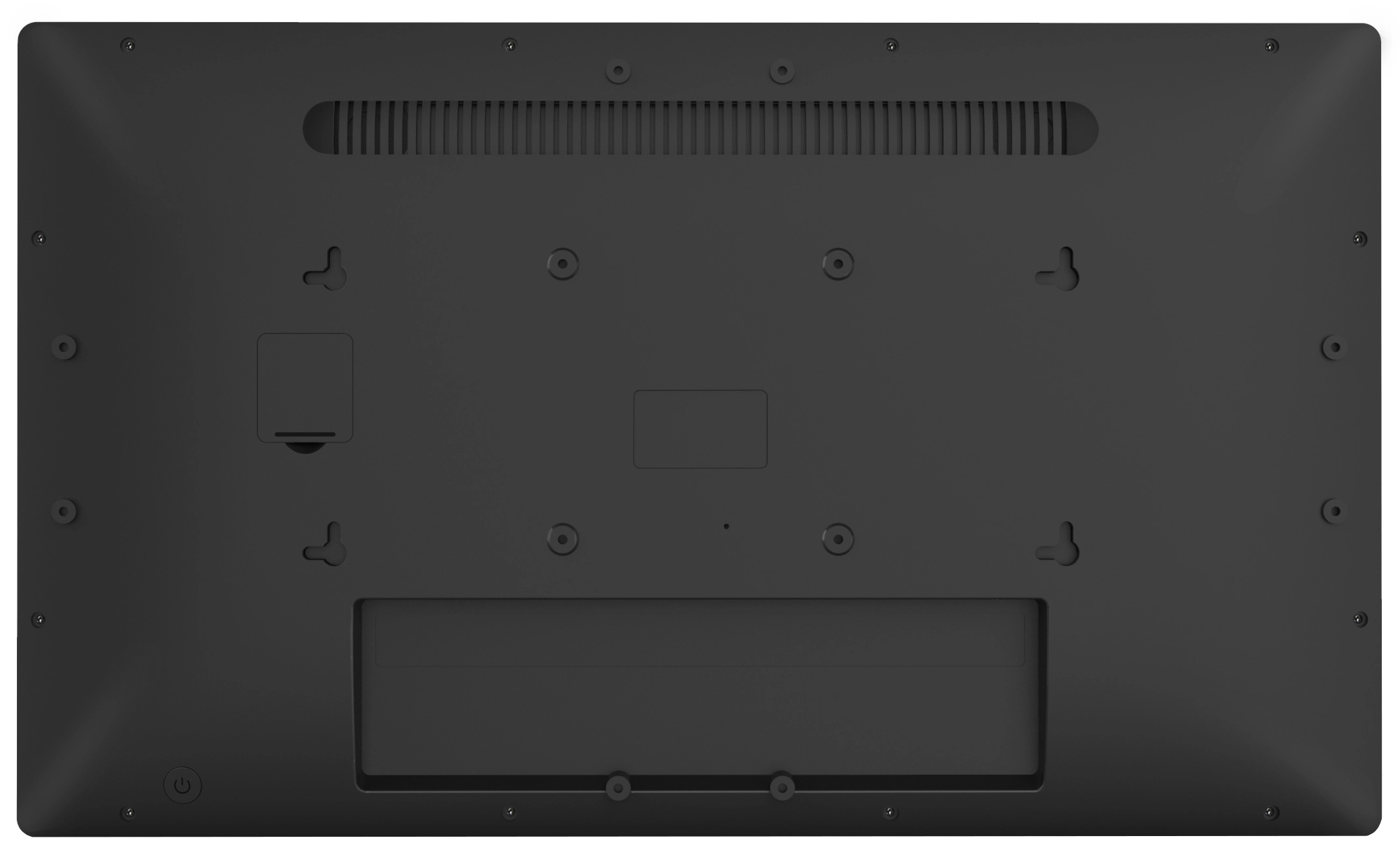

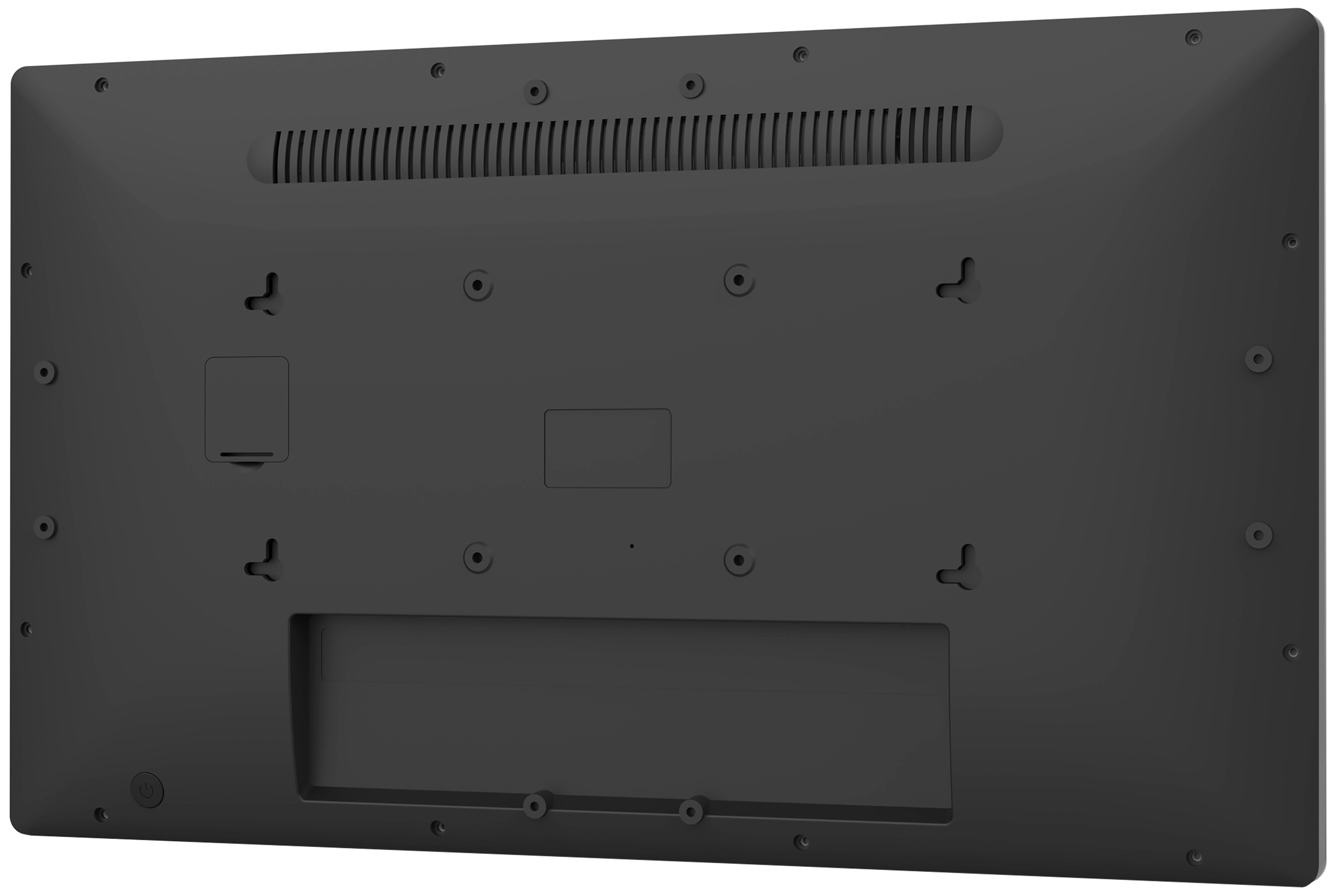

VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Y
Mean time between failures (MTBF)	50000 uur
Power
Power consumption (typical)	15.4 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Power over Ethernet (PoE)	Y
Computer system
Computer system	Y
Built-in processor	Y
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Operating system installed	Android
Operating system version	14
Google applications	Google Chrome, Gmail, Google Calendar
Weight & dimensions
Width	504.5 mm
Depth	32 mm
Height	302 mm
Weight	3640 g
Width (with stand)	504.5 mm
Depth (with stand)	32 mm
Height (with stand)	302 mm
Weight (with stand)	3640 g
Packaging data
Package width	580 mm
Package depth	375 mm
Package height	126 mm
Package weight	6000 g
Packaging content
Cables included	AC
Technical details
Cable management	Y
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates	ErP
User controls	Power switch, volume/ button +, volume/ button -
Other features
Brightness	450 cd/m²
USB connector type	USB Type-C
Power supply type	External
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Bluetooth version	5.3
Bluetooth	Y
Quick start guide	Y
Viewable size, horizontal	476.1 mm
Viewable size, vertical	267.8 mm
Wi-Fi standards	Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
AC adapter included	Y
