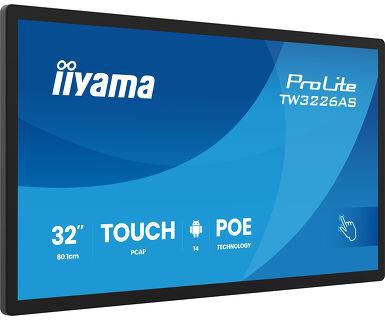

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Specification

Product
Product id	1000834
Brand	iiyama
Partnr	TW3226AS-B3P
EAN/UPC code	4948570125708
Warranty (months)	36 months
Display
Display diagonal	31.5 inch
Display resolution	1920 x 1080 Pixels
Display brightness	500 cd/m²
HD type	Full HD
Touchscreen	Y
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	8 ms
Multi-touch	Y
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Pixel pitch	0.3637 x 0.3637 mm
Active display area (W x H)	698.4 x 392.8 mm
Display diagonal (metric)	80.1 cm
Surface hardness	3H
Panel type	VA
Ports & interfaces
HDMI ports quantity	1
HDMI version	1.4
HDMI input ports quantity	1
DVI port	N
USB port	Y
USB ports quantity	3
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	Y
Microphone in	Y
DC-in jack	Y
Audio
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	10 W
Design
Design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Y
Power
Power consumption (typical)	36.34 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Computer system
Built-in processor	Y
Processor manufacturer	ARM
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Processor architecture	ARM Cortex-A53+Cortex-A72
Processor cores	8
Internal memory	4 GB
Internal storage capacity	32 GB
On-board graphics adapter model	Mali-G52 MC3
Operating system installed	Android 14
Weight & dimensions
Display width	735 mm
Display depth	35 mm
Display height	436 mm
Display weight	7700 g
Packaging data
Package width	833 mm
Package depth	126 mm
Package height	508 mm
Package weight	12400 g
Packaging content
Cables included	DC
Power adapter included	Y
Mounting kit	Y
Certificates
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
Cable management	Y
Other features
USB connector type	USB Type-A, USB Type-C
Bluetooth version	5.3
Bluetooth	Y
Quick start guide	Y
Audio output	Mini jack
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Display technology	LED
