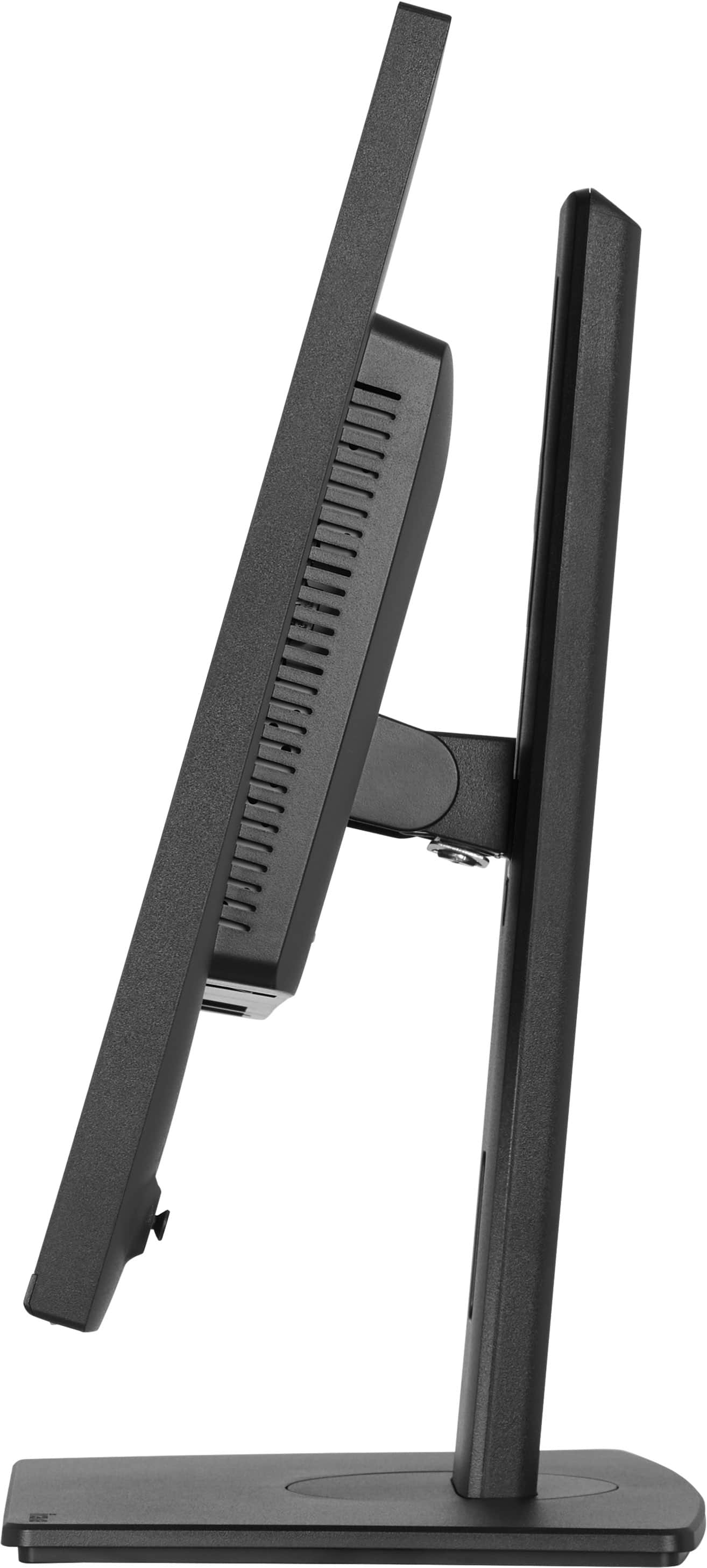

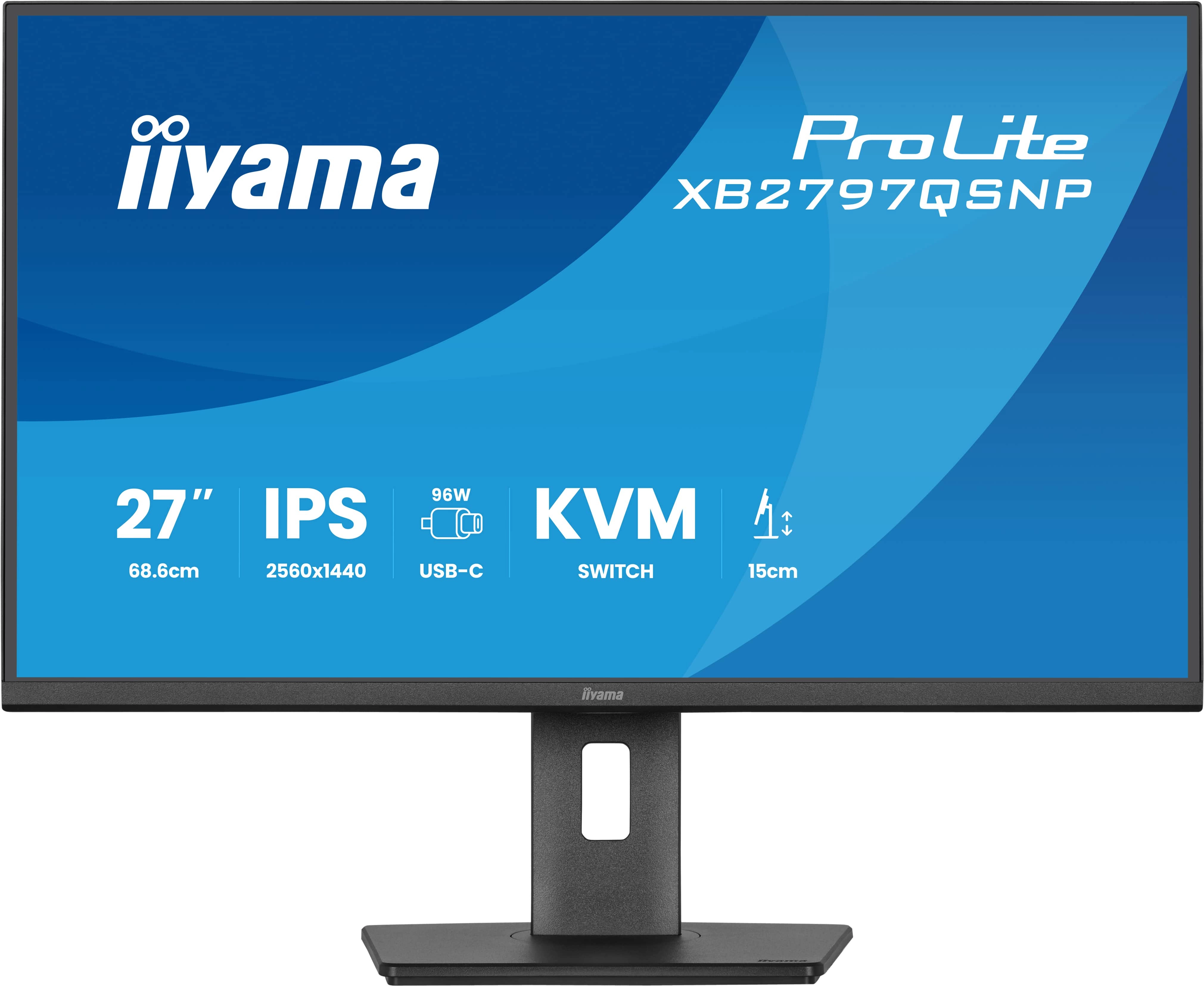

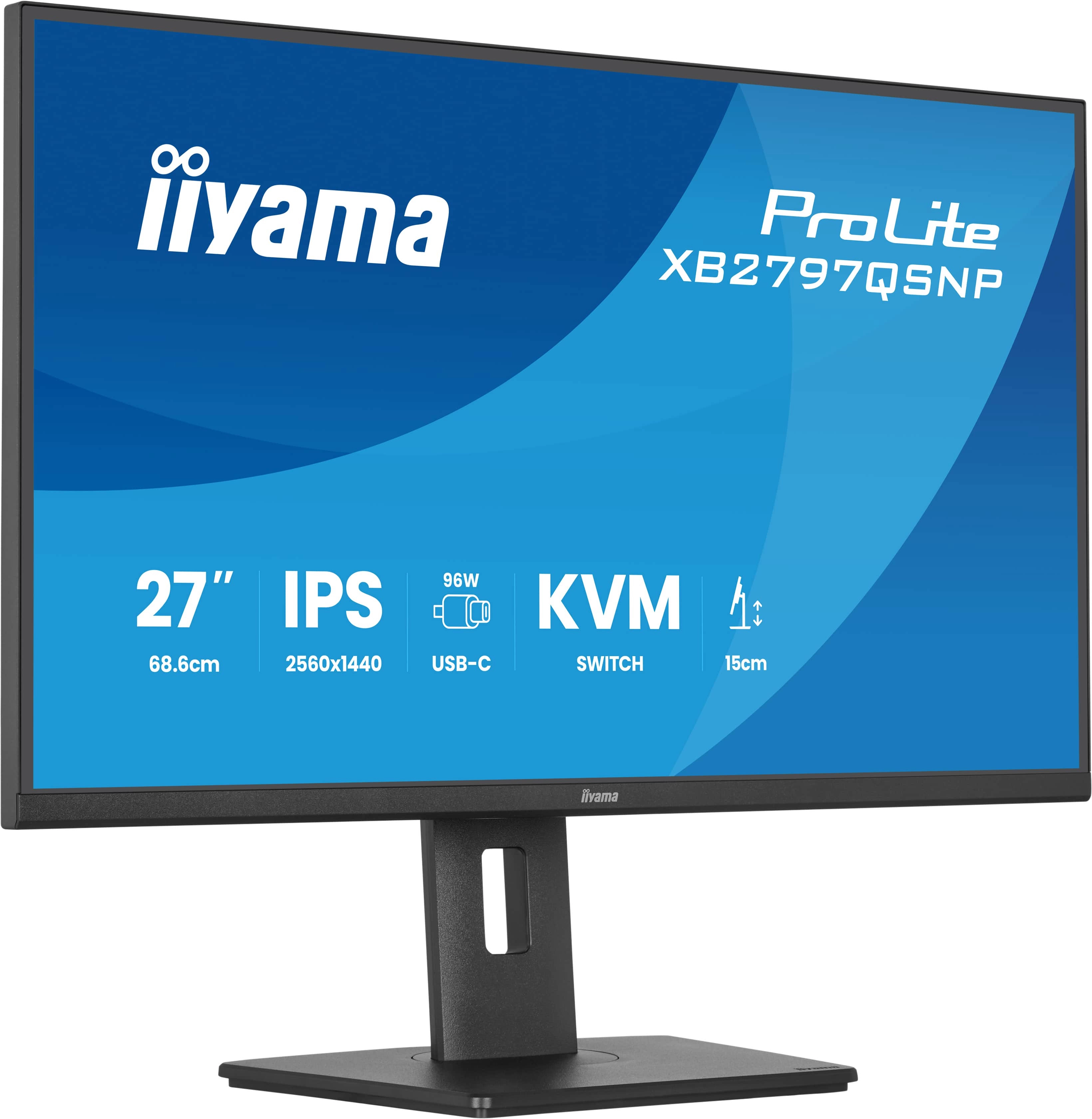

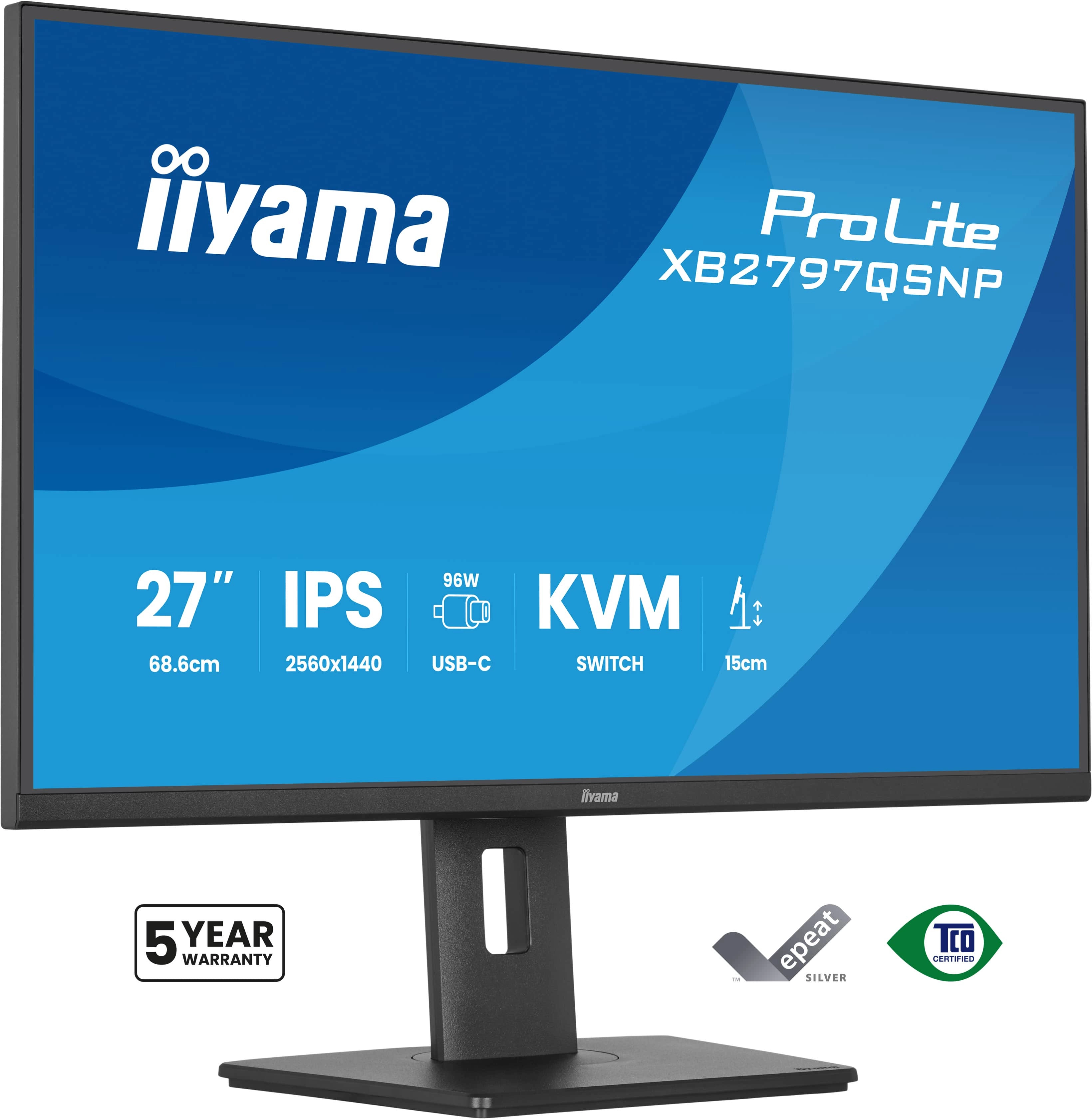

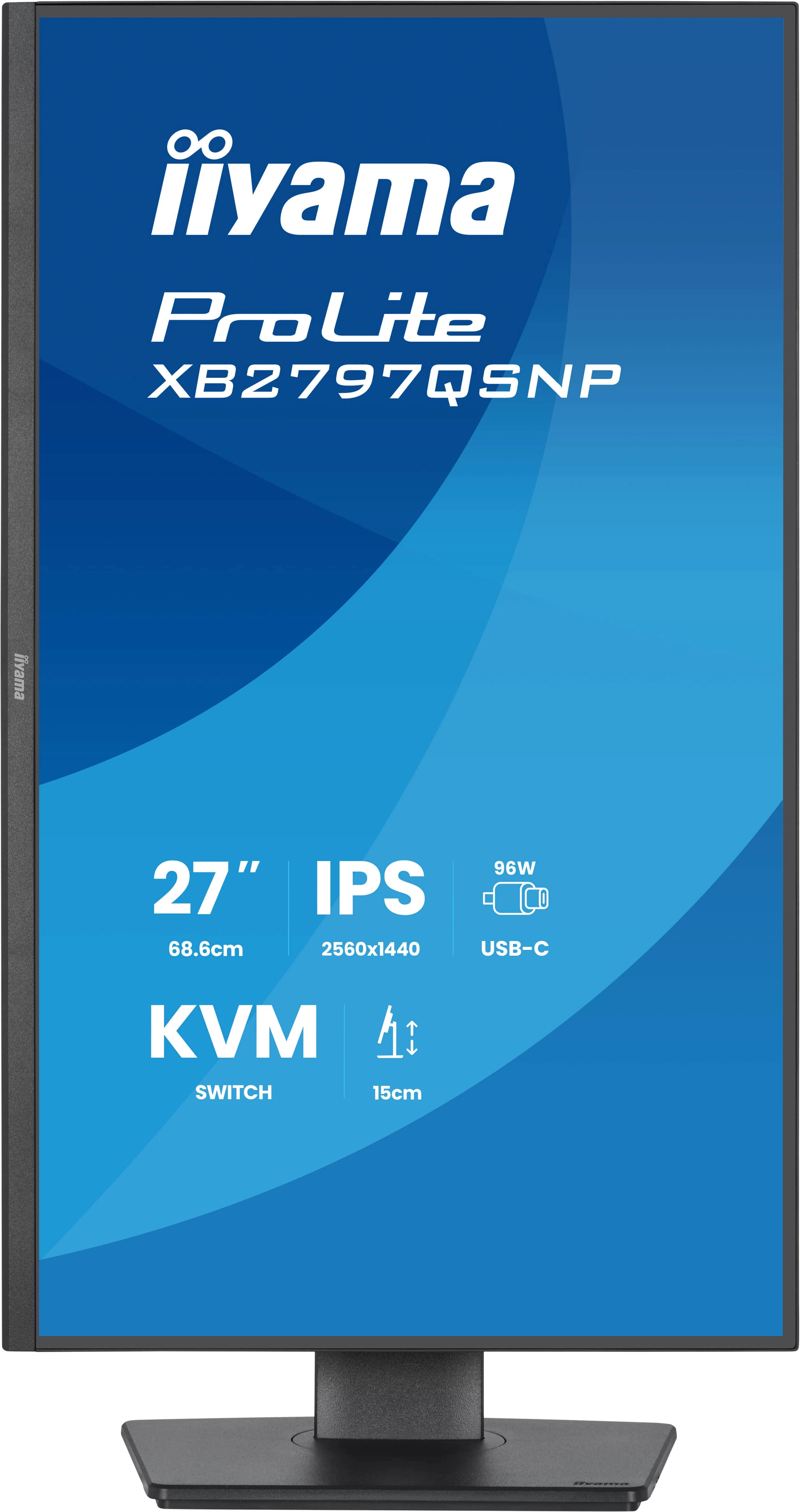

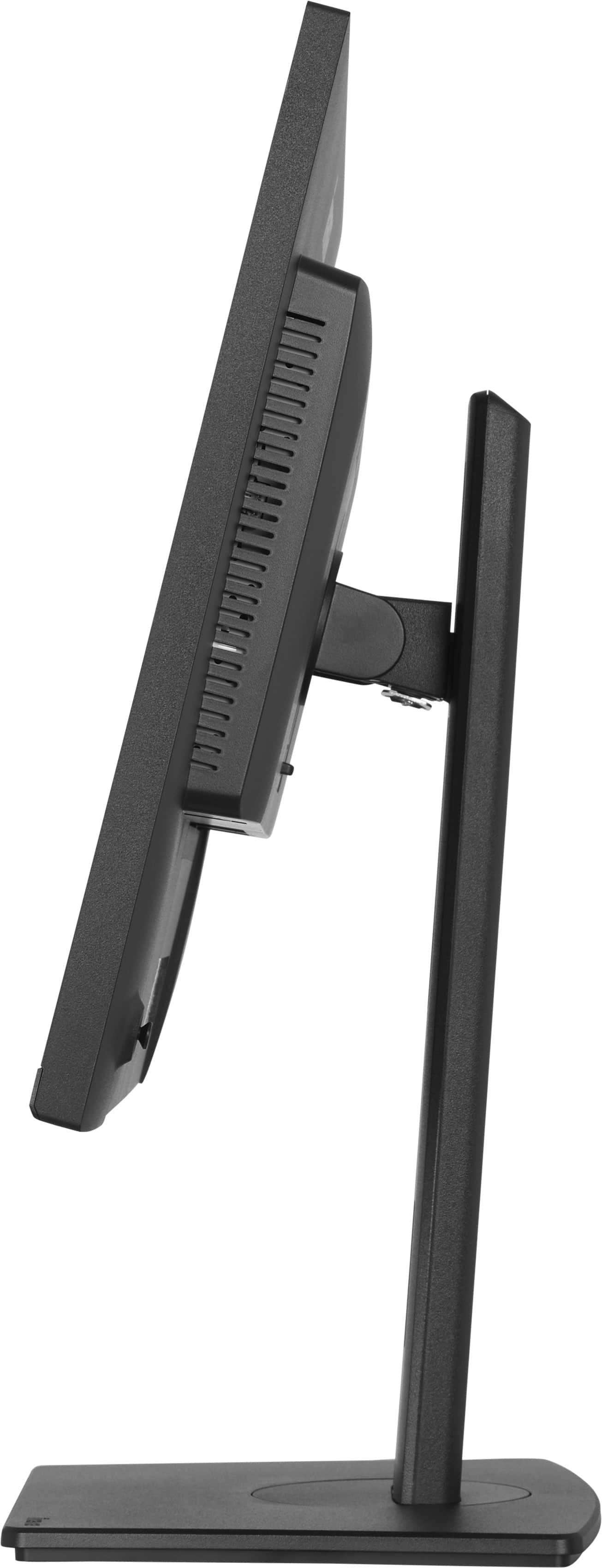

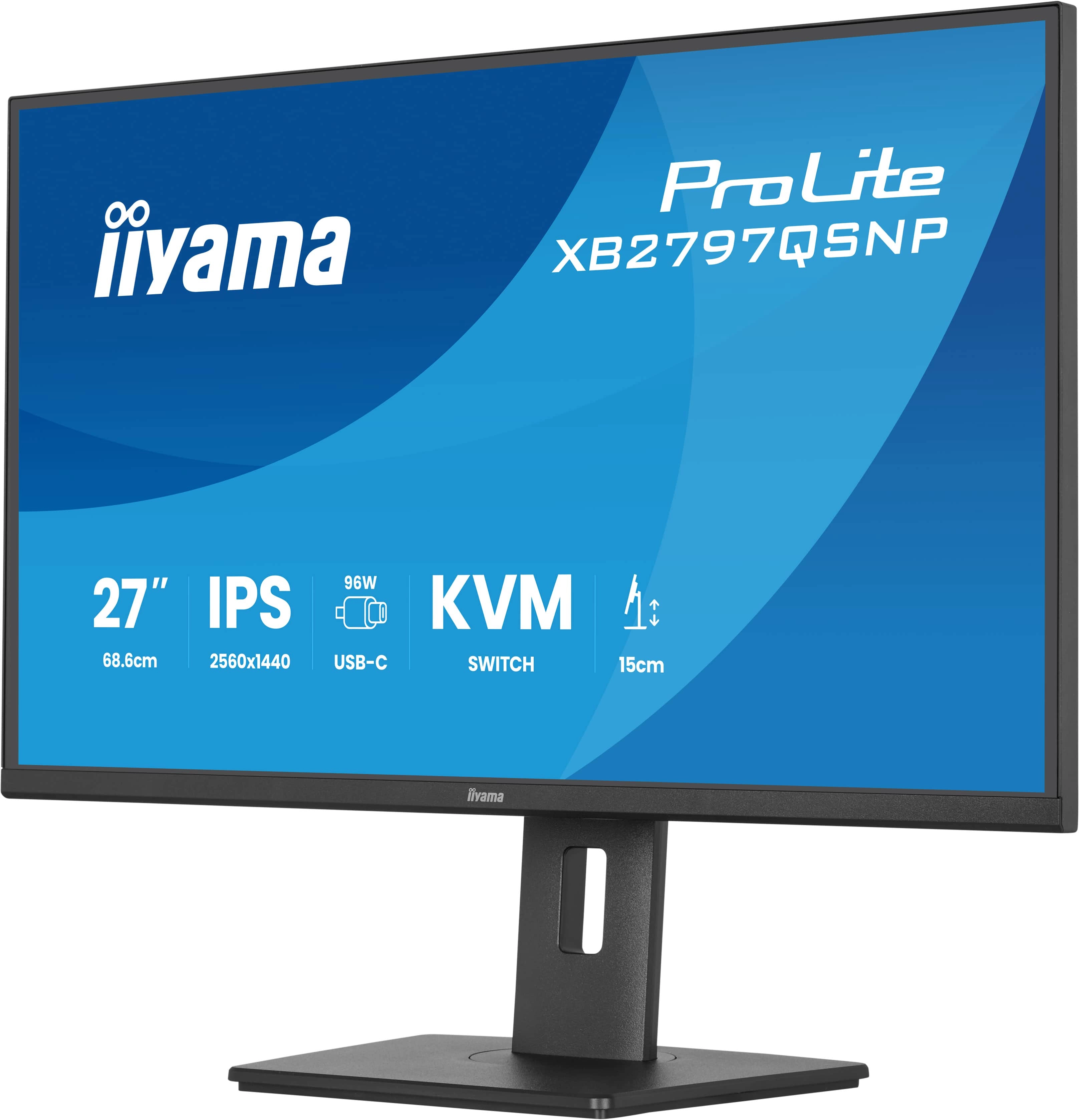

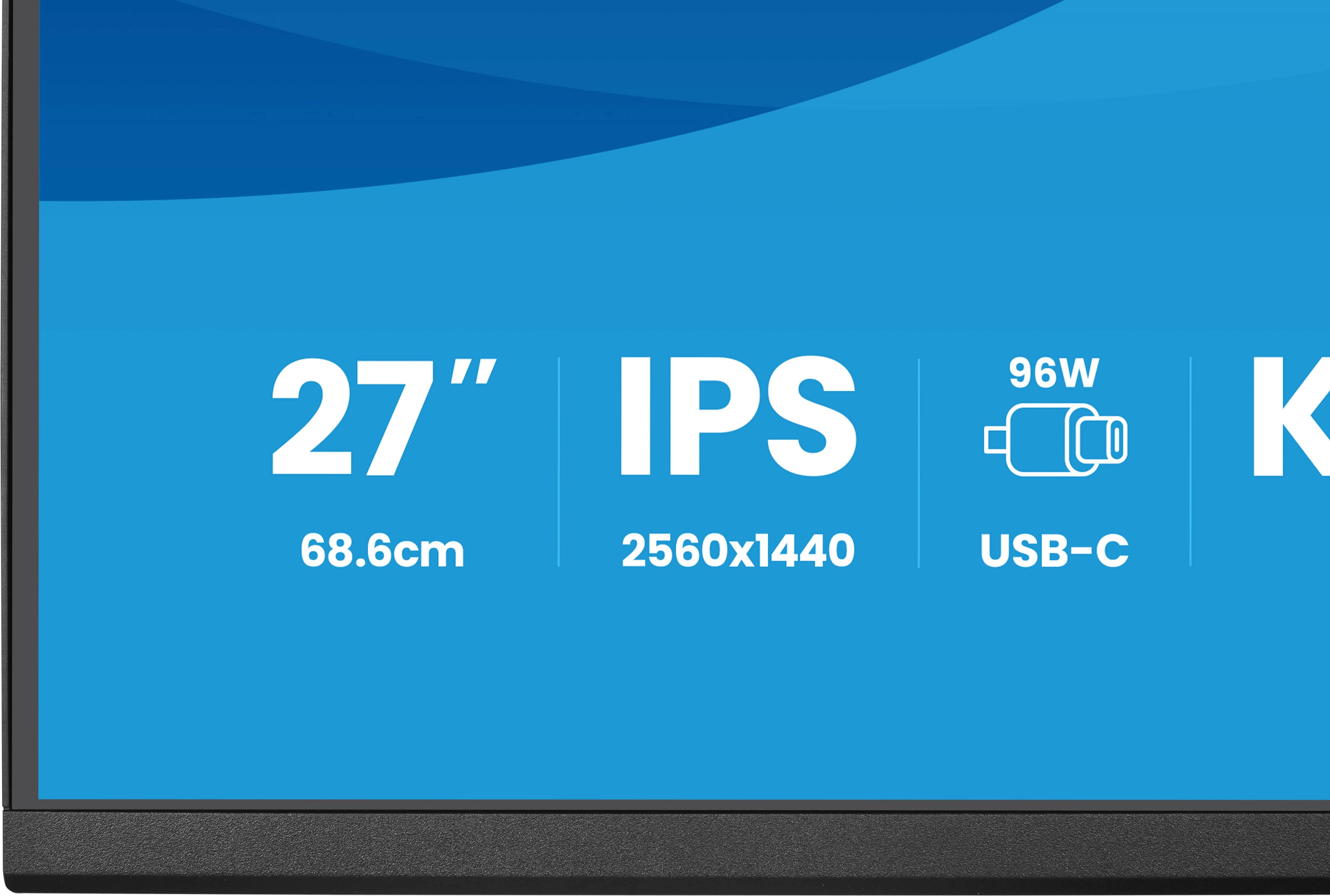

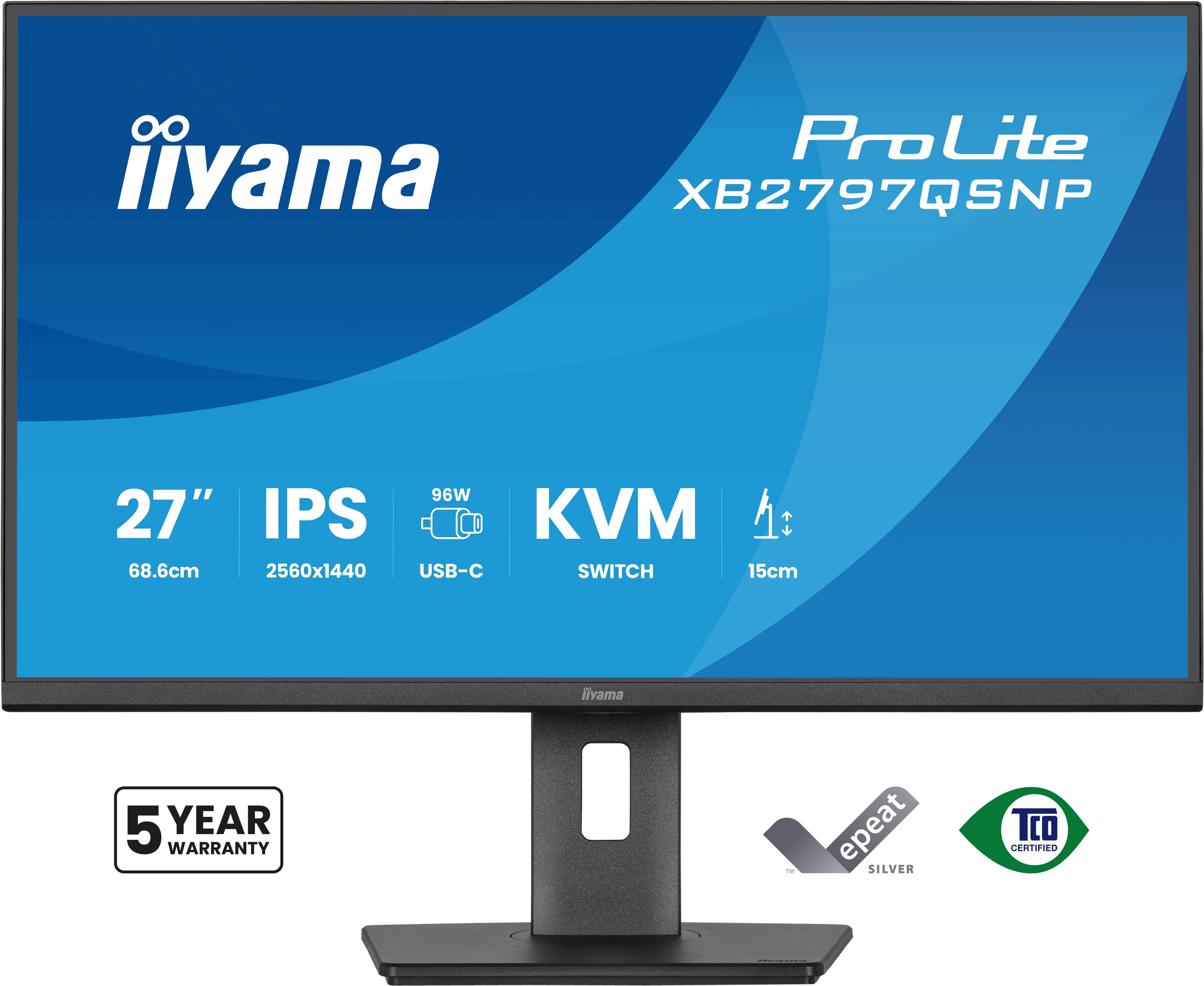

Stay connected and reduce cable clutter with the ProLite XB2797QSNP. The integrated USB-C dock with 96W power delivery lets you transfer video, audio, data and power through a single cable, keeping your workspace clean and efficient. The RJ45 port ensures a fast, stable wired network connection without additional adapters. With the built-in KVM switch, you can control two computers using a single keyboard and mouse, making it easy to switch between systems and maintain a smooth workflow. The 27” QHD IPS panel delivers high resolution and accurate colour reproduction with wide viewing angles, supporting detailed work such as content creation, spreadsheets or design tasks. The DisplayPort output enables quick setup of a dual-monitor configuration to expand your screen space and boost productivity. The stand offers 15cm height adjustment along with tilt, swivel and pivot functions including portrait mode, so you can work comfortably in your preferred position. Tested and certified by TÜV Rheinland for Eye Comfort, the XB2797QSNP meets strict display standards to help reduce visual fatigue during extended use, supporting long-lasting focus and well-being at work. Available also without USB-C dock: XB2797QSU-B1 .

Specification

Product
Product id	1015938
Brand	iiyama
Partnr	XB2797QSNP-B1
EAN/UPC code	4948570125944
Warranty (months)	60 months
Technical details
Sustainability certificates	ErP, TCO
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Display
Display diagonal	27 inch
Display resolution	2560 x 1440 Pixels
Native aspect ratio	16:9
Panel type	IPS
Display brightness (typical)	350 cd/m²
HD type	Quad HD
Display technology	LED
Response time (MPRT)	1 ms
Display surface	Matt
Screen shape	Flat screen
Contrast ratio (typical)	1000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Display diagonal (metric)	68.5 cm
Pixel pitch	0.233 x 0.233 mm
Horizontal scan range	30 - 112 kHz
Viewable size, horizontal	596.7 mm
Viewable size, vertical	335.7 mm
sRGB coverage (typical)	100 procent
NTSC coverage (typical)	72 procent
Performance
AMD FreeSync	Y
Flicker-free technology	Y
Multimedia
Built-in speaker(s)	Y
Built-in camera	N
Number of speakers	2
RMS rated power	4 W
Design
Market positioning	Office
Product colour	Black

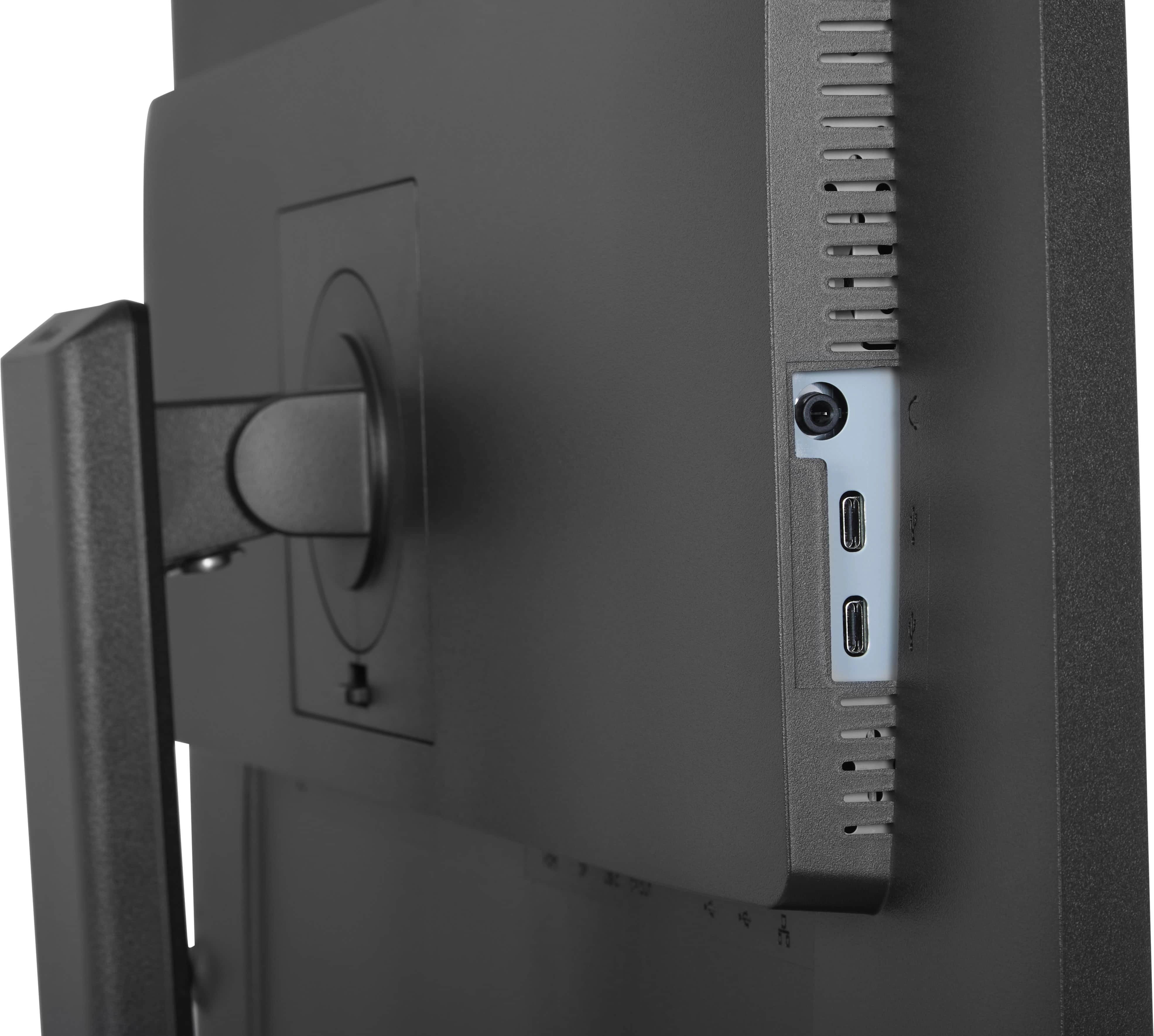

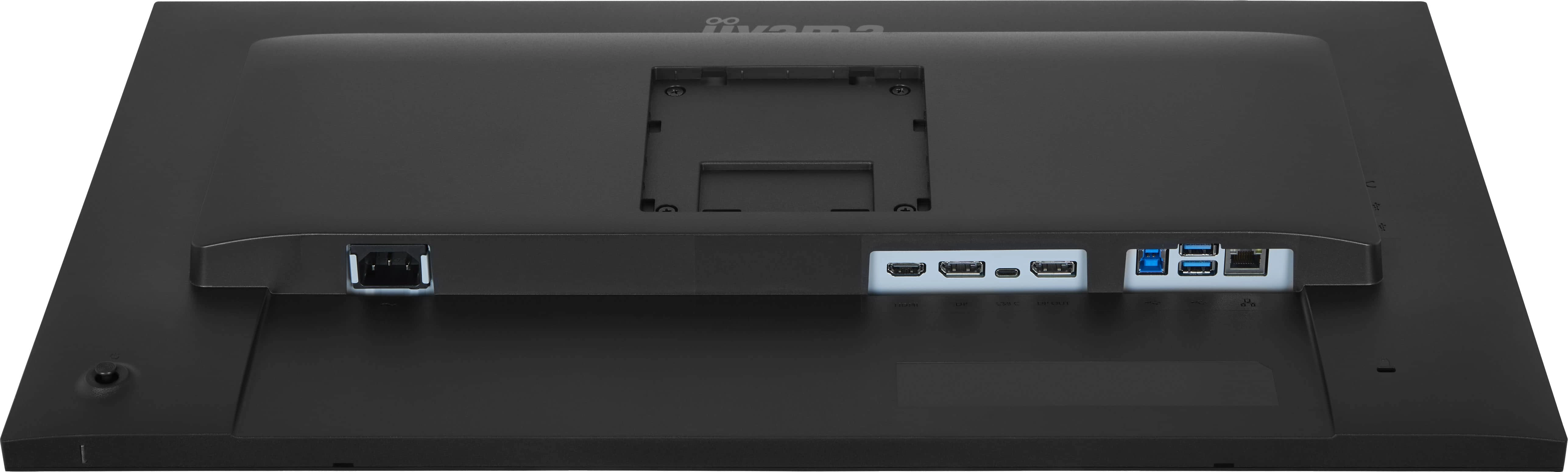

Ports & interfaces
Built-in USB hub	Y
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of USB Type-C upstream ports quantity	1
USB Power Delivery up to	96 W
HDMI	Y
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Y
Number of downstream ports	4
Built-in KVM switch	Y
DisplayPort out quantity	1
HDCP	Y

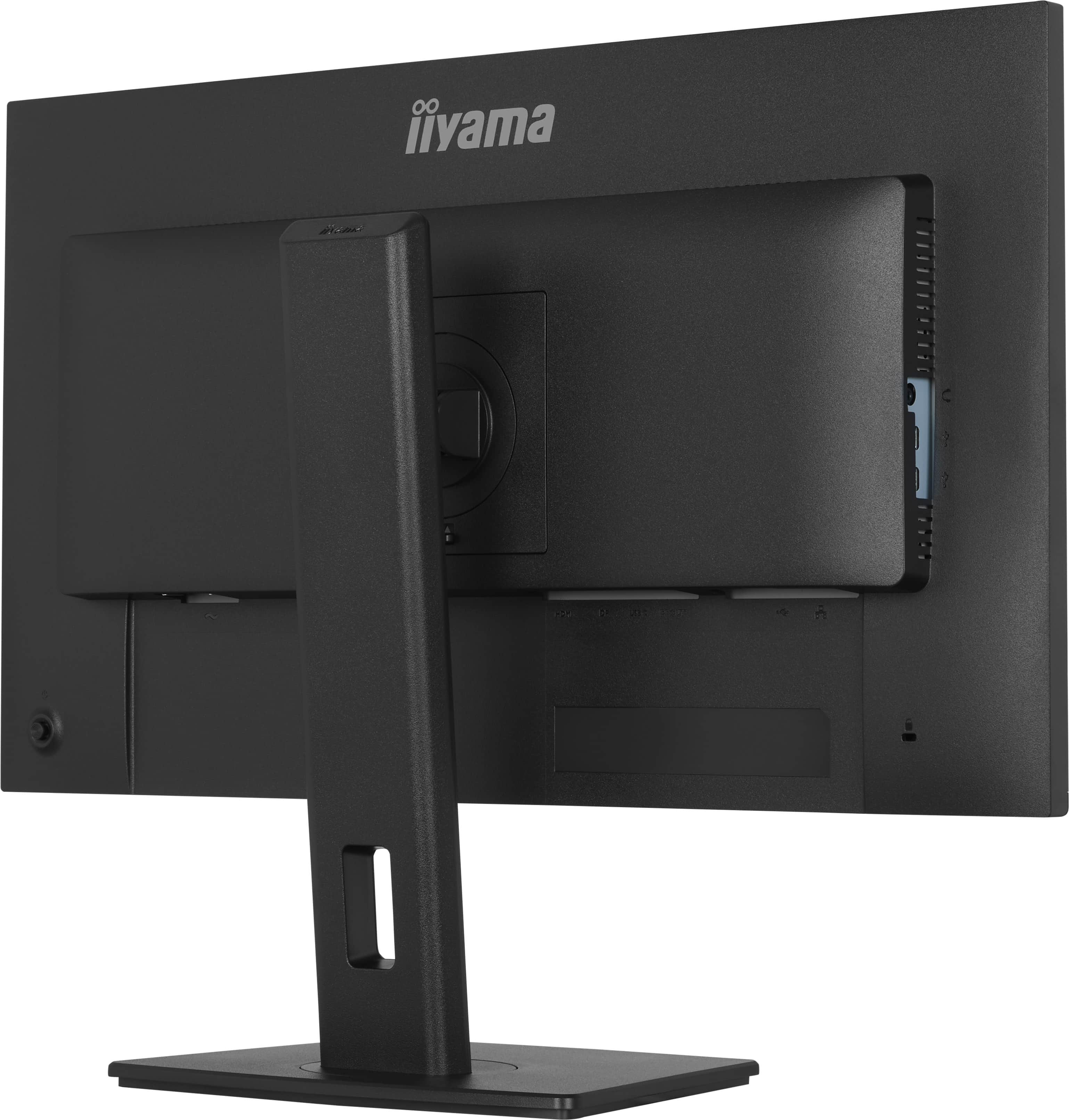

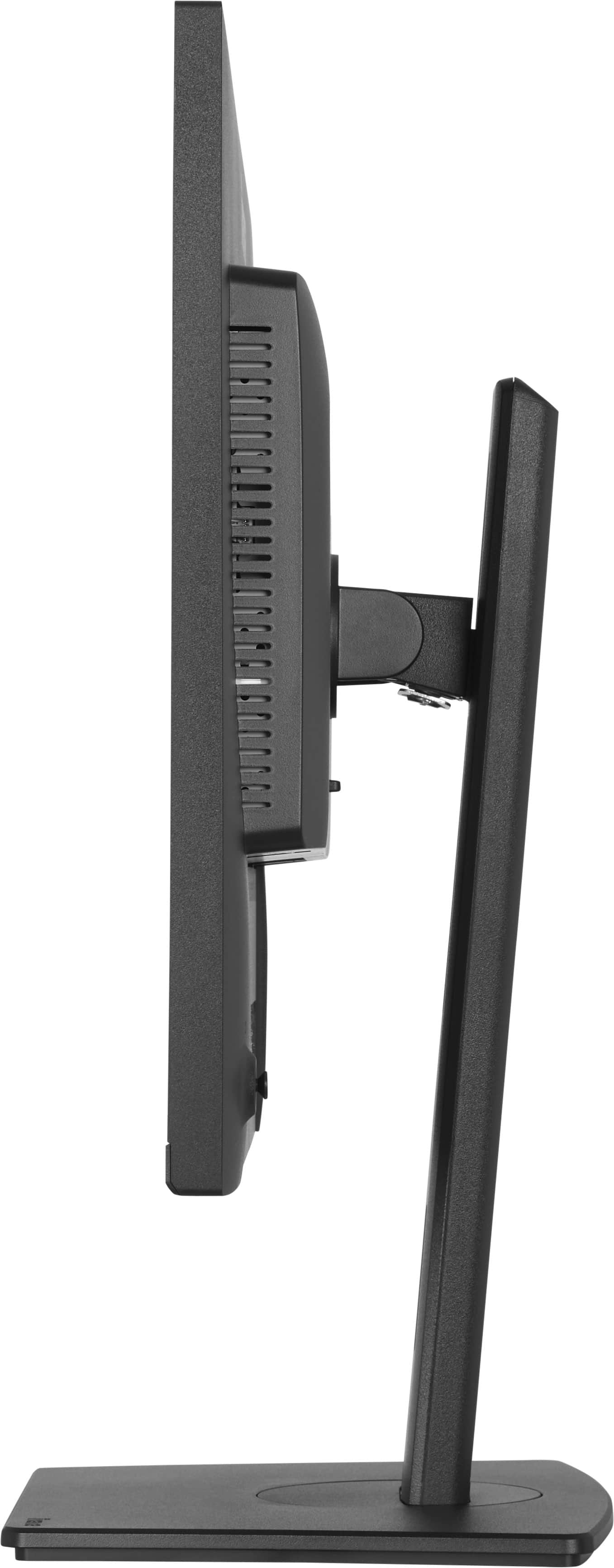

Ergonomics
VESA mounting	Y
Panel mounting interface	100 x 100 mm
Cable lock slot	Y
Cable management	Y
Cable lock slot type	Kensington
Adjustable height (max)	150 mm
Height adjustment	Y
Swivelling	Y
Pivot	Y
Swivel angle range	-60 - 60 °
Tilt adjustment	Y
On Screen Display (OSD) languages	CZE, DEU, ENG, ESP, FRE, ITA, JPN, DUT, POL, RUS, UKR
Packaging data

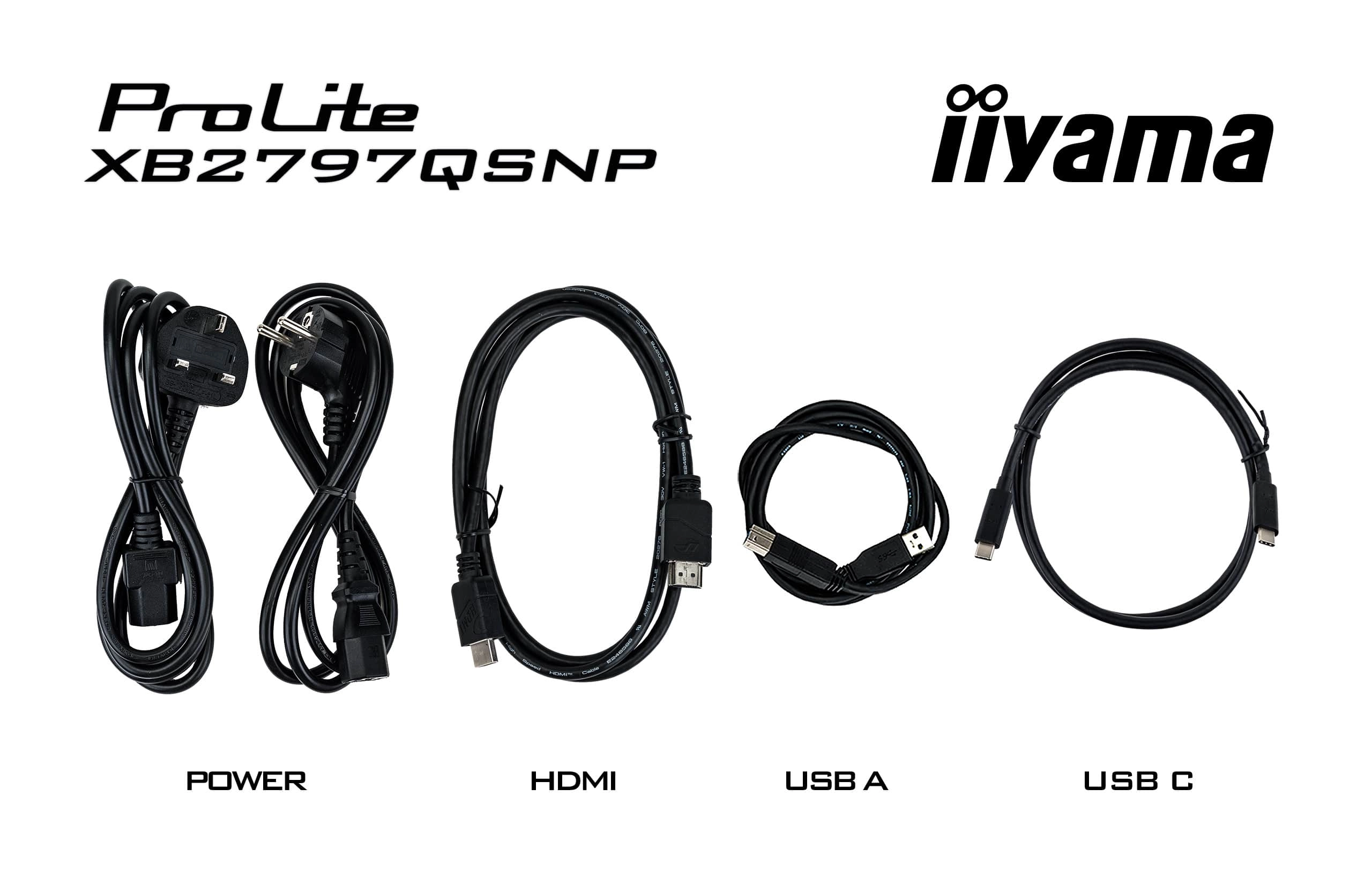

Cables included	AC, USB, HDMI, USB Type-C
Power cable length	1.5 m
HDMI cable length	1.5 m
USB cable length	1.5 m
Package width	691 mm
Package depth	142 mm
Package height	447 mm
Package weight	8000 g
Power
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	21 kWu
Power consumption (typical)	21 W
Energy efficiency class (HDR)	Not available
Power consumption (standby)	21 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Weight & dimensions
Width (with stand)	613 mm
Depth (with stand)	209.5 mm
Height (with stand)	547.5 mm
Weight (with stand)	5900 g
Height (without stand)	403.5 mm
Width	613 mm
Depth	209.5 mm
Weight	5900 g
Other features
USB Power Delivery	Y
Power supply type	Internal
Touchscreen	N
Manufacturer warranty	5 years (for details and eligible countries please check the Warranty section of our website)
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Packaging content	quick start guide, safety guide
Control panel	Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume
User controls	picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp. , user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C spedd, MST DP-out), Extra 2 (shortcut key, Mac address, FW version), KVM (HDMI, DisplayPort, USB-C), input select, audio settings (volume, mute), reset (reset all?)
