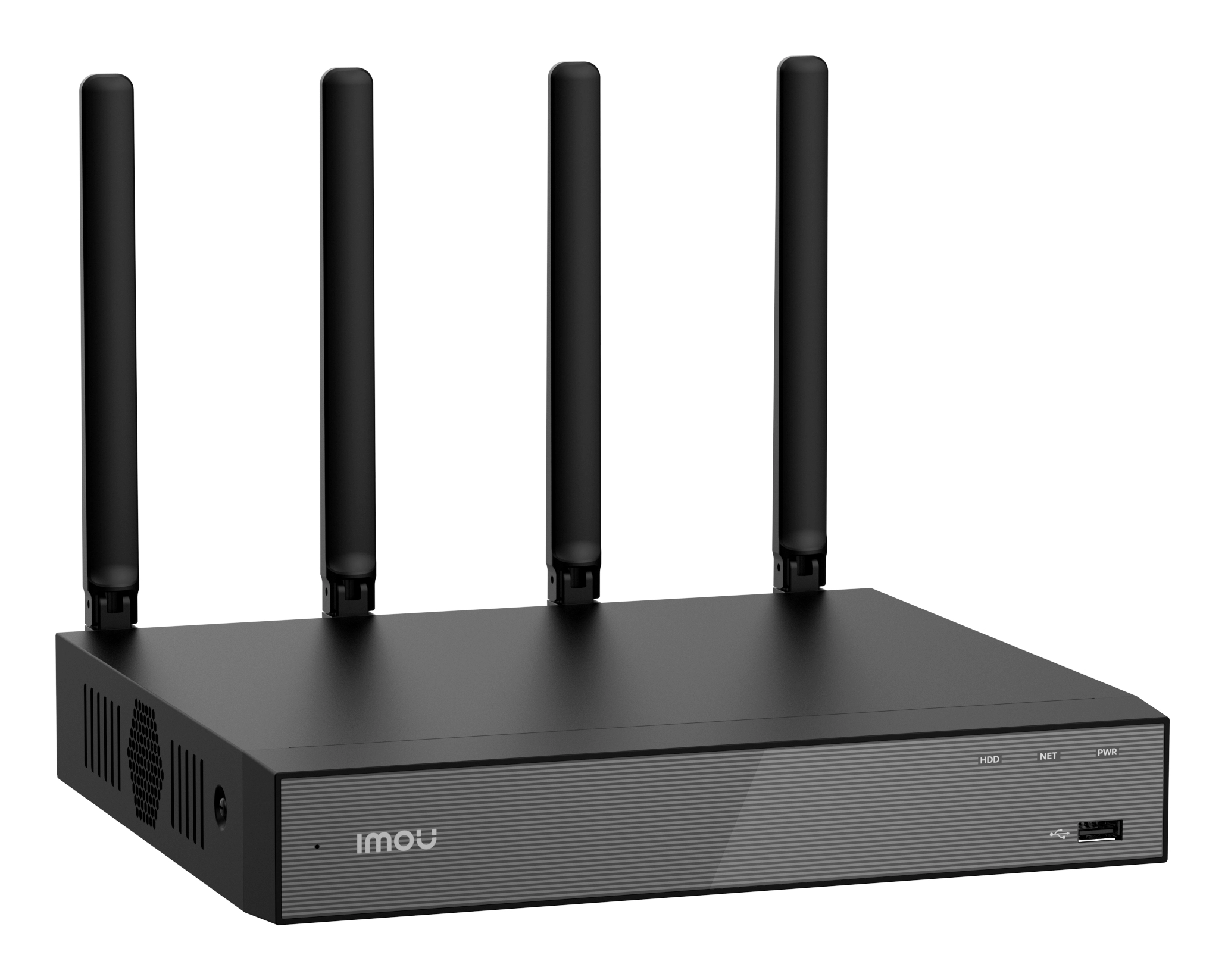

Powerful NVR for Better Performance.

Two-Way Audio.
With built-in mic and speaker, you can hear and speak via the NVR directly — no need for extra hardware.

Imou Cameras Auto-Pair in Seconds.
Cameras connect automatically — no complex configuration needed.

Stable Connection with Dual-Band Wi-Fi 6 and 4 Antennas.
Dual-band Wi-Fi 6 with 4 antennas ensures stable connection and low latency.

Up to 4K UHD Output for Ultra-Clear Viewing.
Supports both HDMI and VGA outputs for flexible display options — enjoy sharp, detailed footage on any monitor.

Specification

Product
Product id	1003672
Brand	Imou
Partnr	NVR-N110W-8A0E-P
EAN/UPC code	6937479640083
Performance
Video input channels	10 kanalen
Maximum resolution	2592 x 1944 Pixels
Audio formats supported	AAC
Video formats supported	H.264, H.265
Wireless LAN features
Wi-Fi	Y
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Storage
Maximum storage capacity	16 TB
HDD interface	SATA
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100 Mbit/s
HDMI ports quantity	1
HDMI output	Y
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
Microphone in	Y
DC-in jack	Y
Features
Product colour	Black
Certification	CE
Power
Output voltage	12 V
Output current	1 A
Power	9 W
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
Weight & dimensions
Width	260 mm
Depth	241.5 mm
Height	60.2 mm
Weight	890 g
Packaging content
Cables included	LAN (RJ-45), SATA
AC adapter included	Y
