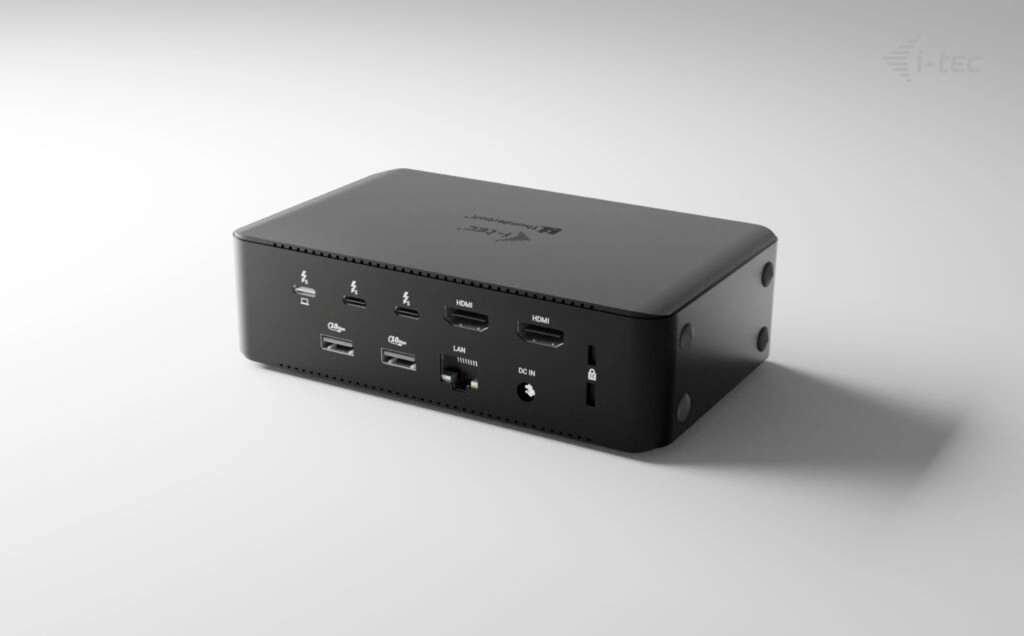

Extreme performance, ultra-fast data transfer, and support for resolutions up to 8K/60 Hz. The most powerful i-tec docking station on the market!

Crystal-clear image quality, lightning-fast internet, and data transfer speeds of up to 12 GB per second thanks to the integrated Thunderbolt 5 output port. Of course, you can also connect headphones or audio devices and charge your laptop (up to 140 W**) – all through a single cable (a 100 cm certified Thunderbolt 5 cable is included in the package).

Thanks to the integrated DP 1.4 protocol, you can connect this docking station to a monitor with up to 8K resolution (7680 x 4320) at 60 Hz refresh rate – equivalent to the resolution of four 4K monitors. This makes it an ideal solution for graphic designers, analysts, developers, video editors, and high-resolution video enthusiasts.

The docking station is now compatible not only with Thunderbolt 5/4/3 ports but also with USB4 and USB-C, making it a flexible solution for businesses and users who work with laptops and tablets equipped with different types of ports.

- Support for up to 4 external monitors* with resolutions up to 2x 8K/60 or 4x 4K/60 Hz
- Video ports: 2x HDMI, 2x Thunderbolt 5
- 1x USB-C (10 Gbps)
- 4x USB-A (10 Gbps) with BC 1.2 fast charging support (7.5W)
- LAN port with speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone port
- 1x SD/microSD slot
- Laptop charging up to 140 W**
- Power button for docking station

* The maximum number of connected monitors depends on the performance of your computer and operating system.

With Thunderbolt 5 and Windows laptops, you can connect up to four monitors (the laptop lid must be closed). With Apple laptops running macOS, a maximum of two external monitors is supported.

** If your laptop or tablet supports the modern USB-C Power Delivery PD 3.1 charging protocol, the docking station provides up to 140 W charging power (with PD 3.0, the charging power is limited to 100 W).

Specification

Product
Product id	987386
Brand	I-tec
Partnr	TB5QUATTRODOCKPDUK
EAN/UPC code
Ports & interfaces
Connectivity technology	Wired
Host interface	Thunderbolt 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery up to	140 W
HDMI ports quantity	2
Combo headphone/mic port	Y
Headphone connectivity	3.5 mm
Thunderbolt 5 ports quantity	2
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Performance
Product colour	Black
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	120 Gbit/s
Maximum digital resolution	7680 x 4320 Pixels
Number of displays supported	4
Cable lock slot	Y
Cable lock slot type	Kensington
Maximum refresh rate	240 Hz
On/off switch	Y
LED indicators	Y
Power
Power source type	AC
Power supply	160 W
Output current	7.61 A
Output voltage	21 V
Compatible power plug types	UK
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	Android, ChromeOS, iPadOS
Weight & dimensions
Width	154 mm
Depth	96 mm
Height	45 mm
Weight	692 g
Packaging content
Manual	Y
AC adapter included	Y
Cables included	Thunderbolt
