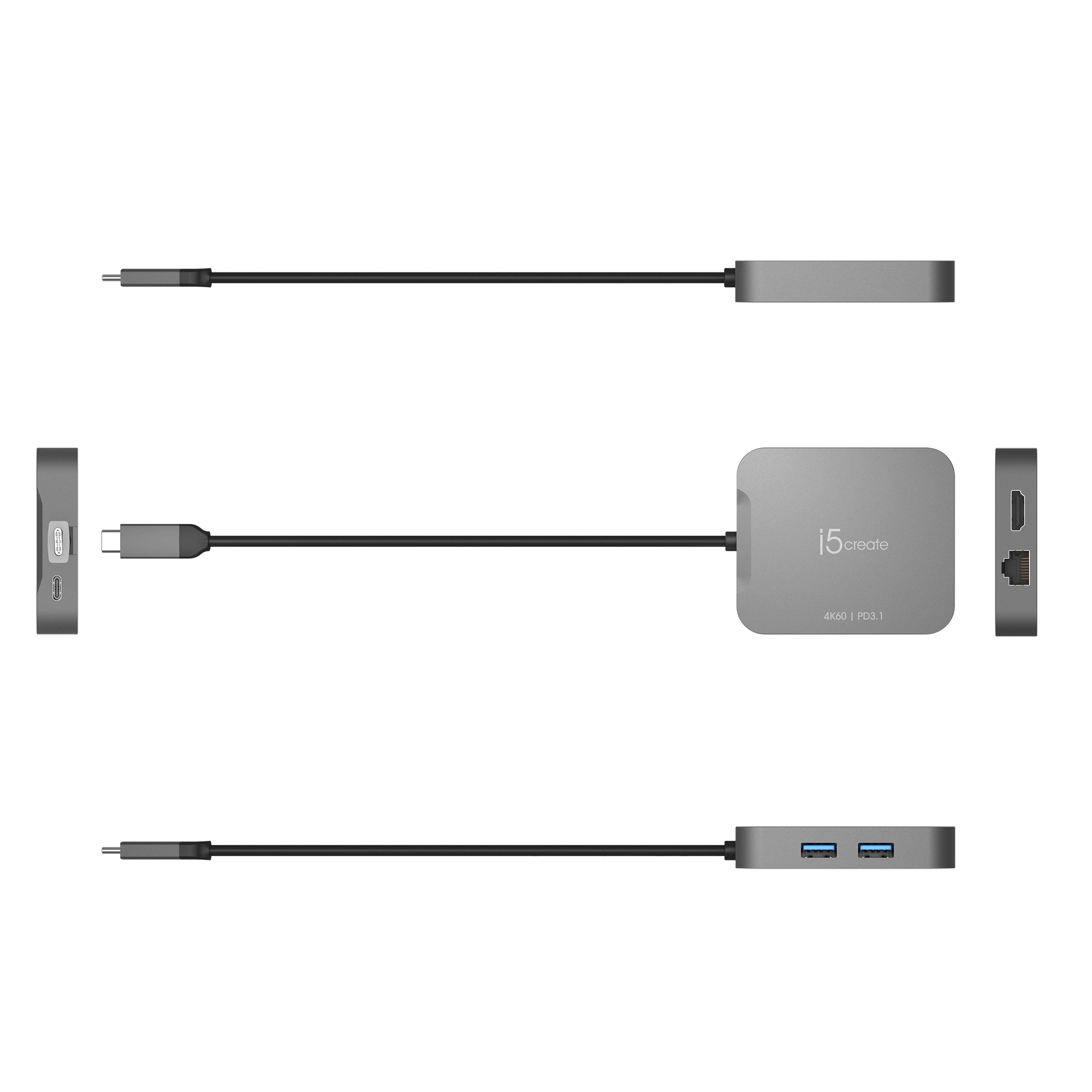

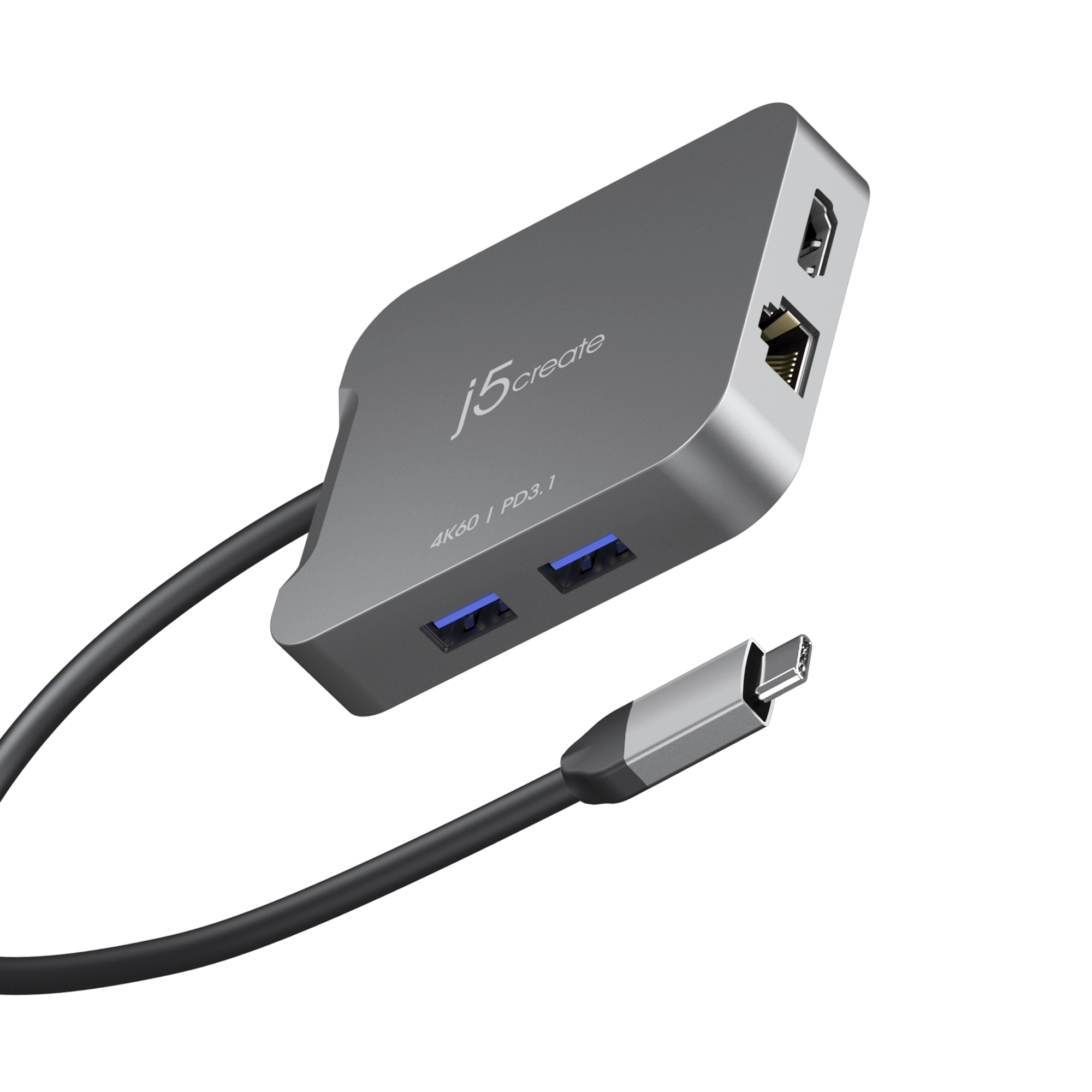

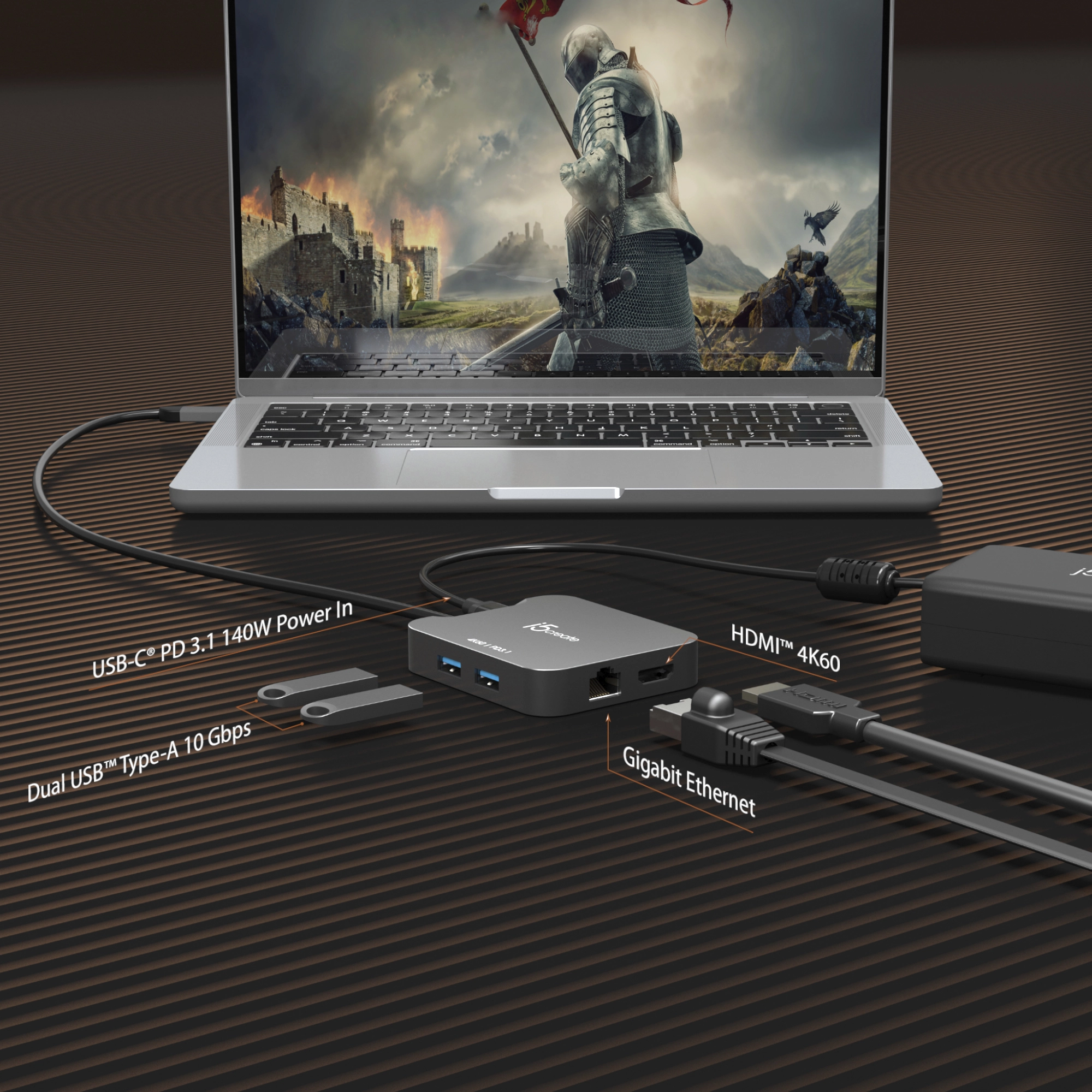

This compact multi-port adapter is ideal for travel, featuring everything from the essential HDMI™ output, USB™ ports to Gigabit Ethernet and 140W Power Delivery passthrough. It gives you the ability to connect your Chromebook™, MacBook®, or other USB-C® compatible laptops to a 4K monitor or TV with 60 Hz refresh rate and audio. With USB™ Power Delivery 3.1, you can charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. In addition, you can connect or charge your USB™ devices via the SuperSpeed USB™ 10Gbps ports and access a wired network through the Gigabit Ethernet port. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Specification

Product
Product id	990458
Brand	j5create
Partnr	JCD3191-N
EAN/UPC code	4712795087659
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
HDMI ports quantity	1
Microphone in	N
Combo headphone/mic port	N
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey
Card reader integrated	N
Colour name	Space Grey
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	1
Maximum refresh rate	240 Hz
Housing material	Aluminium
Plug and Play	Y
Country of origin	Taiwan
Power
Input current	5 A
Output current	4.64 A
Output voltage	28 V
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Sustainability
Sustainability compliance	Y
Weight & dimensions
Width	66.5 mm
Depth	77.5 mm
Height	14.7 mm
Weight	71.5 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	190 mm
Package depth	85 mm
Package height	17.5 mm
Package weight	130 g
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795087653
Warranty period	2 jaar
Compliance certificates	CE, REACH, RoHS
Logistics data
Quantity per shipping (inner) case	6 stuk(s)
Master (outer) case net weight	2000 g
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	115 mm
Master (outer) case length	256 mm
Master (outer) case width	225 mm
Quantity per master (outer) case	12 stuk(s)
Shipping (inner) case width	125 mm
Shipping (inner) case length	215 mm
Shipping (inner) case height	92 mm
Shipping (inner) case net weight	900 g
Other features
Cable length	0.2 m
