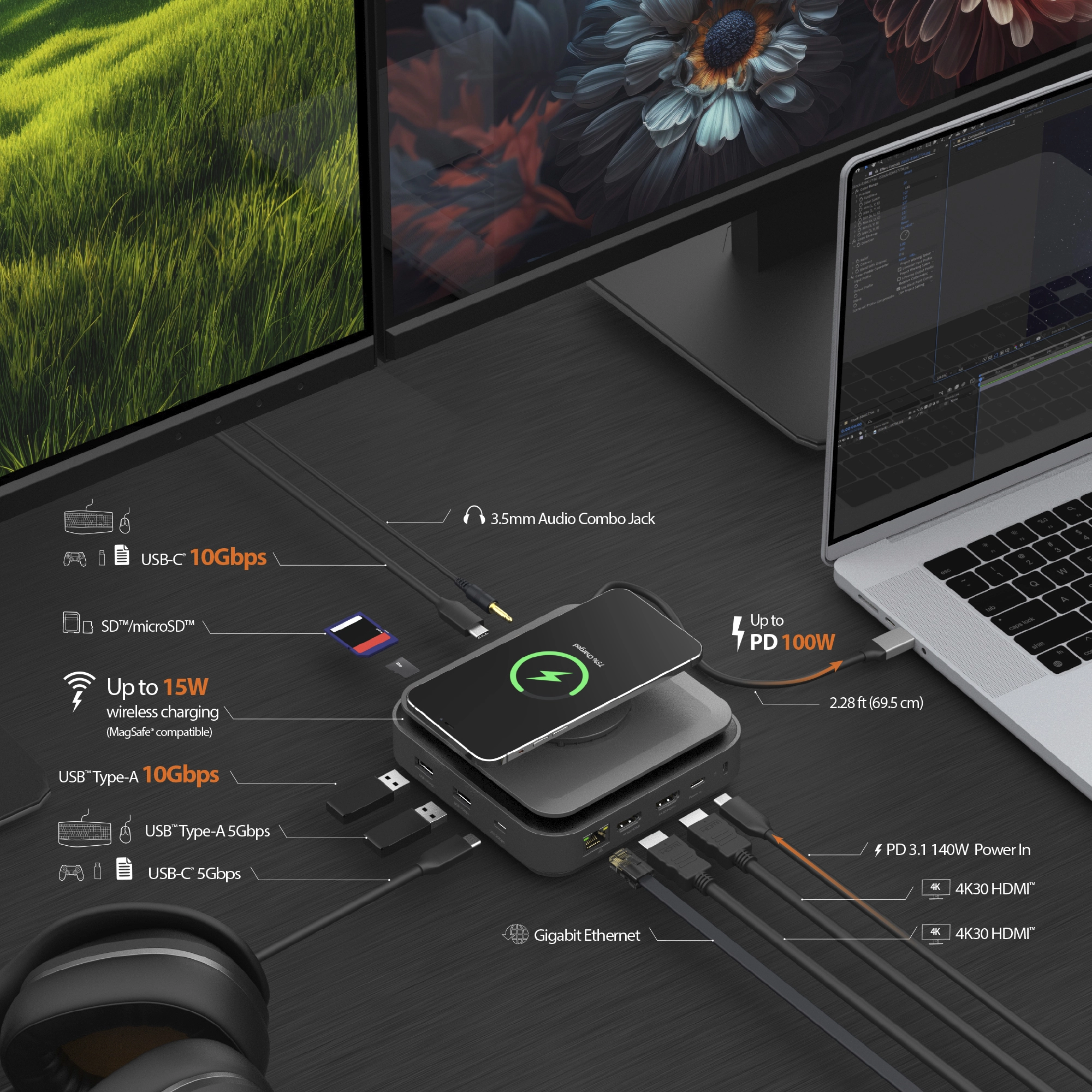

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging and is also compatible with MagSafe®. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Specification

Product
Product id	990409
Brand	j5create
Partnr	JCD3199P-FN
EAN/UPC code	4712795088540
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
HDMI ports quantity	2
HDMI version	2.1
Microphone in	Y
Combo headphone/mic port	Y
Headphone outputs	1
Network

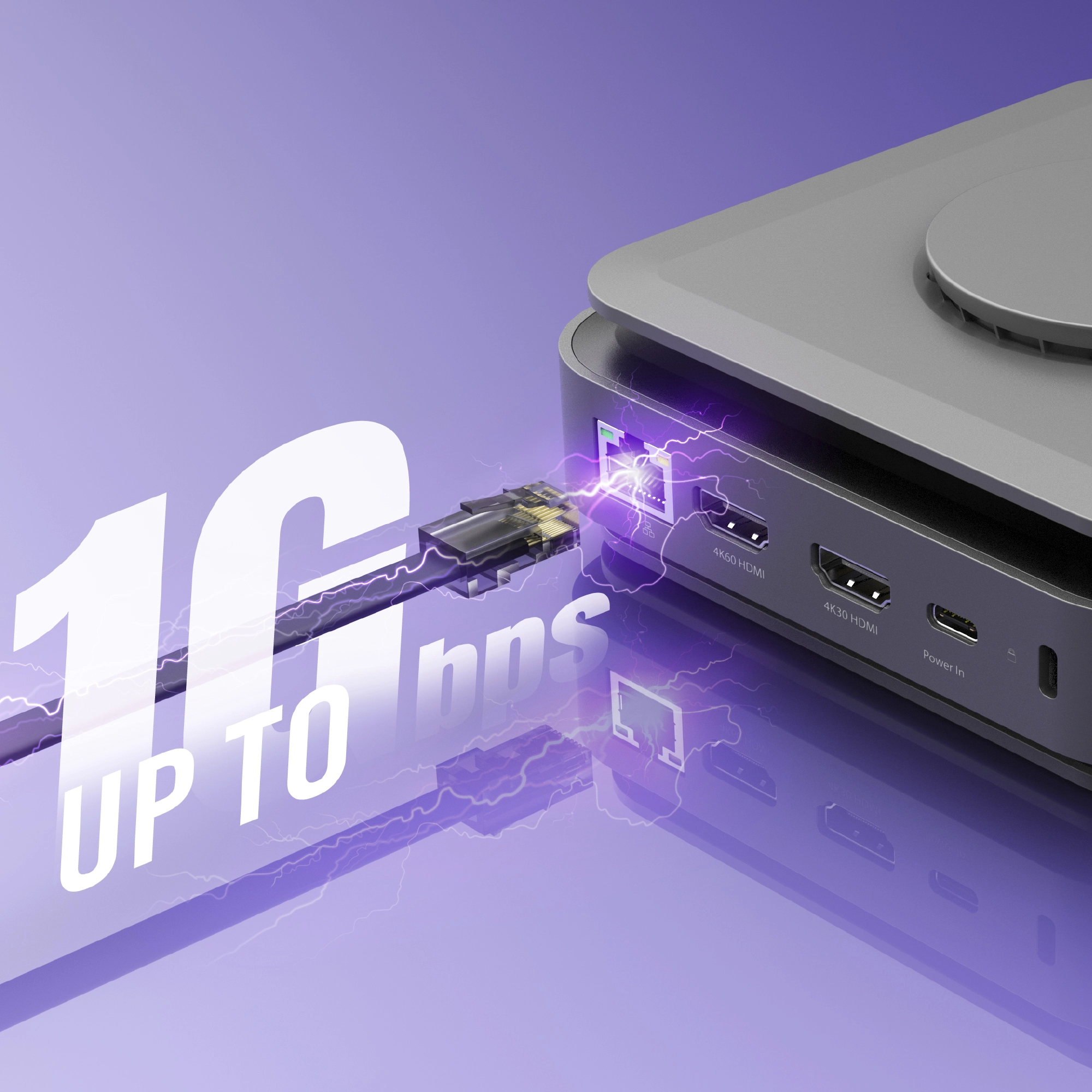

Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey
Card reader integrated	Y
Colour name	Space Grey
Compatible memory cards	MicroSD (TransFlash), SD

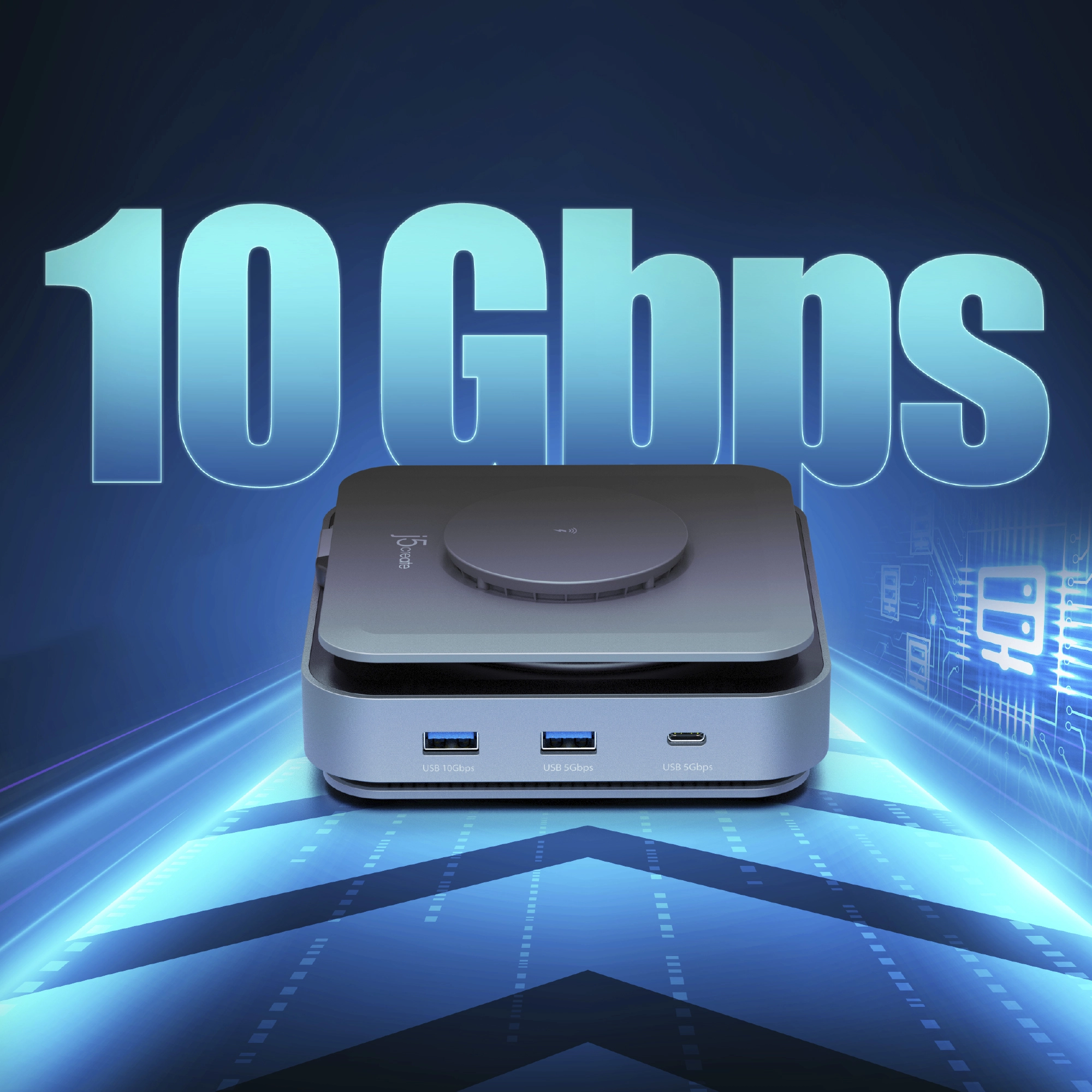

Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	2
Cable lock slot	Y
Maximum refresh rate	60 Hz
Display modes	Extended, Mirror
Housing material	Aluminium, Plastic
Country of origin	Taiwan
Power
Power source type	USB
Power connector	USB Type-C
Input current	5 A
Output current	5 A
Output voltage	20 V
Compatible power plug types	UK
Wireless charging	Y
Wireless charging power	15 W
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Sustainability
Sustainability compliance	Y
Weight & dimensions
Depth	180 mm
Weight	877 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	154 mm
Package depth	175 mm
Package height	103 mm
Package weight	1013 g
Packaging content
AC adapter included	Y
Cables included	AC
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795088575
Warranty period	2 jaar
Compliance certificates	CE, REACH, RoHS
Logistics data
Master (outer) case net weight	2400 g
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	174 mm
Master (outer) case length	249 mm
Master (outer) case width	186 mm
Quantity per master (outer) case	2 stuk(s)
Other features
Cable length	0.695 m
