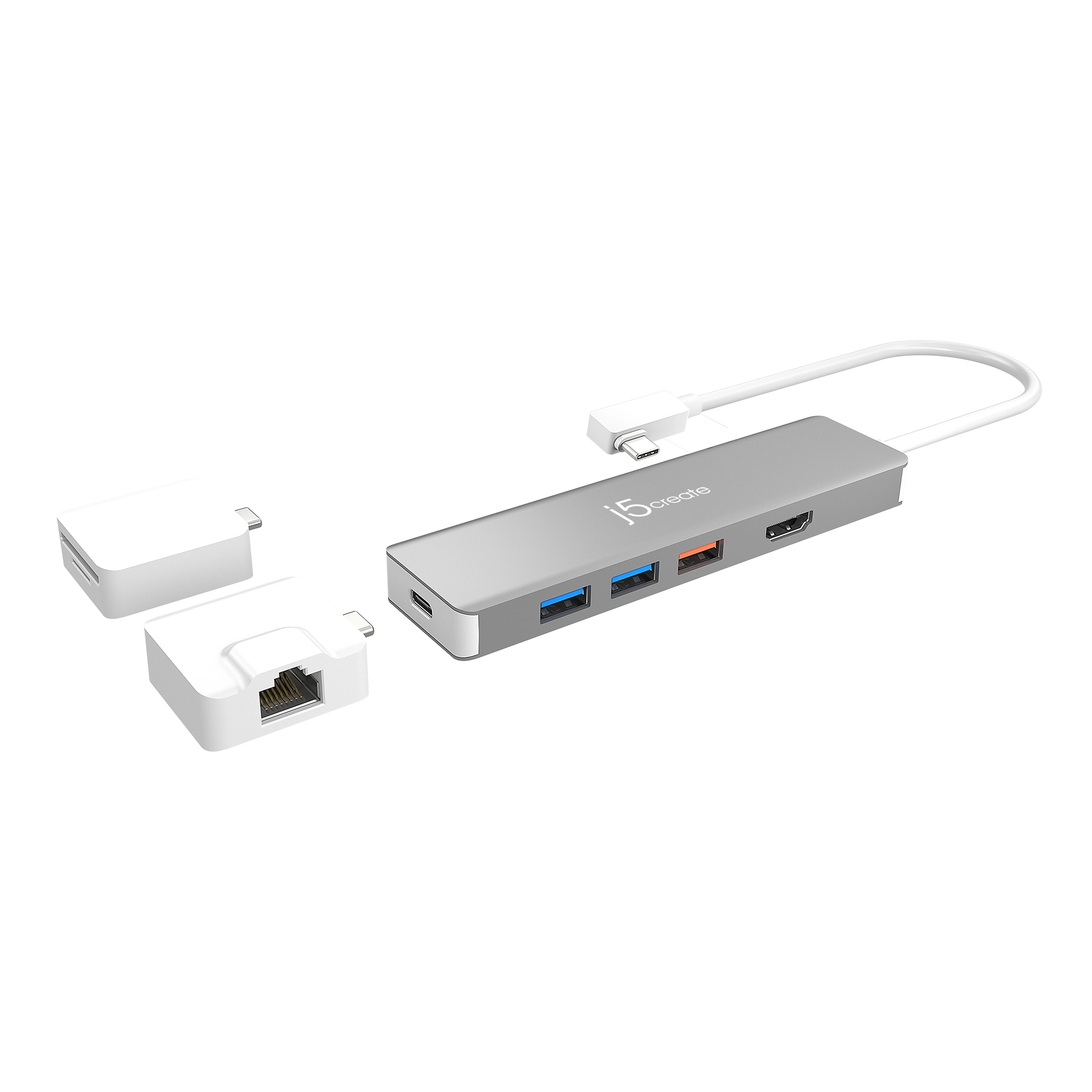

The JCD375 USB-C™ Modular Mini Dock 9-in-1 provides extra connectivity for your USB-C™ computer; featuring video, data storage and charging all in one. It includes 2 small detachable adapters (modular kits) to add extra ports and features to your laptop.

This pocket-sized multi-adapter allows you to add an additional USB™ 10G computer peripheral and HDMI™ monitor through your computer’s USB-C™ port. It also provides two modular kits that add a gigabit Ethernet port and/or an SD™ 4.0 card reader. Each kit can work separately as a complete mini adapter or be connected to the main body for use together.

Specification

Product
Product id	990350
Brand	j5create
Partnr	JCD375-N
EAN/UPC code	4712795084924
Warranty (months)	2 year manufacturer warranty
Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	1
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Silver, White
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Number of displays supported	1
Maximum refresh rate	30 Hz
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Plug and Play	Y
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Country of origin	Taiwan
Power
Power supply type	USB
Output current	0.5 A
Output voltage	20 V
Power consumption (typical)	2.25 W
Software
Windows operating systems supported	Windows 10
Mac operating systems supported	Y
Weight & dimensions
Width	32.6 mm
Depth	12.2 mm
Height	126.5 mm
Weight	92 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	187 g
Packaging content
Quick start guide	Y
Packaging content	1 x JCD375 Ultradrive Kit USB-C™ Modular Mini Dock 9-in-1, 2 x modular kits, 1 x Quick Installation Guide
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795084928
Warranty period	2 jaar
Box contents	1 x JCD375 Ultradrive Kit USB-C™ Modular Mini Dock 9-in-1, 2 x modular kits, 1 x Quick Installation Guide
Logistics data
Quantity per shipping (inner) case	6 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	4540 g
Master (outer) case height	190 mm
Master (outer) case length	445 mm
Master (outer) case width	226 mm
Quantity per master (outer) case	18 stuk(s)
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Other features
Compatible operating systems	Microsoft® Windows® 10 MacOS® 10.11 or later
Maximum operating temperature	40 °C
Cable length	0.125 m
Technical features	Modular Design, 5 Combinations with 2 Adapters, USB-C™ Power Delivery 100W Pass-through
