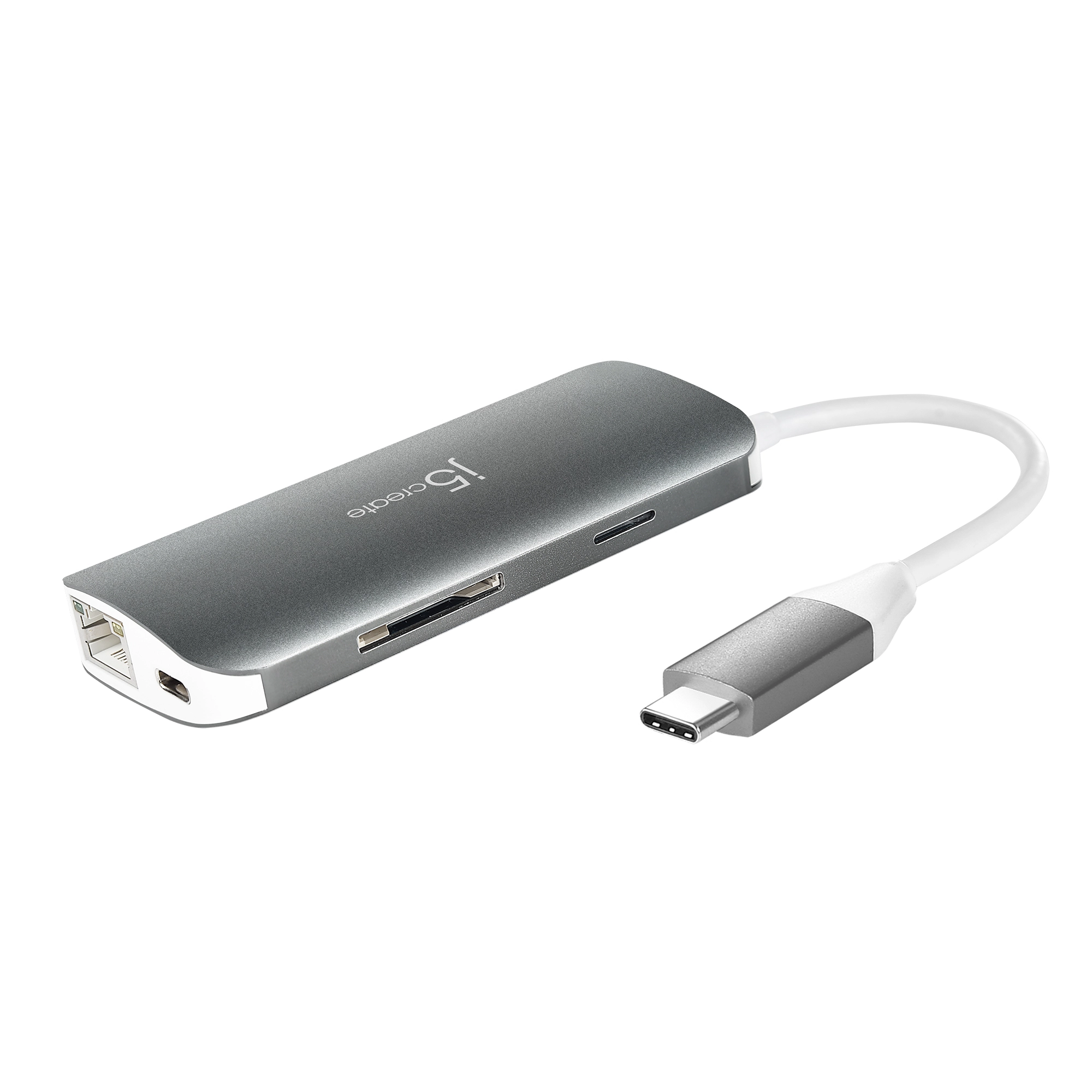

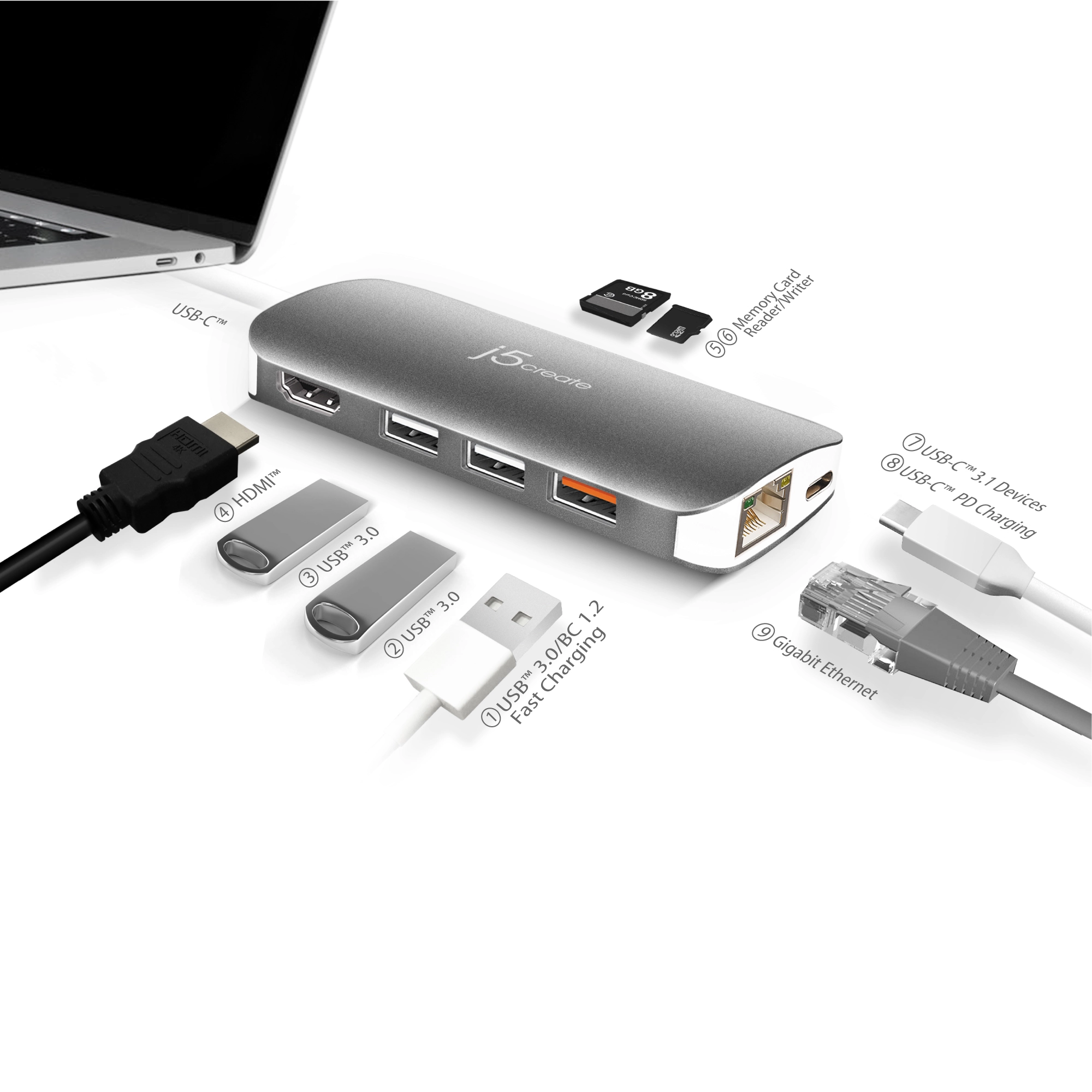

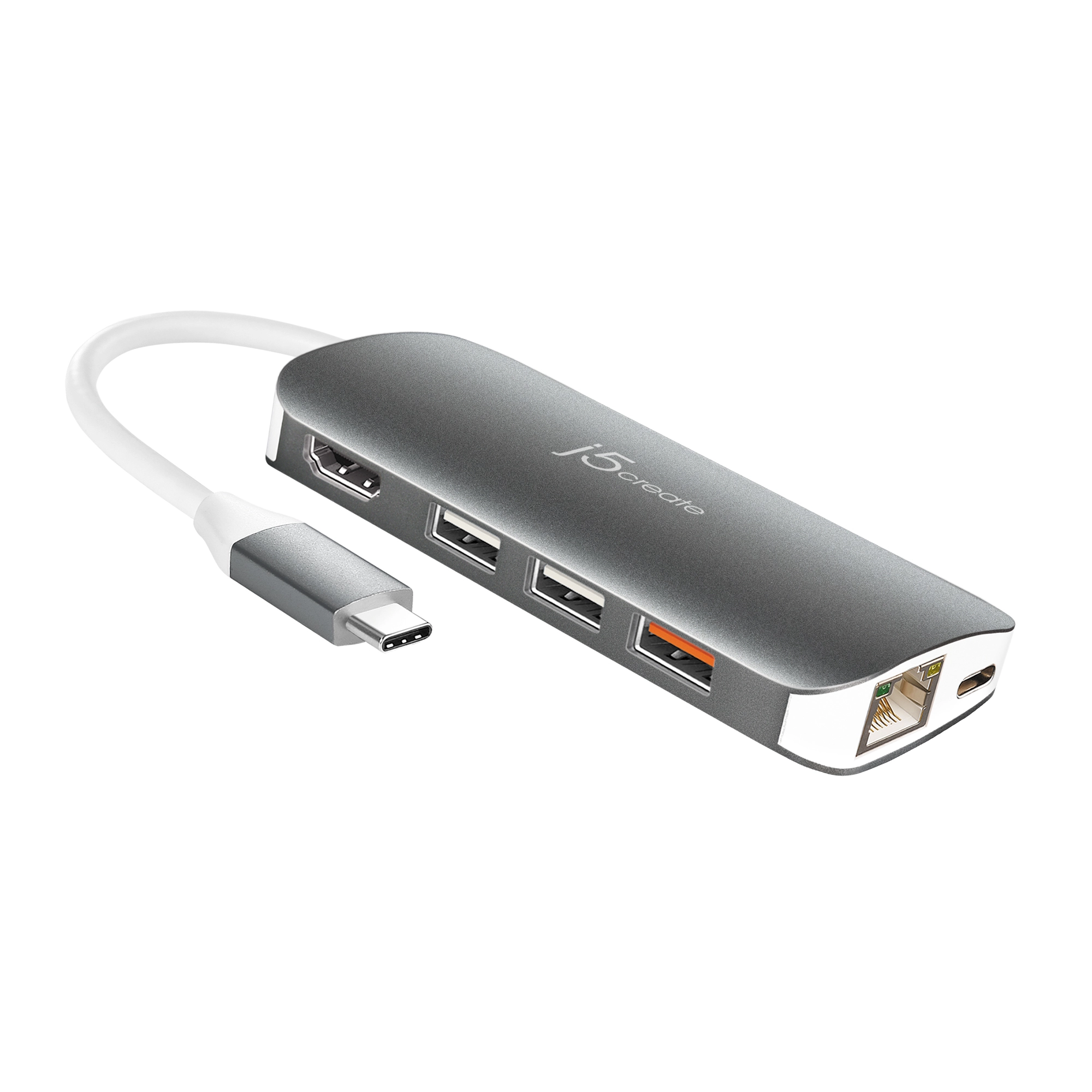

This pocket-sized multi-adapter provides all the ports you need for maximum productivity. It has 9 functions in 1 sleek adapter. It allows you to connect your laptop to a 4K monitor. It also connects to an ultrawide monitor. The USB-C™ multi-adapter gives you 2 USB™ Type-A ports for additional peripherals and 1 USB™ Type-A port with BC 1.2 to fast-charge your mobile device.

With USB-C® Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C® power adapter. It also provides direct access to a wired network and to your SD™ & microSD™ memory cards.

The JCD383 is perfect for small workspaces, home offices and for on-the-go!

Specification

Product
Product id	990340
Brand	j5create
Partnr	JCD383-N
EAN/UPC code	4712795081909
Warranty (months)	2 year manufacturer warranty
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Silver, White
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
Housing material	Aluminium
Plug and Play	Y
Hub interfaces	HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Country of origin	Taiwan
Power
Power supply	2.4 W
Output current	0.49 A
Output voltage	5.06 V
Software
Windows operating systems supported	Windows 10
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, MacOS, Y
Weight & dimensions
Width	50 mm
Depth	16.5 mm
Height	105 mm
Weight	77 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package weight	126 g
Packaging content
Quick start guide	Y
Packaging content	1 x JCD383 USB-C™ 9-in-1 Multi Adapter, 1 x Quick Installation Guide
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795081903
Warranty period	2 jaar
Box contents	1 x JCD383 USB-C™ 9-in-1 Multi Adapter, 1 x Quick Installation Guide
Logistics data
Quantity per shipping (inner) case	5 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	3130 g
Master (outer) case height	180 mm
Master (outer) case length	321 mm
Master (outer) case width	225 mm
Quantity per master (outer) case	20 stuk(s)
Shipping (inner) case width	105 mm
Shipping (inner) case length	150 mm
Shipping (inner) case height	160 mm
Other features
Maximum operating temperature	40 °C
Cable length	0.137 m
