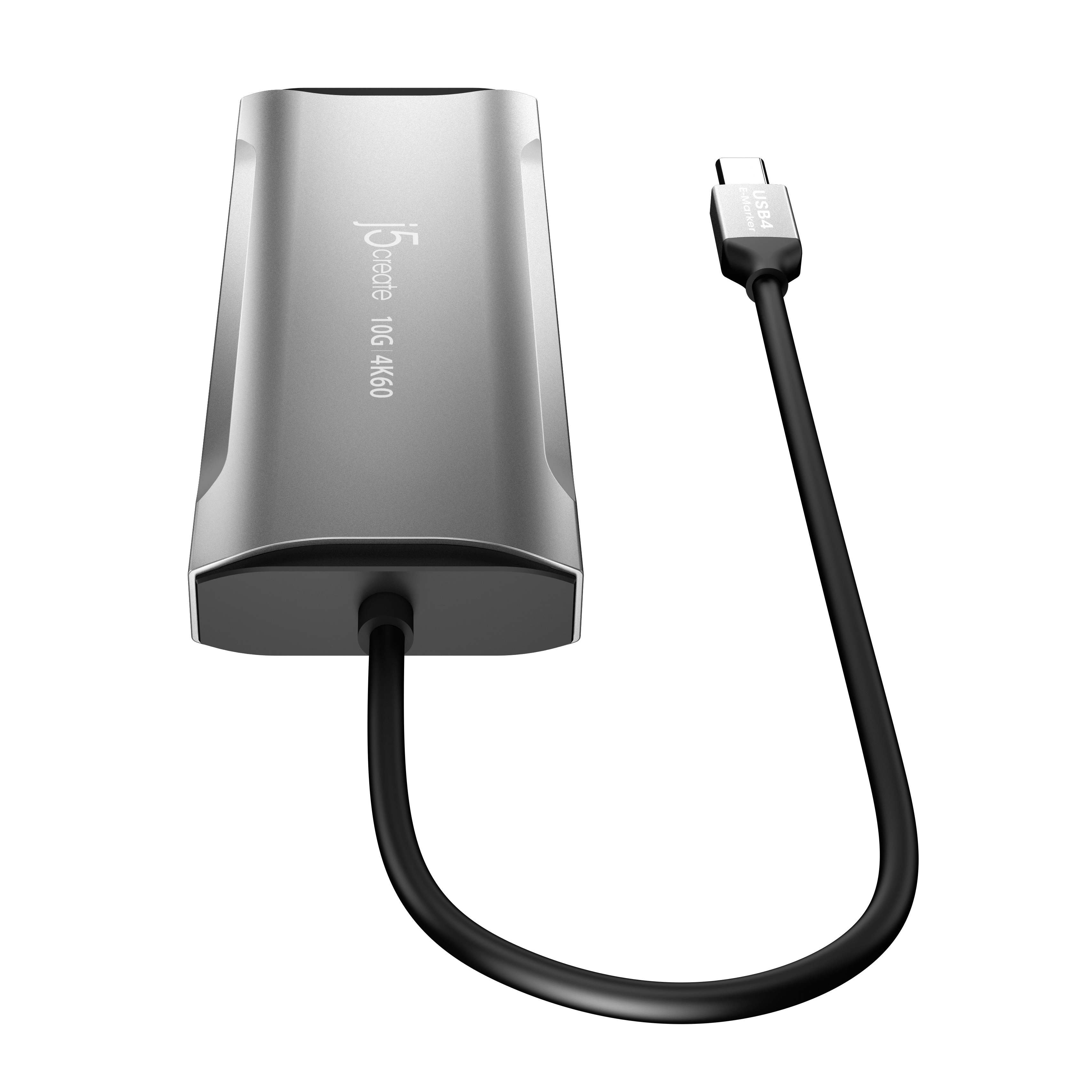

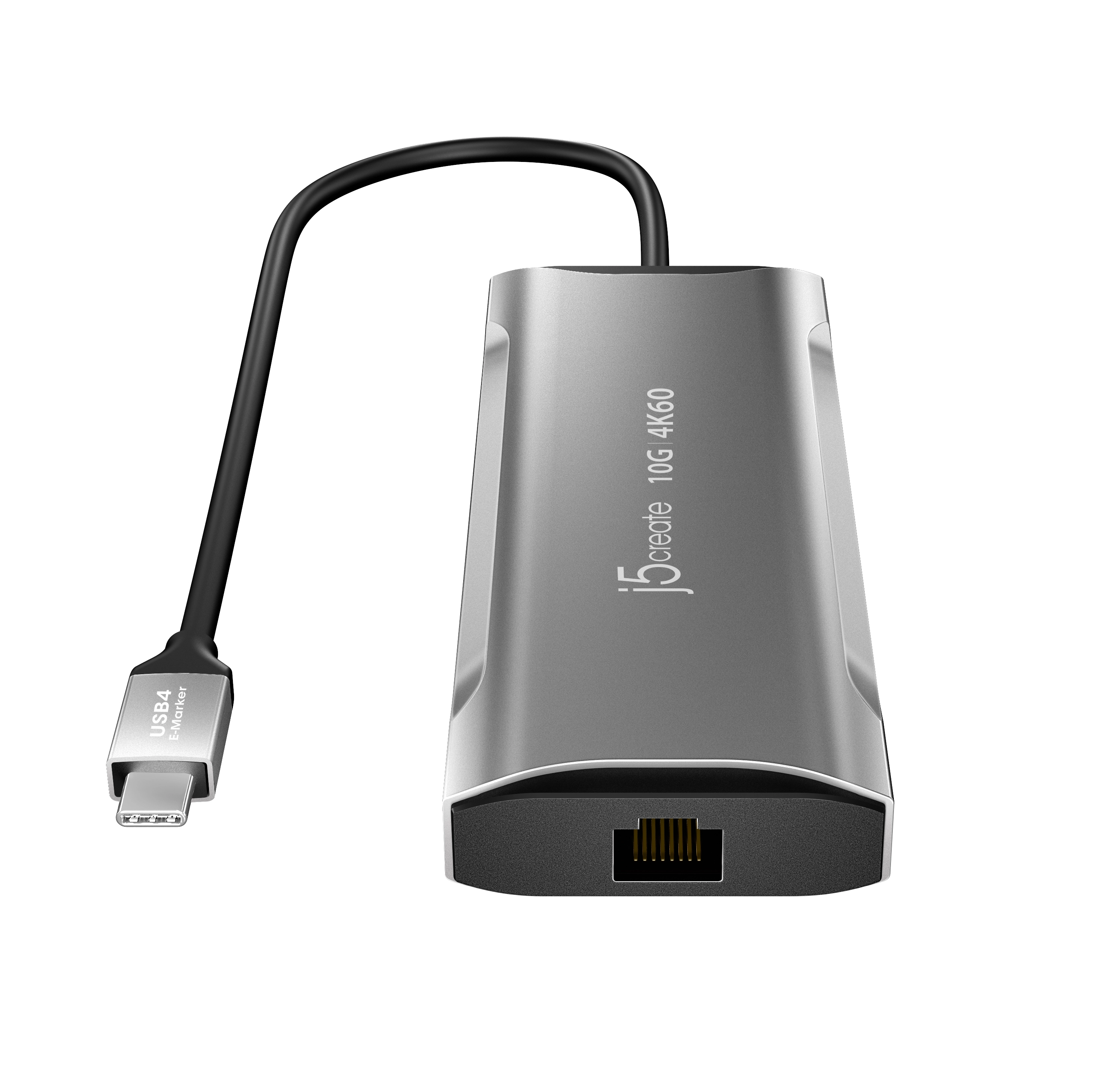

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Travel Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.

It supports DisplayPort™ 1.4 allowing you to add a 4K 60Hz HDMI™ display and has a Gigabit Ethernet port for adding a wired network. It includes three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging. The USB-C® port also offers up to 100W of power pass-through when connected to a power adapter.

Specification

Product
Product id	990427
Brand	j5create
Partnr	JCD392-N
EAN/UPC code	4712795086331
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	1
Microphone in	N
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey
Card reader integrated	N
Colour name	Space Grey
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Maximum refresh rate	144 Hz
Compatibility	Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Housing material	Aluminium
Charging function	Y
Plug and Play	Y
Country of origin	Taiwan
Power
Power source type	USB
Power connector	USB Type-C
AC input voltage	20 V
Output current	0.38 A
Output voltage	20 V
Power consumption (typical)	1.96 W
USB cable length	0.15 m
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Weight & dimensions
Width	110 mm
Depth	47 mm
Height	16 mm
Weight	100 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	145 mm
Package depth	95 mm
Package height	25 mm
Package weight	160 g
Packaging content
Manual	Y
Quick start guide	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795086335
Warranty period	2 jaar
Logistics data
Quantity per shipping (inner) case	5 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	3800 g
Master (outer) case height	180 mm
Master (outer) case length	321 mm
Master (outer) case width	225 mm
Quantity per master (outer) case	20 stuk(s)
Shipping (inner) case width	105 mm
Shipping (inner) case length	150 mm
Shipping (inner) case height	160 mm
Shipping (inner) case net weight	870 g
Other features
Special features	Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
