Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.

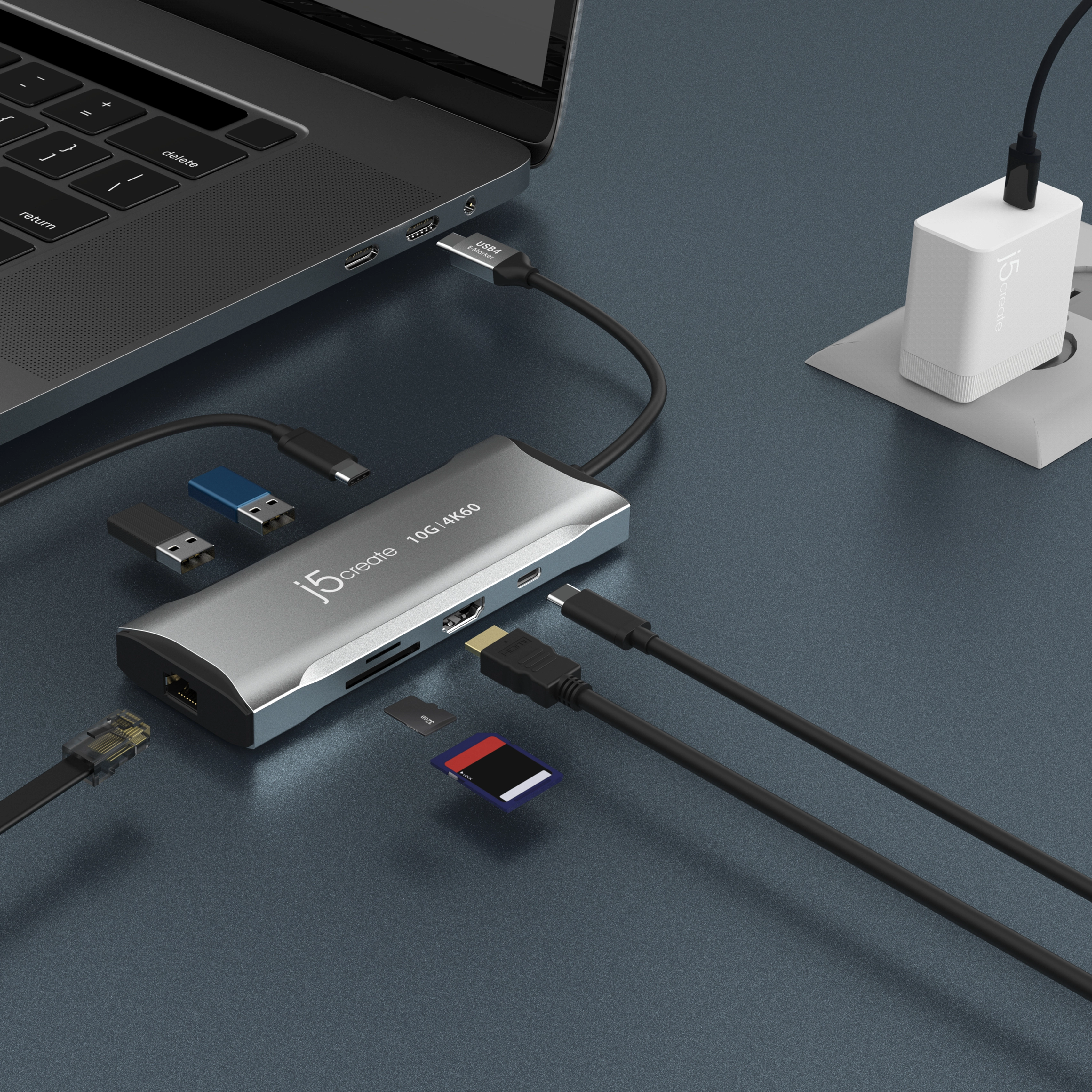

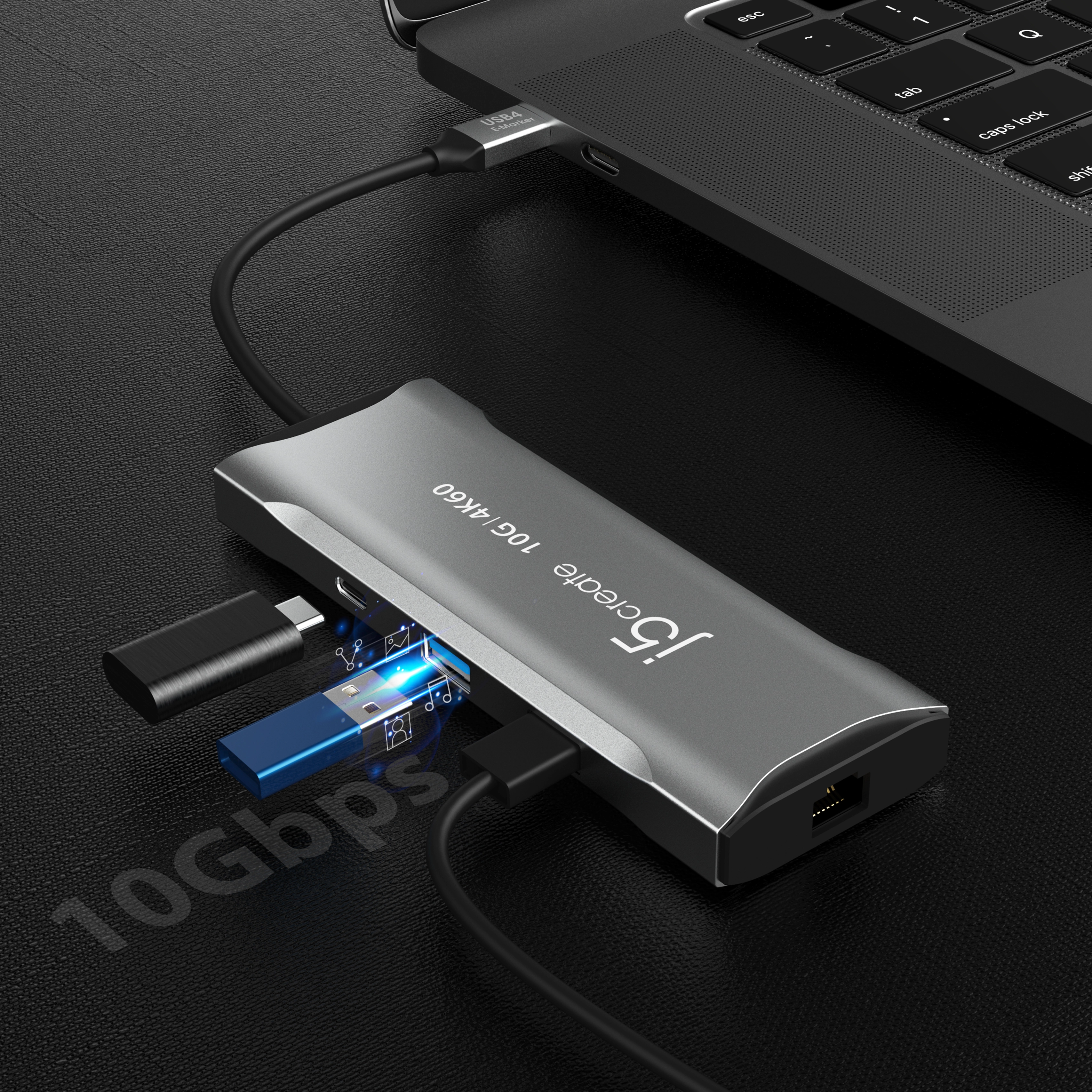

This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.

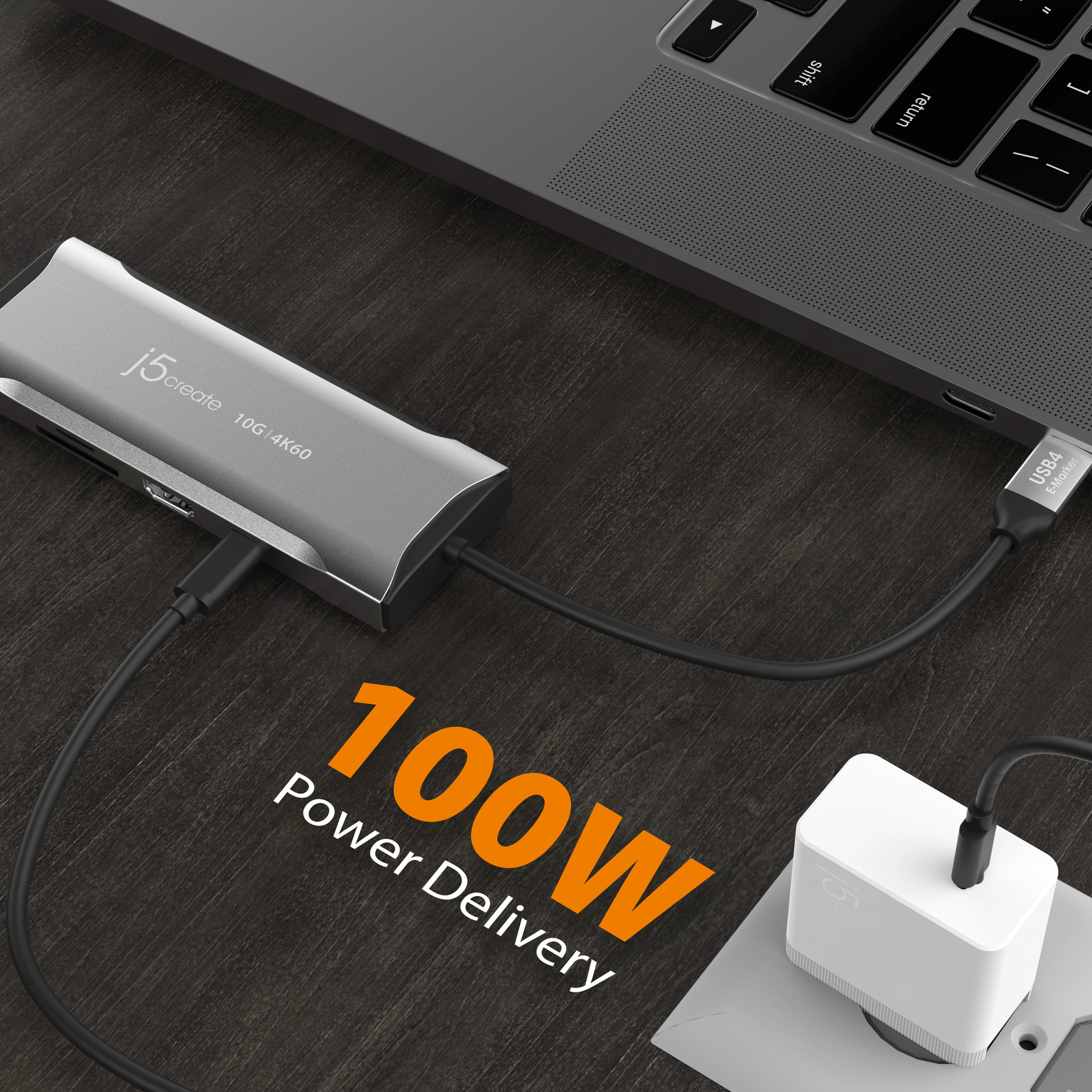

The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Specification

Product
Product id	990419
Brand	j5create
Partnr	JCD393-N
EAN/UPC code	4712795086263
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	2.0
Microphone in	N
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey
Card reader integrated	Y
Colour name	Space Grey
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	1
Maximum refresh rate	144 Hz
Compatibility	Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Display modes	Extended, Mirror, Primary display
Housing material	Aluminium
Charging function	Y
Plug and Play	Y
Country of origin	Taiwan
Power
Power source type	USB
Power connector	USB Type-C
Output current	0.69 A
Output voltage	5 V
Power consumption (typical)	3.48 W
USB cable length	0.2 m
Software
Windows operating systems supported	Y
Mac operating systems supported	Y

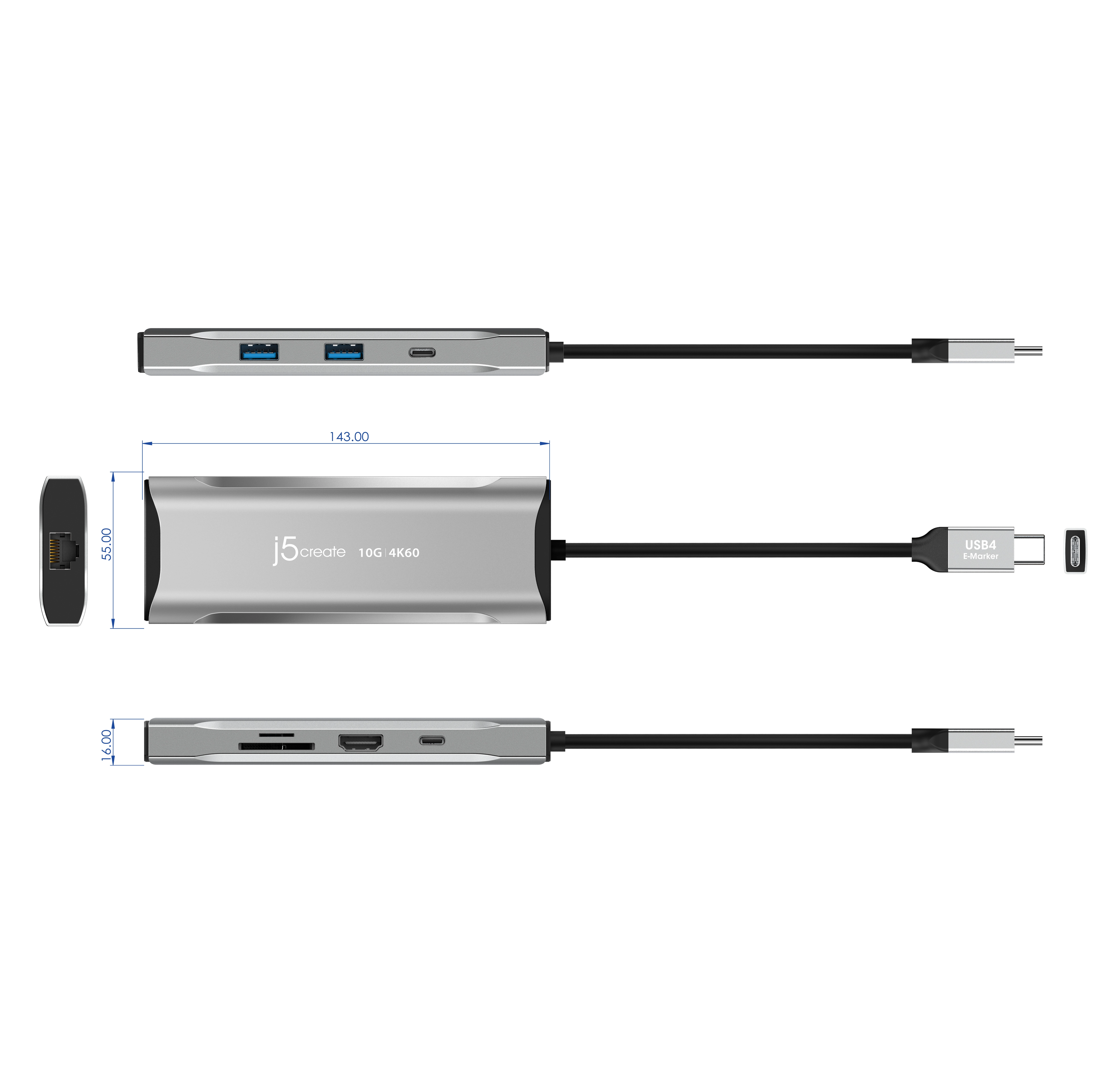

Weight & dimensions
Width	138 mm
Depth	50 mm
Height	16 mm
Weight	104 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	164 g
Packaging content
Manual	Y
Quick start guide	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795086267
Warranty period	2 jaar
Logistics data
Quantity per shipping (inner) case	6 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	4060 g
Master (outer) case height	190 mm
Master (outer) case length	445 mm
Master (outer) case width	226 mm
Quantity per master (outer) case	18 stuk(s)
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Shipping (inner) case net weight	1140 g
Other features
Special features	Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
