The 4K60 Elite Pro USB4® Hub with MagSafe® Kit expands your computer’s connectivity. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen 2 ports and one USB-C® port. Data transfer is quick and easy with the included Gigabit Ethernet port to access a wired network. Transfer files from one media to another with the 10Gbps USB™ connections. You can use the HDMI™ port to connect to a 4K UHD HDTV, monitor, or projector.

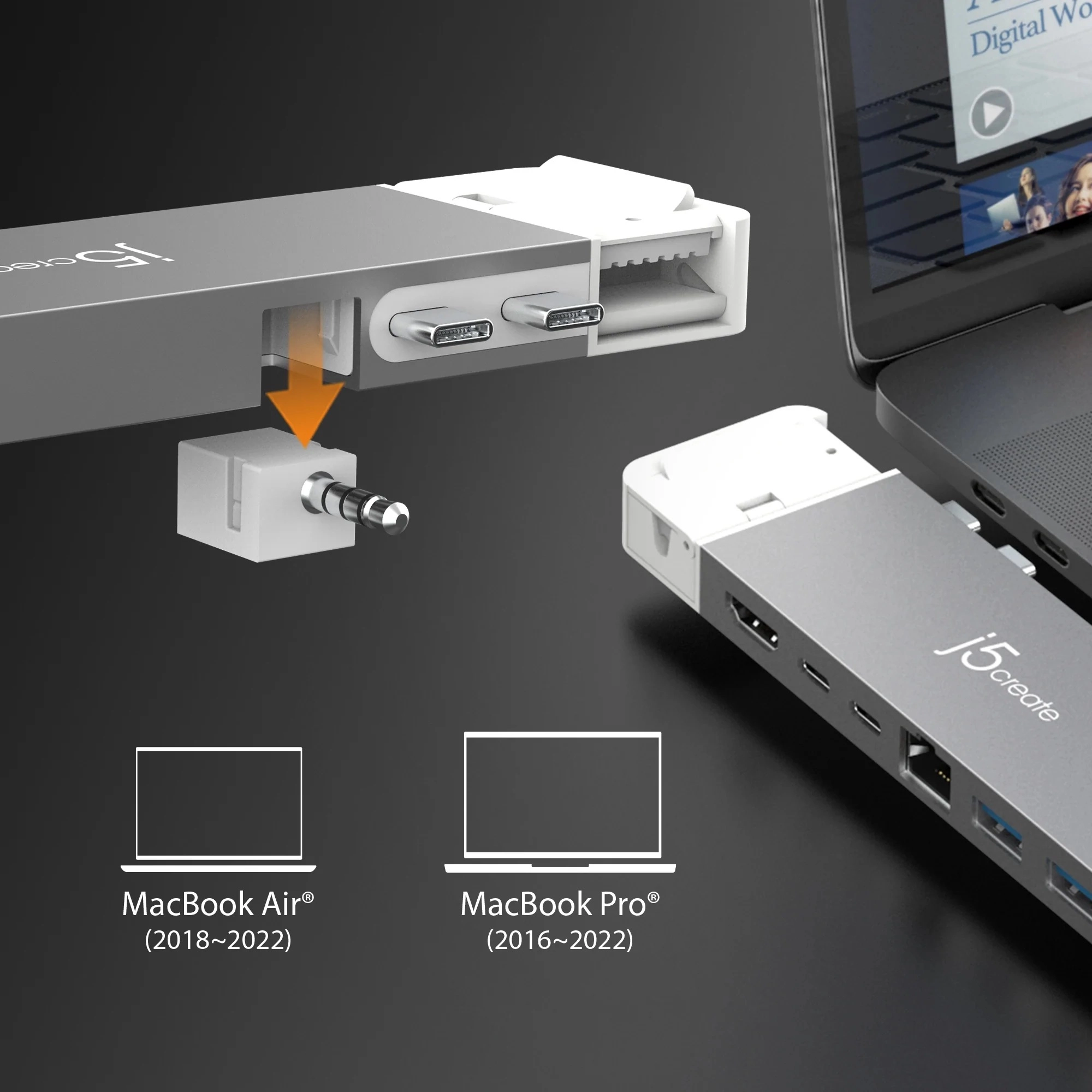

Equipped with a USB4® port it provides 6K60 resolution, 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected. You can connect your headphones or speakers to the audio/mic combo jack. The MagSafe® dongle is a convenient way to store your original MacBook® MagSafe® charger. For Intel® MacBook® models, the audio/mic combo jack may be removed.

Specification

Product
Product id	990386
Brand	j5create
Partnr	JCD395-N
EAN/UPC code	4712795086898
Warranty (months)	2 Year Limited
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 ports quantity	1
USB Power Delivery	Y
USB Power Delivery up to	100 W
HDMI ports quantity	1
Microphone in	Y
Combo headphone/mic port	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey, White
Card reader integrated	N
Colour name	Space Grey / White
Number of displays supported	2
Maximum refresh rate	60 Hz
Compatibility	MacBook Pro® with USB-C® ports Perfect for MacBook Pro® 2021 or later / MacBook Air® M2
Display modes	Extended, Mirror, Primary display
Plug and Play	Y
Country of origin	Taiwan
Hub weight	74 g
Power
Input current	5 A
Output current	5 A
Output voltage	20 V
Weight & dimensions
Width	139 mm
Depth	52 mm
Height	16 mm
Weight	74 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	155 mm
Package depth	95 mm
Package height	25 mm
Package weight	141 g
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Warranty period	2 jaar
Logistics data
Quantity per shipping (inner) case	8 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	4900 g
Master (outer) case height	190 mm
Master (outer) case length	435 mm
Master (outer) case width	230 mm
Quantity per master (outer) case	32 stuk(s)
Shipping (inner) case width	103 mm
Shipping (inner) case length	218 mm
Shipping (inner) case height	165 mm
Other features
Special features	1 x USB4® port capable of the following: 1) 6K60 resolution display 2) 40Gbps data transmission 3) PD charging through up to 100W Max Display Resolution USB4®: 6016 x 3384 HDMI™: 3840 x 2160

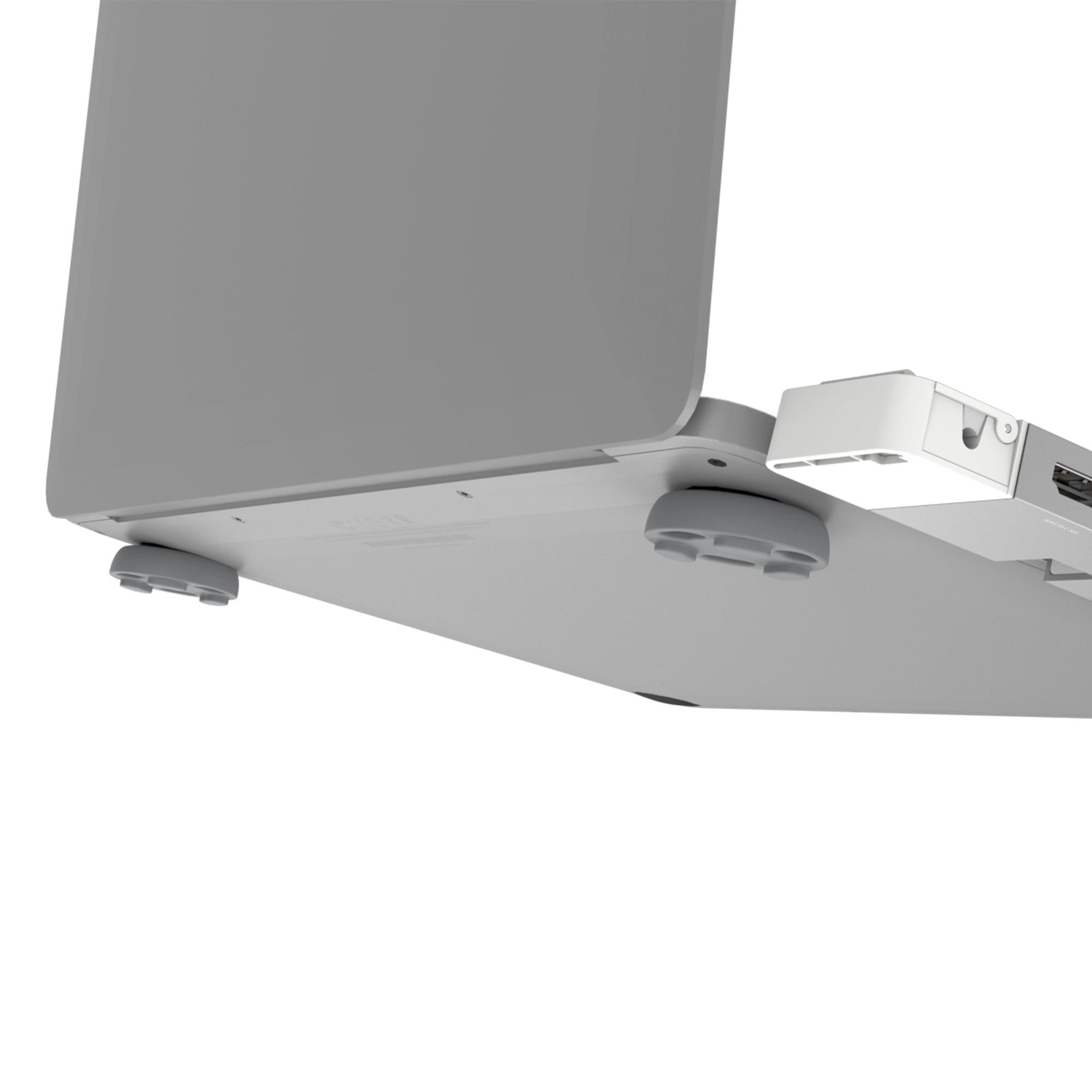

Contents	1 - 4K60 Elite Pro USB4® Hub with MagSafe® Kit (JCD395) 2 - Silicone Pads 1 - Quick Installation Guide (QIG)
