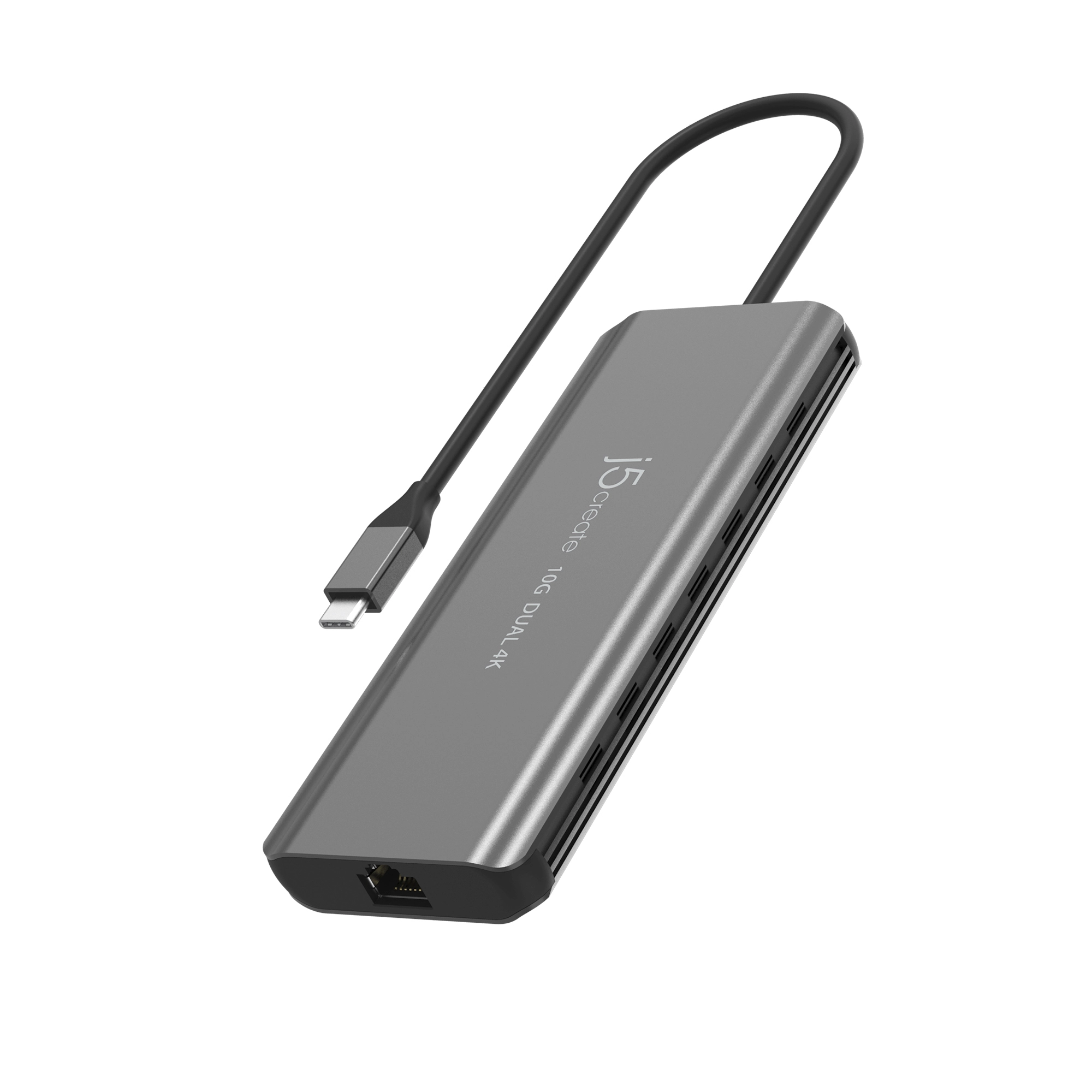

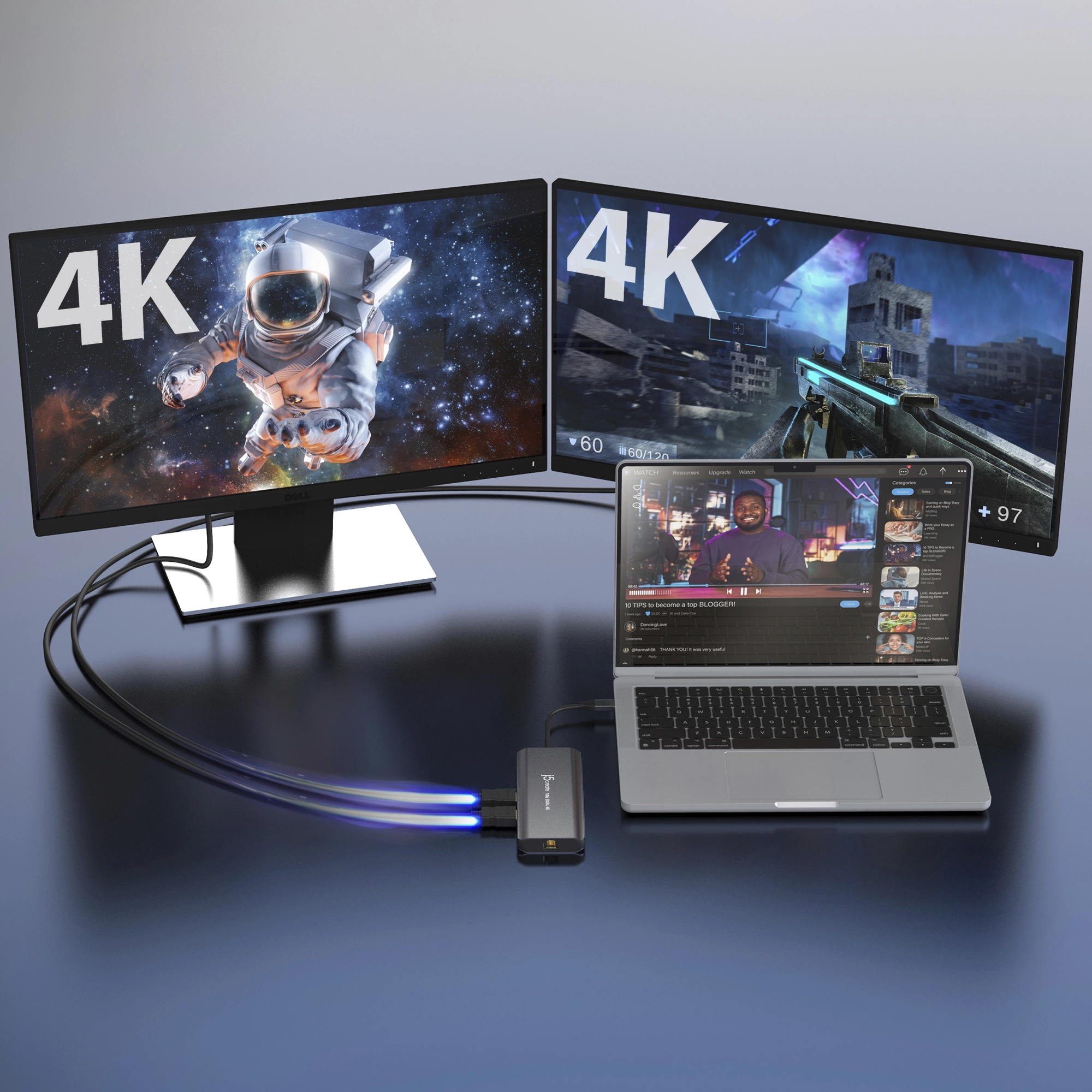

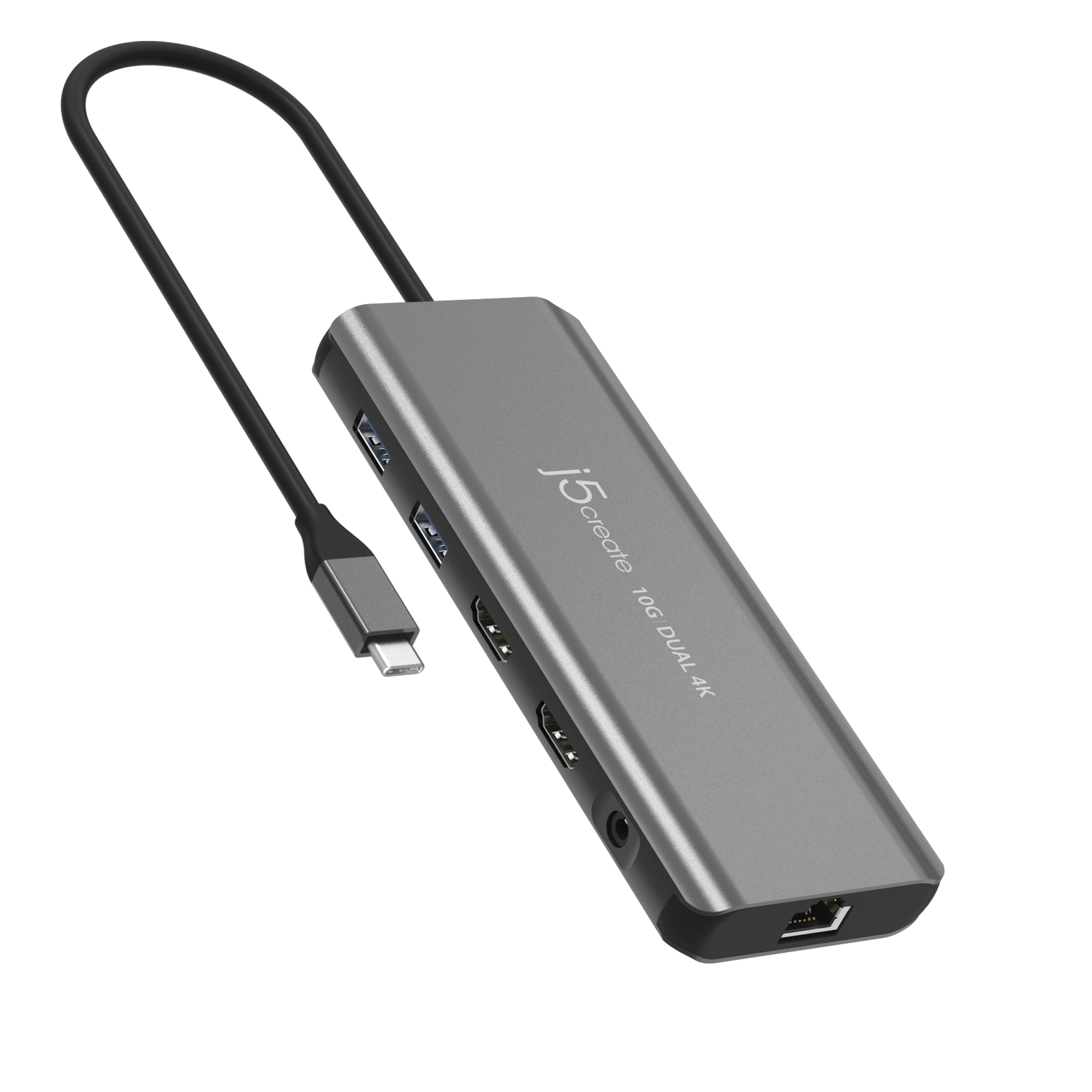

The JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock is great for adding two 4K UHD displays to your laptop PC including MacBook® computers with the Apple® M-Series chip. Its compact size makes it suitable for desk environments that lack space. The USB™ ports support up 10Gbps data transfer rates for connect high speed storage devices and other devices. Supports Power Delivery 3.0 for up to 100W of power passthrough for laptop and tablets. One Gigabit Ethernet port is included for high-speed network connectivity.

Specification

Product
Product id	990415
Brand	j5create
Partnr	JCD398-N
EAN/UPC code	4712795088199
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
Microphone in	Y
Combo headphone/mic port	Y
Headphone outputs	1
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Grey
Colour name	Space Grey
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	2
Maximum refresh rate	144 Hz
Housing material	Aluminium
Country of origin	Taiwan
Power
Input current	5 A
Output current	4.5 A
Output voltage	20 V
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Y
Sustainability
Sustainability compliance	Y
Weight & dimensions
Width	56.98 mm
Depth	147.25 mm
Height	14.85 mm
Weight	113.5 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	191 g
Operational conditions
Operating temperature (T-T)	0 - 37 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795088193
Warranty period	2 jaar
Compliance certificates	CE, REACH, RoHS
Logistics data
Quantity per shipping (inner) case	6 stuk(s)
Master (outer) case net weight	4300 g
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	190 mm
Master (outer) case length	445 mm
Master (outer) case width	226 mm
Quantity per master (outer) case	18 stuk(s)
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Shipping (inner) case net weight	1300 g
Other features
Cable length	0.19212 m
