This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller from Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.

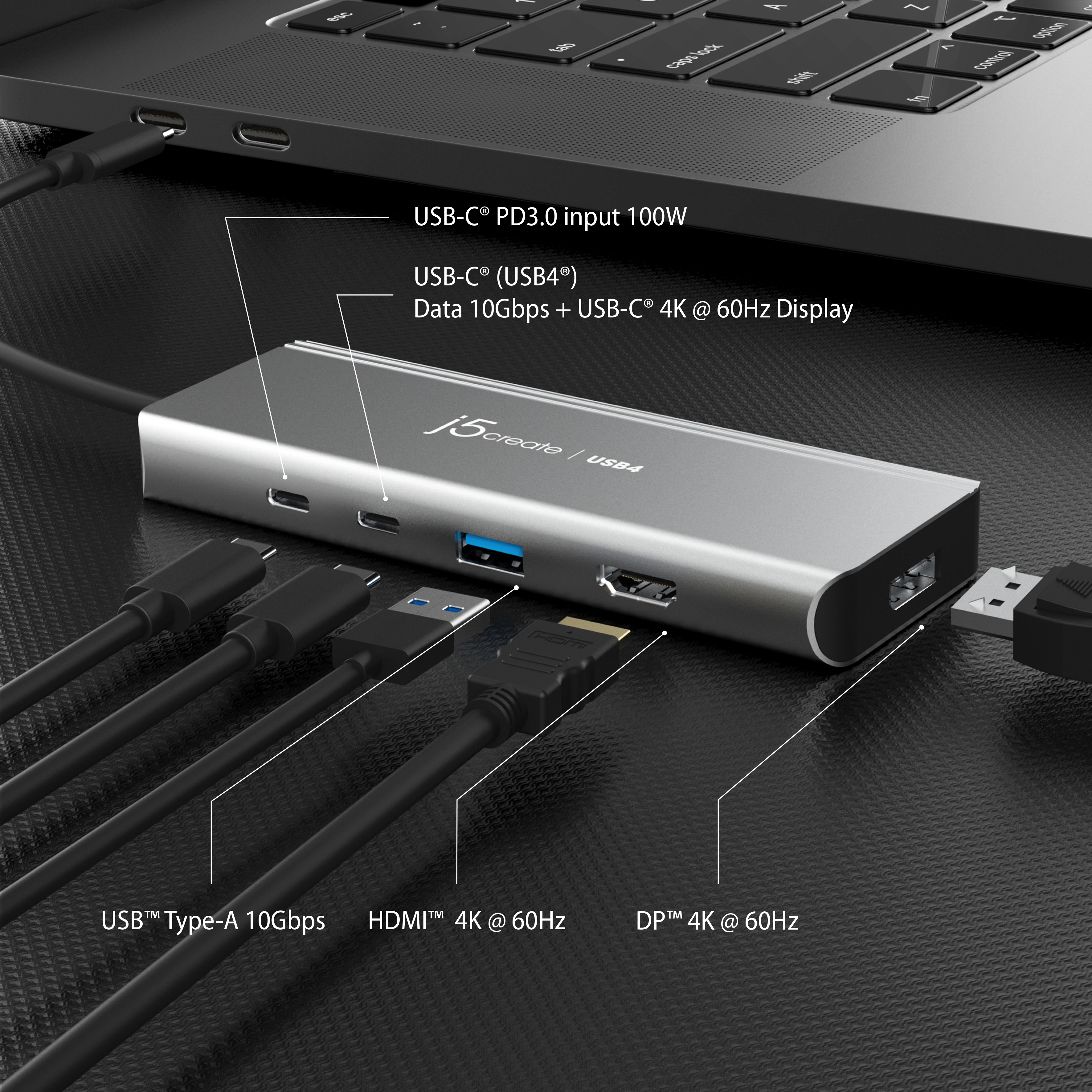

With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.

Specification

Product
Product id	990381
Brand	j5create
Partnr	JCD401-N
EAN/UPC code	4712795086348
Warranty (months)	2 year manufacturer warranty
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB4 ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
HDMI ports quantity	1
DisplayPorts quantity	1
Microphone in	N
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	N
Performance
Product colour	Silver
Card reader integrated	N
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Number of displays supported	2
Maximum refresh rate	60 Hz
Compatibility	Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers
Housing material	Aluminium
Plug and Play	Y
Hub interfaces	DisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort
Country of origin	Taiwan
Power
Power source type	USB
Power connector	USB Type-C
Output current	0.25 A
Output voltage	20 V
Power consumption (typical)	1.25 W
USB cable length	0.2 m
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Weight & dimensions
Width	51 mm
Depth	200 mm
Height	135 mm
Weight	109 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	193 mm
Package depth	125 mm
Package height	22.5 mm
Package weight	177 g
Packaging content
Manual	Y
Quick start guide	Y
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795086342
Warranty period	2 jaar
Logistics data
Quantity per shipping (inner) case	6 stuk(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	4100 g
Master (outer) case height	190 mm
Master (outer) case length	445 mm
Master (outer) case width	226 mm
Quantity per master (outer) case	18 stuk(s)
Shipping (inner) case width	165 mm
Shipping (inner) case length	212 mm
Shipping (inner) case height	137 mm
Shipping (inner) case net weight	1200 g
Other features
Special features	Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
