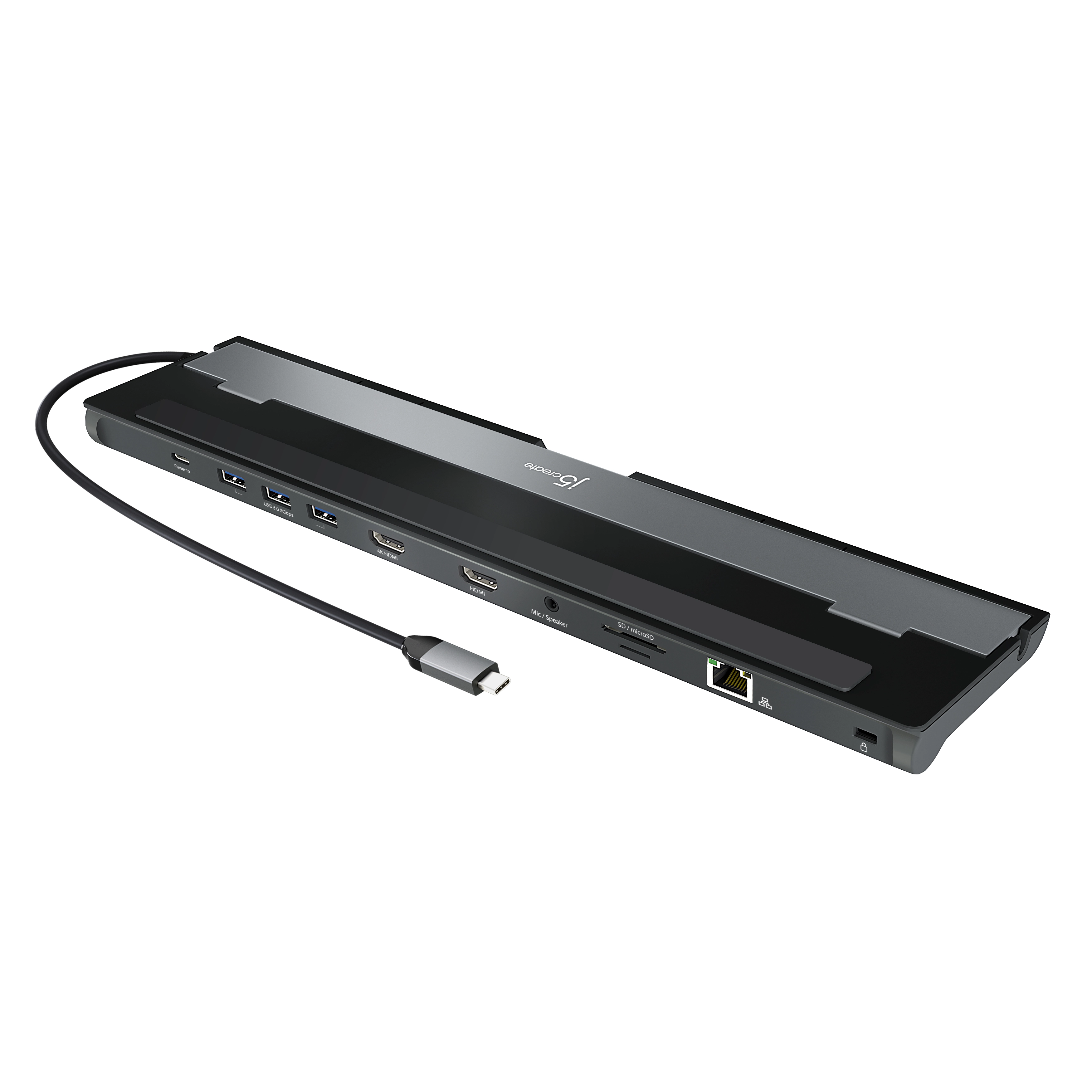

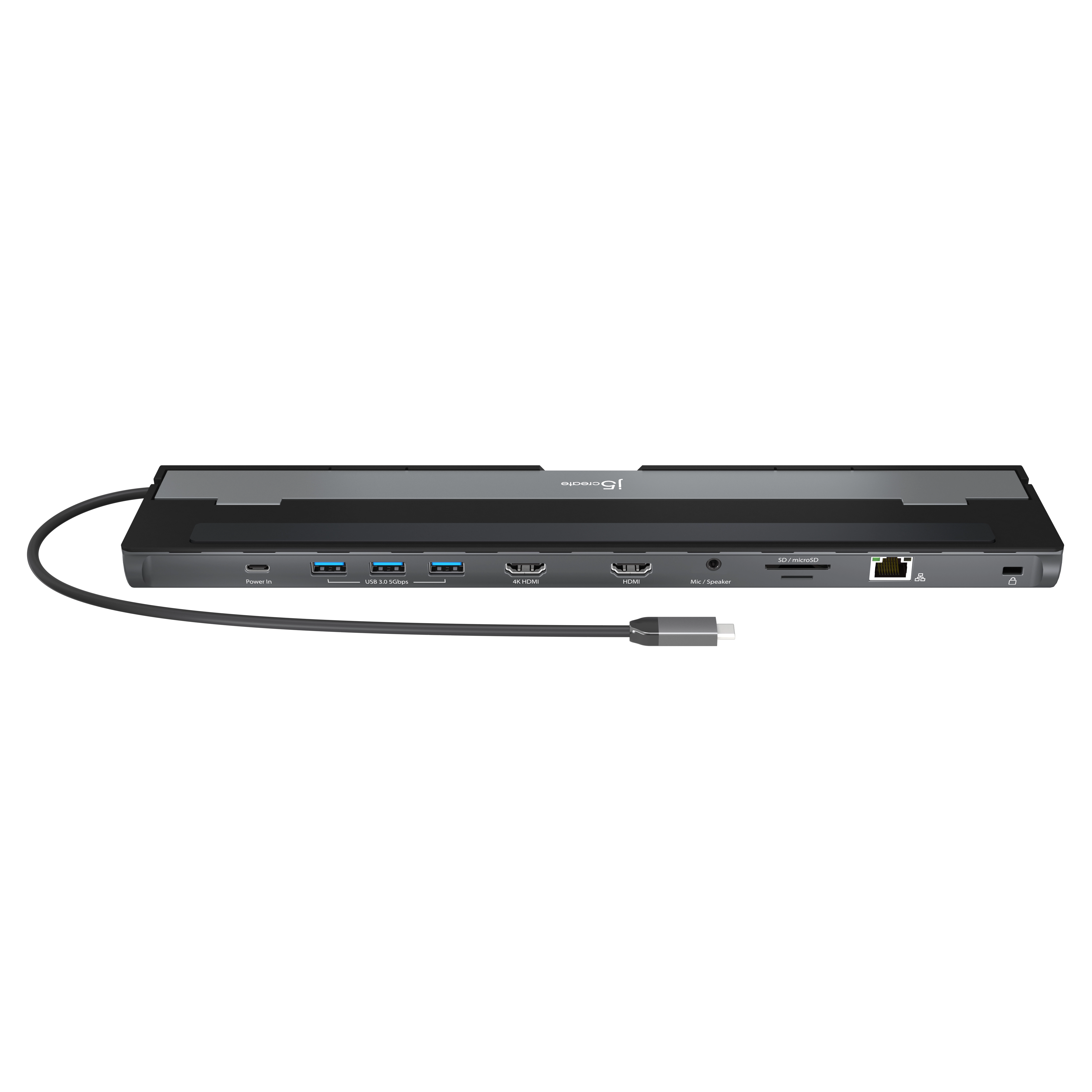

This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.

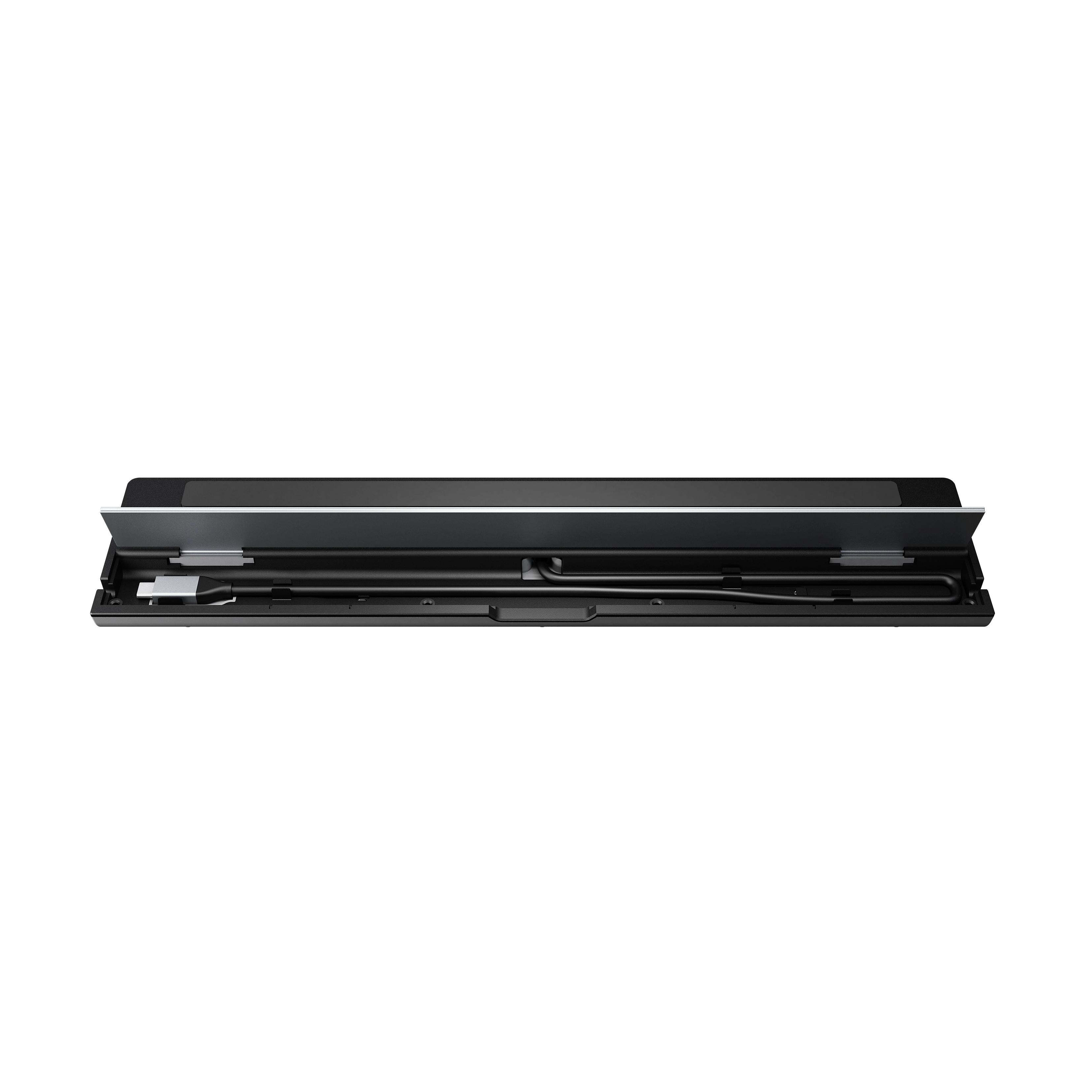

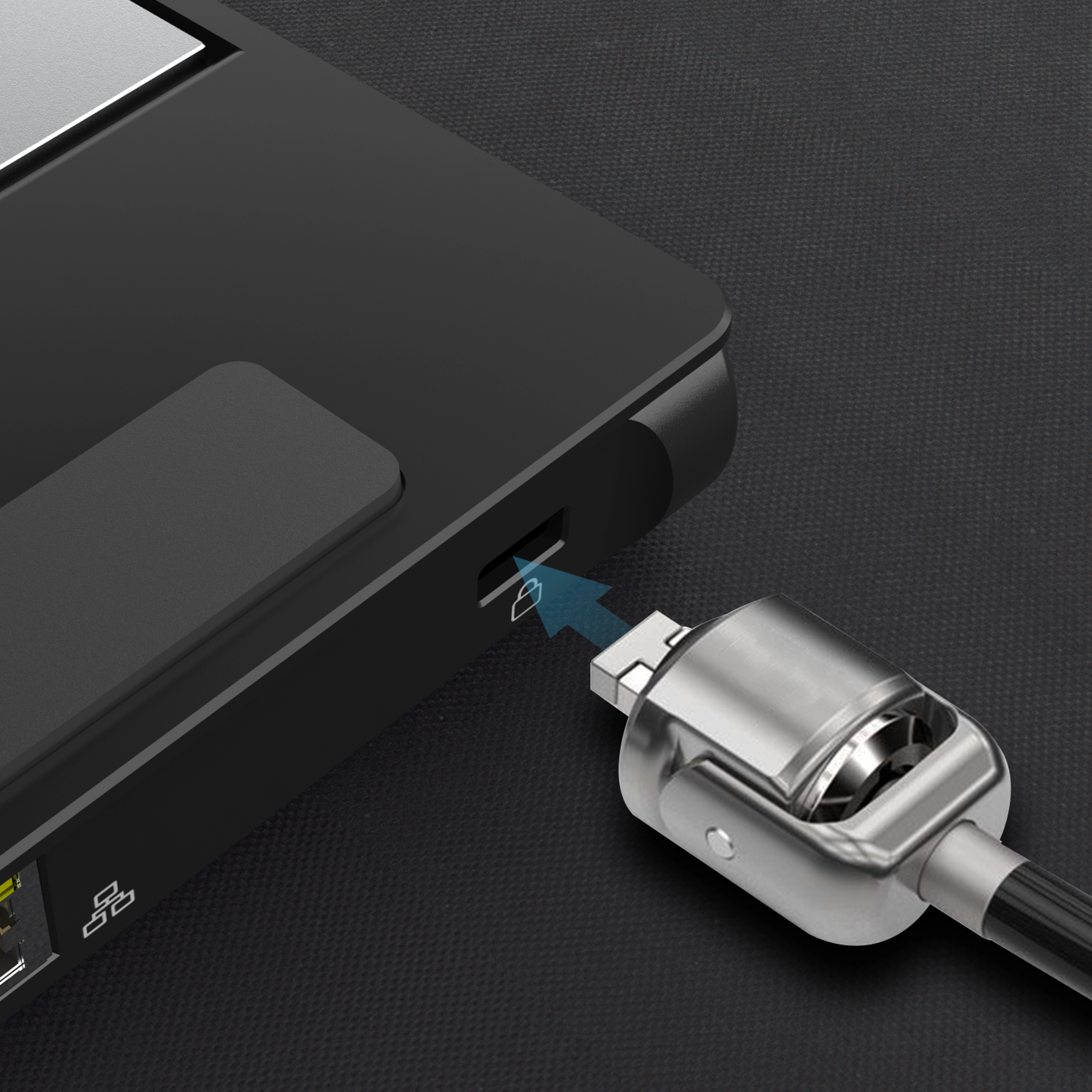

This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.

Specification

Product
Product id	990420
Brand	j5create
Partnr	JCD542-N
EAN/UPC code	4712795086041
Warranty (months)	2 year manufacturer warranty
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
Combo headphone/mic port	Y
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Black, Grey
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Number of displays supported	2
Maximum refresh rate	30 Hz
Housing material	Aluminium
Hub interfaces	3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Country of origin	Taiwan
Power
Power supply type	USB
Output current	0.9 A
Output voltage	20 V
Power consumption (typical)	4.5 W
Software
Windows operating systems supported	Windows 10
Mac operating systems supported	Mac OS X 10.11 El Capitan
Weight & dimensions
Width	82.46 mm
Depth	350.18 mm
Height	21.98 mm
Weight	307 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	88.3 mm
Package depth	358 mm
Package height	28 mm
Package weight	405 g
Packaging content
Manual	Y
Quick start guide	Y
Packaging content	1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG)
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Technical details
Warranty period	2 jaar
Other features
Maximum operating temperature	40 °C
Cable length	0.45 m
