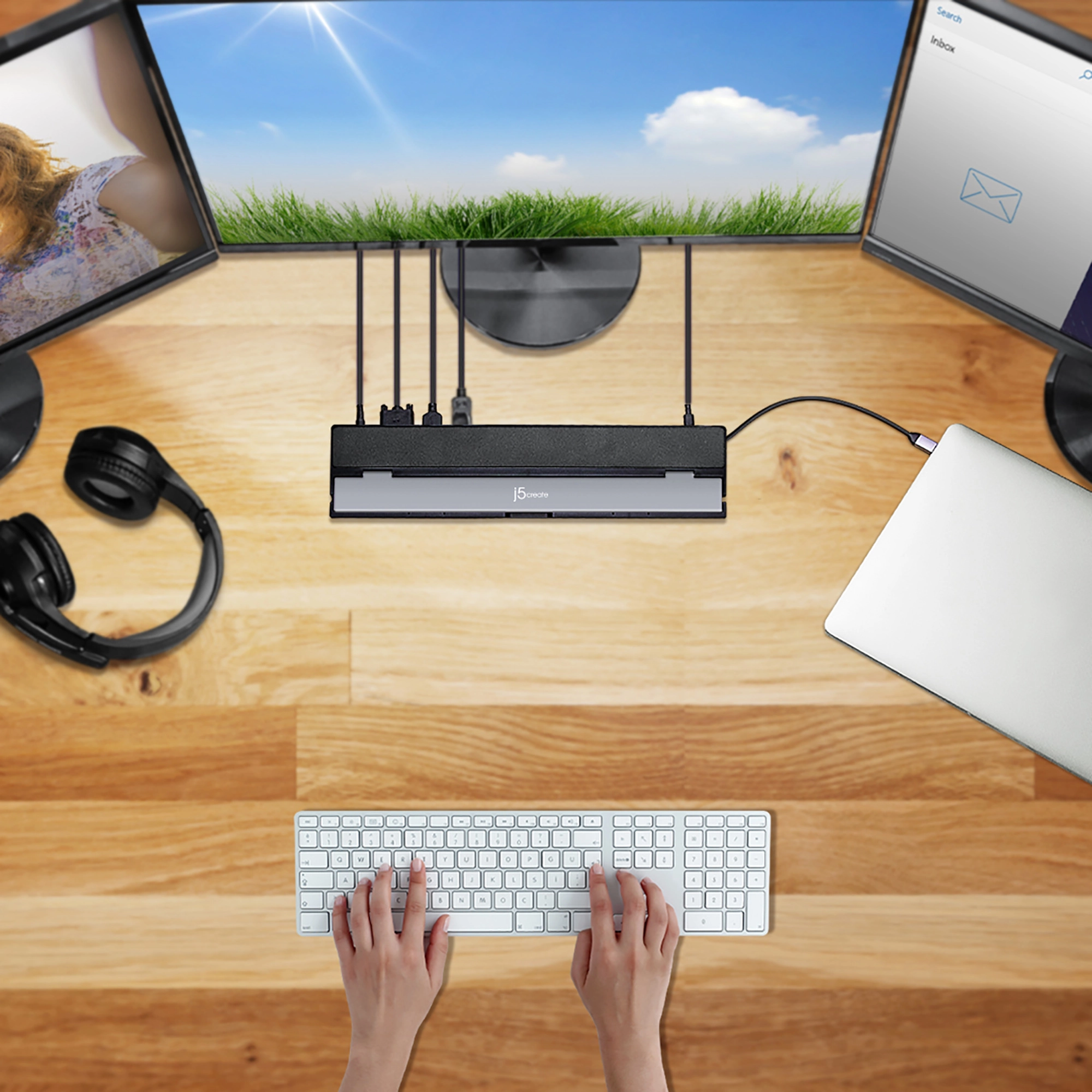

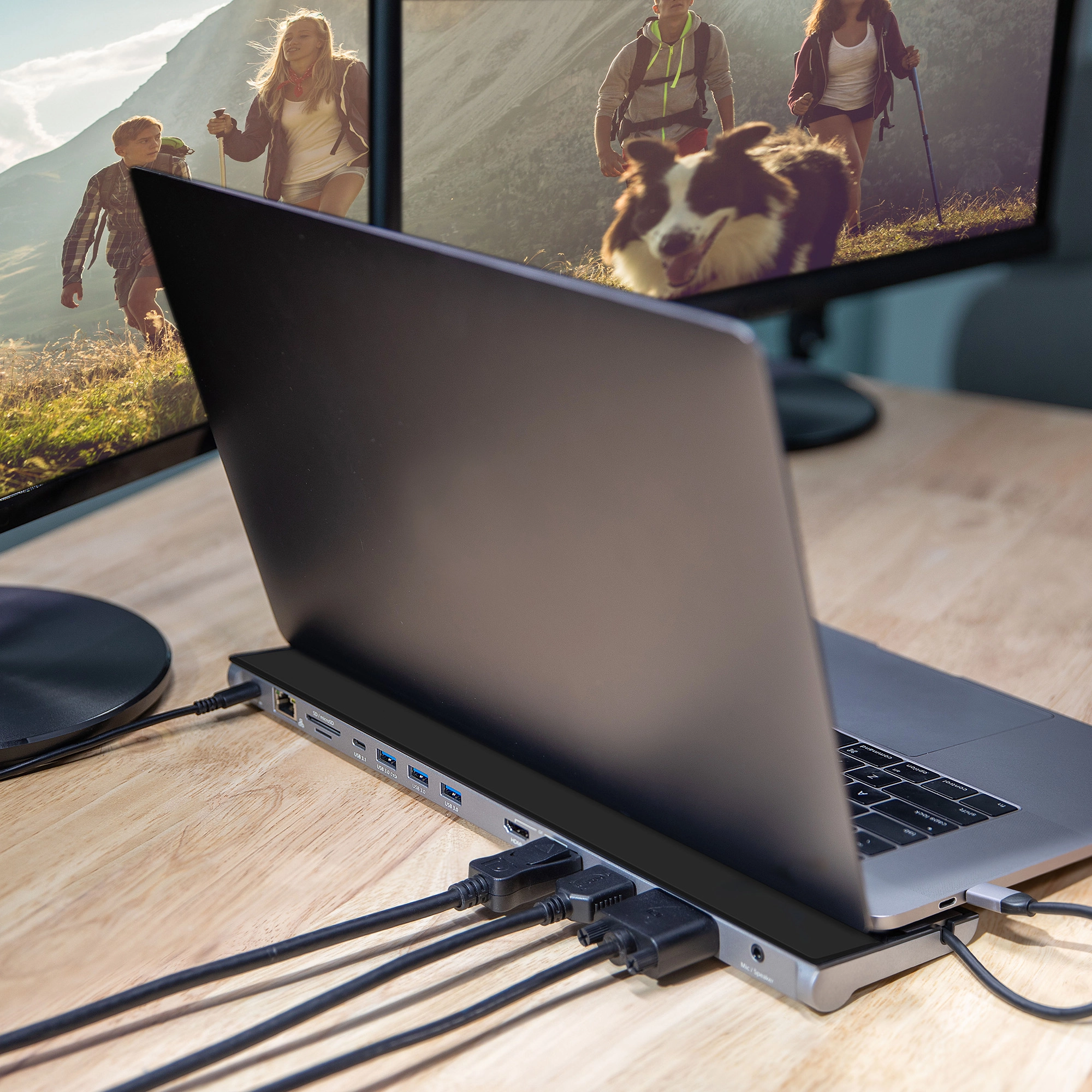

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.

Specification

Product
Product id	990421
Brand	j5create
Partnr	JCD543-N
EAN/UPC code	4712795083613
Warranty (months)	2 year manufacturer warranty
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	Y
Headphone outputs	1
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Performance
Product colour	Black, Silver
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Number of displays supported	3
Maximum refresh rate	60 Hz
Housing material	Aluminium
Hub interfaces	DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Country of origin	Taiwan
Power
Input current	5 A
Output current	0.9 A
Output voltage	20 V
Power consumption (typical)	4.5 W
Power plug type	Type C
Software
Windows operating systems supported	Windows 10, Windows 11, Y
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Y
Weight & dimensions
Width	82.5 mm
Depth	350 mm
Height	23.4 mm
Weight	355 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	88 mm
Package depth	358 mm
Package height	28 mm
Package weight	433 g
Packaging content
Manual	Y
Quick start guide	Y
Packaging content	1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter
AC adapter included	N
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Warranty period	2 jaar
Other features
Maximum operating temperature	48 °C
Cable length	0.45 m
