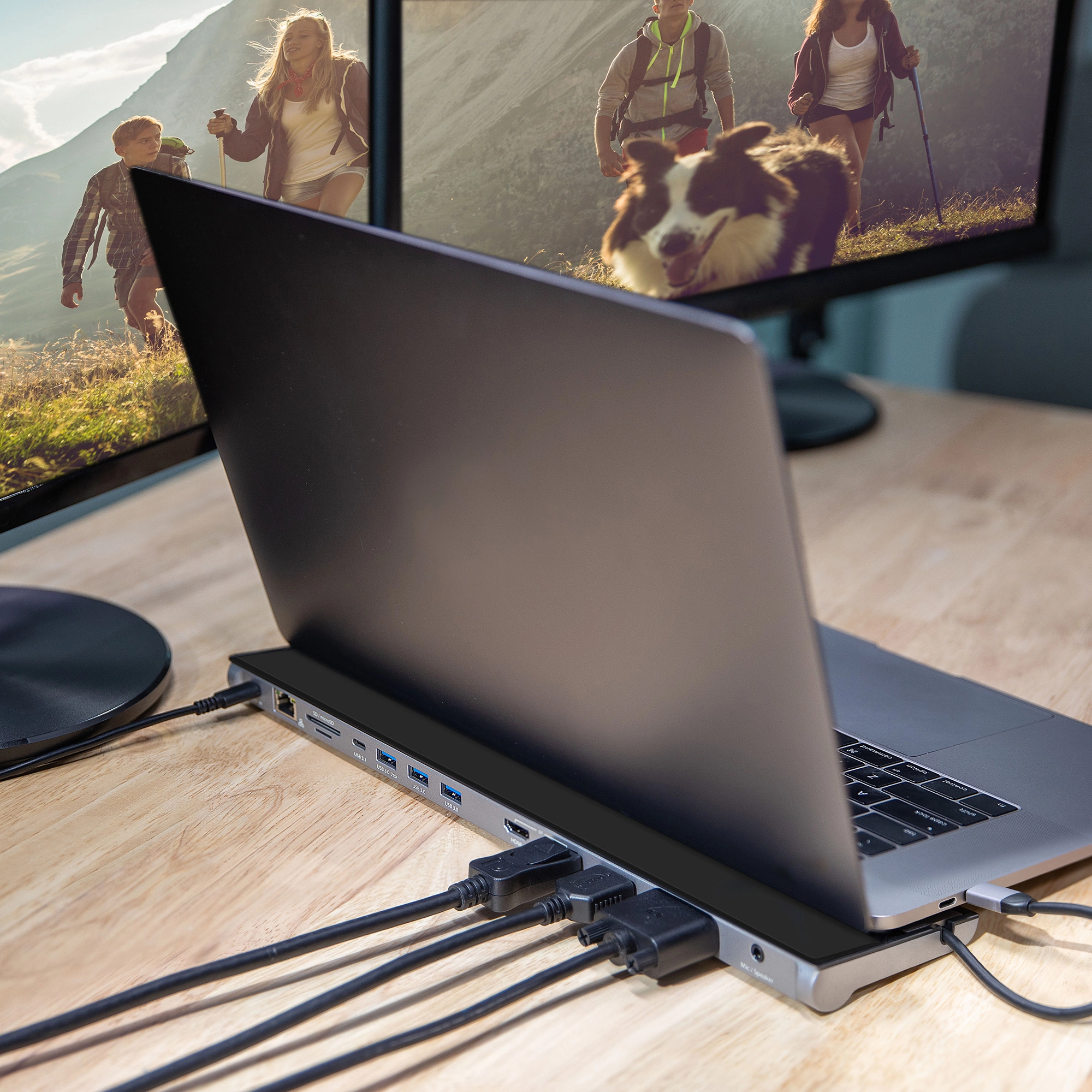

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, the docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.

This USB™ 3.0 docking station is also equipped with an RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port’s location.

All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!

Specification

Product
Product id	990424
Brand	j5create
Partnr	JCD543P-EN
EAN/UPC code	4712795083996
Warranty (months)	2 Year Limited
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Microphone in	N
Combo headphone/mic port	Y
Headphone outputs	1
Headphone connectivity	3.5 mm
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Black, Silver
Card reader integrated	Y
Colour name	Silver and Black
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	5 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 1080 Pixels
Maximum analog resolution	1920 x 1080 Pixels
Number of displays supported	3
Compatibility	Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Display modes	Extended, Mirror
Housing material	Aluminium
Country of origin	Taiwan
Power
Power source type	DC, USB
Power connector	USB Type-C
AC input voltage	110 - 220 V
Power supply	100 W
Input current	0.8 A
Output current	4.75 A
Output voltage	20 V
Power consumption (typical)	4.5 W
USB cable length	0.45 m
Software
Windows operating systems supported	Windows 10, Windows 11, Y
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Y
Weight & dimensions
Width	82.5 mm
Depth	350 mm
Height	23.37 mm
Weight	300 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	89.3 mm
Package depth	358 mm
Package height	63.5 mm
Package weight	889.5 g
Packaging content
Quick start guide	Y
Packaging content	1 - JCD543P USB-C™ Triple Display Docking Station 1 - JUP2290 100W USB-C™ Super Charger 1 - Quick Installation Guide
AC adapter included	Y
Cables included	USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Warranty period	2 jaar
Logistics data
Export Control Classification Number (ECCN)	EAR99
Master (outer) case weight	2000 g
Master (outer) case height	123 mm
Master (outer) case length	398 mm
Master (outer) case width	150 mm
Quantity per master (outer) case	2 stuk(s)
Other features
Special features	Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs
I/O ports	2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack
