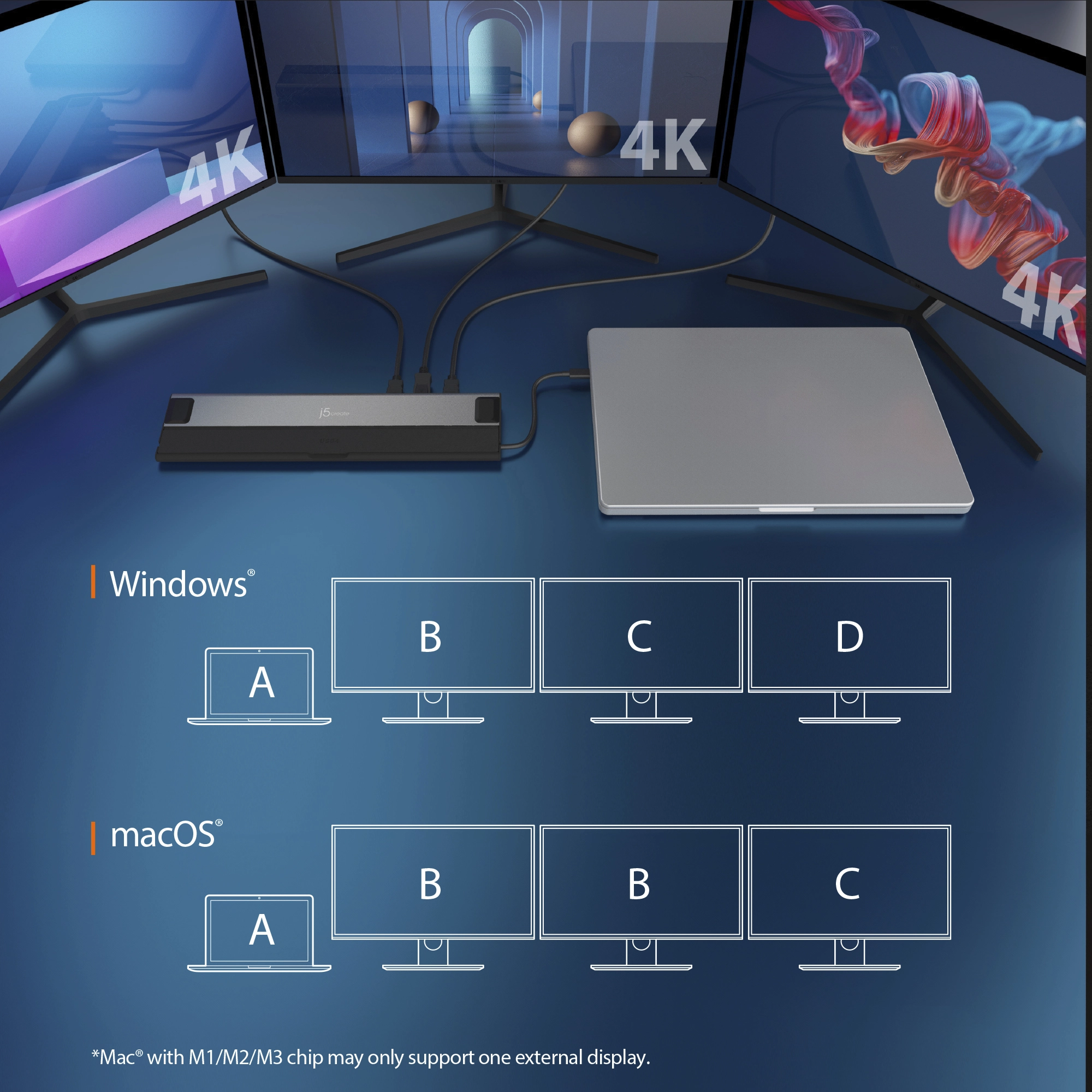

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™, HDMI™ or USB-C® and access data faster without affecting system performance. Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W passthrough power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.

Specification

Product
Product id	990410
Brand	j5create
Partnr	JCD554-N
EAN/UPC code	4712795088182
Warranty (months)	2 Years
Ports & interfaces
Connectivity technology	Wired
Host interface	USB4
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
HDMI ports quantity	2
DisplayPorts quantity	1
Microphone in	Y
Combo headphone/mic port	Y
Headphone outputs	1
USB Type-C DisplayPort Alternate Mode	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Performance
Product colour	Black, Grey
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Number of displays supported	3
Cable lock slot	Y
Cable lock slot type	Kensington
Maximum refresh rate	144 Hz
Display modes	Extended, Mirror
Housing material	Aluminium
Plug and Play	Y
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Country of origin	Taiwan
Power
Power source type	USB
Input current	3 A
Output current	4.25 A
Output voltage	20 V
Power consumption (typical)	4.5 W
Power plug type	Type C
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Sustainability
Sustainability compliance	Y
Weight & dimensions
Width	344 mm
Depth	23.56 mm
Height	81.39 mm
Weight	463 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	88.3 mm
Package depth	358 mm
Package height	28 mm
Package weight	574 g
Packaging content
Quick start guide	Y
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Technical details
Master (outer) case GTIN (EAN/UPC)	24712795088186
Warranty period	2 jaar
Compliance certificates	CE, REACH, RoHS
Logistics data
Quantity per shipping (inner) case	2 stuk(s)
Master (outer) case net weight	2800 g
Export Control Classification Number (ECCN)	EAR99
Master (outer) case height	123 mm
Master (outer) case length	398 mm
Master (outer) case width	150 mm
Quantity per master (outer) case	4 stuk(s)
Shipping (inner) case width	66 mm
Shipping (inner) case length	380 mm
Shipping (inner) case height	99 mm
Shipping (inner) case net weight	1200 g
Other features
Cable length	0.5 m
