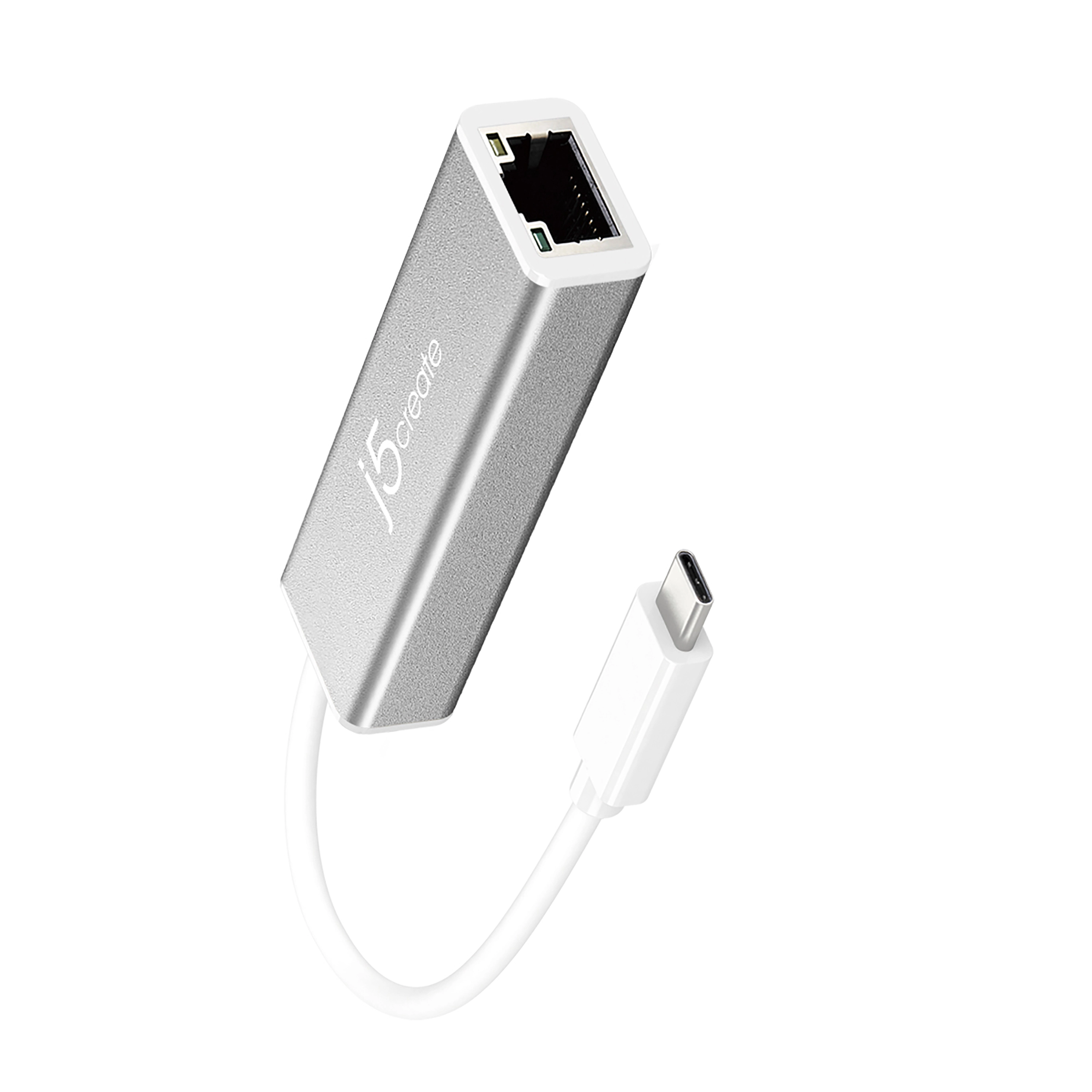

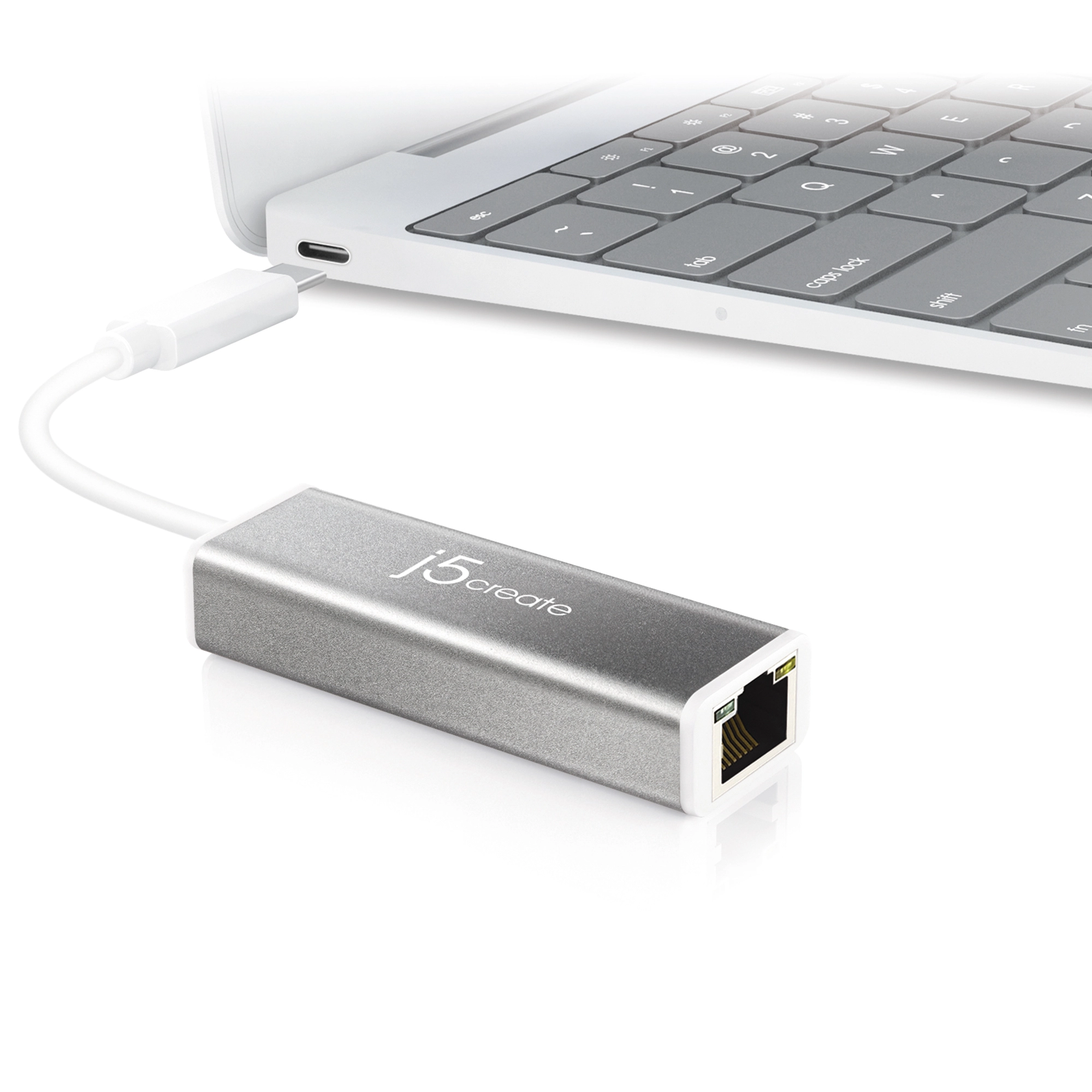

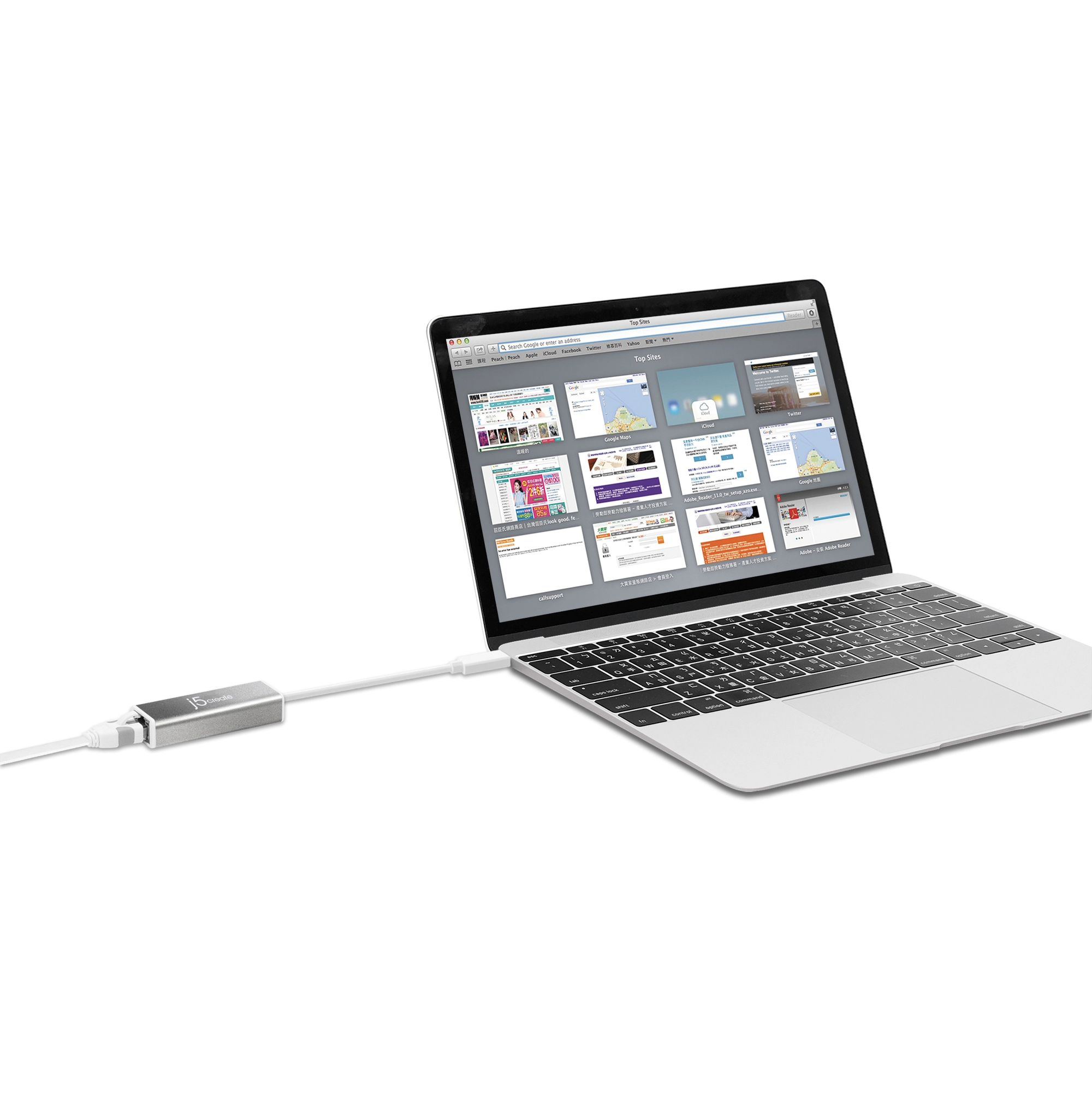

j5create’s JCE133G is a simple, one-piece external adapter that plugs into the USB-C™ port on your Ultrabook™ or MacBook®. The JCE133G is the ultimate solution if you do not have an Ethernet port or if you just want to increase your speed. The elegantly designed JCE133G uses an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance. The JCE133G allows you to add networking capabilities to a computer without them through a Wi-Fi connection.

Specification

Product
Product id	990345
Brand	j5create
Partnr	JCE133G-N
EAN/UPC code	4712795083569
Warranty (months)	2 year manufacturer warranty
Bandwidth
Data transfer rate	5 Gbit/s
Technical details
Warranty period	2 jaar
Ports & interfaces
Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
USB connector form factor	Straight
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Wake-on-LAN ready	Y
Design
Internal	N
Component for	PC/Notebook
Product colour	Grey, White
Plug and Play	Y
LED indicators	Activity, Link
Country of origin	Taiwan
Power
Output voltage	5 V
Power consumption (typical)	0.9 W
Power consumption	180 mA
USB powered	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Packaging content
Cables included	USB
Quick installation guide	Y
Packaging content	1 x USB Type-C™ to Gigabit Ethernet Adapter, 1 x Quick Installation Guide
Packaging data
Package width	120 mm
Package depth	97 mm
Package height	25 mm
Package weight	86 g
System requirements
Compatible operating systems	Windows® 10 Windows Server™ 2016/2012/2008R2/2008 macOS® 10.6 later Linux® Kernel up to 4.15 Chrome OS™ Native Driver Support, no additional driver needed in Windows® 10, macOS® 10.6 later, or Chrome OS™
Windows operating systems supported	Windows 10
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	ChromeOS
Weight & dimensions
Width	68 mm
Depth	14.5 mm
Height	23 mm
Weight	33.4 g
Logistics data
Master (outer) case GTIN (EAN/UPC)	24712795083563
Master (outer) case width	280 mm
Master (outer) case length	210 mm
Master (outer) case height	145 mm
Master (outer) case weight	2140 g
Quantity per master (outer) case	20 stuk(s)
Other features
Housing material	Aluminium
Maximum operating temperature	40 °C
Commodity Classification Automated Tracking System (CCATS)	8471.80.0000
Export Control Classification Number (ECCN)	EAR99
Cable connection	USB
USB cable	USB-C
Cable length	0.1 m
